Number Bar Ratio (Low Bid Volume or High Ask Vol percent) to display on the chart

View Count: 4559

[2018-09-19 17:37:39] #1 [Go To First Post]
User800328 - Posts: 50
Hi guys, I would like to see if there is a possibility of displaying the "Low Bid Volume Percent" or "High Ask Volume Percent" from the Number Bar Calculated Values on the chart itself--below the bar or above the bar. Here is the image. http://www.sierrachart.com/image.php?Image=1537376959508.png If you see the "Low Bid Volume Percent" row, The values are 152,361,282 etc... I need this value to appear above the first BAR, second BAR etc. on the chart and not in the calculated values study and we display ONLY when its a red candle. Similarly, if you see "High Ask Volume Percent" on the last row , I need the value 378, 432, 1386 etc below the number bar on first , second, third bar etc on the chart itself and we display ONLY when its a green candle.

[2018-09-19 18:18:30] #2 [Go To First Post]
John - SC Support - Posts: 30956
Yes, you need to use a combination of the Numbers Bars Calculated Values, Study Subgraph Above/Below Bar as Text, and the Color Bar Based on Alert Condition studies. Attached is a Study Collection that will do this for you. You can apply it to a regular chart or to a chart with the Numbers Bars on it. To use this Study Collection, follow the instructions here: Study Collections: Using a Study Collection Provided by Sierra Chart Support For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing


LowBidHighAskAboveRedGreenBar.StdyCollct - Attached On 2018-09-19 18:18:26 UTC - Size: 46.63 KB - 944 views

[2018-09-19 19:20:38] #3 [Go To First Post]
User800328 - Posts: 50
Thanks a lot. Appreciate the help. Although it always show the value on the TOP of the bar (I tried changing to display to low of bar but didnt work), I can live with it. If I really wanted to display at below the bar, I will contact you in coming days. Thanks.

[2018-09-19 19:21:56] #4 [Go To First Post]
John - SC Support - Posts: 30956
Just change the Draw Style for the Color Bar Based on Alert Condition to Value on Low to draw it below the bar. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2018-09-19 19:40:47] #5 [Go To First Post]
User800328 - Posts: 50
Thanks a lot. Yes it works. (I dont know why was it not working earlier :)) One last question. Is it possible to display the Number Bars study as shown in the attached image ? (Candle in the center, and numbers on the side) It just looks near and tidy. Thanks in advance.


Screen Shot 2018-09-19 at 10.19.26 AM.png / V - Attached On 2018-09-19 19:40:12 UTC - Size: 168.52 KB - 1010 views

[2018-09-20 21:42:41] #6 [Go To First Post]
John - SC Support - Posts: 30956
No, not exactly. The options that are available are defined here: Numbers Bars: Open and Close Marker Style For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2019-03-28 13:11:17] #7 [Go To First Post]
User496503 - Posts: 33
I have existing number bar study with other settings . But when I overlay lowbidhighask chp, main chart is disappearing . Please help

[2019-03-29 14:36:31] #8 [Go To First Post]
John - SC Support - Posts: 30956
What study is being overlaid onto which chart? We need more specific information to understand what is happening. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2019-03-29 15:30:09] #9 [Go To First Post]
User496503 - Posts: 33
I have numberbar chart . I am trying to add lowbidhighaskabove Red Greencolor.studycollect file posted in post 759 . Once I add, number bar study is disappearing

[2019-06-08 01:13:49] #10 [Go To First Post]
User496503 - Posts: 33
If I download the studycollect file mentioned in post #2 and open new number bar chart, lowbid high ask volume percent is perfectly working I have already created * number bar study with certain special studies on it When I try to add the study collect file on *the already created number bar study, number bar study is disappearing and all the special studies added earlier too disappear I sought the help twice already but in vain Is this study collect file working only on new number bar study file to be opened or it can be overlaid on existing number bar study file

[2019-06-09 03:03:01] #11 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
That Study Collection is going to replace all studies but it can be changed. More information about this is here: Study Collections: Adding a Study Collection Without Clearing Existing Studies On The Chart (Prompt to Remove Existing Studies) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2019-06-09 03:03:25

[2021-01-11 16:49:36] #12 [Go To First Post]
User238701 - Posts: 130
Could you please clarify how the low bid volume and high ask volume percentages were calculated? I cannot find anything in the documentation.

[2021-01-11 18:08:49] #13 [Go To First Post]
John - SC Support - Posts: 30956
You will find the information for how all of the Numbers Bars calculations are performed in this section: Numbers Bars: Numbers Bars Calculated Values Subgraph Descriptions For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-05-15 14:43:04] #14 [Go To First Post]
User904434 - Posts: 46
Can third Person use this indicator or it has to be adjusted for each one chart settings separatly ?

[2023-05-15 16:25:58] #15 [Go To First Post]
John - SC Support - Posts: 30956
We are not understanding this question - "Can third Person use this indicator or it has to be adjusted for each one chart settings separatly ?" For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-05-19 11:57:19] #16 [Go To First Post]
User904434 - Posts: 46

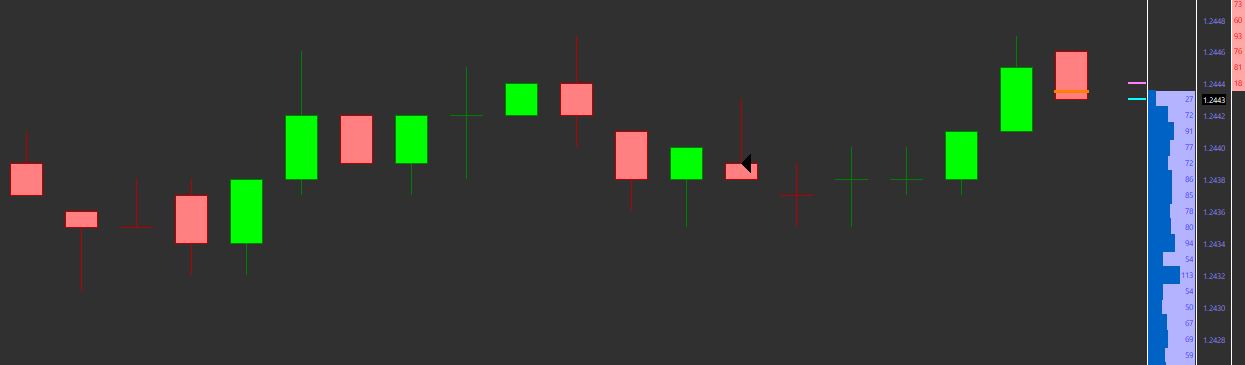

ok when I copy this Study "LowBidHighAskAboveRedGreenBar.StdyCollct " - it change my number bars into normal bars, why?


study after.JPG / V - Attached On 2023-05-19 11:50:06 UTC - Size: 28.3 KB - 101 views Attachment Deleted.

[2023-05-19 20:52:57] #17 [Go To First Post]
John - SC Support - Posts: 30956
Because the Study Collection, by default, removes all other studies from a chart. In order to not do so, you need to change the name of the Study Collection so it has a plus sign (+) at the end of the name (such as StudyCollection+.StdyCollct). When you have the plus sign at the end of the name, then it will prompt you to delete other studies or not. Refer to the information here: Study Collections: Adding a Study Collection Without Clearing Existing Studies On The Chart (Prompt to Remove Existing Studies) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-05-20 09:21:34] #18 [Go To First Post]
User904434 - Posts: 46

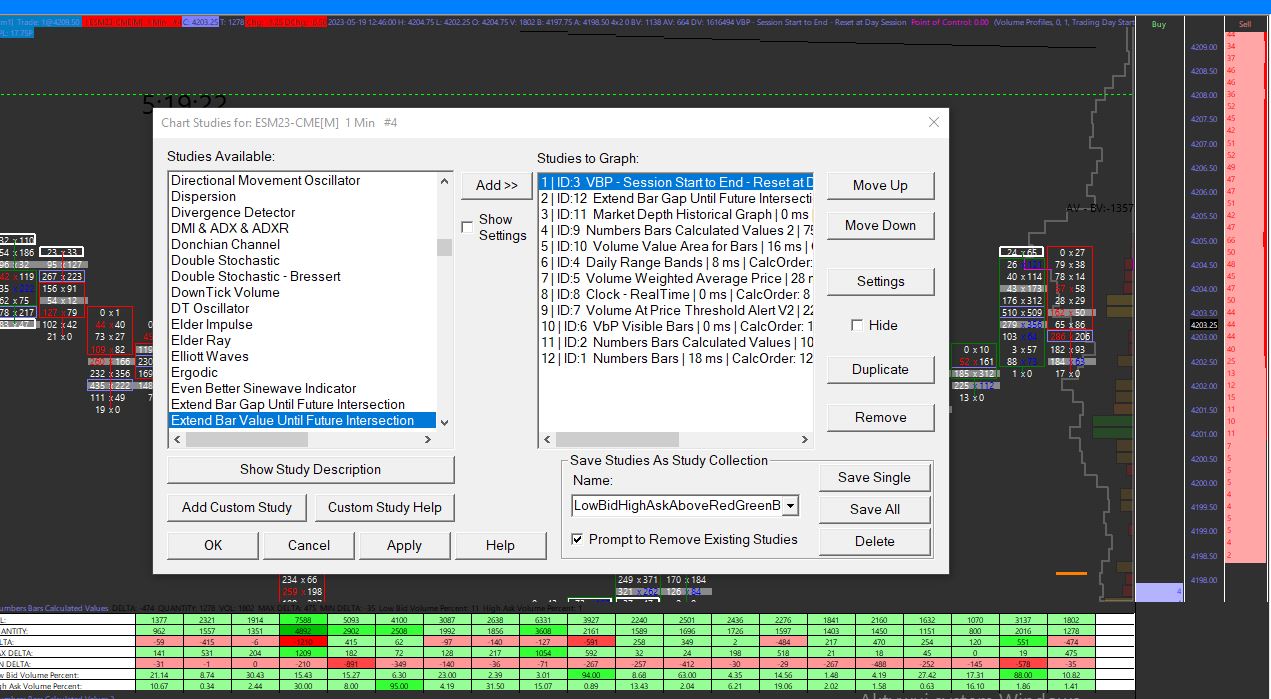

It is not working after adding + / changing the name


study not w.JPG / V - Attached On 2023-05-20 09:20:32 UTC - Size: 188.79 KB - 81 views

[2023-05-22 14:20:44] #19 [Go To First Post]
John - SC Support - Posts: 30956
We see the option for "Prompt to Remove Existing Studies" is enabled in the image you provided, which implies that the Study Collection has the correct name. When you select "Analysis >> [StudyCollectionName]" you should be getting a prompt as to whether you want to remove existing studies or not. Refer to the following for how to apply a Study Collection: Study Collections: Applying a Study Collection to a Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2023-11-21 12:13:44] #20 [Go To First Post]
gtaranti - Posts: 38
The LowBidHighAskAboveRedGreenBar.StdyCollct you shared on Post #2 is not working. Maybe an update to SC has made it non-functional? When trying to add the study collection nothing seems to happen and in the Message log there is the following entry: Invalid Study Collection header code. C:\SierraChart\Data\LowBidHighAskAboveRedGreenBar.StdyCollct. \| 2023-11-21 07:06:16.590 *

[2023-11-21 16:44:18] #21 [Go To First Post]
John - SC Support - Posts: 30956
Yes, the study collection is old and needed to be updated. We have done this and attached the updated study collection to this thread. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing


LowBidHighAskAboveRedGreenBar.StdyCollct - Attached On 2023-11-21 16:44:14 UTC - Size: 80.31 KB - 96 views

[2023-11-21 17:36:49] #22 [Go To First Post]
gtaranti - Posts: 38
Thank you, it works now...
