DOM Depth Help
View Count: 175
| [2025-04-21 13:55:23] |
| User969241 - Posts: 134 |
|

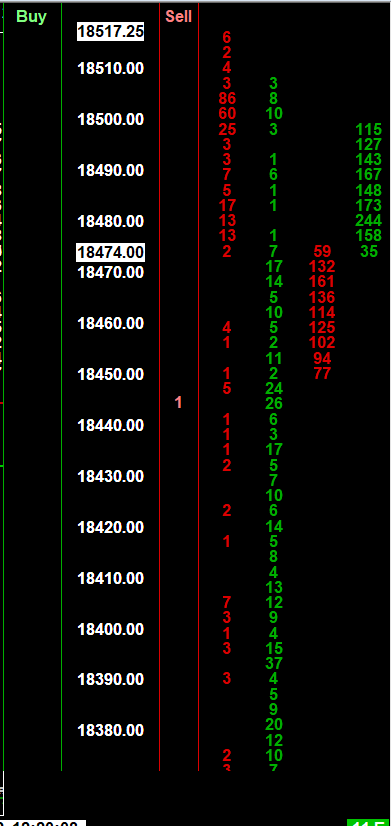

I am trying to see the depth of market for BID/ASK that run about 100pts up and 100 pts down from the current price. It is only showing the current bid/ask and then the volume transacted at bid and ask for a bunch of levels. I can't see all of the level of limit orders I want to see.
|
 bidask.png / V - Attached On 2025-04-21 13:55:12 UTC - Size: 73.72 KB - 24 views |
| [2025-04-21 15:59:16] |
| John - SC Support - Posts: 39559 |
|
You do not have an exchange active that includes the Market Depth data. You need to pay for the Market Depth data. Refer to the following for how to change your exchange selection: Denali Exchange Data Feed: Changing Denali Exchange Data Feed Exchange Selections For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-21 17:26:26] |
| User969241 - Posts: 134 |
|
Ok. I activated it but I only see about 20pts per side of price in depth. How do I see a lot more?
|
| [2025-04-21 18:30:55] |
| John - SC Support - Posts: 39559 |
|
Refer to the following: File Menu: Not Receiving the Full Number of Market Depth Levels For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-21 21:47:59] |
| User969241 - Posts: 134 |
|
I set the max depth level to 0 but still only shows 10 levels above and 10 levels below price. When I was backtesting in chart replay over the weekend it would show 50+ levels on both sides. I opened a new chart and can't get this one to display the same amount of levels at the moment.
|
| [2025-04-21 21:50:28] |
| John - SC Support - Posts: 39559 |
|
Please get us an image of what you are seeing by following these instructions: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) And tell us the symbol of the chart. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-22 15:26:21] |
| User447693 - Posts: 50 |
|
How did sierra correct this I am having the same issue
|
| [2025-04-22 15:52:29] |
| John - SC Support - Posts: 39559 |
|
We never heard back from the original poster. As to your issue User447693, start by going through the items at the following link: File Menu: Not Receiving the Full Number of Market Depth Levels For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-22 16:21:48] |
| User969241 - Posts: 134 |
|
The DOM ends up looking like this. There are 9 rows on either side. I need to see hundreds of points on either side of price.
|
Attachment Deleted. |
| [2025-04-22 16:56:30] |
| User447693 - Posts: 50 |
|
I dont see all the points i see only +/- 100 levels, perhaps sierra has changed the amount to display?
|
| [2025-04-22 17:33:33] |
| John - SC Support - Posts: 39559 |
|
User969241: What is the symbol of the chart in that image? For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-22 17:34:18] |
| John - SC Support - Posts: 39559 |
|
User447693: Did you go through all the items in the link we gave? What is the symbol of the chart in which you are having an issue? Please get us an image of what you are seeing by following these instructions: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-22 17:56:03] |
| User447693 - Posts: 50 |
|
Yes i Did I have only charts of NQ, ES, MES and MNQ up This is what i did I did that still not getting it This is what I did I went to sierra server setting and set the "support downloading historical market depth data" to yes And then set "max historical market depth days to down load" to 0 I went to global setting-symbol setting and selected the symbols and "set supports market Depth" to supported and then "number of depth levels to subscribe" to 0 I went to chart DOM settings and set number of depth levels to 0 I disconnected and reconnected I still see to +-100 levels My data/service setting under comman settings: allow support for sierra chart data feeds: set to YES Maximum time and sales dept levels set to 0 number of stored time and sales records set to 5000 I quit sierra and reloaded the charts I still see 100 levels Am I supposed to subscribe to the depth? I have tenton and stage 5 and level 11 I am out of options thanks for any help |
| [2025-04-22 18:01:35] |
| John - SC Support - Posts: 39559 |
|
User447693: We do not need all that information each time you post. We need to know the exact symbol of the chart as it is entered in "Chart >> Chart Settings >> Symbol >> Symbol". Just one symbol. And we need an image of that chart showing the DOM with the levels as you state they are. Follow these instructions to get us that image: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) Also, with the chart referenced above active, select "File >> Open Market Depth Window", then scroll to the bottom of that window and follow the above instructions again to get us an image of that window. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-04-22 18:09:01] |
| User447693 - Posts: 50 |
|

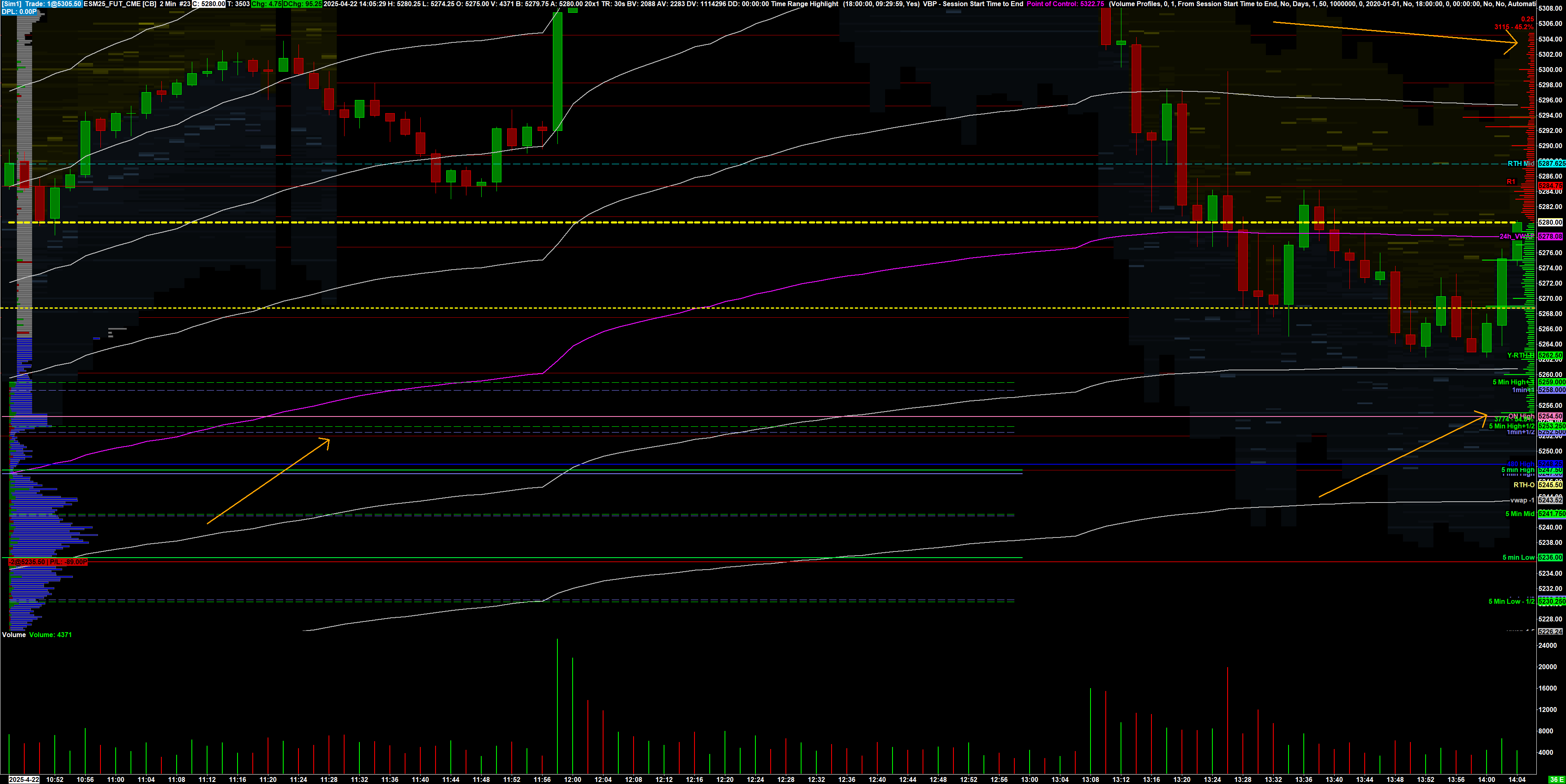

https://www.sierrachart.com/image.php?Image=1745345131101.png
|
| [2025-04-22 18:12:37] |
| User447693 - Posts: 50 |
|

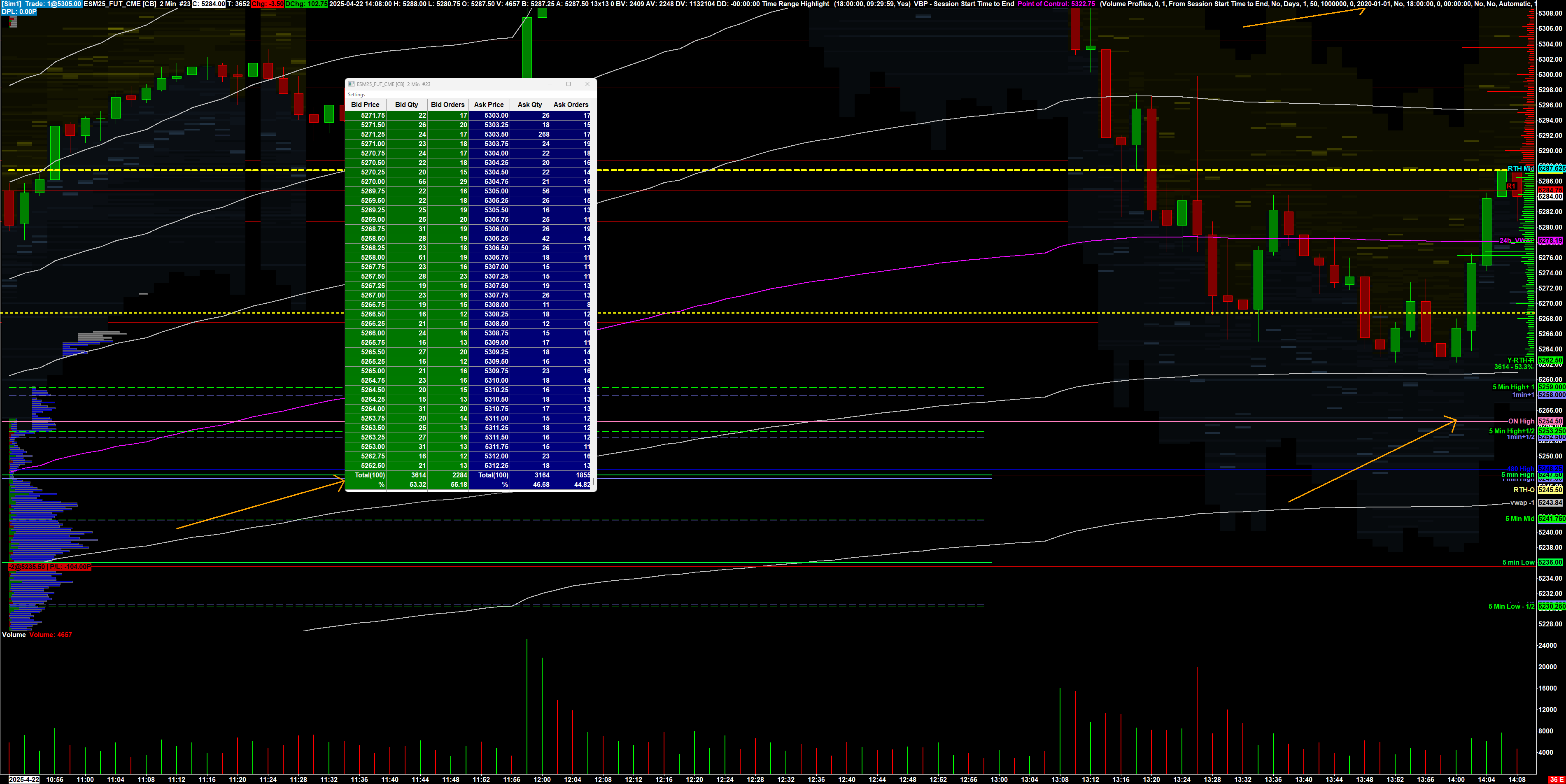

https://www.sierrachart.com/image.php?Image=1745345546481.png
|
| [2025-04-22 18:16:53] |
| John - SC Support - Posts: 39559 |
|
User447693: You are only getting 100 levels of data. You need to check the setting for "Global Settings >> Sierra Chart Server Settings >> Max Depth Levels". It looks like this is set to 100. If you want the full levels then this should be set to 0. Refer to the following: Sierra Chart Server Settings: Max Depth Levels (Global Settings >> Sierra Chart Server Settings >> General >> General) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
