renko settings & numbers bars calculated values subgraphs

View Count: 155

[2023-08-21 18:45:44]
Zaki Ashur - Posts: 2
Hi
I trust you're well.
Is there any chance you could help me with my renko settings please and the numbers bars values subgraph, mine is image one and I'm trying to get it to look like image two.
both the images are for the same contract and at the same time.

1. the candle format is different
2. the extension for each price level on candle is coloured to show the dominate side, buyers or sellers
3. renko setting, I'm not if I've gottten this correct - I don't think I have
4. the subgraphs maybe correct, I'm not positive

I'd really appreciate it if you could assist me.

Regards,
Zak

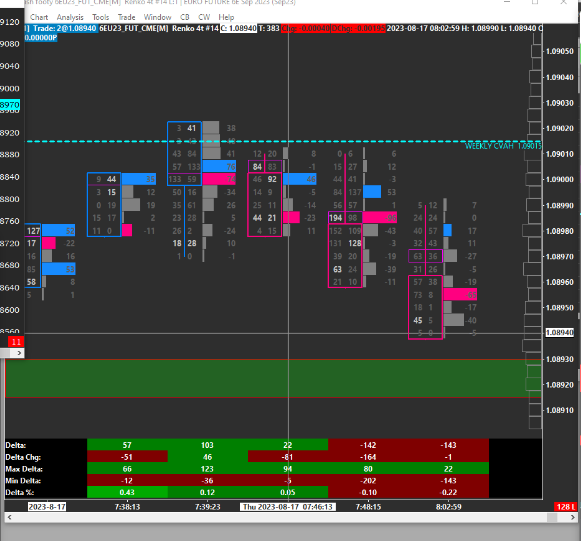

imageimage one.png / V - Attached On 2023-08-21 18:45:34 UTC - Size: 43.9 KB - 49 views
imageimage two.PNG / V - Attached On 2023-08-21 18:45:39 UTC - Size: 77.79 KB - 54 views
[2023-08-21 18:52:36]
John - SC Support - Posts: 29622
With regards to the Renko settings, Image 2 shows that it is standard Renko with a 4 tick size. Image 1 shows the chart is setup as a Flex Renko with settings of 6-3-1. Refer to the following:
Chart Settings: Intraday Chart Bar Period >> Bar Period Type >> Renko Bar (in ticks)

Image 1 has the candle displayed as an overlay such that the candle is sitting in the middle of the numbers. Image 2 is using the Numbers Bars Input for "Open/Close Marker Style" of "Candlestick Body Outline". Refer to the following:
Numbers Bars: Candlestick Body Outline

With regards to the Numbers Bars Calculated Values, Image 2 is using the Input for "Color Background Based on Value Percentages" set to "Yes". Refer to the following:
Numbers Bars: Numbers Bars Calculated Values Input Descriptions
