Graphic request for numbers bars

View Count: 662

[2021-06-29 09:58:43] #1 [Go To First Post]
Mark_47 - Posts: 27

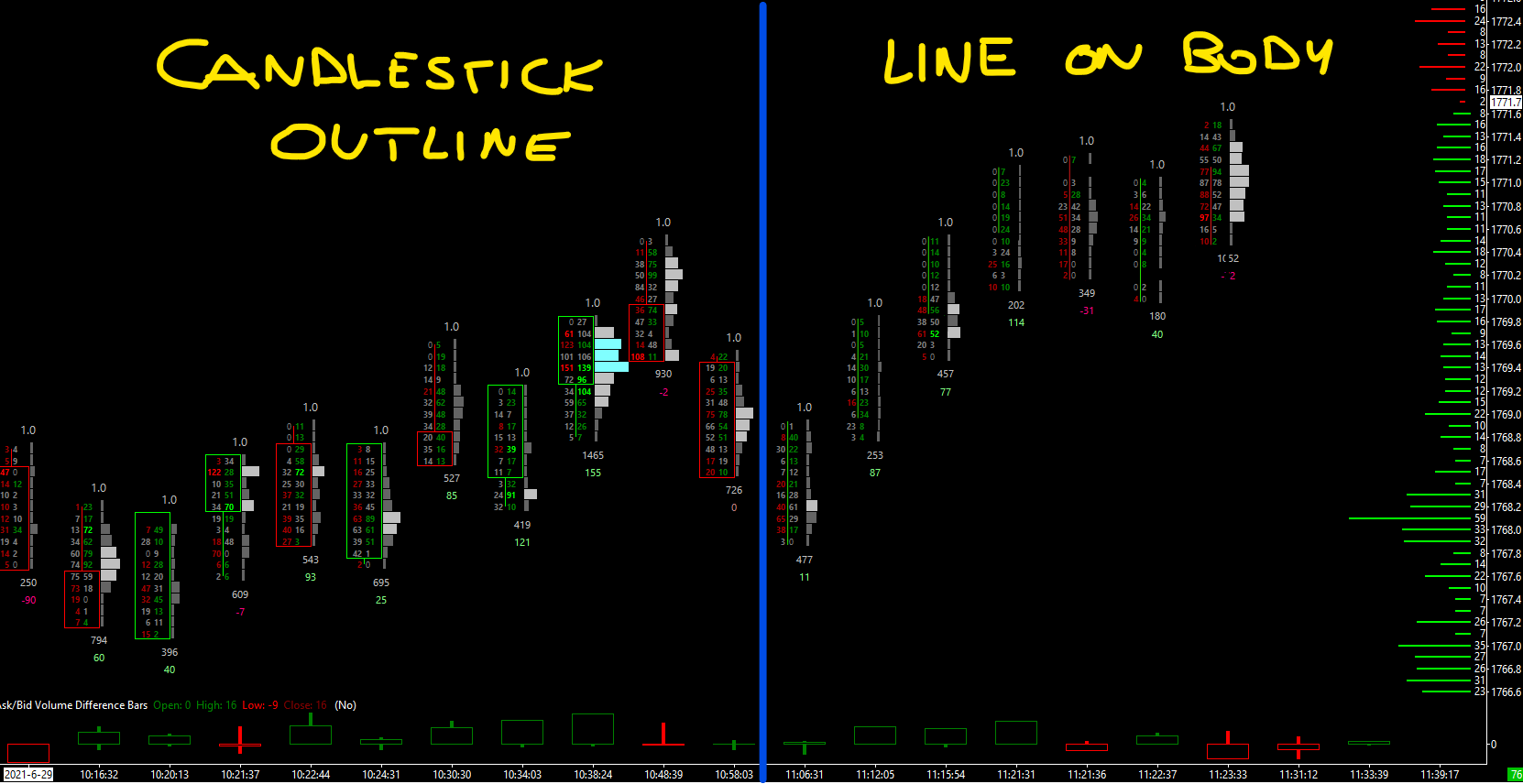

hi support, it would be possible to include an option in the "open close marker Style (In: 74)" to see the Number Bars as in the attached image. (Line only in the body) Thanks in advance Date Time Of Last Edit: 2021-06-29 10:00:29


per sierra.png / V - Attached On 2021-06-29 09:57:57 UTC - Size: 110.54 KB - 186 views

[2021-06-29 16:01:00] #2 [Go To First Post]
John - SC Support - Posts: 31597
To do what you want first set your Graph Draw Type to HL Bars, then add your Numbers Bars study and then add a Study/Price Overlay and overlay the Main Price Graph for that same chart onto the chart (be sure it is set to Region 1). Refer to the following for the Graph Draw Type: Graph Draw Types Refer to the following for the Study/Price Overlay: Study/Price Overlay Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-06-30 15:24:25] #3 [Go To First Post]
Mark_47 - Posts: 27
Thank you John, but that's not exactly what I asked for. 1) I need only the "body" (look at the attached immage) 2) if i use HL Bars the evolution of the candle is difficult to follow (it remains green until a new low is marked and vice versa). This can be really annoying especially if you use range bars.

[2021-06-30 18:39:06] #4 [Go To First Post]
John - SC Support - Posts: 31597
Attached is a Study Collection that does what you want. You just have to set the Graph Draw Type to HL Bars in order to not show the Open/Close markers. Refer to the following for how to use a Study Collection: Study Collections: Using a Study Collection Provided by Sierra Chart Support For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing


NumbersBarsWithOpenCloseLine.StdyCollct - Attached On 2021-06-30 18:39:02 UTC - Size: 53.87 KB - 175 views

[2021-07-04 12:40:59] #5 [Go To First Post]
Mark_47 - Posts: 27

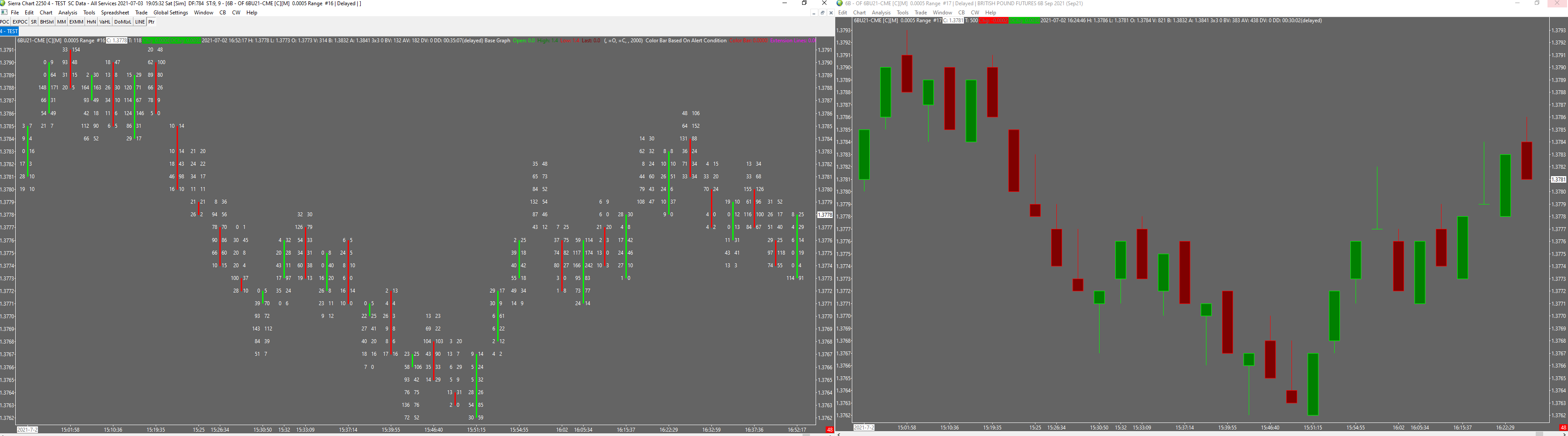

With the study collect attachment I'm close to the solution but some inaccuracies remain: 1) Some red bars are green (highlighted by red dots) 2) All red bars have a maximum to minimum body (see first picture attached) But with these changes everything is now ok: 1) in the "Color Bar Based On Alert Condition" study -> Alerts -> CHECK on "Use full Precision When Evaluating alert Formula" 2) in the "Chart Settings" -> Graph Draw Type -> Candelstick Body Only 3) Chart Menu -> Graphivs Settings - Chart -> Other -> Candlestick Width % Set to 1% 4) in the "Base Graph" Study -> Subgraphs -> UNcheck "Use Chart Graphics Settings For Subgraph Colors" and set HIGH Width to 3. As you can see in the second image, everything is now ok. One last question please, where can i find the "Base Graph" study? And of course, thank you. Date Time Of Last Edit: 2021-07-04 12:45:01


ALLMOST.png / V - Attached On 2021-07-04 12:38:06 UTC - Size: 256.55 KB - 171 views OK.png / V - Attached On 2021-07-04 12:38:10 UTC - Size: 115.8 KB - 180 views

[2021-07-06 14:05:27] #6 [Go To First Post]
John - SC Support - Posts: 31597
The "Base Graph" is the Main Price Graph on which the chart is based. It is the base data. You would only be referencing the Base Graph when using ACSIL. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing
