[Locked] - MBO with Denali
View Count: 4101
| [2021-01-20 17:38:09] |
| User148596 - Posts: 214 |
|
Hi, does Denali offer Market By Order details from the CME like Rithmic and IQFeed? If so how do I make sure that is enabled? Someone in a chat room I am a member of posted a screenshot of their Time and Sales window and the orders they showed were not on my time and sales window, even though according to my settings they should have. They are using DTN IQfeed. Thanks Date Time Of Last Edit: 2021-01-20 17:40:07
|
| [2021-01-20 18:29:35] |
| John - SC Support - Posts: 31159 |
|
To begin with, the Market by Order data is used to determine the full range of the Order Book for the CME Group, and has for a few years. Recently (the past month) we have also had available the ability to view the Market by Order data in the DOM. Refer to the following: Market By Order Data We certainly can't say why there are differences in the Time and Sales data, that is something else entirely. Assuming these are both the same data feed, then refer to the information for the Time and Sales window to start with and make sure the settings are all the same: Time and Sales Window For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-20 18:32:44] |
| User148596 - Posts: 214 |
|
Thank you, no they are on a completely different platform with a different data feed. I was operating under the assumption that the Time and Sales would be the same for all data feeds regardless but that was an incorrect assumption. Thanks for your help.
|
| [2021-01-20 18:47:47] |
| User148596 - Posts: 214 |
|
Hi again, when I select Global Settings > Sierra Chart Server Settings as instructed in the link you sent me, there is no option for "Subscribe Market by Order Data When Market Depth Subscribed". There is only the following... detailed heartbeat logging use port 80... always use port 443... UDP port Use encryption for Historical... Max Depth Levels Use Realtime Compression... Remote Buffer Delay... Historical Data Client Timeout in Seconds Num. Retries after timeout That's it. If I click on DTC Protocol Server there is also no option for "Subscribe Market by Order Data When Market Depth Subscribed" Please advice. Thanks, Angelo P.S. I am using Data Service: Trading Evaluator [Trading] Date Time Of Last Edit: 2021-01-20 19:11:18
|
| [2021-01-20 19:24:58] |
| John - SC Support - Posts: 31159 |
|
You need to update to the current version following these instructions: Software Download: Fast Update For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-21 13:46:56] |
| User148596 - Posts: 214 |
|
Okay that worked, the only issue now is that the window cuts off the information in the last column and no matter how big I make the window it doesn't help, part of the last column is always cut off and not viewable. Thanks for your help. |
| [2021-01-21 15:24:08] |
| John - SC Support - Posts: 31159 |
|
Can you please give us a screenshot of what you are seeing.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-21 15:29:00] |
| User148596 - Posts: 214 |
|

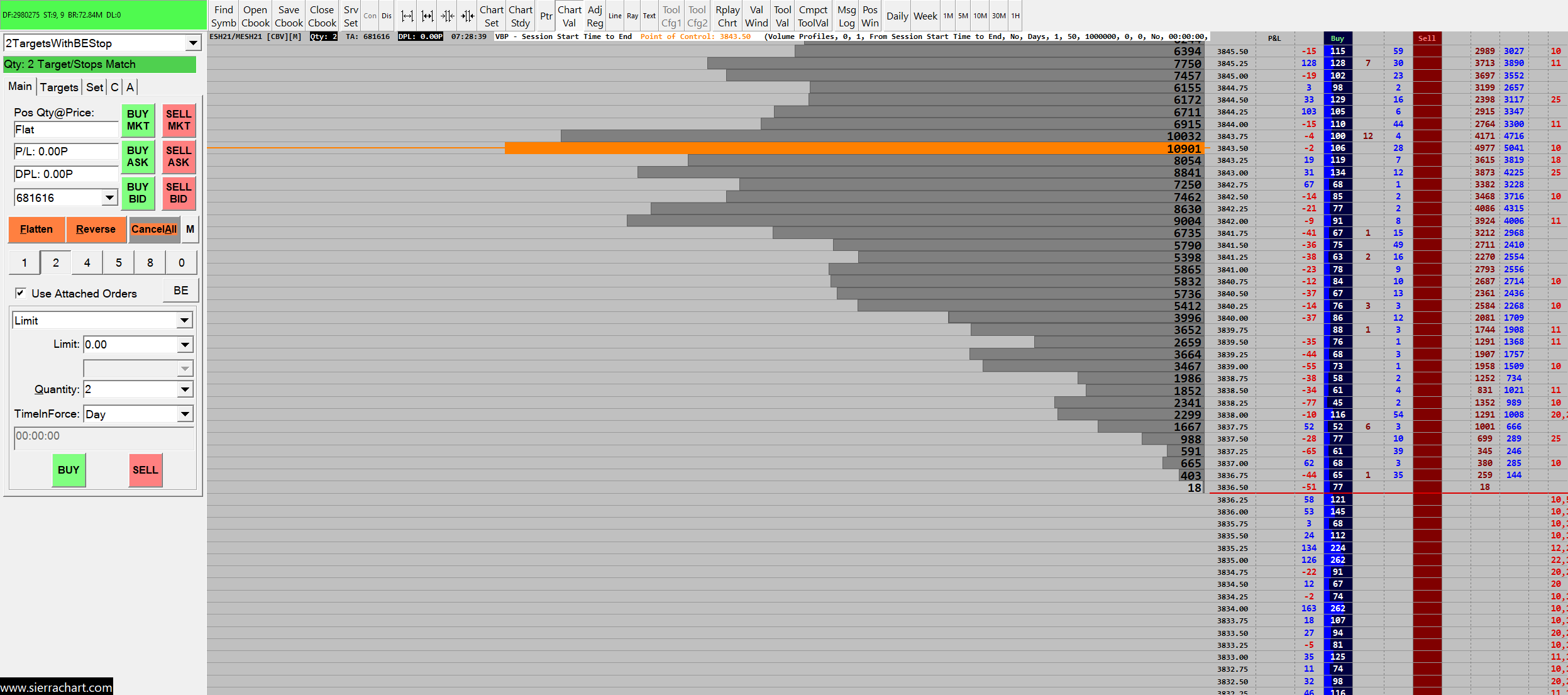

http://www.sierrachart.com/image.php?Image=1611242922692.png
|
| [2021-01-21 15:33:25] |
| John - SC Support - Posts: 31159 |
|
You should be able to move the left side of that column to the left to open that up further and be able to display all the data. What happens when you do this?
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-21 15:43:37] |
| User148596 - Posts: 214 |
|
can't seem to find the color settings for those in the global graphics settings, any thoughts?
|
| [2021-01-21 16:14:25] |
| John - SC Support - Posts: 31159 |
|
There are 4 settings for the Market By Order coloring in the Graphics Settings. - Chart DOM Bid Market Orders Background - Chart DOM Bid Market Orders - Chart DOM Ask Market Orders Background - Chart DOM Ask Market Orders If these are not available then upgrade to the current release. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-01-21 23:42:30] |
| User148596 - Posts: 214 |
|
Hmm, That did not affect the colors of the values in the MBO bid and ask columns
|
| [2021-01-22 21:49:39] |
| John - SC Support - Posts: 31159 |
|
Then you were either using the Global settings when your chart is set to use Chart Settings, or the opposite (Chart Settings instead of the Global). Refer to the information here for the difference between the Global and the Chart Graphics Settings: Graphics Settings: Using Different Color and Graphics Settings for Specific Charts For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-02-03 02:35:30] |
| Profile Trader - Posts: 167 |
|
John, A few quick questions about the MBO data feed. I apologize if this has been answered but I have read hours and hours of forum threads and have not seen it. From what I have determined from reading, SC is filtering the amount of MBO data going out. The initial discussion was at 2 but has moved to 10 currently and could move down in the future. So its kind of a moving target as of now, I am assuming because of the amount of data that would have too be sent. Do you for-see getting too no filter at all? For what I am looking to do indicator wise I would need all the data. Just to give a very small snap shot of the difference if you take this mornings trading from another MBO data provider and filter below 10 88% of all order entries/replace/cancel etc are removed. With algos running the show now and knowing that they enter orders of 1-5 repeatedly in ms.... this is exactly the info some of us need to program indicators that can map there footprints. But filtering all this info out just feels like we are back to the days of consolidated tape. Thanks for your time and insight as too where you see the MBO data headed from the Denali feed. Doug |
| [2021-02-03 14:34:00] |
| John - SC Support - Posts: 31159 |
|
All we can say is that it is something we continue to monitor. As you note, the issue is bandwidth, on both ends (our outgoing and the users incoming). We have made some good improvements lately that have helped in this matter, but we just need more time to monitor the situation and see what we can do. But we cannot say what they will be or when. You will just have to keep an eye on the forum sticky posts, or the Release Notes to see if there is a change to the MBO filtering. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-02-05 17:43:29] |
| Profile Trader - Posts: 167 |
|
John a few more questions with regards to MBO data feed... 1) Are you sending all of the Trades executed (and not just the ones with size greater than 10)? 2) Is it possible to see the aggressor and passive order id's that are associated with each trade in the mbo data feed? 3) If answer for #2 is yes, do I need to purchase the MBO feed to get this information. In other words, at this time, all I'm looking for is the 2 unique identifiers for the order id's that were used on each trade, and not necessarily the list of orders standing on the order book or the change requests (add, replace, cancel) to the order book. Does the standard Denali data feed offer that info or only MBO data feed? |
| [2021-02-05 18:31:22] |
| John - SC Support - Posts: 31159 |
|
1. We are only sending the orders with a size greater than 10. 2. To see that information you would need to use our ACSIL programming interface. The following functions are currently available for accessing the MBO data: sc.GetBidMarketLimitOrdersForPrice sc.GetAskMarketLimitOrdersForPrice Documentation is still pending for these. 3. Eventually you will need to be on Package 12 to get this data. Right now, you still have access to the MBO data with all Sierra Chart packages. This will be changing, most likely later this month. At which time, it will only be accessible to those on Package 12. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-02-05 18:48:14] |
| Profile Trader - Posts: 167 |
|
Thanks for the feedback. Just so I understand or make sure we are talking about the same thing.... I understand the Limit Orders being filtered. What about executed trades? There is no filter on that correct? Are you sending the aggressor order id and the passive order id in the data stream? Basically does the GetTimeAndSales Function have more then just TimeAndSalesPrice, TimeAndSalesVolume, TimeAndSalesTime, with MBO data? are there added fields to listen too? Date Time Of Last Edit: 2021-02-05 20:06:11
|
| [2021-02-08 08:27:01] |
| |
|
This has never changed: What about executed trades?
All trades have always been sent. This is existing standard market data and is nothing new. You can see this in the time and sales window, and you can also see this within the chart when it is set to one trade per bar. Basically does the GetTimeAndSales Function have more then just TimeAndSalesPrice, TimeAndSalesVolume, TimeAndSalesTime, with MBO data? Market by Order data is wholly unrelated to Time and Sales trade data.Are you sending the aggressor order id and the passive order id in the data stream?
This data is not available with trades.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2021-02-08 08:32:01
|
| [2021-02-08 08:30:23] |
| |
|
This thread is now locked. We are not taking any further questions here. Please do not ask anything further. And yes, all market by order data will be sent without filtering. It just has not been released. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2021-02-08 08:33:52
|
