| cmack1011 - Posts: 174 |
|

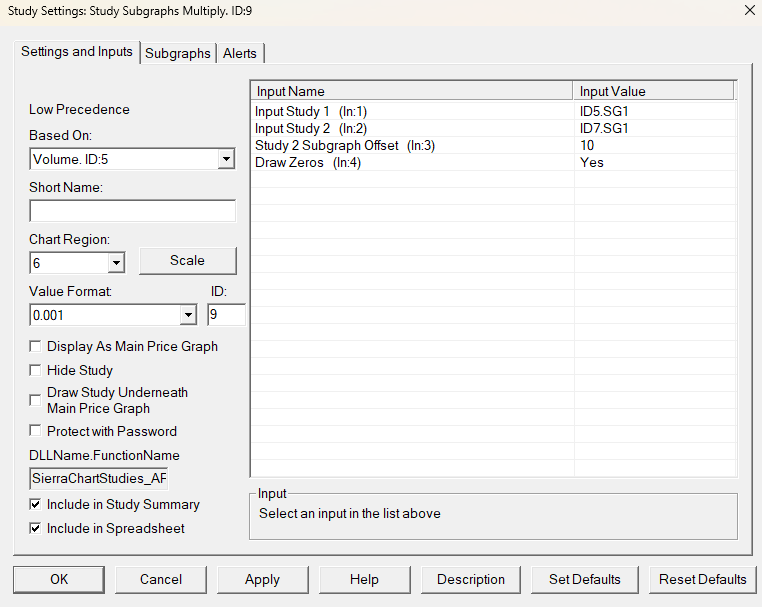

I am attempting to use the Study subgraphs Multiply study using Total Volume and Ask Bid Volume Ratio. However, I do not get any outputs at all whether I use "Value Oh High" etc or "Bar" for "Draw Style". Pls see attached for my settings on study. Please advise. Thank you.
|
 Screenshot 2025-11-06 at 4.22.14 PM.png / V - Attached On 2025-11-06 22:28:04 UTC - Size: 53.9 KB - 48 views Screenshot 2025-11-06 at 4.22.23 PM.png / V - Attached On 2025-11-06 22:28:10 UTC - Size: 70.38 KB - 43 views |
| [2025-11-07 14:34:36] |
| John - SC Support - Posts: 43819 |
|
Two things with regards to "Value on High": - The High is going to be the High of the "Based On" study. You have this set to "Volume", for which there is no high, so there is no place to put this. - Since you are wanting this to be displayed on the high, you need to have the region set to the region of the Main Price Graph (or whatever study this is "Based On"). For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-11-07 15:46:37] |
| cmack1011 - Posts: 174 |
|

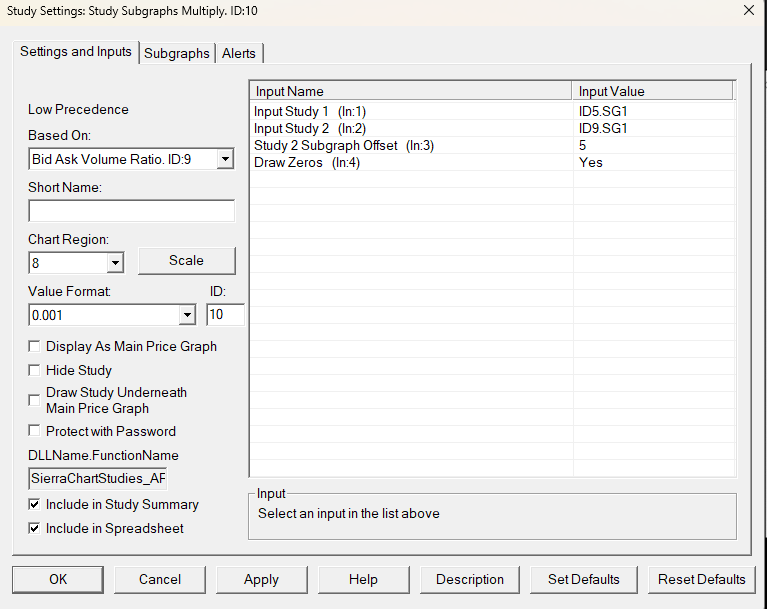

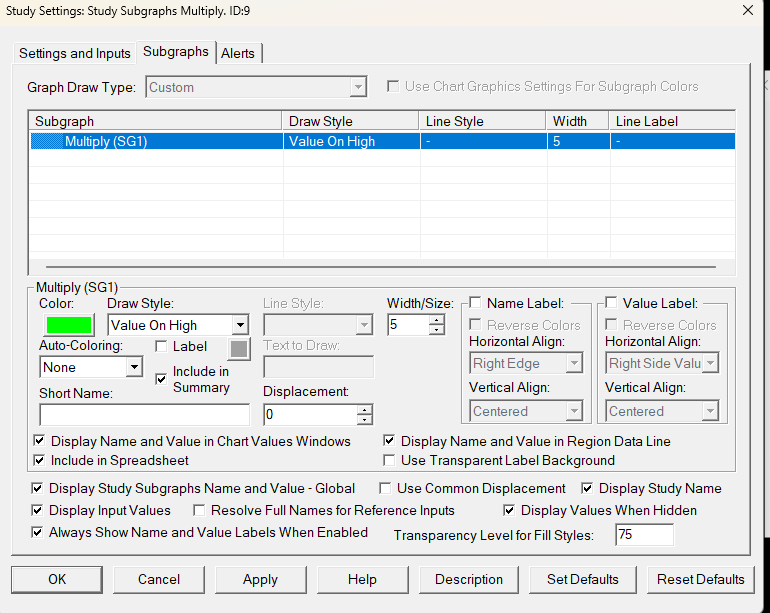

I changed the "based on" to "Bid Ask Volume Ratio" study, but still no numerical values. (see pic for settings). Alternatively, is there any way to get the "Bid Ask Volume Ratio" study to display numerically or to get a numerical value for "Ask Volume/Total VOlume"? |
| Screenshot 2025-11-07 at 9.41.00 AM.png / V - Attached On 2025-11-07 15:41:20 UTC - Size: 18.33 KB - 34 views Screenshot 2025-11-07 at 9.39.53 AM.png / V - Attached On 2025-11-07 15:41:26 UTC - Size: 56.75 KB - 34 views |
| [2025-11-07 17:47:15] |
| John - SC Support - Posts: 43819 |
|

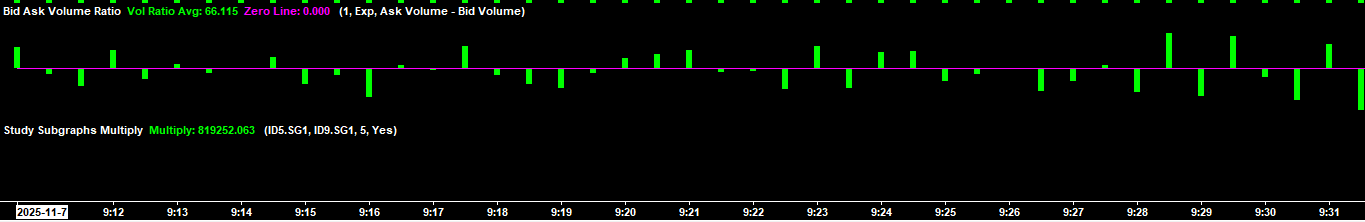

To start with, you still have the study set to display in a different region from the study that you have it set to be "Based On". If you are still using the Draw Style of "Value on High", then there is no High value to display on. Also, the Bid/Ask Volume Ratio is displayed as a Bar, not a candlestick. Therefore there is no High value for this. So you can not use that as the "Based On" and use the option of "Value on High". Where exactly do you want to see the result of the "Study Subgraphs Multiply"? -- With regards to displaying the information as numbers, you would do one of the following: 1. -- On the Bid/Ask Volume Ratio" study set the "Draw Style" for the "Vol Ratio Avg" to be "Value of Subgraph". -- Set the "Width/Size" to something you can read, start with a value of 10 and adjust from there. -- The values will be staggered in the display. Adjust the scale to make it very wide and the numbers will move into a single line. -- Refer to the following: Chart Studies: Value of Subgraph (ACSIL: DRAWSTYLE_VALUE_OF_SUBGRAPH) 2. -- Use the "Numeric Information Reference" study to have the values displayed in a tabular format. Refer to the following: Numeric Information Reference For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
