| [2025-09-22 16:15:01] |
| John - SC Support - Posts: 42402 |
|
We are not certain of what you want to combine. Please give us more information on exactly what you are wanting to accomplish.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-09-23 00:52:04] |
| User660904 - Posts: 35 |
|

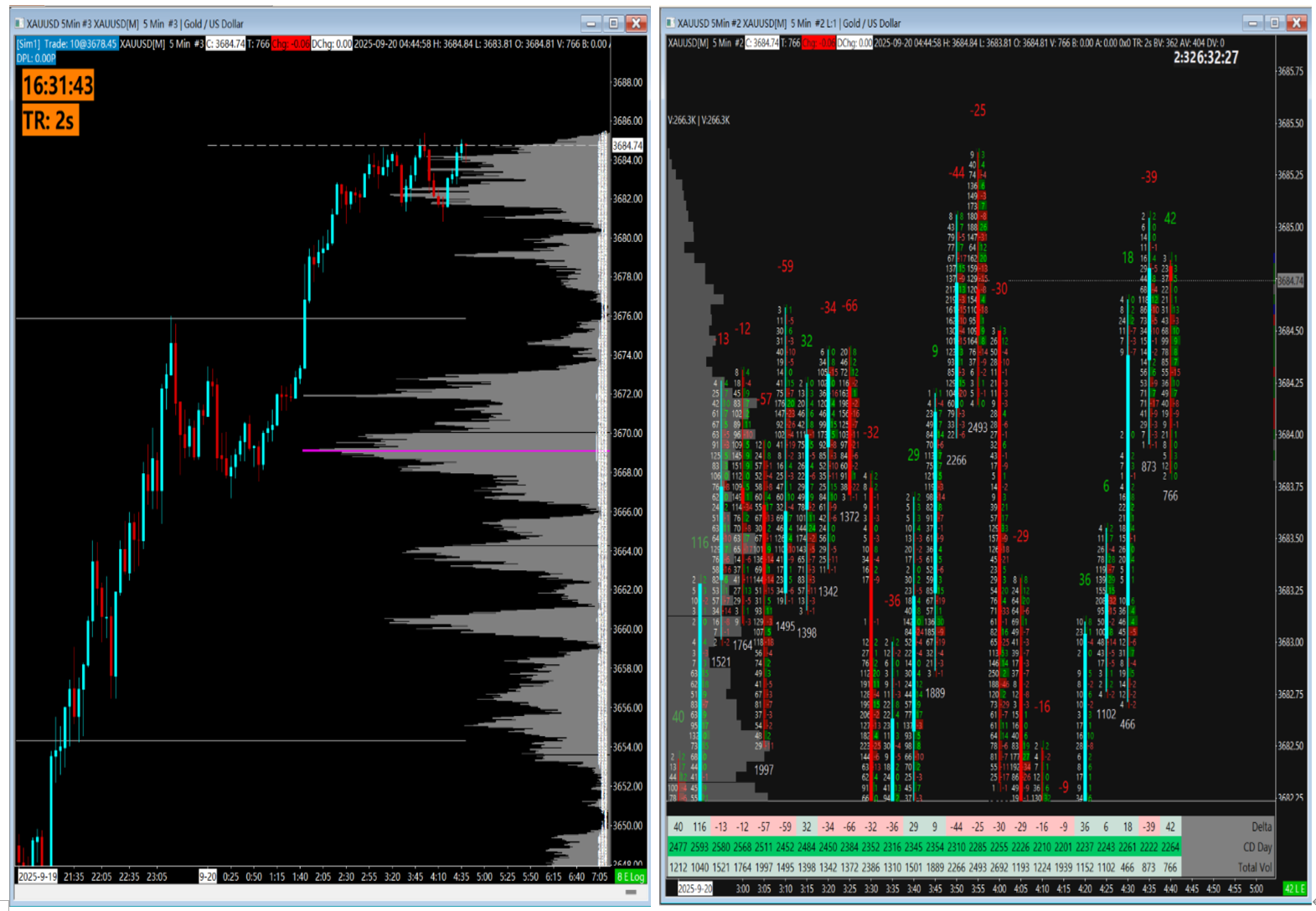

你好！2个Cht文件的2张图拼成这样1张图怎么设置？
|
Private File |
| [2025-09-23 01:19:45] |
| User660904 - Posts: 35 |
|
你好！2个Cht文件的2张图拼成这样1张图怎么设置？
|
| [2025-09-23 15:42:35] |
| John - SC Support - Posts: 42402 |
|
We are still not understanding what exactly you are wanting to do. Are you asking about an actual image? If so, then what is wrong with the method you used to create the image you used to post to this thread? What exactly are you looking for in terms of an image? If you are asking about how to get the information from one chart into another chart, then we need to understand what exactly you are asking about. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-09-24 02:15:05] |
| User660904 - Posts: 35 |
|

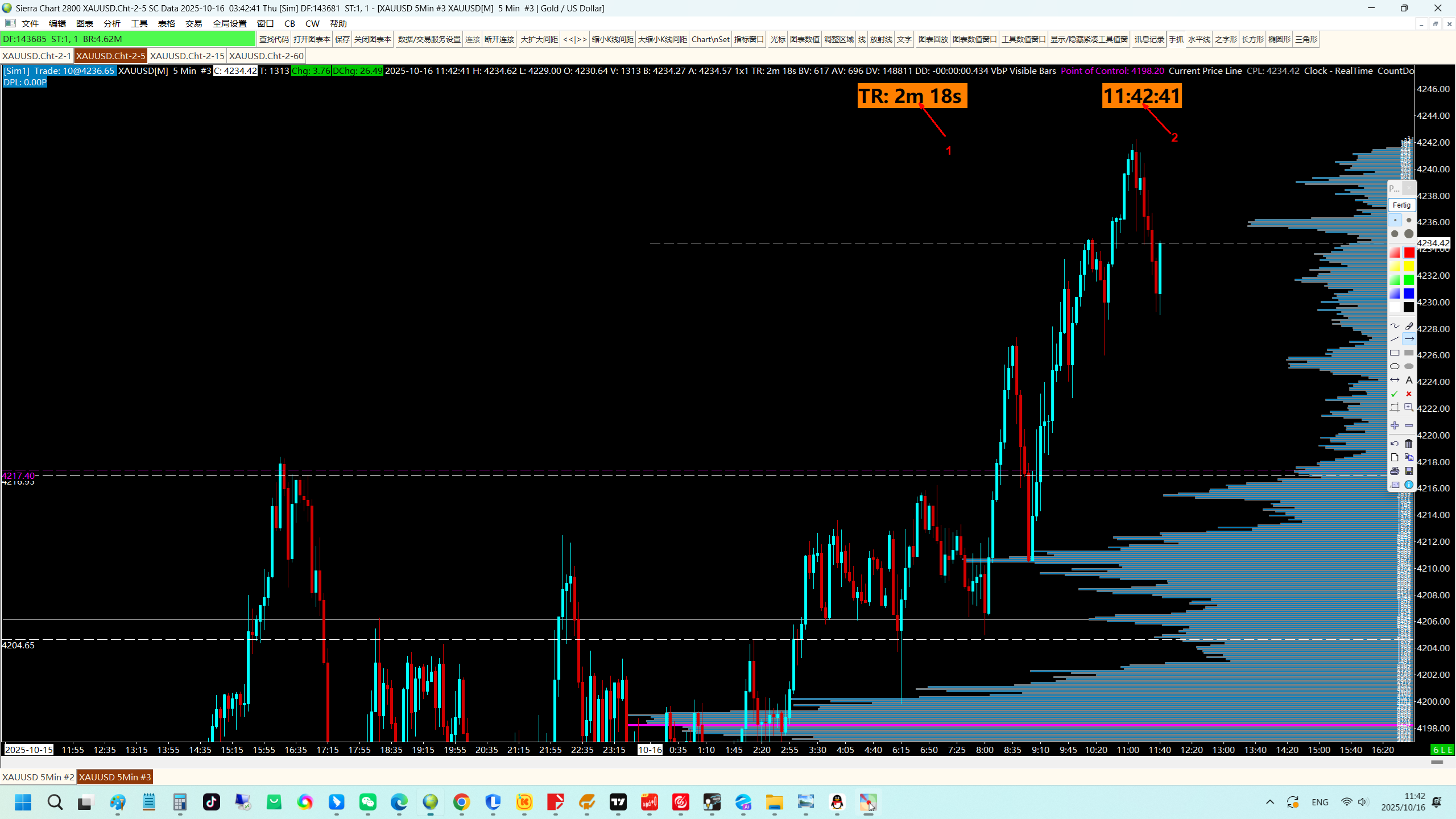

你好！图1、图2都是已有Cht文件实际的图。把图1+图2结合拼成图3并形成新的Cht文件名，怎么设置操作？
|
 图1+图2=图3.pdf - Attached On 2025-09-24 02:14:34 UTC - Size: 736.74 KB - 50 views |
| [2025-09-24 14:39:05] |
| John - SC Support - Posts: 42402 |
|

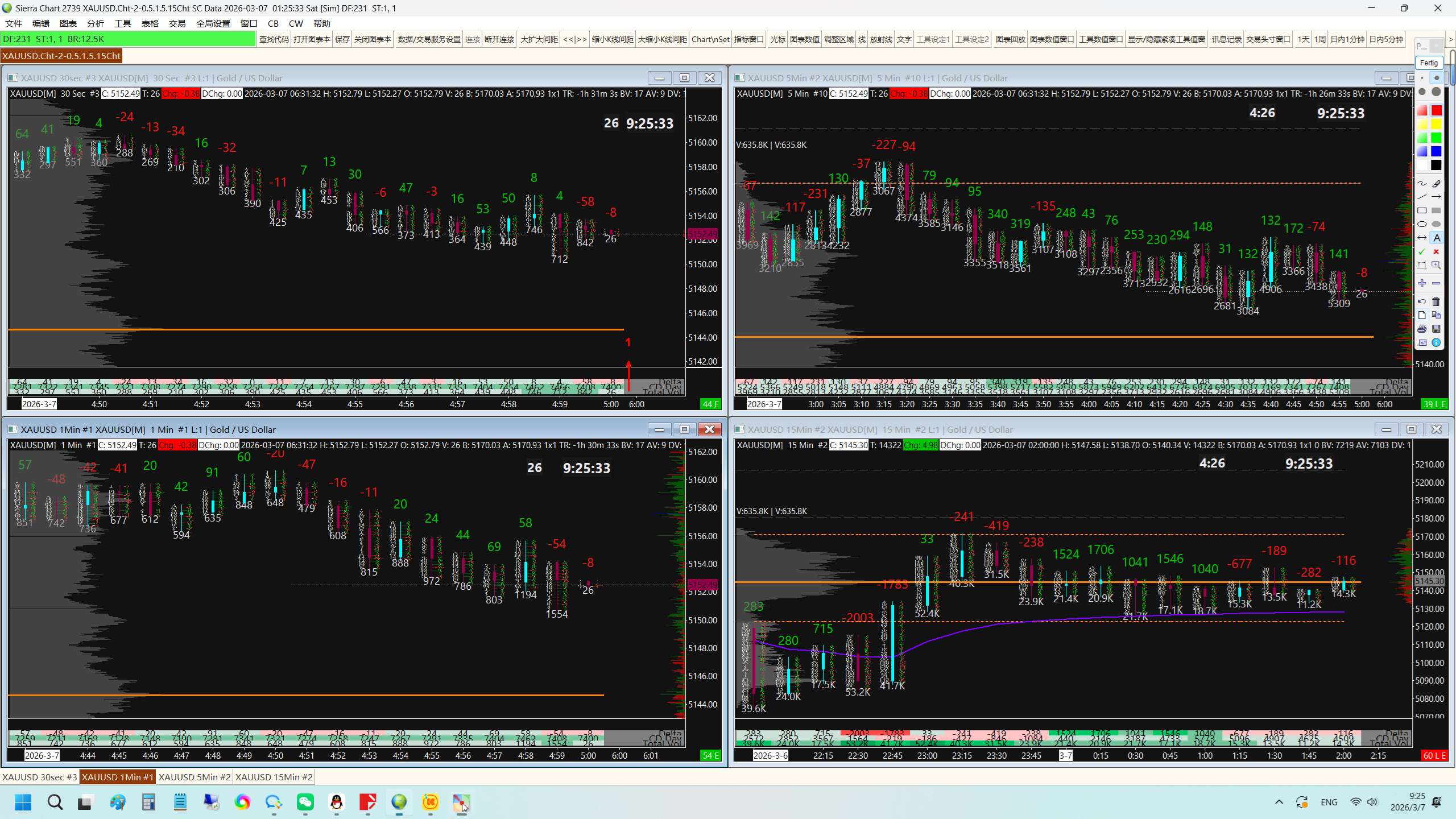

You currently have these two charts in different chartbooks. The simplest solution is to duplicate one of the charts to the other chartbook so you have them both within the same chartbook. Refer to the following for this: Chart Menu: Duplicate Chart To Chartbook (Chart menu) Then, when you have them both in the same chartbook, you can use one of the options under the Window menu to tile the charts as you want them, such as "Window >> Tile Vertically". Or you can arrange them manually as you want. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-09-25 02:35:16] |
| User660904 - Posts: 35 |
|
你好！已设置好，可以正常使用了。谢谢！
|
| [2025-10-04 12:22:00] |
| User660904 - Posts: 35 |
|
你好！最新价格自动后移，上涨、下跌最新价格显示都在中间位置，怎么设置？
|
| [2025-10-06 15:29:22] |
| John - SC Support - Posts: 42402 |
|
From Google Translate: Hello! The latest price automatically shifts to the back, and the latest price for both rising and falling prices is displayed in the middle. How can I set this?
We are not understanding what exactly you are wanting to do. Please give us additional information. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-10-07 01:34:28] |
| User660904 - Posts: 35 |
|

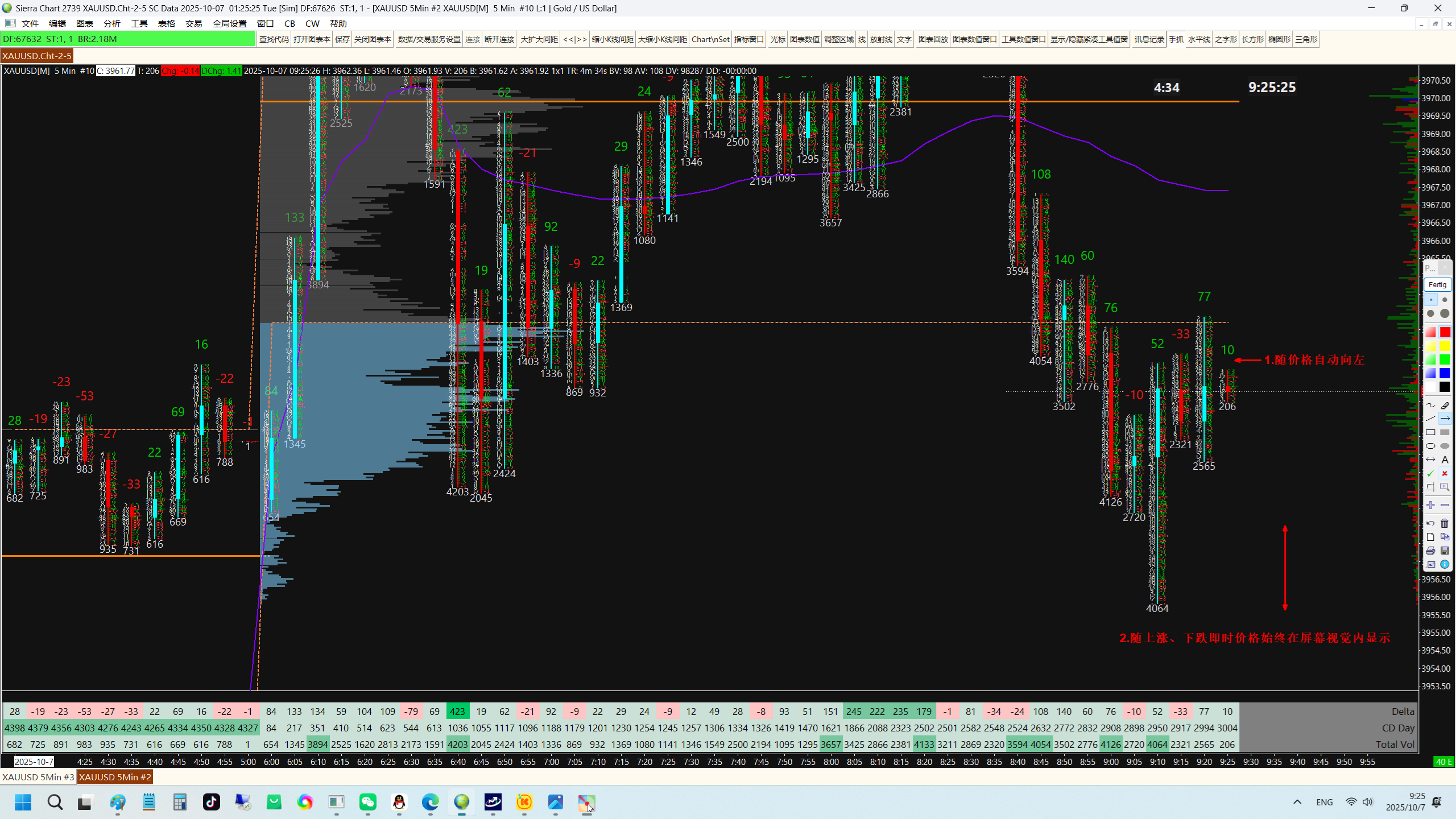

你好！两个问题：1.即时价格自动向左。2.随上涨、下跌即时价格始终在屏幕视觉内显示。这两个要求怎么设置？谢谢！
|

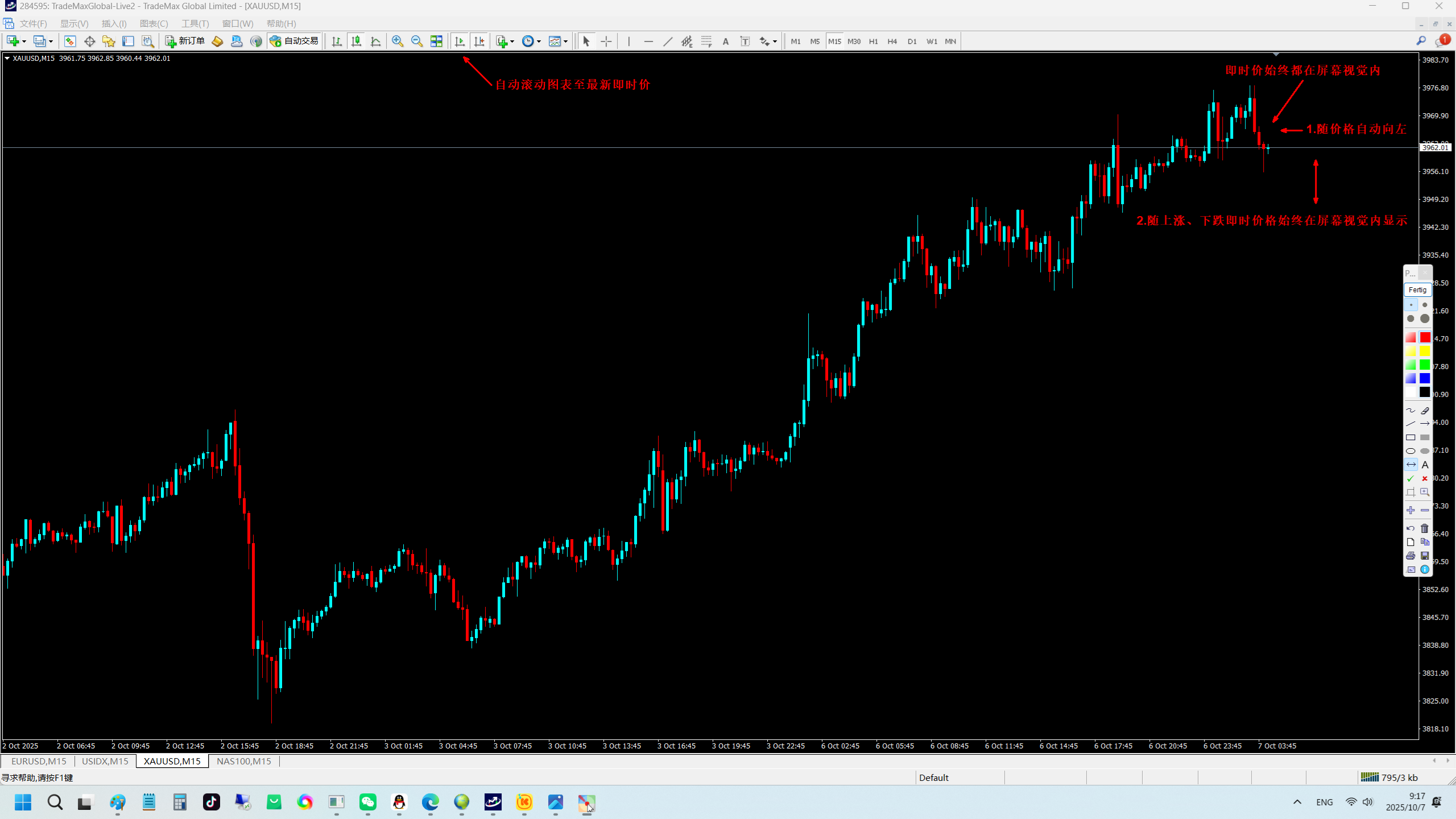

 MT4示意图.png / V - Attached On 2025-10-07 01:33:55 UTC - Size: 312.14 KB - 30 views |
| [2025-10-07 14:22:13] |
| John - SC Support - Posts: 42402 |
|
From Google Translate: Hello! I have two questions: 1. I want the real-time price to automatically shift to the left. 2. I want the real-time price to remain visible on the screen as it rises and falls. How do I set these two requirements? Thank you!
1. We are not sure what you are looking for in terms of the price shifting to the left. And we do not have a way to translate what you wrote for the markups in the images. If you can post the wording into this thread for each of those markups, then we can translate them and understand what you are trying to say from the images. 2. We assume that you are referring to scaling options. There are multiple options for how to set the scale. Refer to the information on "Scale Range" settings in this section: Chart Scale and Scale Adjusting: Scale Range (Scale Settings) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-10-08 03:29:13] |
| User660904 - Posts: 35 |
|

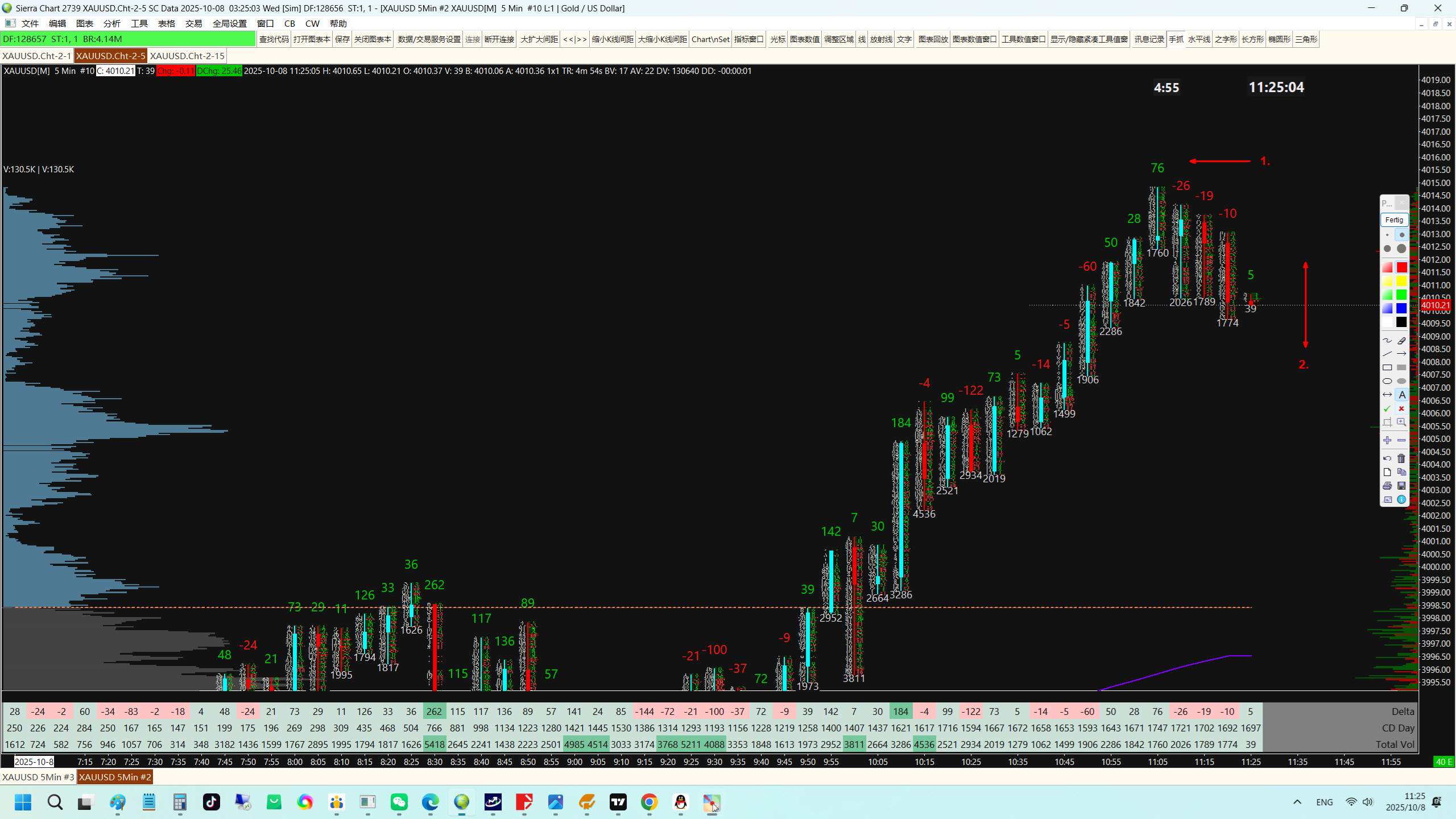

你好！两个问题：1.K线随即时价格自动向左移动。2.不是缩放，是随上涨、下跌即时价K线始终在屏幕视觉内显示。这两个要求怎么设置？谢谢！
|
| [2025-10-08 15:01:49] |
| John - SC Support - Posts: 42402 |
|
1. The candlesticks need to move left as new candles are added to the chart. If you have the chart scrolled such that the most recent bar is not displayed (it is off the right side of the screen) then the chart will not move unless you specifically move it. But if the most recent bar is in view, then it does need to move. There is the following setting, which can have some impact on how the bars are added to the chart, if you have space to the right. Refer to the following: General Settings Window: Allow New Data In Unlocked Fill Space (Global Settings >> General Settings >> Charts >> Charts) 2. If you want to keep the price at the same level and hence the bars will move as the price changes, then use a "Constant Range Scale" with the "Constant Range Scale Mode" set to "Recenter to the Last Price on Every Update". Refer to the following: Chart Scale and Scale Adjusting: Constant Range Scale Modes >> Re-Center To The Last Price On Every Update If it is not exactly the above, then look through the different scaling options to see if there is one that will do what you want. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-10-12 08:12:40] |
| User660904 - Posts: 35 |
|

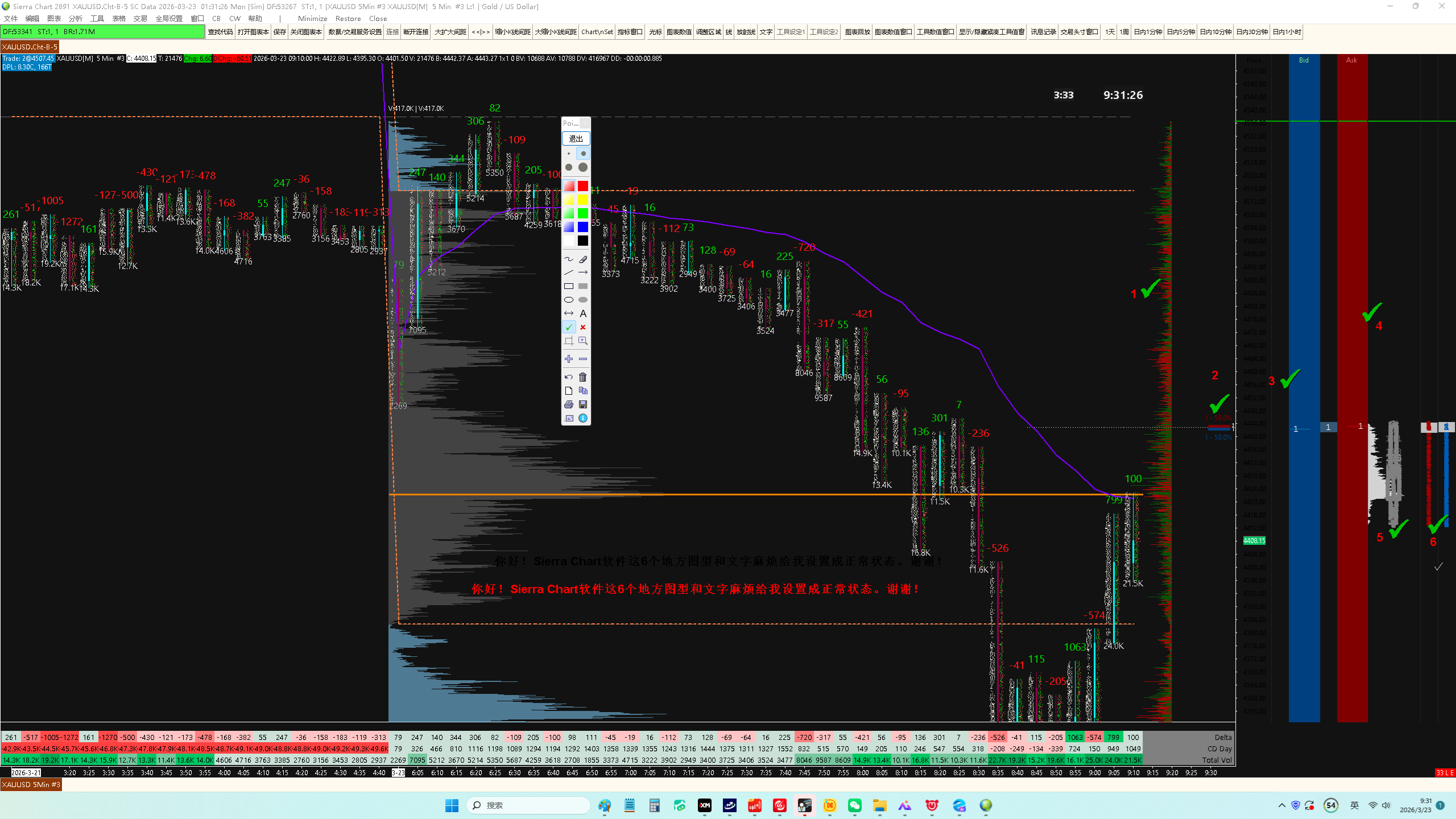

你好！2图的支撑、压力线在1图可以共享，怎么设置？谢谢！
|
| [2025-10-13 15:22:48] |
| John - SC Support - Posts: 42402 |
|
If those lines are from a study, then refer to the following: Study/Price Overlay Study If those lines are drawings, then refer to the following: Chart Settings: Copy Chart Drawings from Chart #'s (Chart >> Chart Settings >> Chart Drawings menu) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-10-15 06:57:03] |
| User660904 - Posts: 35 |
|
你好！图1、图2改变底色和字体大小，怎么设置？谢谢！
|
| [2025-10-15 15:03:04] |
| John - SC Support - Posts: 42402 |
|
Those are both controlled by the Subgraph associated with the study. There are two colors, one for the foreground color and one for the background color. Refer to the following: Chart Studies: Subgraphs Tab >> Color For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
