Eliminate study name in regions
View Count: 168
| [2024-11-22 16:23:53] |
| JohnR - User831573 - Posts: 333 |
|

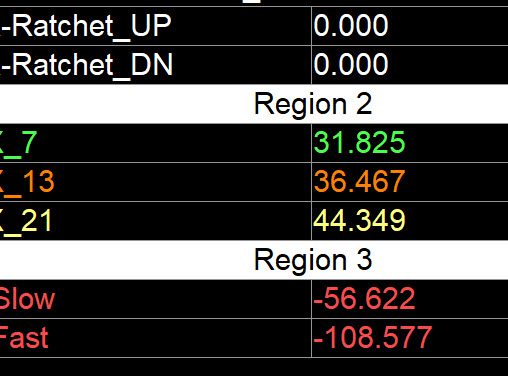

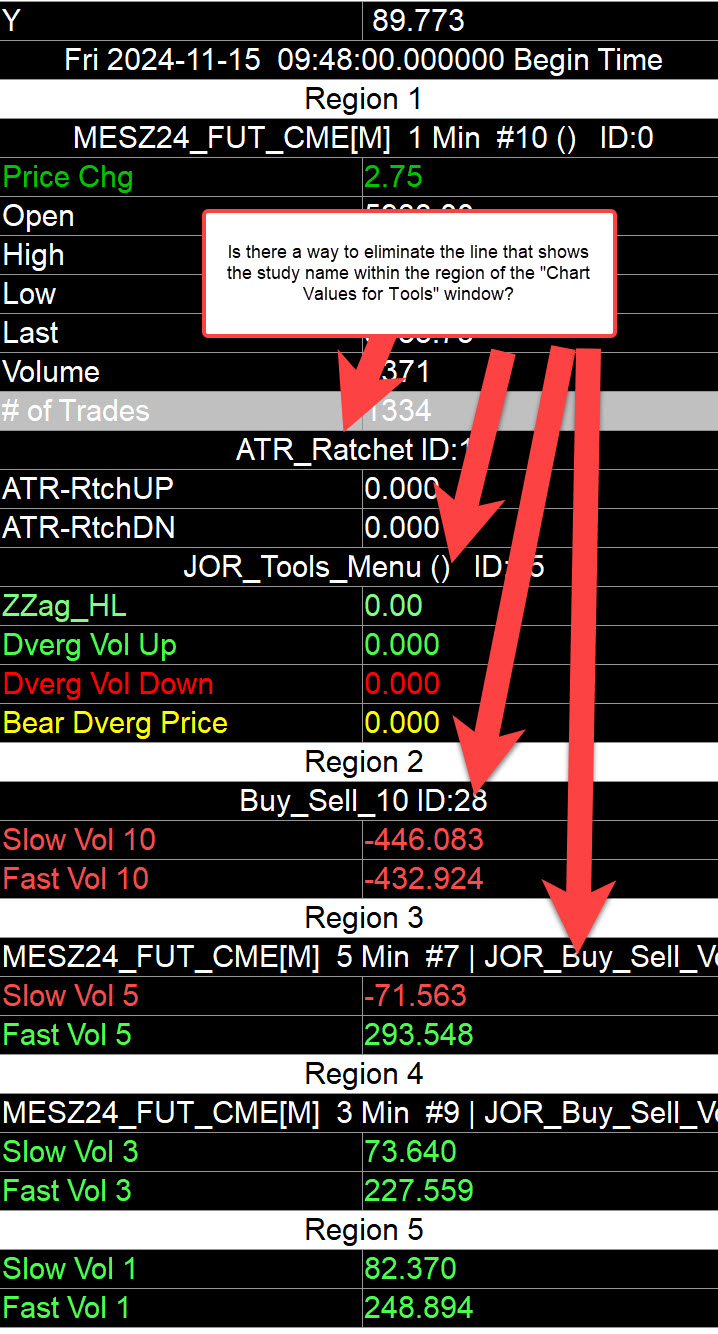

I have a chart the uses the Overlay study to get the same study from different charts (timeframes). I want to eliminate the study name line, for each of them. As you can see in the Chart Values for Tools window of the original chart, they do not appear. I have tried both options on the overlay study Yes_No for "Use Subgraph name/Value related Display Setting from Source Study" Update - reg 5 is using the same study but for local chart - not using Overlay study. It does not have the study name line. Guidance appreciated JohnR Date Time Of Last Edit: 2024-11-22 18:49:07
|
 SC_ChartValues4ToolsWindow_SourceChartToolsWin.jpg / V - Attached On 2024-11-22 16:22:34 UTC - Size: 60.43 KB - 64 views SC_ChartValues4ToolsWindow.jpg / V - Attached On 2024-11-22 16:22:45 UTC - Size: 338.11 KB - 69 views |
| [2024-11-22 19:17:47] |
| John - SC Support - Posts: 40745 |
|
On the "Study/Price Overlay" you need to disable (remove the checkmark) for the entry on the Subgraphs tab for the following: - Display Study Subgraphs Name and Value - Global - Display Study Name - Display Input Values These items are not copied from the source study. Refer to the information for these items starting at the following: Chart Studies: Subgraphs Tab >> Display Study Subgraphs Name and Value - Global For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
