Divide Chart up into sessions with out custom study/code

View Count: 476

[2023-01-16 15:19:21]
User846000 - Posts: 27
Hi,

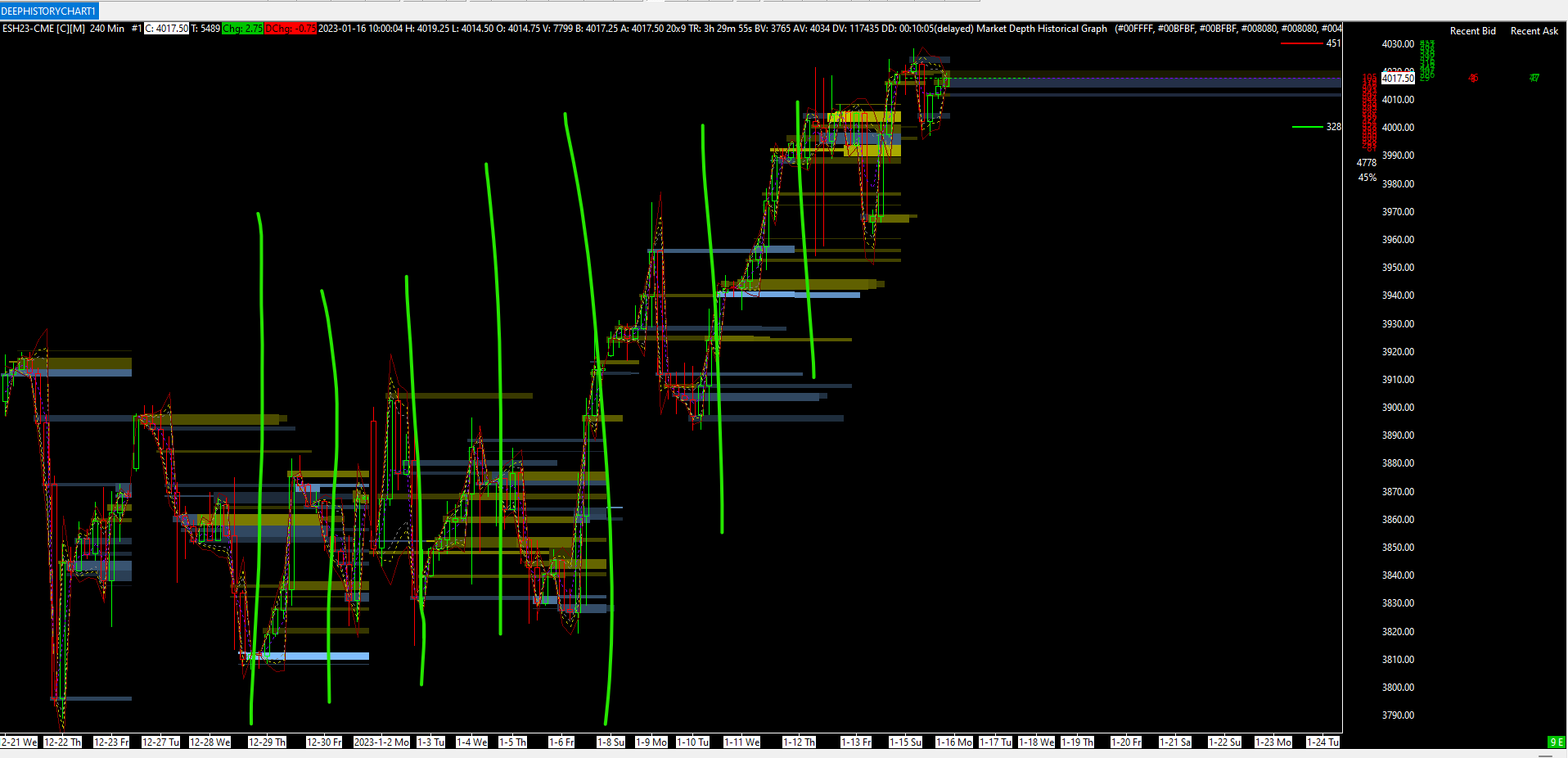

Excuse the screenshot attached, but I want to divide my chart up into the respective Symbol sessions, such as RTH, Tokyo, London etc. Is this possible to do with study overlay on a chart?

Thanks
Tim
imageSession Division Screenshot 2023-01-16 101059.png / V - Attached On 2023-01-16 15:18:29 UTC - Size: 122 KB - 100 views
[2023-01-16 18:17:56]
John - SC Support - Posts: 35831
How exactly are you wanting to divide up your screen?

If you want to have a different colored background for different times, then refer to the following:
Time Range Highlight

If you want a vertical line at certain times, then refer to the following:
Date-Time Line
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2023-01-17 13:48:52]
User846000 - Posts: 27
Hi John,

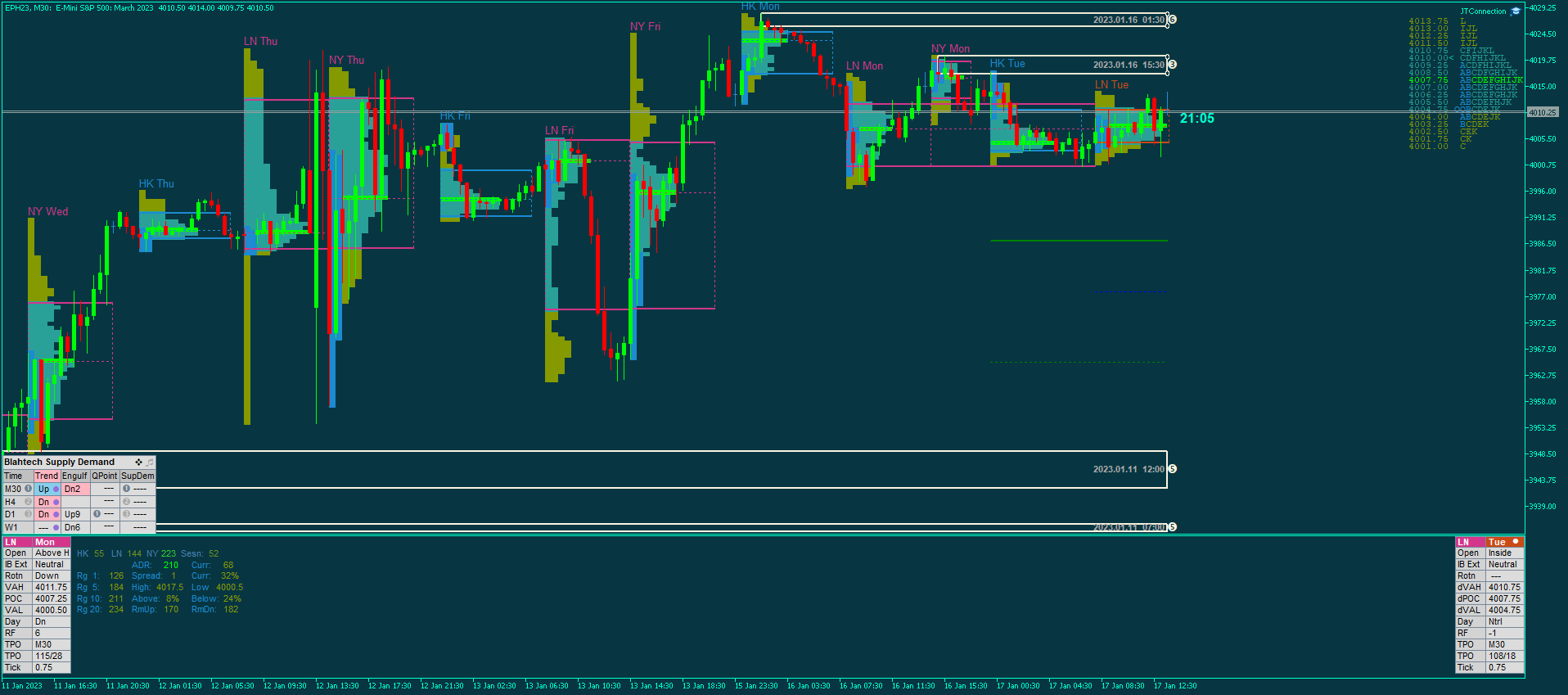

I'm hoping to get somewhere close to this style of session division, this is MT5 and studies I bought I use are for a particular style of trading, but I'm wanting to cross over gradually to SC completely by emulating as much as I can on SC before getting some custom work done perhaps. As a start its sessions times, then later emulating more and more of the study set I use on MT5 in SC, they're all just time frame and order flow related, with more advanced studies/custom charts to perhaps be coded later once I have basics in place. Important though I get as close as I can to this (will post separately about the TPO chart on the right hand margin). "EPH23M30.png"

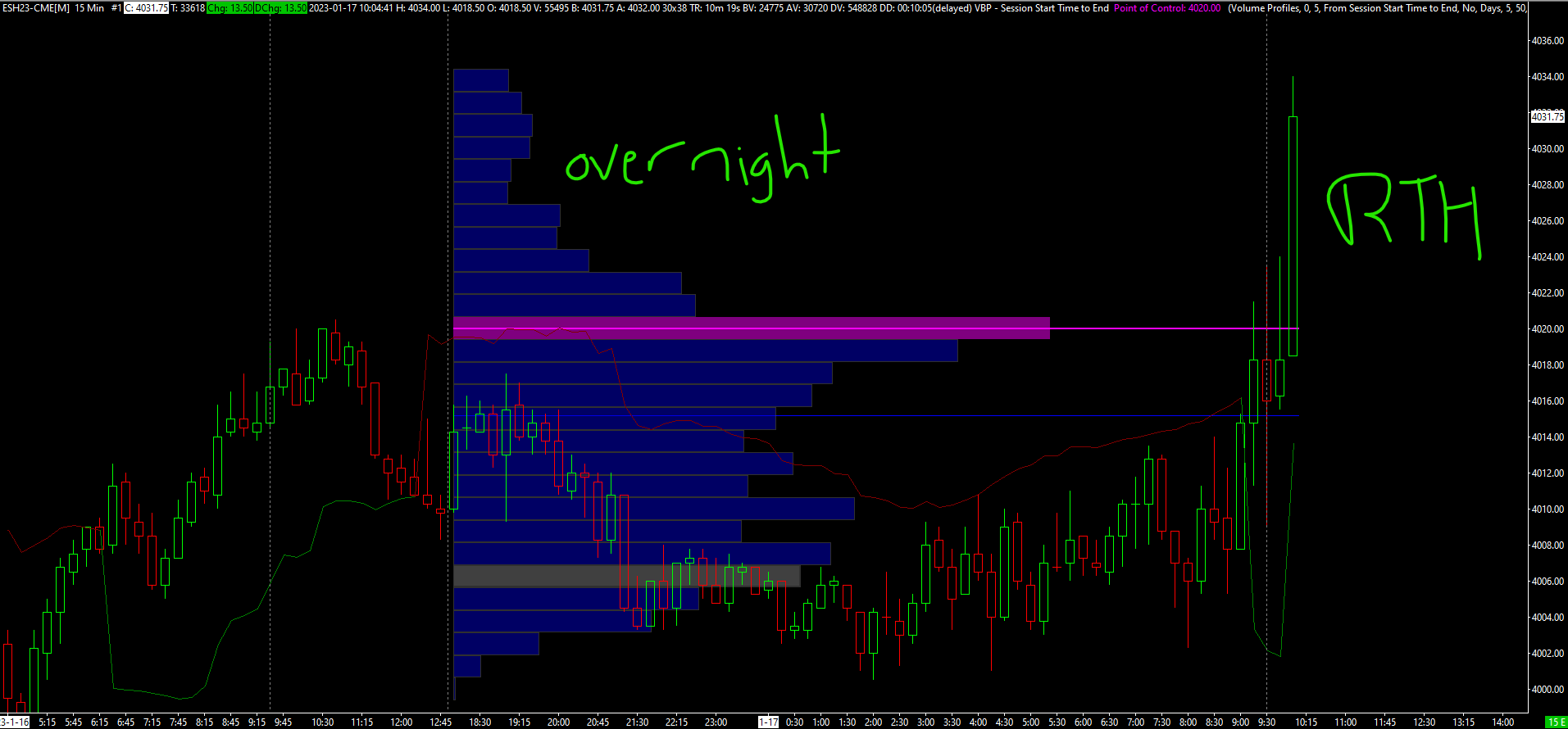

For instance, I've set the Vertical Grid up which clearly shows sessions, however I dont seem to be able to VbP to start a new session on the switch over from Overnight Session, to the RTH session. "Sessions Screenshot"

Thanks
Tim
Date Time Of Last Edit: 2023-01-17 15:20:14
imageEPH23M30.png / V - Attached On 2023-01-17 13:46:15 UTC - Size: 95.94 KB - 95 views
imageSessions Screenshot 2023-01-17 101545.png / V - Attached On 2023-01-17 15:19:08 UTC - Size: 60.76 KB - 98 views
[2023-01-17 16:03:06]
John - SC Support - Posts: 35831
To divide the Volume by Price into Overnight and RTH sessions, refer to the following Input for the Volume by Price study:
Volume By Price Study: Use Separate Profile for Evening Session
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2023-01-23 02:22:19]
User21339 - Posts: 61

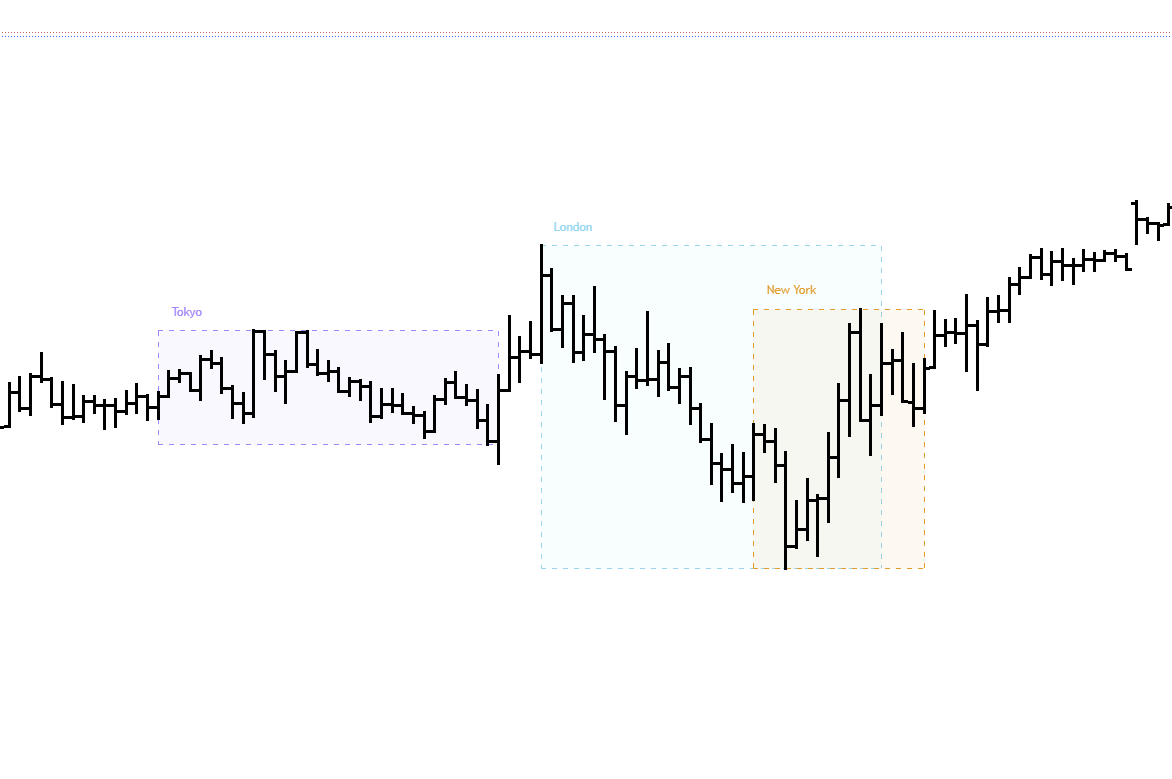

want this look for sessions on my charts.

can you advise.. Ive spent hours trying to set this up using horizontal line at time study but to no avail.
image100.png / V - Attached On 2023-01-23 02:20:34 UTC - Size: 11.4 KB - 116 views
Attachment Deleted.
[2023-01-23 18:58:08]
John - SC Support - Posts: 35831
Use the High/Low for Time Period study for each session you want and set the Subgraphs to use one of the Top/Bottom Fill options. Refer to the following for information on the Top/Bottom draw styles:
Chart Studies: Notes about Top and Bottom Draw Style Pairs
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2024-10-30 23:29:45]
MrFreeze - Posts: 6
I would also like to have this on my chart. any updates? did you find something that worked for you?
