pnf on a footprint chart
View Count: 830
| [2022-11-29 21:13:21] |
| coachted - Posts: 397 |
|
i have a footprint chart with a point and figure 1-8 setting and at the same time i have a regular point and figure 1-8 chart...why woulld the length of the bars be different
|
| [2022-11-30 16:41:59] |
| John - SC Support - Posts: 40306 |
|
They should not be different unless there is some difference in the settings between the charts. Can you please give us screenshots of the two charts so we can see exactly what you are referring to. Follow these instructions to take a screenshot: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-12-01 01:43:11] |
| coachted - Posts: 397 |
|

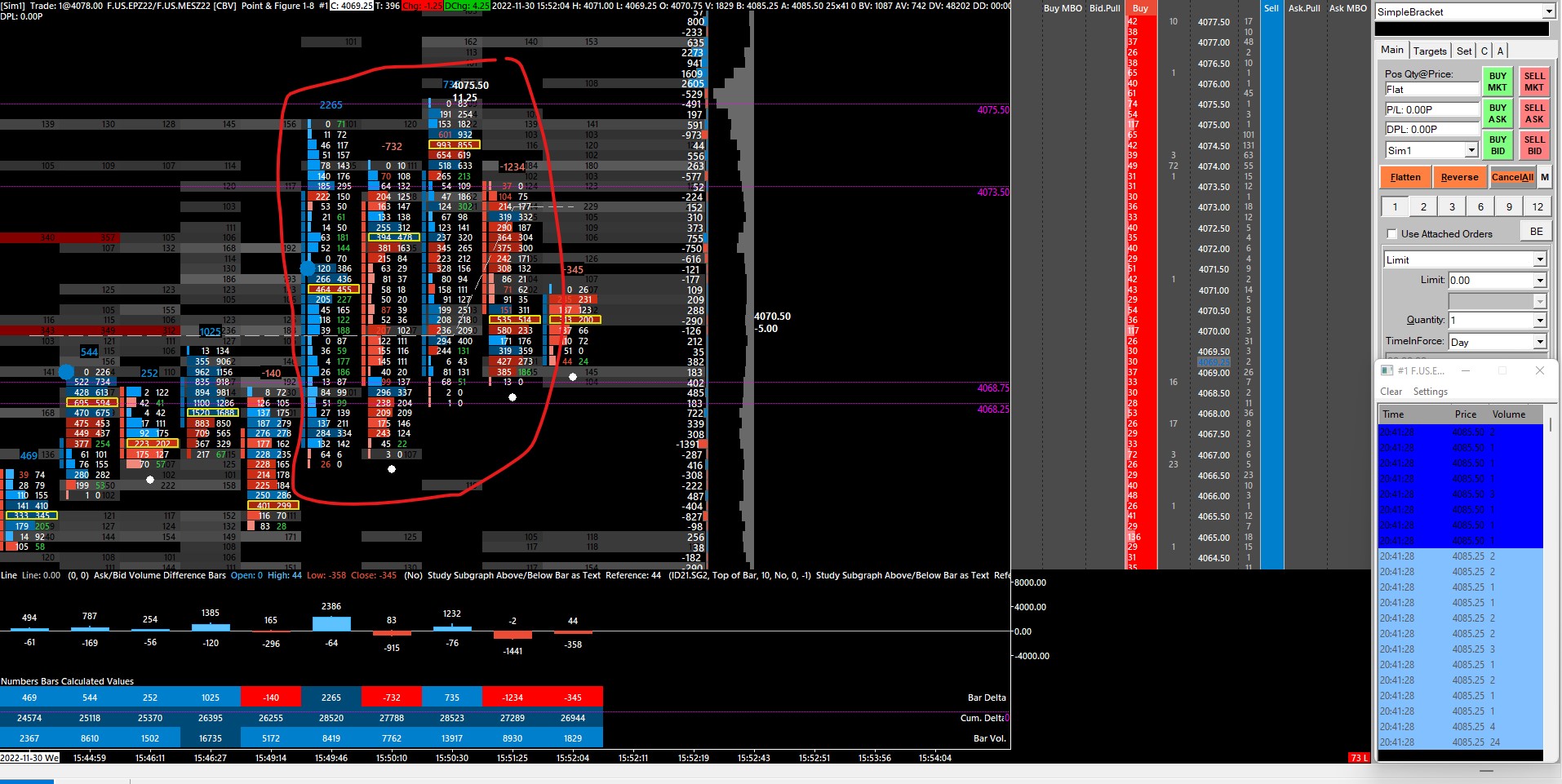

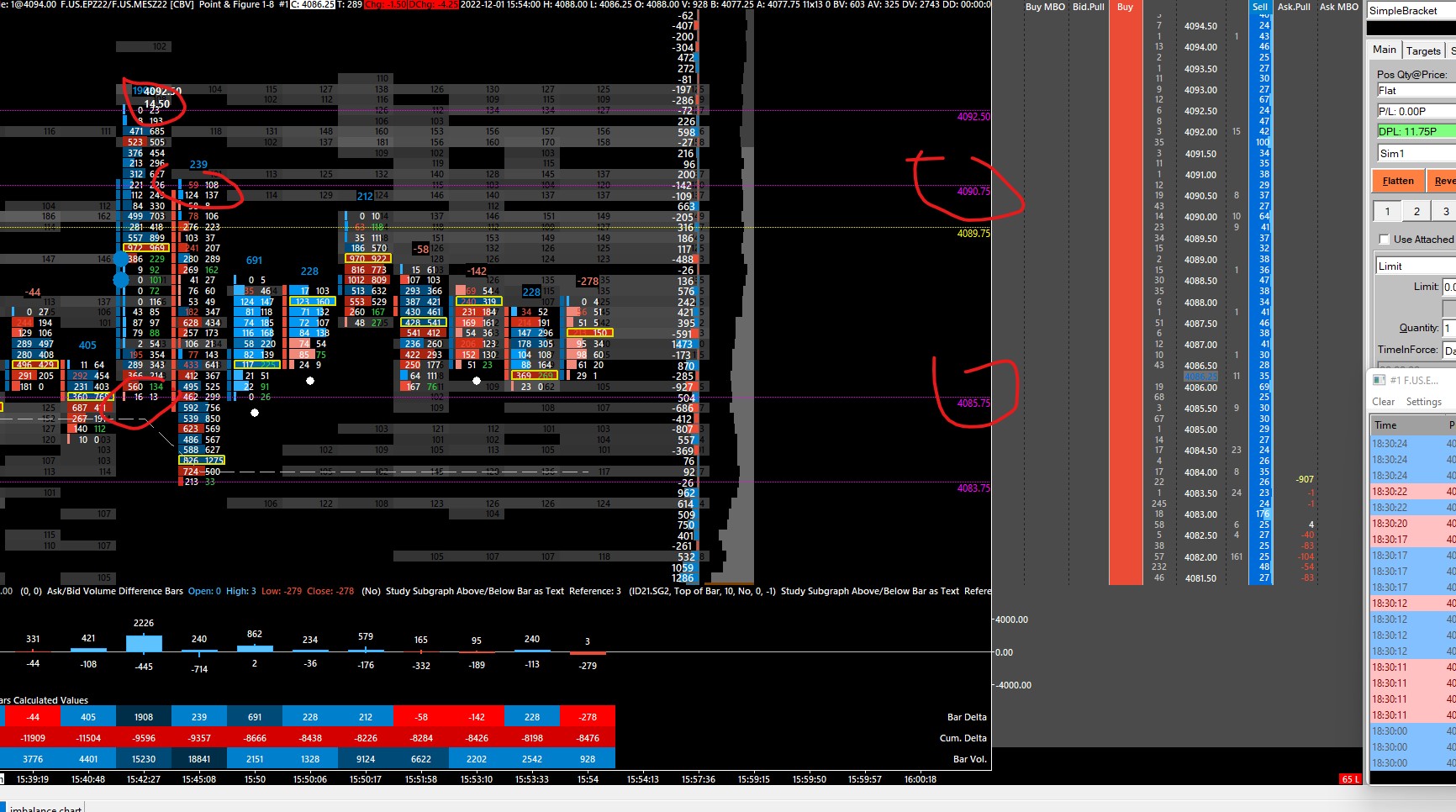

please note the first screen shot is a pnf chart 1-8...you can notice the bar pattern circled....for instance there is a bar with a zig zag above it 4075.5 ...11.5 the low of that bar is marked with a horizontal line = 4067.5 and the high is 4075.50..the bar next to this shows a low of 4068.75 and a high of 4075.25 the 2nd screen shot is a footprint chart with the bar type set as pnf 1-8 yet the bars look much different...notice the first bar is the same time as the pnf chart and yet the low is only 4068.25 and the second bar referrenced on the pnf chart shows a high of only 4073.5... |
 Screenshot 2022-11-30 203929.jpg / V - Attached On 2022-12-01 01:39:40 UTC - Size: 362.76 KB - 186 views Screenshot 2022-11-30 204256.jpg / V - Attached On 2022-12-01 01:43:06 UTC - Size: 428.63 KB - 222 views |
| [2022-12-01 15:53:12] |
| John - SC Support - Posts: 40306 |
|
Please attach a chartbook that has both of these charts in it so we can take a look. Refer to the following for how to attach a chartbook: https://www.sierrachart.com/index.php?page=PostingInformation.php#AttachFile For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-12-01 20:43:04] |
| coachted - Posts: 397 |
|
attached
|
 New Master Template.Cht - Attached On 2022-12-01 20:42:38 UTC - Size: 195.74 KB - 177 views fp Template.Cht - Attached On 2022-12-01 20:42:49 UTC - Size: 10.93 KB - 223 views |
| [2022-12-01 23:25:57] |
| John - SC Support - Posts: 40306 |
|
When we look at the data and compare the exact same times, the data is exactly the same. One of the things we noticed is that one of the charts has the Time Zone set to Use Global Time Zone and the other chart has the Time Zone set to Eastern US (New York) time zone. If the global Time Zone is not set to Eastern US (New York) then you would have to ensure that you are looking at the correct times for the bars for each time zone. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-12-01 23:32:20] |
| coachted - Posts: 397 |
|
i made the change and it doesnt make a difference as you can see the bar length is still different
|
Attachment Deleted. Screenshot 2022-12-01 183106.jpg / V - Attached On 2022-12-01 23:32:01 UTC - Size: 381.42 KB - 163 views Screenshot 2022-12-01 183023.jpg / V - Attached On 2022-12-01 23:32:10 UTC - Size: 363.65 KB - 150 views |
| [2022-12-02 15:44:03] |
| John - SC Support - Posts: 40306 |
|
You can not look at the High and Low of the PnF X-O bars as the actual High/Low. Refer to the following: Point and Figure Chart: Why Point & Figure Columns Do Not have the Same High/Low As The Underlying Bars Your underlying bars (which is what we looked at yesterday) do match up correctly, it is just a display difference due to how the X-O bars are drawn. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
