How to Post a Message for Support

DAX symbol

View Count: 407

[2022-11-28 20:07:01] #1 [Go To First Post]
UserAlexandros - Posts: 4
Hello, I would like to know, how can I setup the DAX futures symbol

[2022-11-29 17:31:24] #2 [Go To First Post]
John - SC Support - Posts: 30972
If you are wanting the delayed streaming data, then select File >> Find Symbol and open the section for EUREX Futures and find the DAX in the list to open the section and select the contract you want to view. If you are asking how to get the real-time data, then follow the instructions at the following link to setup the Denali Exchange Data Feed for EUREX (Note that you will need to change your package to one of the Integrated packages - Package 10 is the equivalent of Package 3): Denali Exchange Data Feed: Setup Instructions: All Other Exchanges For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-12-05 18:51:38] #3 [Go To First Post]
UserAlexandros - Posts: 4
I set up the FDAXZ22 - EUREX[M] but it doesn't display the total volume per value. Why is that? What should I do? Date Time Of Last Edit: 2022-12-05 18:51:55

[2022-12-05 23:16:32] #4 [Go To First Post]
John - SC Support - Posts: 30972
What exactly do you mean that it "doesn't display the total volume per value"? Is this an issue with the Volume by Price, or the general volume for the symbol or something else? If you can include a screenshot of what you are seeing and why it is incorrect, then that would be helpful. Follow the instructions at the following link for how to take a screenshot: Support Board Posting Information: Attaching or Posting a Screenshot/Image (Optional) For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-12-09 20:00:45] #5 [Go To First Post]
UserAlexandros - Posts: 4

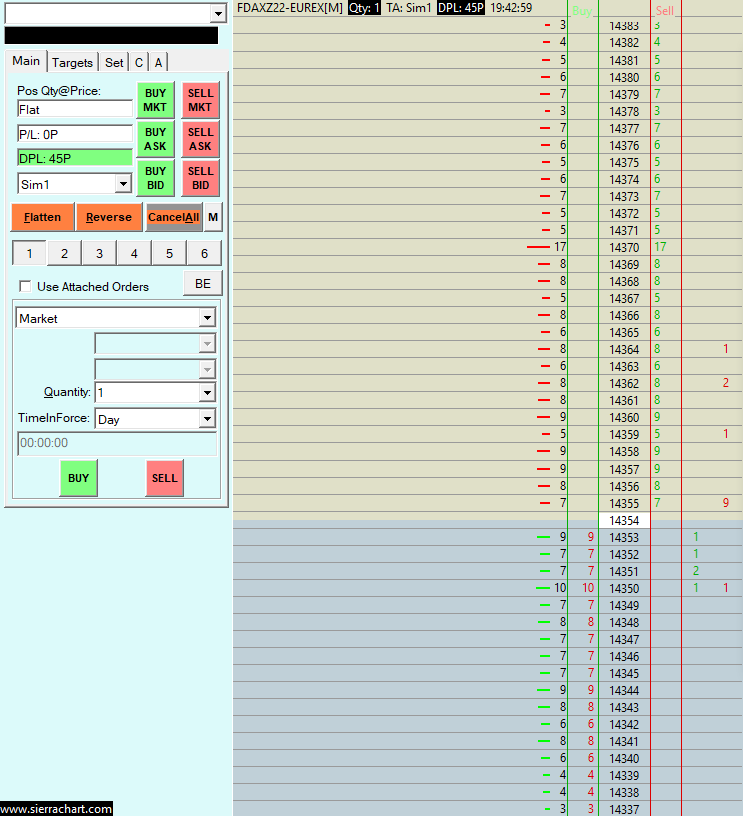

it does not display total value per price for example 4506 --> 14336.50 3228 --> 14336.25 etc here os the sreenshot https://www.sierrachart.com/image.php?Image=1670615888359.png

[2022-12-09 20:40:58] #6 [Go To First Post]
John - SC Support - Posts: 30972
That screenshot is of a Trading DOM and does not show any volume by price data. We need more information on what exactly you believe is incorrect. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-12-09 20:45:43] #7 [Go To First Post]
UserAlexandros - Posts: 4
I dont beleive that something is incorrect. I just want to show me the total volume per price. How can I do that?

[2022-12-09 21:43:11] #8 [Go To First Post]
John - SC Support - Posts: 30972
Sorry, now we understand. On the Trading DOM select Chart >> Studies. Select the Volume by Price study from the list on the left and select the Add button to move it to the right. Select OK to close the window and add the Volume by Price study to the Trading DOM. by default the Volume by Price will be for the trading day, and will be aligned to the left. If you open the settings for the Volume by Price study, then you can change the items as you want (including Right Aligning the profile). To show the volume for each bar, set the following Input: - Display Volume in Bars: Select what you want to display All of the information for the Volume by Price study can be found at the following link: Volume By Price Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing
