How do I create this footprint number bars chart?

View Count: 1115

[2022-06-02 04:53:40] #1 [Go To First Post]
RollinCajun - Posts: 11
I've been searching for days for a template of this type of number bars chart and I've had no luck. Is there a guide I can read or watch that will teach me how this number bar chart is created I truly want this style so bad?

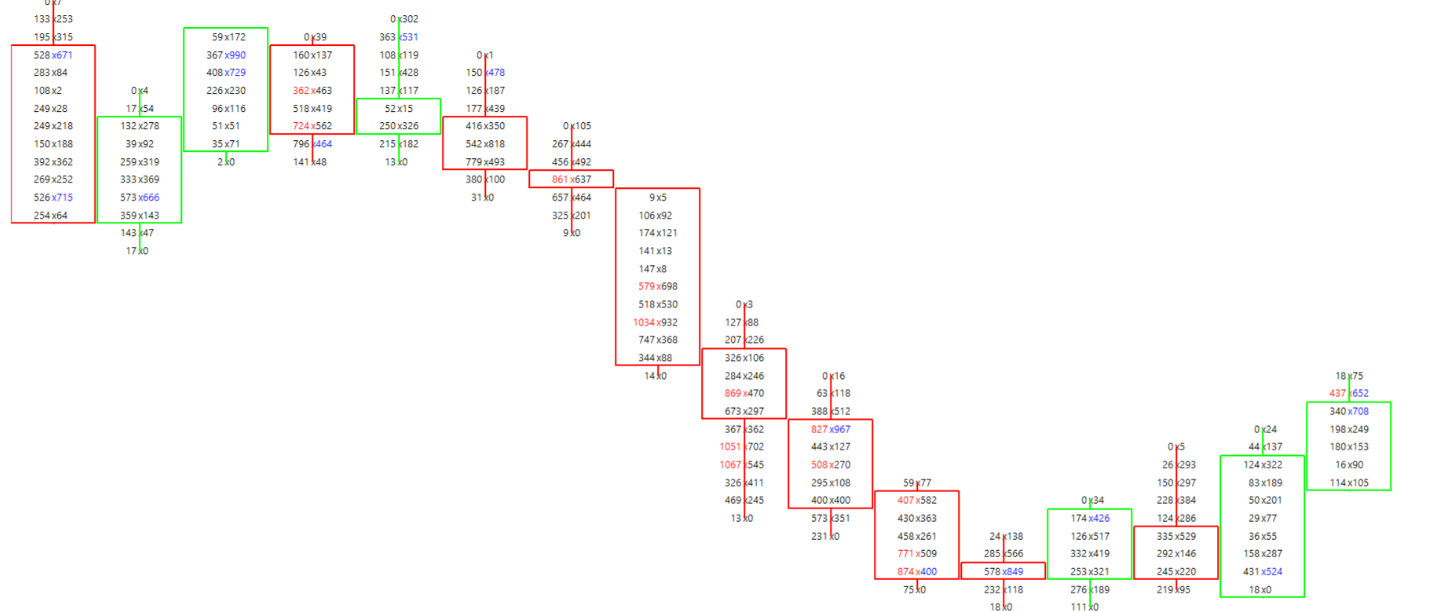

Screenshot 2022-06-01 23.50.31.png / V - Attached On 2022-06-02 04:52:47 UTC - Size: 146.38 KB - 315 views

[2022-06-02 14:12:08] #2 [Go To First Post]
John - SC Support - Posts: 40526
The basics are the following settings: - Column # Numbers Bars Text: Bid Vol x Ask Vol - Column # Background Coloring Method: None - Open and Close Marker Style: Candlestick Body Outline What we can not answer is what they are using to get the specific coloring of the text. You will need to figure that out. Refer to the text coloring options here: Numbers Bars: Numbers Bars Text Coloring Methods For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-06-07 10:29:39] #3 [Go To First Post]
RollinCajun - Posts: 11
Having issues getting the open candles to show up. I used the settings you put in your post - Open and Close Marker Style: Candlestick Body Outline but I still don't see any candles. I've even changed the chart graph draw type to different types of candles and none of them show up on the number bars chart.

[2022-06-07 15:19:54] #4 [Go To First Post]
John - SC Support - Posts: 40526
Sorry, forgot to include the following Input: - Place Open Marker/Boxes In: Column 1 For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-06-08 03:18:17] #5 [Go To First Post]
RollinCajun - Posts: 11
how do I fix the issue with the number bar numbers being so close together overlapping each other on the higher timeframes? I can't even read the numbers at all on anything above 5 minutes.

[2022-06-08 15:25:08] #6 [Go To First Post]
John - SC Support - Posts: 40526
Refer to the following: Numbers Bars: Scaling a Numbers Bars Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2022-06-08 15:34:49] #7 [Go To First Post]
Bedhog - Posts: 182
Hello RollinCajun. Sent you a DM request. I would be glad to review your Numbers Bars and share what I know. --Mike
