How to Post a Message for Support

Moving Avgs Alert

View Count: 507

[2021-07-08 17:32:38] #1 [Go To First Post]
User628616 - Posts: 132
I want to create an when EMA's are stacked in numerical order(200/100/50/20/8 & 8/20/50/100/200) Whenever they become stacked numerically either High to Low or Low to High.

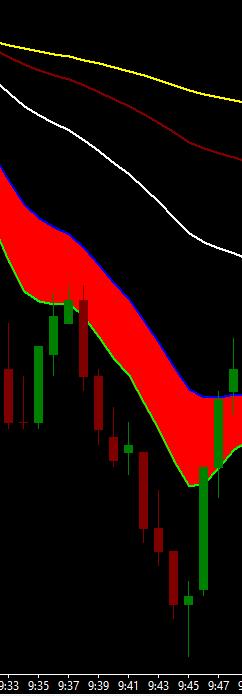

CapturePB.PNG / V - Attached On 2021-07-08 17:28:19 UTC - Size: 11.91 KB - 150 views

[2021-07-08 17:43:48] #2 [Go To First Post]
John - SC Support - Posts: 31598
We are not understanding what you want to do exactly. Can you give us more information please. If you are looking for how to fill in the area between subgraphs, then refer to the following: Chart Studies: Filling the Area Between Two Study Subgraphs within Same Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-07-13 16:55:07] #3 [Go To First Post]
User628616 - Posts: 132
May you help me word this Alert I can't figure it out. I'm trying to have create a Alert when my Moving Averages(200/100/50/20/8) are stacked in numerical order either High to Low or vice versa. So when the 200(Yellow) is above the 100(Red) which is above the 50(White) which is above the 20(Blue) that is above the 8(Green) I want an Alert to go off and the same when 8 is above the 20 that is above the 50 that is above the 100 which is above the 200. Thank you

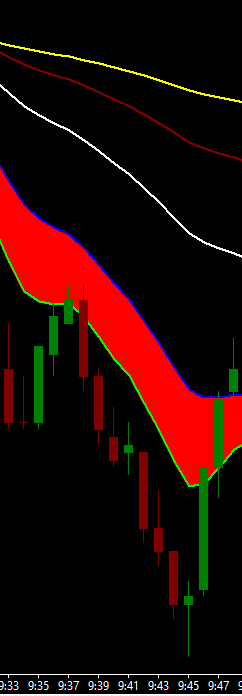

CapturePB.PNG / V - Attached On 2021-07-13 16:50:28 UTC - Size: 11.91 KB - 144 views CapturePB2.PNG / V - Attached On 2021-07-13 16:50:34 UTC - Size: 11.94 KB - 142 views

[2021-07-13 17:07:30] #4 [Go To First Post]
John - SC Support - Posts: 31598
You would need an alert that looks like the following: =OR(AND(ID1.SG1 > ID2.SG1, ID2.SG1 > ID3.SG1, ID3.SG1 > ID4.SG1, ID4.SG1 > ID5.SG1), AND(ID5.SG1 > ID4.SG1, ID4.SG1 > ID3.SG1, ...)) Where ID1 is your 200 MA, ID2 is your 100 MA, etc. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-07-13 17:35:24] #5 [Go To First Post]
User628616 - Posts: 132

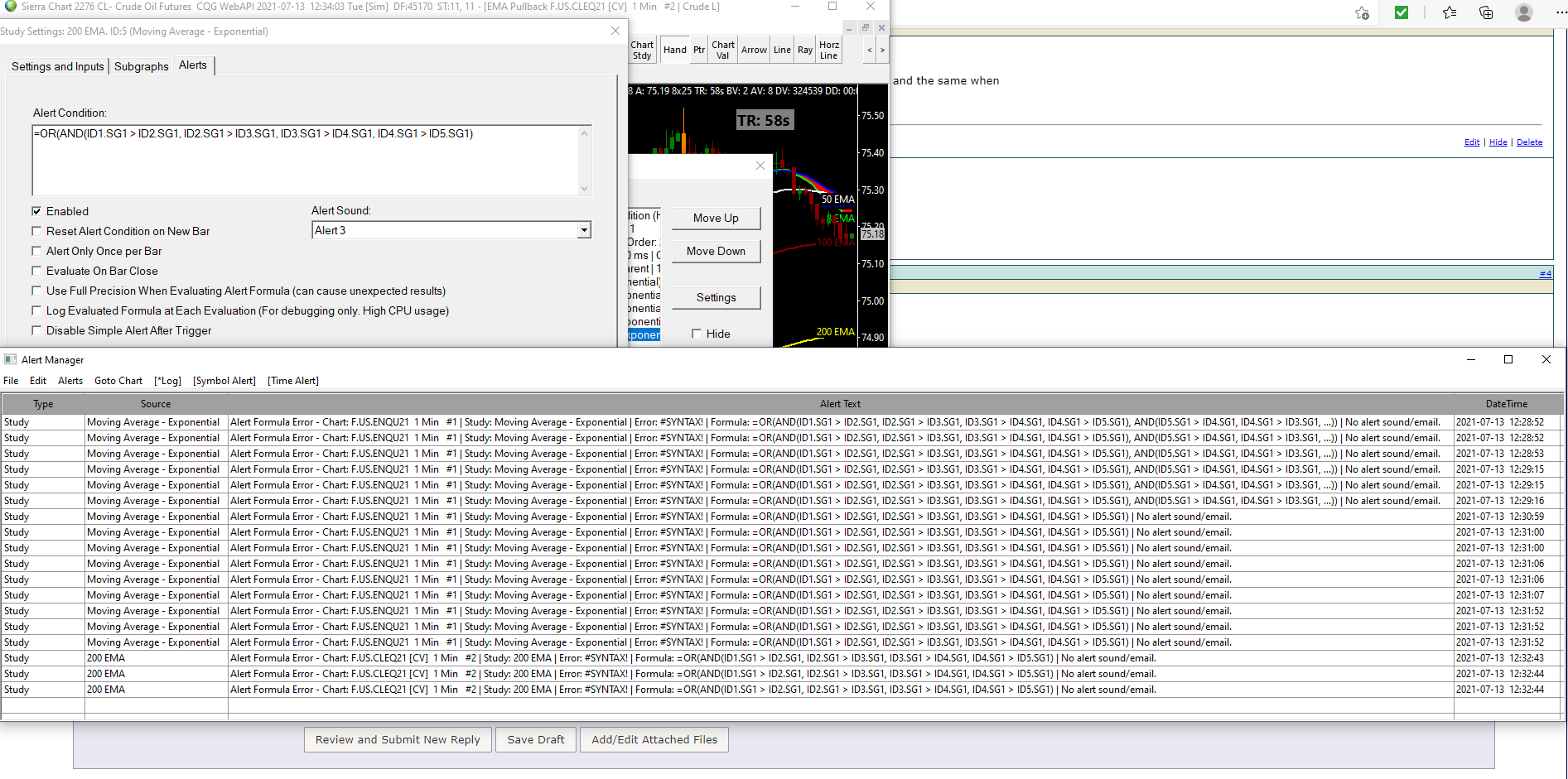

I placed in the 200 EMA Settings:Alerts section, and this pops up when I press apply/ok


Errorfix.PNG / V - Attached On 2021-07-13 17:34:32 UTC - Size: 156.03 KB - 154 views

[2021-07-13 18:13:27] #6 [Go To First Post]
John - SC Support - Posts: 31598
You need to change the IDs to match the IDs of your specific moving average studies. Refer to the information here: Study/Chart Alerts And Scanning: Referencing Other Studies on the Chart For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing
