Ema crossover shadow
View Count: 976
| [2021-05-19 16:13:15] |
| User628616 - Posts: 132 |
|
How do i get the ema 10 & 20, and 50 & 100 to create a shadow in between the emas? Blue when going up and maroon when going down. Like the attached photo.
|
Private File Attachment Deleted. |
| [2021-05-19 16:27:13] |
| John - SC Support - Posts: 31109 |
|
Refer to the information here: Chart Studies: Filling the Area Between Two Study Subgraphs within Same Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-05-20 21:31:26] |
| User628616 - Posts: 132 |
|
Filling the Area Between Two Study Subgraphs within Same Study I am having trouble understanding how to complete this, it says to add the Horizontal Line study Then 1st Study(10EMA) to Fill Top, 2nd Study(20EMA) to Fill Bottom And the attached pic is the outcome |
 Capture12.PNG / V - Attached On 2021-05-20 21:30:20 UTC - Size: 113.32 KB - 181 views |
| [2021-05-20 21:49:20] |
| John - SC Support - Posts: 31109 |
|
The Horizontal Line was just a suggestion if you were trying to create a rectangle and it then used as the Example of a study through the rest of the steps. But, it looks like you are using different studies, in which case you need to follow these instructions: Chart Studies: Filling the Area Between Two Study Subgraphs within Different Studies We just realized that there is a line missing from the above instructions. At the end of the above instructions you will need to do the following: - On the Study Subgraphs Reference study window select the Scale button to open the Scales window. - Select Automatic to make the Scale automatic. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-05-20 22:12:22] |
| User628616 - Posts: 132 |
|

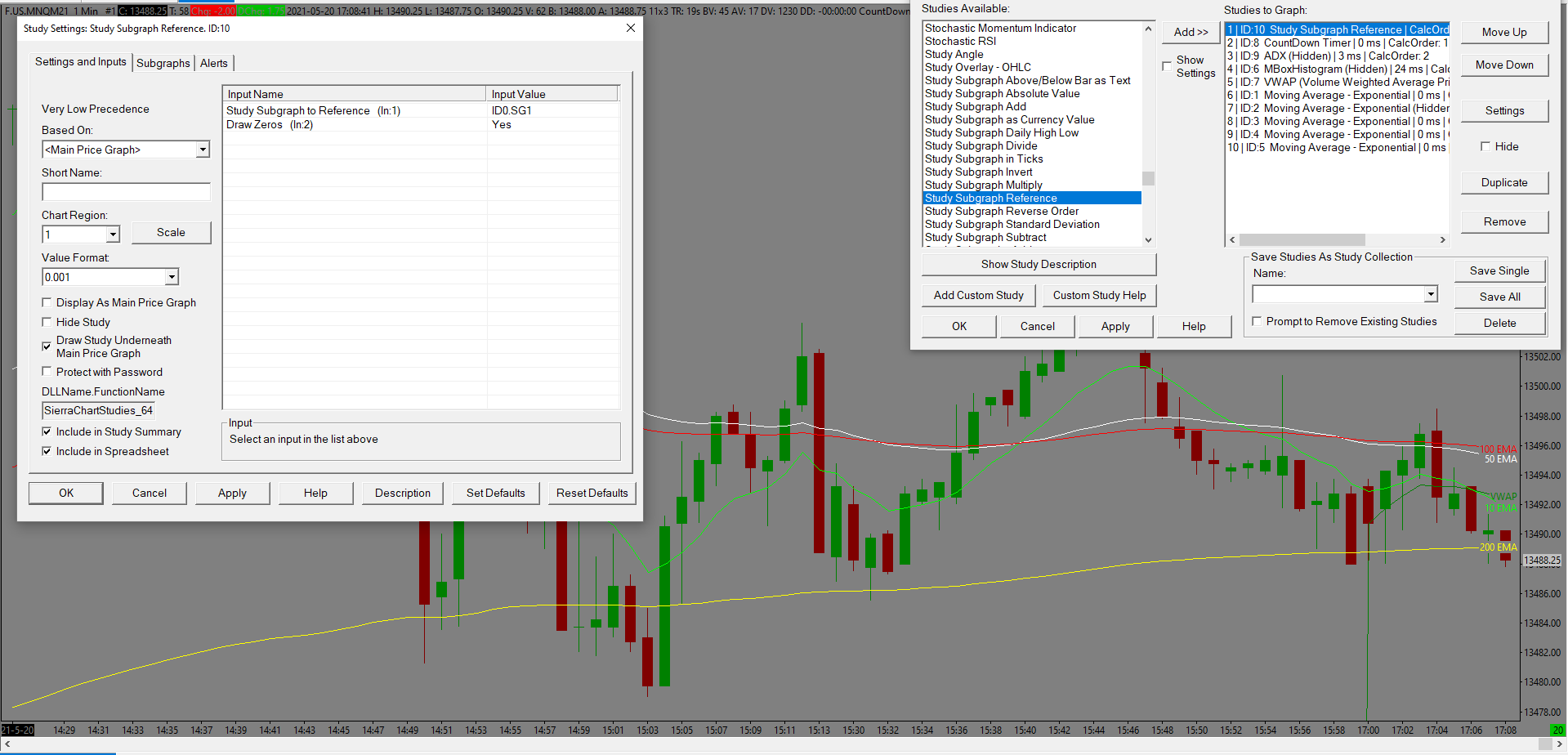

In the attached pics, I've completed Line 7. Where/what is the Input Study 1 & Input Study 2? |
| Capture121.PNG / V - Attached On 2021-05-20 22:09:50 UTC - Size: 132.88 KB - 202 views Capture122.PNG / V - Attached On 2021-05-20 22:10:53 UTC - Size: 57.21 KB - 195 views |
| [2021-05-24 14:04:37] |
| John - SC Support - Posts: 31109 |
|
You have to be careful. There are two different studies, one called Study Subgraph Reference and the other called Study Subgraphs Reference, note the 's' at the end of Subgraphs in the second one. It is the second one that you need Study Subgraphs Reference, that will give you the two inputs you need.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-05-27 15:21:32] |
| User628616 - Posts: 132 |
|
I got it to semi work the shadow is displaying as a clone, away from the Green/Blue EMA, I want the shadow in between them to
|
| CaptureCL.PNG / V - Attached On 2021-05-27 15:20:09 UTC - Size: 115.01 KB - 171 views |
| [2021-05-28 13:12:54] |
| John - SC Support - Posts: 31109 |
|
Change the Scale for the Study Subgraphs Reference to "Automatic". Refer to the following: Chart Studies: Settings and Inputs Tab >> Scale For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2021-05-30 15:25:27] |
| User628616 - Posts: 132 |
|
How can I create a type of Special notification/alert when a candle is able to Open and Close above all 5 Moving Averages & Open and Close below all 5 Moving Averages? In the attached pic I put a box around the candles that did that |
| Capturepb.PNG / V - Attached On 2021-05-30 15:21:27 UTC - Size: 18.7 KB - 188 views |
| [2021-05-31 15:01:22] |
| John - SC Support - Posts: 31109 |
|
In general, refer to the Alert documentation here: Study/Chart Alerts And Scanning You would need to create an Alert that checks all the different parameters, therefore you would need to use the AND function. This is defined on that page. Also, if you are wanting to get some kind of visible change to the bars, or other notation, then refer to the documentation for the Color Bar Based on Alert Condition study: Color Bar Based on Alert Condition For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-05-16 15:18:15] |
| User628616 - Posts: 132 |
|

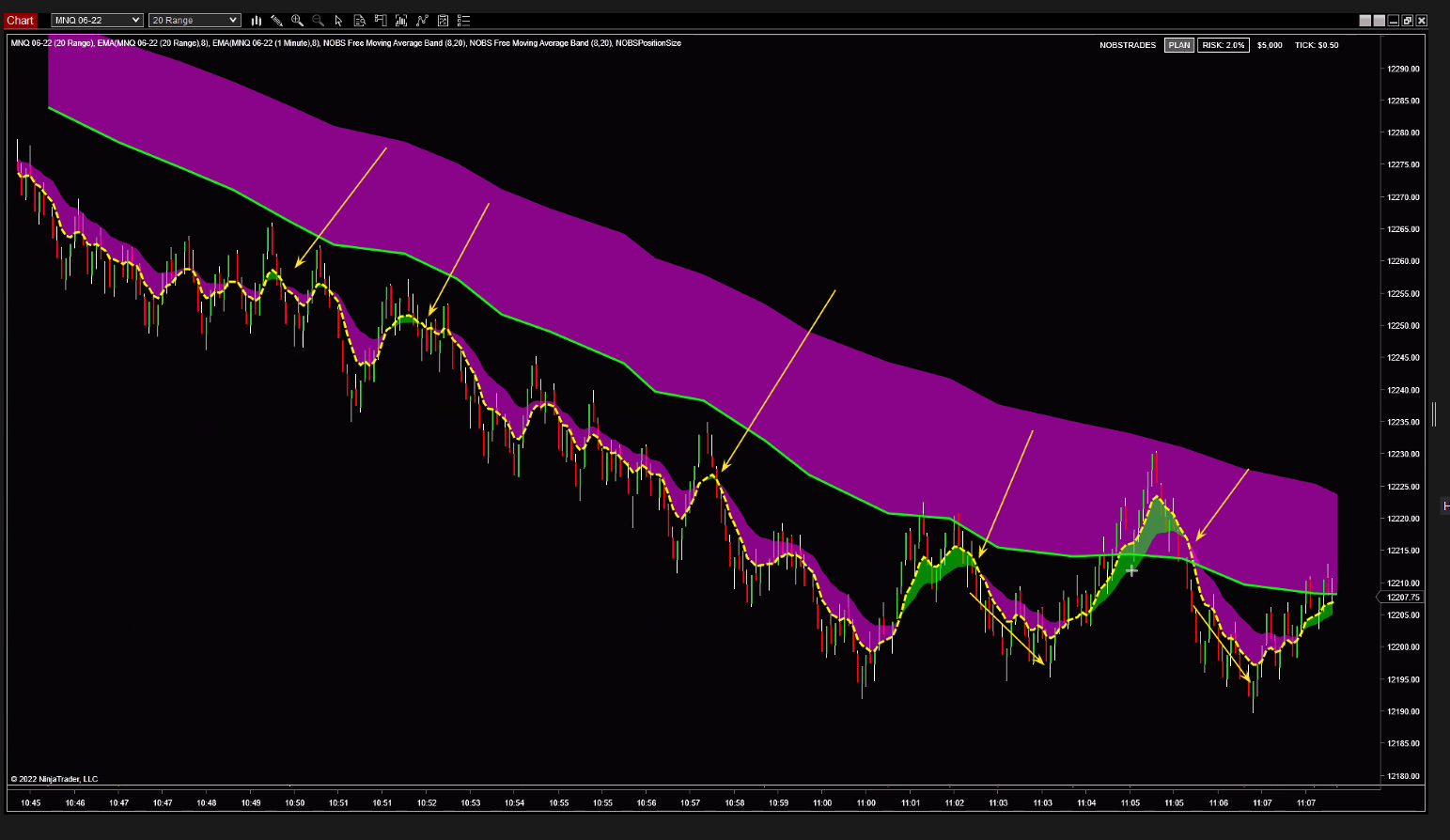

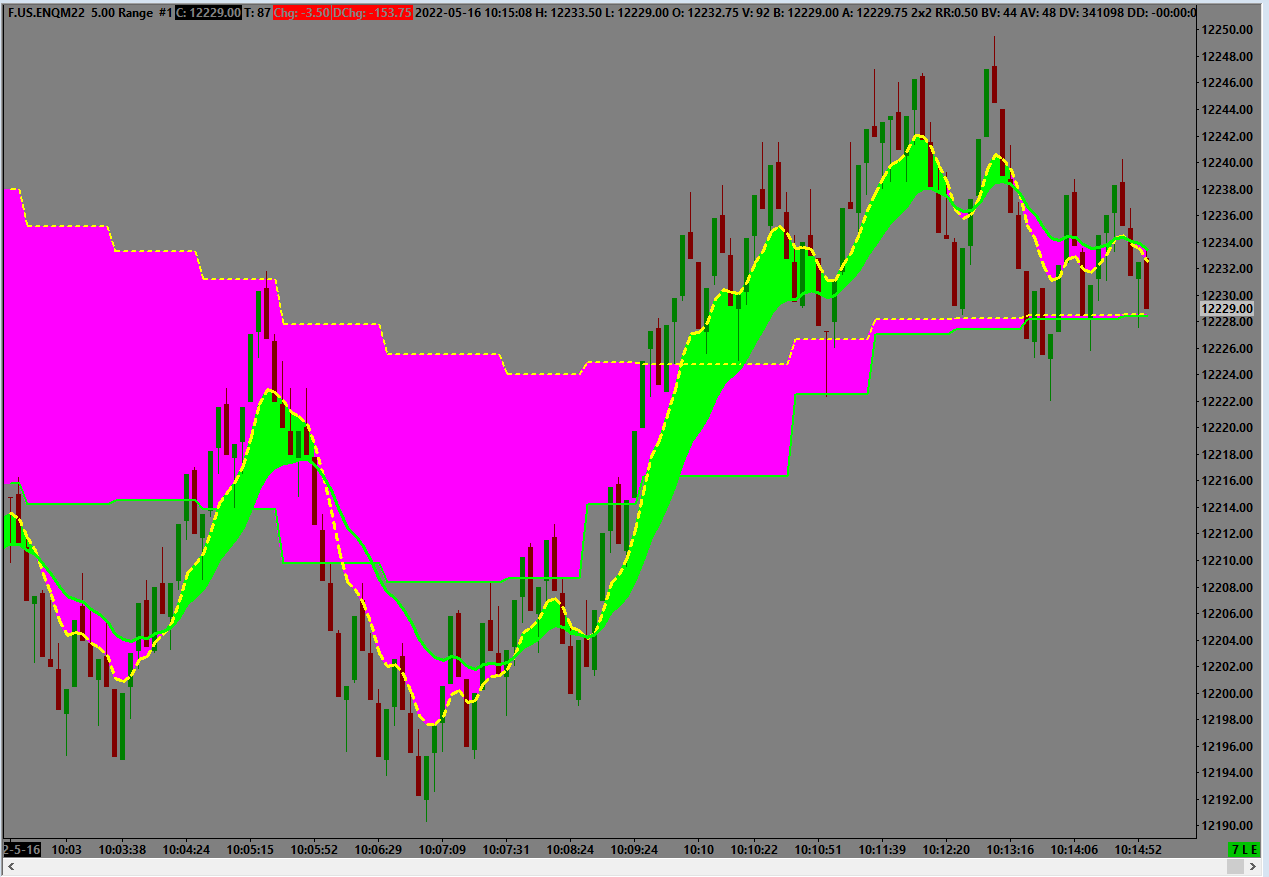

Im trying to get my Sierra Chart(Gray background) to look like the NT8 chart(Black background), I'm trying to have the lines be smooth not like the stairway like it is, the draw style is solid line but it is still showing the stairway
|
| [2022-05-16 17:34:50] |
| John - SC Support - Posts: 31109 |
|
What study is producing that stair-step line and what is the subgraph Draw Style set to for it? If it is set to Dash then change it to Line and see if that resolves your issue. Refer to the following regarding Draw Styles: Chart Studies: Subgraphs Tab >> Draw Style For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-05-16 19:26:51] |
| User628616 - Posts: 132 |
|

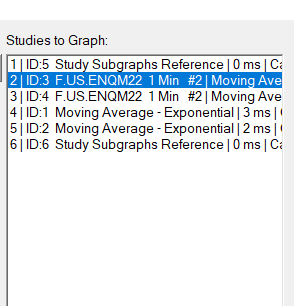

Moving Average(Exponential) from 1 Min chart that is being displayed on the 20 Range chart via Study Subgraphs References
|
| [2022-05-16 21:47:18] |
| John - SC Support - Posts: 31109 |
|
Since it is a Study/Price Overlay, what you are seeing is the data being extended over the bars that make up the period from the source chart. The only thing you could do to "smooth" it out would be to apply a Moving Average to the data. Then hide the original Study/Price Overlay. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2022-07-02 01:08:48] |
| User628616 - Posts: 132 |
|
I want the space in betwwen SD+1 & SD-1 to be shaded a color , and a shade area in between 50ema & 100ema
|
| [2022-07-05 15:59:09] |
| John - SC Support - Posts: 31109 |
|
Refer to the information starting at the following: Chart Studies: Notes about Top and Bottom Draw Style Pairs For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
