Ghost highs & lows on each new PnF bar chart

View Count: 634

[2021-03-03 03:22:01]
Dan the Man - Posts: 82
Hi,

This question was asked previously by another user:

Can I plot point & figure charts (example-9 tick reversal) in bar chart (OHLC) format ?
Do such format give ghost highs & lows on each new PnF bar chart?

Can you help me to format the point & figure (OHLC) bars to plot ghost highs & lows on each new PnF bar chart?.

I attached a screen shot of the other user that asked this question.

Thank you once again,
Daniel
imageGhost High Lows.jpg / V - Attached On 2021-03-03 03:19:44 UTC - Size: 404.09 KB - 200 views
Attachment Deleted.
[2021-03-03 14:25:36]
Sierra Chart Engineering - Posts: 104368
This is documented here:
Chart Settings: Point and Figure Bar (Intraday Charts)

From documentation:
For Open, High, Low, Close style chart bars, set the Graph Draw Type setting on the Chart >> Chart Settings >> Main Settings tab, to OHLC bars.

The colors for the standard OHLC Bars type when using Bar Period Type >> Point and Figure Bar, are controlled with the standard color settings for OHLC bars in Graphics Settings.

The true and accurate Open, High, Low and Last/Close values which represent the underlying data contained within each Point and Figure chart bar are maintained and can be viewed through the Chart Values window.

The Open value represents the first price of the chart bar and would be the price that caused a new chart bar to start. The High value is the highest price during the chart bar. The Low value is the lowest price during the chart bar. The Last value is the last trade price of the bar. The volume of the chart bar will be the volume of all of the trades contained within the chart bar. When the chart bar is displayed using either the OHLC Bars or Candlestick Bars for the Graph Draw Type, the true Open, High, Low, Last values are displayed.

Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2021-03-03 20:13:52]
Dan the Man - Posts: 82
Hi,

I am using your real time TSX data.

When I use P&F charts I can only download a few days worth of data.

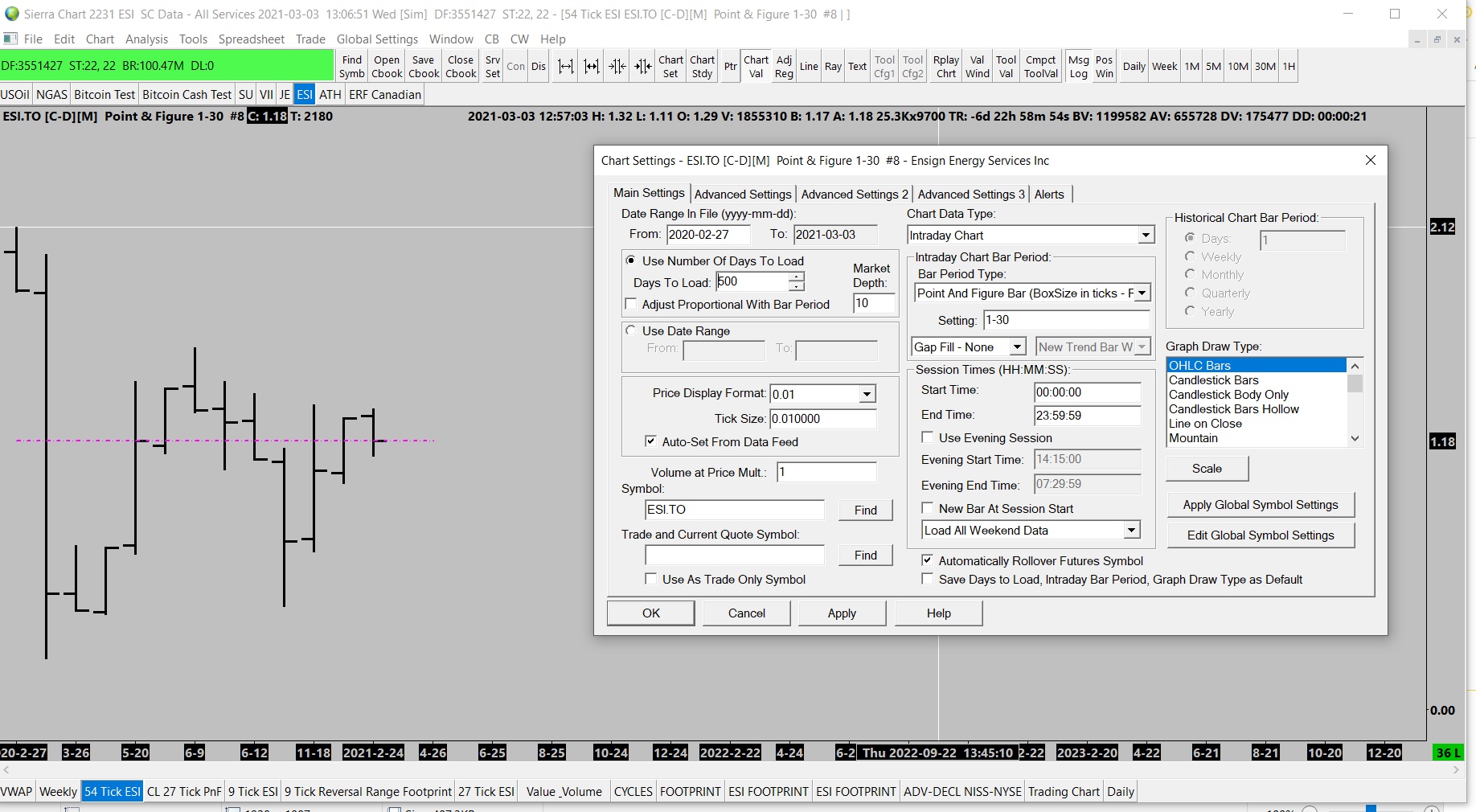

I attached a P&F chart showing my setting.

Also the same issues with crypo's

Thank you,
Daniel
imageTSX Data March 3, 2021.jpg / V - Attached On 2021-03-03 20:12:08 UTC - Size: 421.84 KB - 193 views
Attachment Deleted.
[2021-03-04 01:25:35]
Sierra Chart Engineering - Posts: 104368
Refer to:
Historical Intraday Data (Missing Data / Download Errors / Viewing More Data): Downloading/Viewing More Historical Intraday Data
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2021-03-04 04:10:59]
Dan the Man - Posts: 82
Hi,

Sorry to be a pain.

I followed the above instructions with no improvement.

I adjusted the setting in Global Settings >> Data/Trade Service Settings

Then went to: Edit >> Delete All Data And Download.

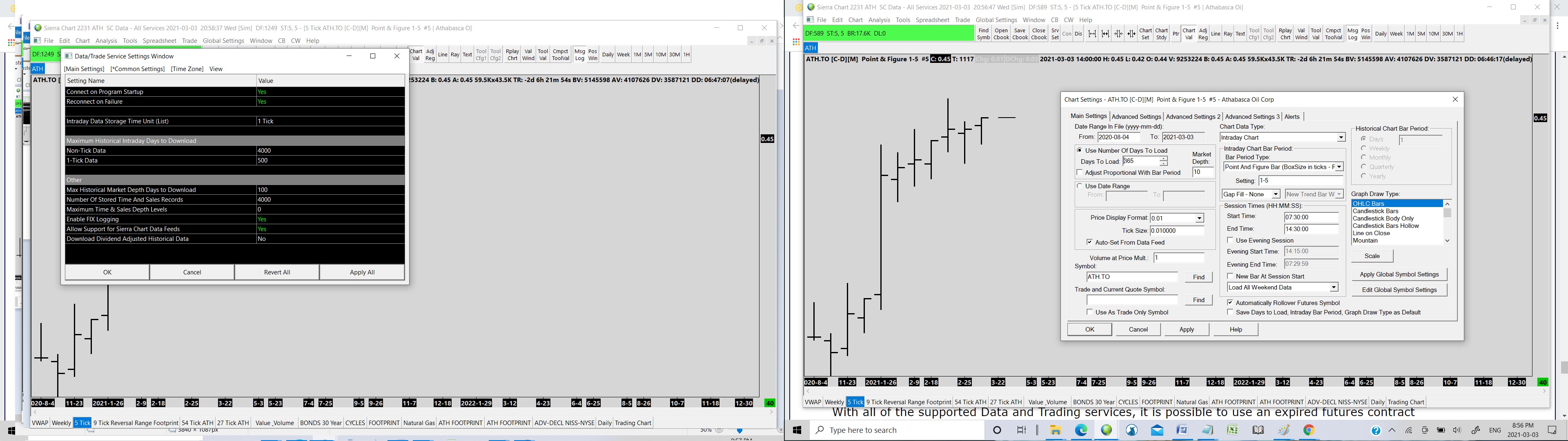

I attached a screen shot showing the Global Settings and the the chart with limited data.

Regards,
Daniel
imageGlobal Data Trade Service Setting.jpg / V - Attached On 2021-03-04 04:10:07 UTC - Size: 816.38 KB - 192 views
imageGlobal Data Trade Service Setting.jpg / V - Attached On 2021-03-04 04:10:07 UTC - Size: 816.38 KB - 179 views
[2021-03-04 16:49:39]
Sierra Chart Engineering - Posts: 104368
Therefore, if you are not getting more historical data than expected, that is all the historical data that is available for the symbol. You will be able to clearly see all of the data by setting the chart bars to 1 hour per bar instead of Point and Figure and reducing the bar spacing.
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
Date Time Of Last Edit: 2021-03-04 16:50:55
[2021-03-04 21:35:01]
Dan the Man - Posts: 82
Hi,

I'll try to explain my setup.
The main focus is PnF charts.

I subscribe to Sierra Charts real time TSX data.
I need to use Weekly, Daily and PnF charts.

When I use time based charts like the weekly, Daily there is 5-10 years of data. (Good)

If I use hourly or PnF charts there is only ~ 4 months. (for short term PnF's (1-10 box size) that is OK but I also need to use longer term PnF's (1-60 box size)

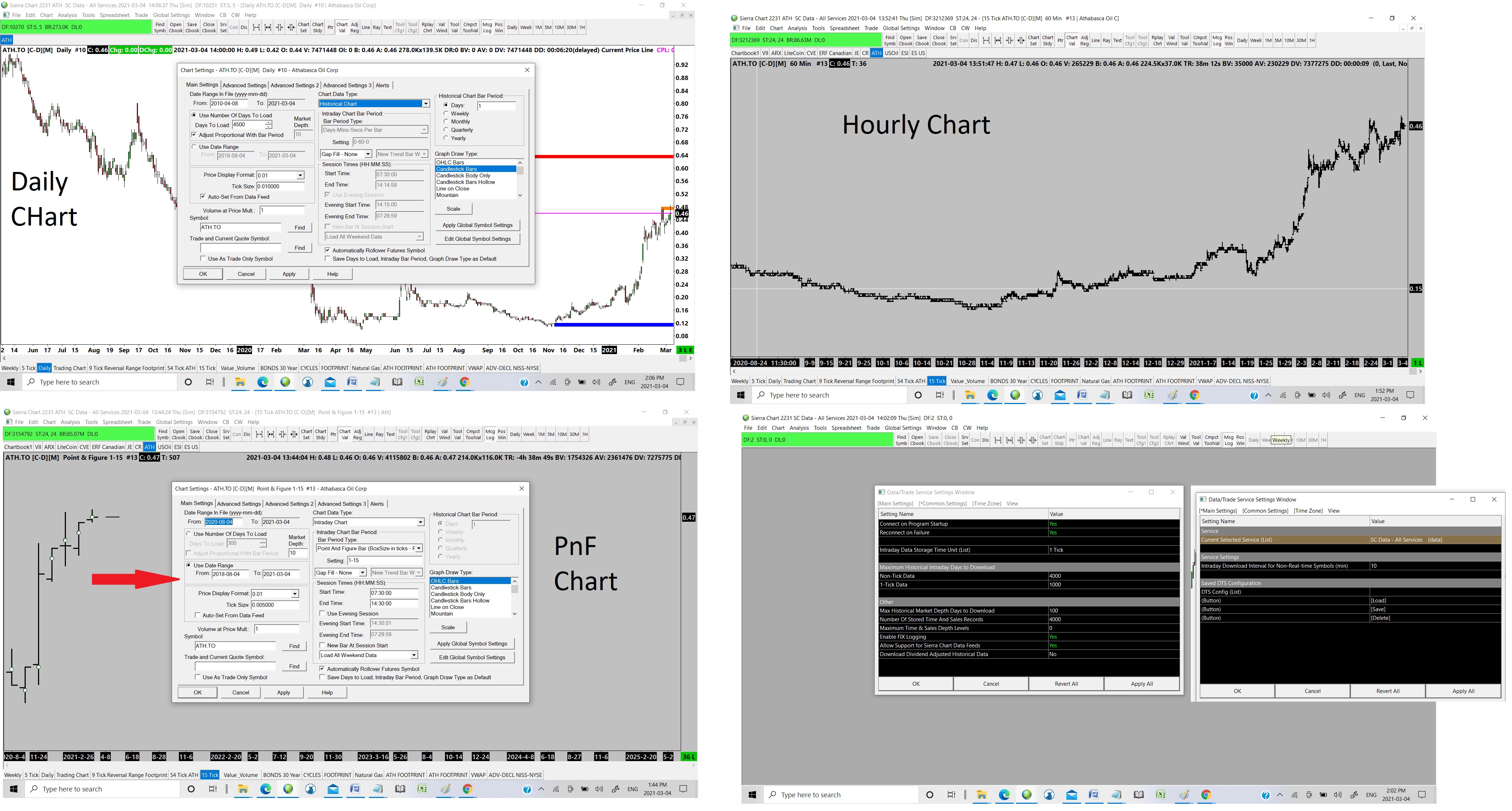

I attached a screen shot that has a Daily chart that displays about 7 years of data using Historical Charts.

When using Hourly/minute and PnF charts there is no other choice but to use Intraday Charts. Only about ~ 4 months of data are displayed.

If I use Historical Charts for PnF charts, Sierra Charts will only display Daily bars not PnF bars.
So, that is the dilemma, I have to use Intraday Charts for the PnF's but there is no real data.

I have Data set to SC Data - All Services.

If there is no longer term Intraday Charts data, how can I use Historical Charts data using PnF charts?

Need help !

Regards,
Daniel
imageSierra Charts TSX Data March 4, 2021.jpg / V - Attached On 2021-03-04 21:31:12 UTC - Size: 1.58 MB - 194 views
