How can I reference Moving Average in the ALERT

View Count: 1324

[2020-01-03 21:53:05] #1 [Go To First Post]
sourdubber - Posts: 52
How can I use the reference function in the alert? For example, I would like an alert based on this simple formula: TriggerAlert = (close - close[1]) > (simple moving average - simple moving average[1]); (Sorry, my knowledge of spreadsheet is pretty basic. Thanks in advance for your help.)

[2020-01-03 23:30:14] #2 [Go To First Post]
Ackin - Posts: 1865
=(c-c[-1])>(IDxx.SG1-IDxx.SG1[-1]) where IDxx is ID of the simple moving average Date Time Of Last Edit: 2020-01-03 23:39:38

[2020-01-03 23:44:06] #3 [Go To First Post]
John - SC Support - Posts: 31362
We are not sure exactly what you are wanting to do. Ackin has given you one option. You will find the documentation for referencing previous bars in an alert here: Study/Chart Alerts And Scanning: Referencing Data Other Than on the Last Bar/Column In the Chart And here is the documentation for referencing a Study Subgraph (the Moving Average - Simple, in your case) - also read the section immediately after this one as well: Study/Chart Alerts And Scanning: Referencing Study Subgraphs If there is something else you need, please specify further. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2020-01-04 00:37:01] #4 [Go To First Post]
sourdubber - Posts: 52
Thank you! (Wow that look so simple in hindsight. LOL) Another noob question. Is there a way to plot the formulas on the chart for verification? For instance, plot (simple moving average - simple moving average[1]) as a line on the lower chart as a visual reference?

[2020-01-04 00:50:03] #5 [Go To First Post]
Ackin - Posts: 1865
You can do these calculations. Refer to: Using the Basic Arithmetic Studies

[2020-01-04 03:25:01] #6 [Go To First Post]
sourdubber - Posts: 52

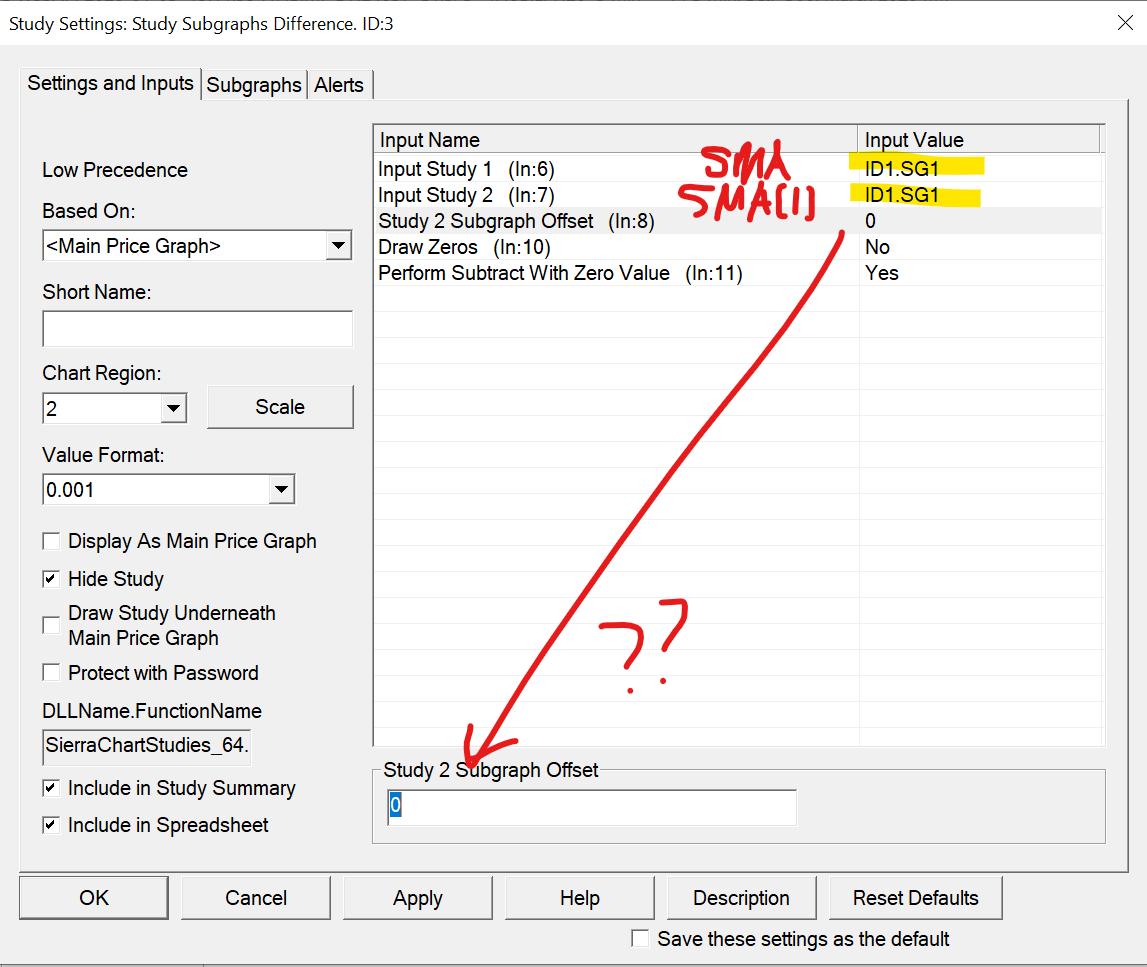

Thanks for the pointer. It looks easy but I've already run into a problem. I am using the Study Subgraphs Subtract Difference to subtract SMA - SMA[1]. But how can I insert the offset of SMA[1] (ie. SMA one bar ago)? There is the offset option but I only want to apply the offset to one of the SMA, not both. Please click the link to see the image. https://www.sierrachart.com/Download.php?Folder=SupportBoard&download=34257


Annotation 2020-01-03 191745.png / V - Attached On 2020-01-04 03:18:10 UTC - Size: 87.33 KB - 297 views

[2020-01-04 03:33:05] #7 [Go To First Post]
Ackin - Posts: 1865
But how can I insert the offset of SMA[1] (ie. SMA one bar ago)? Offset value - This is always converted to a positive value and is the number of bars back Date Time Of Last Edit: 2020-01-04 03:49:26

[2020-01-04 03:53:30] #8 [Go To First Post]
sourdubber - Posts: 52
Offset value - This is always converted to a positive value and is the number of bars back So going back to the example of "SMA - SMA[1]", do I need to create two different studies? I tried to create one study with just SMA and another with the offset of 1 (SMA[1]). But I didn't see any parameter setting for the offset. How would I plot, say, "close x bar(s) ago"? BTW Is there not a way to plot the spreadsheet formula (for example, the one that wrote above) directly on the chart? Thanks.

[2020-01-04 04:15:46] #9 [Go To First Post]
Ackin - Posts: 1865

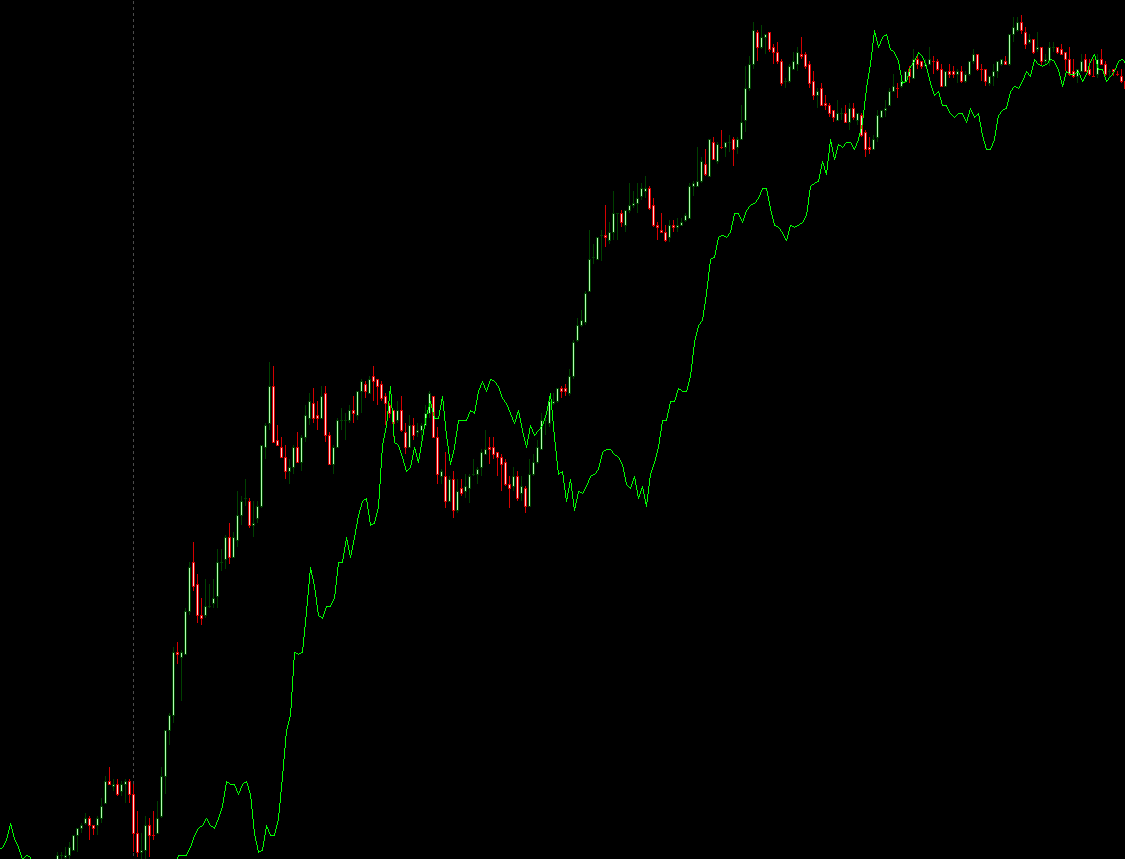

do I need to create two different studies? No... the inputs can be the same they are two different storages Descriptions for this study: Study Subgraphs Subtract/Difference The values from input 1 are stored in array1 The values from input 2 are stored in array2 result = array1[current bar] - array2[current bar - offset] btw. How would I plot, say, "close x bar(s) ago" look on attached file, I did this as universal solution for: Referencing prior bars in Studies more info: Ackin's indicators (SCH users requests for studies) - Update list \| Post: 175860 Date Time Of Last Edit: 2020-01-04 04:29:59


image_3726.png / V - Attached On 2020-01-04 04:26:07 UTC - Size: 15.27 KB - 230 views
