Market Depth Historical Graph
View Count: 808
| [2018-11-07 15:59:40] |
| AKR - Posts: 523 |
|
Would it be possible for the study to have an option, that the quantity numbers are shown only on the last "bar"/ time slot, and not on each one? = I would like only to see the most recent quantity figures. I know that if I decrease bar spacing they disappear anyway, but sometimes I need wider bar spacing.
|
| [2018-11-09 02:35:02] |
| |
|
We will check if this is on our To Do list already.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2019-01-16 23:19:13] |
| John - SC Support - Posts: 31441 |
|
The ability to view the only the quantity numbers in the display after the last bar has been added. In addition, you can display either the Last or the Maximum depth in that extended area.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2019-03-11 17:35:27] |
| AKR - Posts: 523 |
|

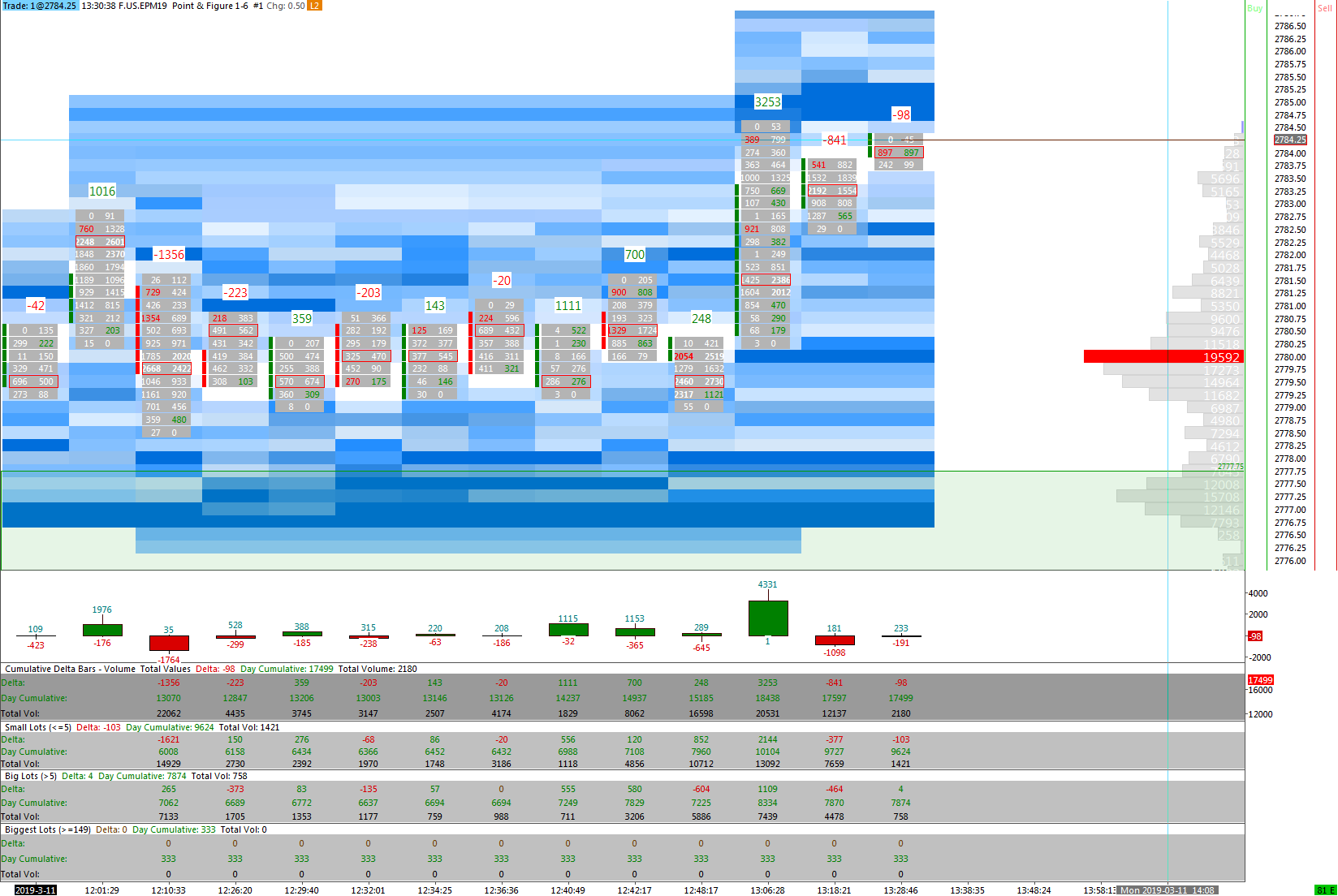

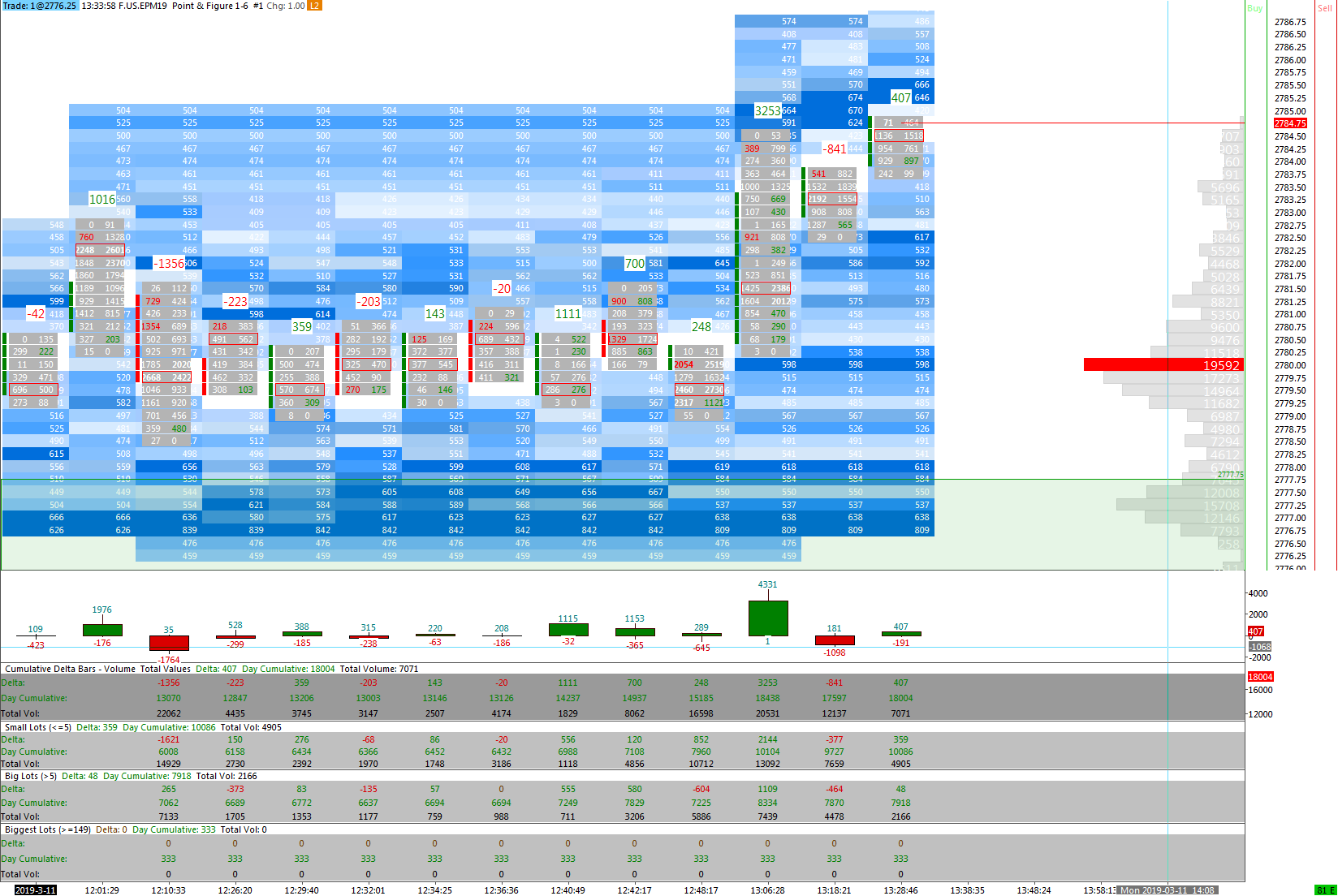

I have added the MDHG to a number bars chart. when I use "display only after last bar" I dont see any figures. If I dont use it it is completely confusing (see charts attached) and it would also be sub optimal if the quantities where shown in the actual column (should be a bit to the right). am I doing something wrong? If so what, if not can it be adjusted? |
 F.US.EPM19 Point & Figure 1-6 #1 2019-03-11 18_33_59.573.png / V - Attached On 2019-03-11 17:35:13 UTC - Size: 188.47 KB - 239 views F.US.EPM19 Point & Figure 1-6 #1 2019-03-11 18_30_38.322.png / V - Attached On 2019-03-11 17:35:19 UTC - Size: 123.13 KB - 253 views |
| [2019-03-11 18:13:27] |
| John - SC Support - Posts: 31441 |
|
The option to display the Quantity values after the Last Bar only works when the option for Display Market Depth Quantities After Last Bar is set to Yes. These two settings are linked together. This is explained here: Market Depth Historical Graph: Show Quantity Numbers Keep in mind the option for Display Market Depth Quantities After Last Bar is only displaying the values for the most recent bar. The documentation for this setting is here: Market Depth Historical Graph: Display Market Depth Quantities After Last Bar For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2019-03-11 19:14:46] |
| tdd2672 - Posts: 58 |
|
I can only get it to show qtys. for all depths and not selective based on the Percentage of Max Depth option.
|
| [2019-03-11 20:58:37] |
| John - SC Support - Posts: 31441 |
|
The options for the Input Value Type for Graph Only Quantities Greater or Equal To works in conjunction with the setting Graph Only Quantities Greater or Equal to. Therefore, if the Input for Value Type for Graph Only Quantities Greater or Equal To is set to Percentage of Max Depth, then the values that are entered into the Graph Only Quantities Greater or Equal To are going to the the percentage of the maximum depth in the visible chart, and everything below that value will not be displayed. For example, if the Maximum Depth in the visible chart is 1500, and the Graph Only Quantities Greater or Equal To is set to 25, then all depth values less than 375 will not be displayed. If the value is left at 0 then all depth levels will be displayed. This is all explained in the documentation starting here and including the next section: https://www.sierrachart.com/index.php?page=doc/StudiesReference.php&ID=375#StudyInputs_ValueTypeForGraphOnlyQuantitiesGreaterOrEqualTo If there is something else going on that this does not resolve, then please attach a screenshot showing what is happening. Use the following instructions how to include a screenshot: https://www.sierrachart.com/index.php?page=PostingInformation.php#Image For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2019-03-12 07:59:48] |
| AKR - Posts: 523 |
|
I had that on "yes". But right now figured out I need to set "percentage of fill space to display ..." to greater than zero....
|
