Rectangle & Sound alerts
View Count: 1703
| [2018-03-12 17:42:06] |
| s291117 - Posts: 28 |
|

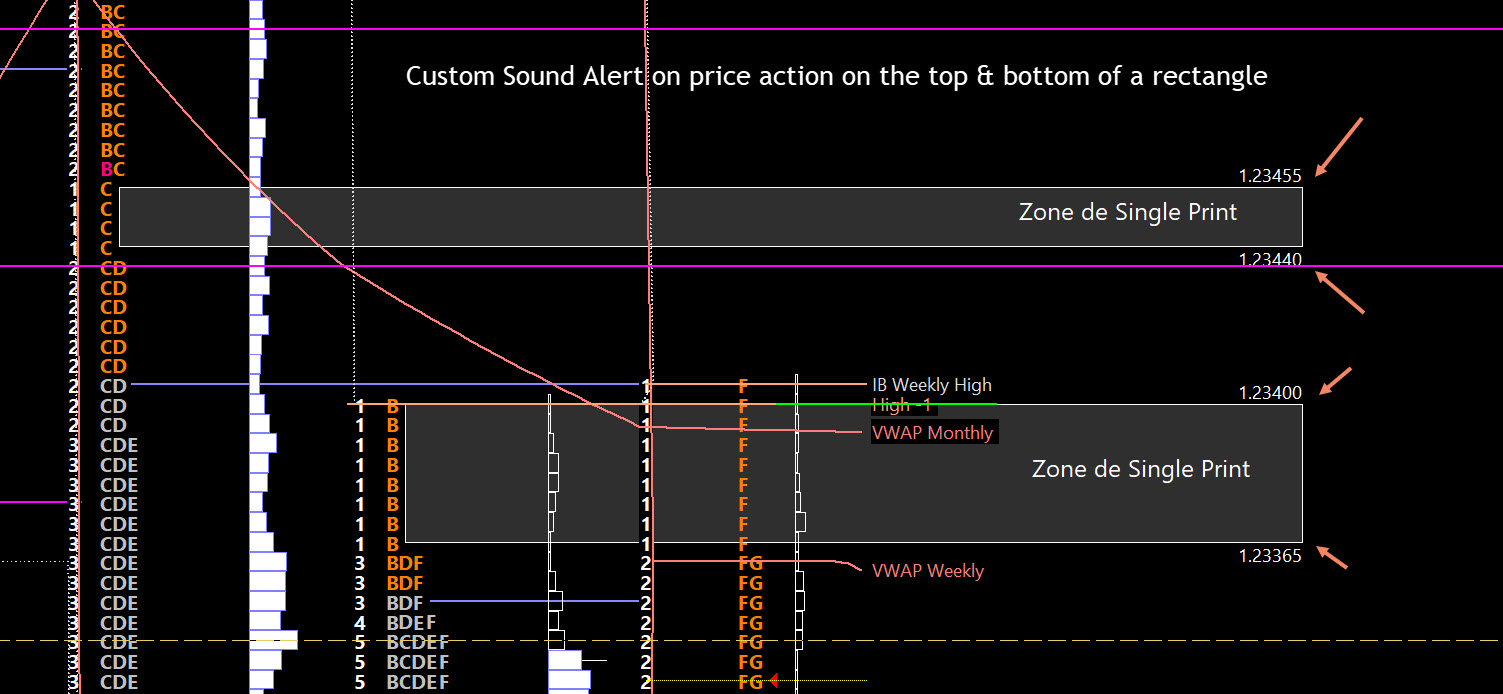

Hello Support, is it possible to define a custom sound alert both for the top and the bottom of a rectangle box ? In the case illustrated by the image attached, it is to trigger an alert when a single print area is touched by the price action. It would be nice to include this feature directly inside the rectangle avoiding to make another horizontal line for both side of the box ! Thanks for your feedback. |
 sierrachart_consolidation-box_sound_alerts.jpg / V - Attached On 2018-03-12 17:37:52 UTC - Size: 212.47 KB - 369 views |
| [2018-03-14 20:40:30] |
| John - SC Support - Posts: 31131 |
|
If you are wanting to use the Last Price to check with the rectangle, then you can create an alert on the drawing for when the price crosses the rectangle. You can find the information for how to set this up here: Chart Drawing Tools: Chart Drawing Alerts It is also possible to create a Simple Alert through the Chart Settings which references the Chart Drawing. This alert will be based on whether the price or a Study Subgraph have crossed from above or below the rectangle. This is done by referencing the Anchor Points for the rectangle. An example of how to do this for a Study Subgraph is #39 on this page: Study/Chart Alerts And Scanning: Alert Formula Examples The general documentation for how to reference the study anchor points in Simple Alerts, can be found here: Study/Chart Alerts And Scanning: Referencing Chart Drawings For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2018-03-15 19:41:01
|
| [2018-03-15 19:39:58] |
| |
|
The prior post has been updated.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2018-04-06 19:45:57] |
| User336964 - Posts: 29 |
|
Hi Support, I have seen a twitter user post SC platform's charts showing group of single prints in rectangles as shown in the attachment. I want to know if there is an option in TPO study or somewhere else where the rectangles for single prints are automatically created and extended till future intersection. Thank You. |
| single print rectangle example.jpg / V - Attached On 2018-04-06 19:36:35 UTC - Size: 31.67 KB - 318 views |
| [2018-04-06 22:51:10] |
| |
|
What is available is an option to extend singles for the TPO Profiles. Refer to: Time Price Opportunity (TPO) Profile Charts: Extend Singles However, a rectangle is not drawn. Only lines. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
