Detect modification of a member of the s_UseTool structure

Support Request:
[2017-12-28 18:55:30]
@sstfrederik - Posts: 183
Hi,

For a client project I am adding a s_UseTool DrawingType "DRAWING_LINE" to a chart with ACSIL. This drawing can be modified by a user. I would like to detect changes made to some of the line properties by a user.

I detect all the things I need except one. What I cannot find in the s_UseTool member description. I would like to know if there is a member that sets the right Ext checkbox value. If this is not available can this be added?

edit: I tried using "ExtendRight" but it does not work on DRAWING_LINE.

Thanks in advance.

Frederik
Date Time Of Last Edit: 2017-12-28 19:01:52

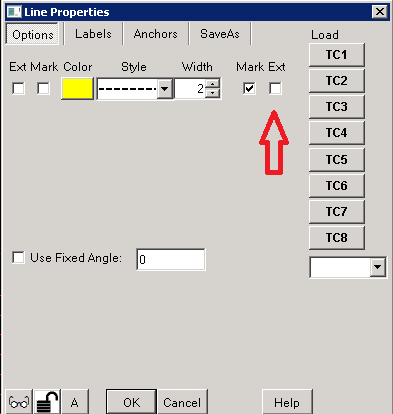

imageLinePorperties.PNG / V - Attached On 2017-12-28 18:51:26 UTC - Size: 7.26 KB - 16 views
[2018-01-07 20:25:53]
@sstfrederik - Posts: 183
Can ExtendRight be added as a UseTool member for the Drawing Type DRAWING_LINE ?
[2018-01-08 03:07:04]
Sierra Chart Engineering - Posts: 56182
This is still pending.
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. If possible please keep your questions brief and to the point. Please be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

If your question/request has been answered and you do not have anything further, then it is easiest for us if you do not reply again to say thank you.
[2018-01-08 10:22:35]
Sierra Chart Engineering - Posts: 56182
We have now had a chance to look into this. When extending a Line Drawing to the right, it is transformed into a Ray drawing so you just need to check this member to see if it is a Ray:
https://www.sierrachart.com/index.php?page=doc/ACSILDrawingTools.html#DrawingType
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. If possible please keep your questions brief and to the point. Please be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

If your question/request has been answered and you do not have anything further, then it is easiest for us if you do not reply again to say thank you.
Date Time Of Last Edit: 2018-01-08 10:24:26
