Zig zag Oscillator values
View Count: 3399
| [2017-09-06 17:46:56] |
| User97684 - Posts: 136 |
|
Hi , please help The zig zag oscillator has half the tick lengths as compared to the zig zag line over the price chart. I.e. 79 tick long line, we get a reading of 40 on the oscillator. Also , please can I print the swing sizes on the tops of the oscillator triangles ? Many thanks, Best Regards |
 zig_zag_oscillator.png / V - Attached On 2017-09-06 17:46:35 UTC - Size: 88.72 KB - 2051 views |
| [2017-09-06 18:04:13] |
| |
|
Make sure you understand what the tick size is for that particular symbol. It is .00005 Also , please can I print the swing sizes on the tops of the oscillator triangles ? Chart Studies: Value of Subgraph (ACSIL: DRAWSTYLE_VALUE_OF_SUBGRAPH) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2017-09-06 18:15:44] |
| User97684 - Posts: 136 |
|

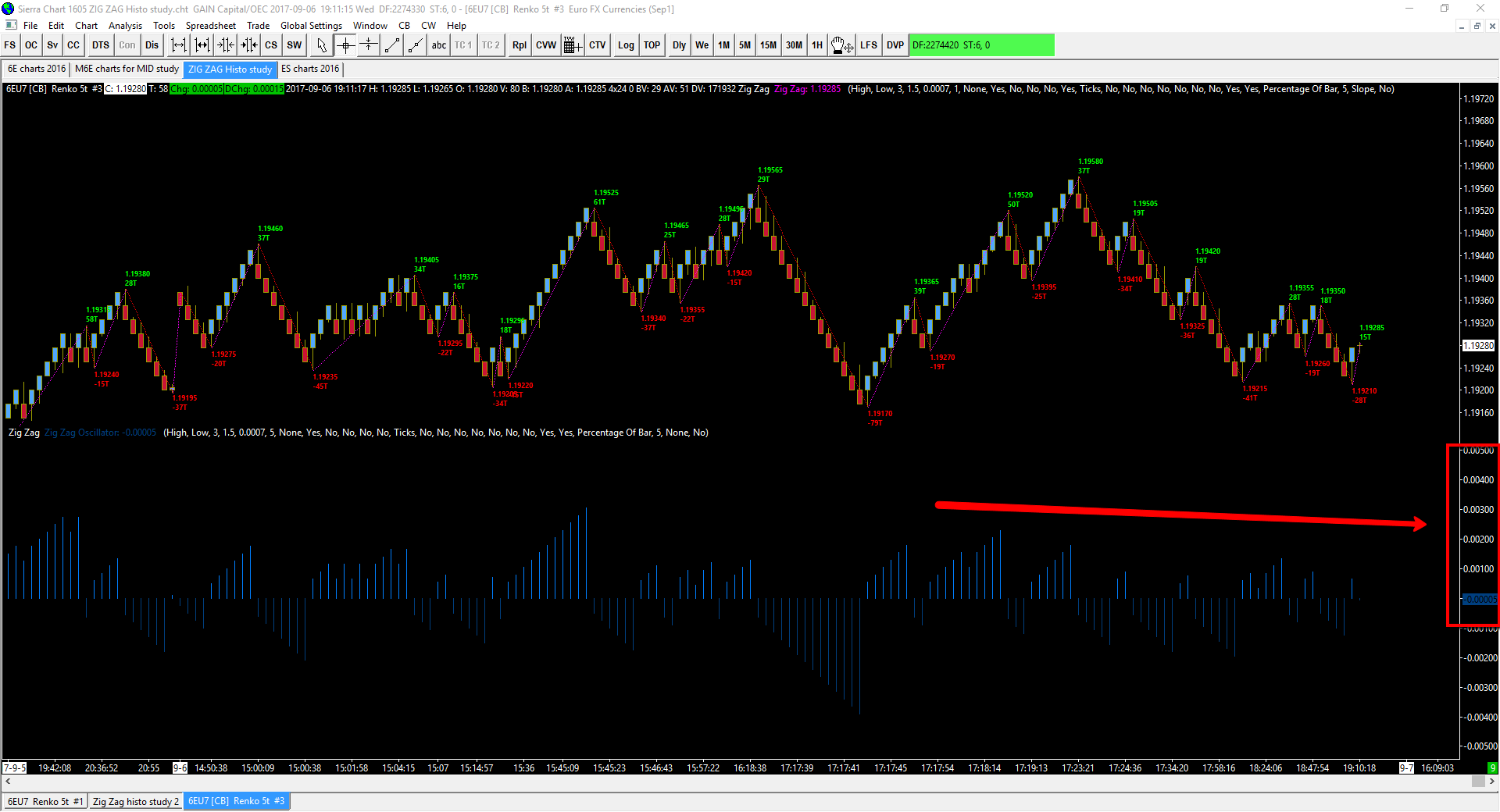

Thank you for the quick answer! PLs hlp - how could I change the value scale in chart region 2, for the oscillator, to show the correct ticks ? Much appreciated, Regards |
| change_the_scale_to_the_correct_values__.png / V - Attached On 2017-09-06 18:15:39 UTC - Size: 90.17 KB - 944 views |
| [2017-09-06 18:19:30] |
| User97684 - Posts: 136 |
|

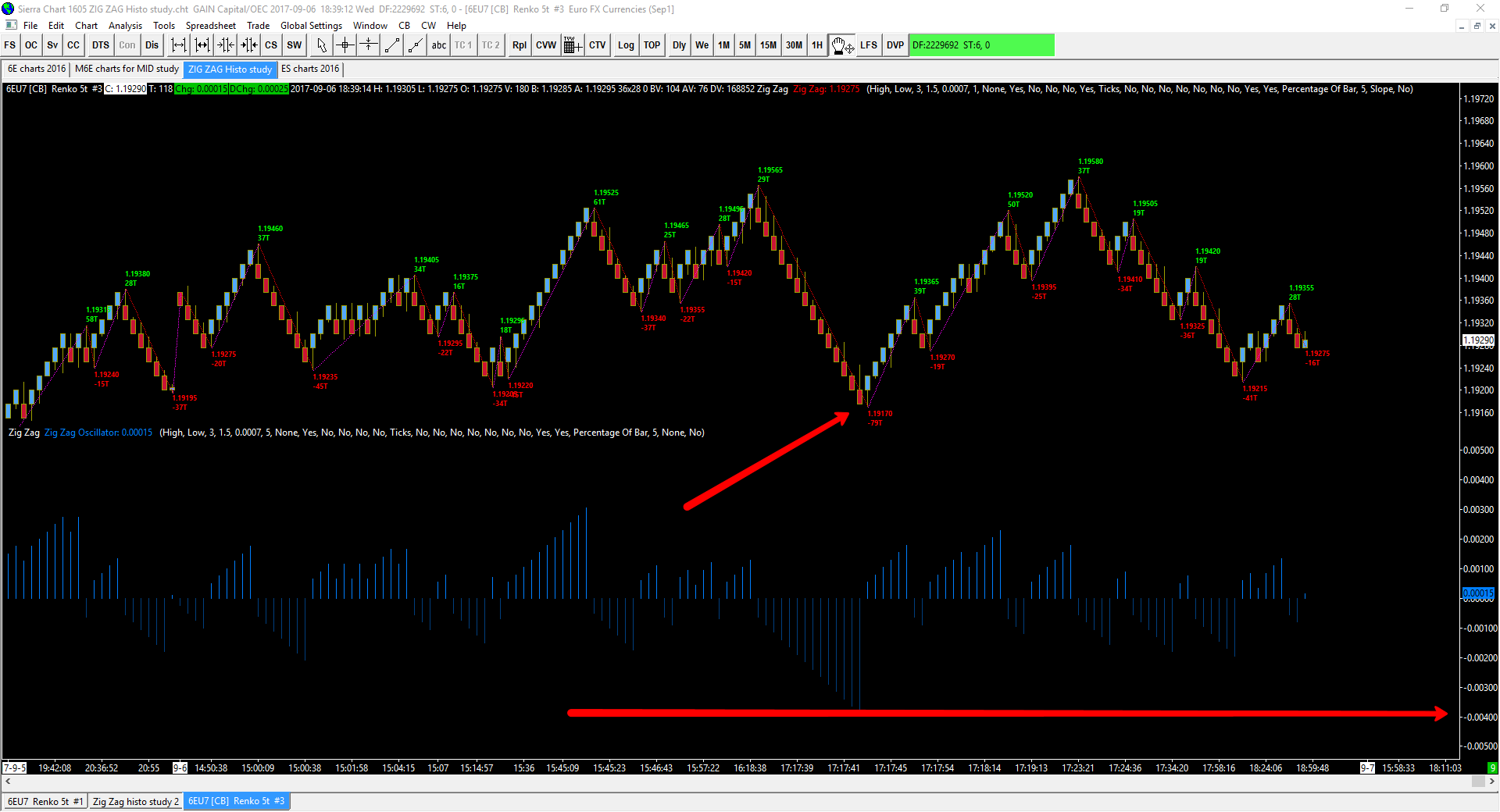

Will this be possible - I was thinking sth like this for the values of the histogram. Thanks a lot |
| 2017-09-06_1917.png / V - Attached On 2017-09-06 18:19:23 UTC - Size: 67.1 KB - 772 views |
| [2017-09-07 03:01:10] |
| |
|
In response to post #3, you could use the Study Subgraph Divide study to divide the Oscillator Subgraph by the tick size. Refer to: Study Subgraph Divide In response to post #4, this is possible by adding another instance of the Zig Zag study set to work as an oscillator and then using this particular Draw Style: Chart Studies: Value of Subgraph (ACSIL: DRAWSTYLE_VALUE_OF_SUBGRAPH) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2017-09-07 03:02:33
|
| [2018-01-26 19:14:16] |
| User45989 - Posts: 57 |
|
Is there a way to only show the values for just the ZigZag Highs and Lows? When I change the Draw Style to 'Value of Subgraph', I get a value on the top of each bar where I am looking for just the highest or lowest value. regards, |
| Capture.PNG / V - Attached On 2018-01-26 19:13:20 UTC - Size: 3.88 KB - 595 views |
| [2018-01-26 19:22:10] |
| |
|
Set the Zig Zag Subgraph Draw Style to Hidden: Chart Studies: Subgraphs Tab >> Draw Style And we assume you have set the study Input to display the Reversal Price. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2018-01-26 19:22:55
|
