[2016-11-15 10:07:25] #1 [Go To First Post]
marty_nv - Posts: 85

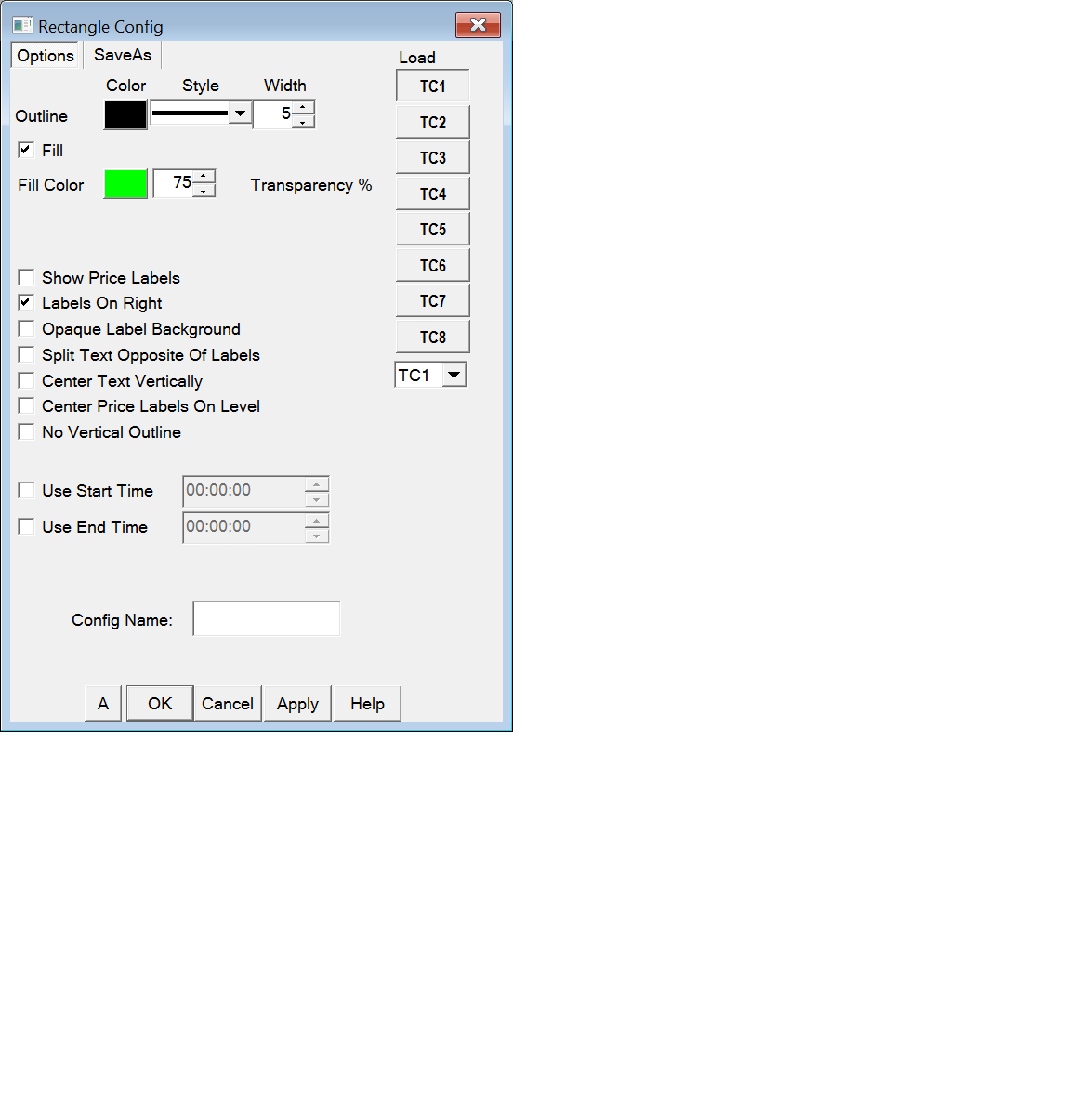

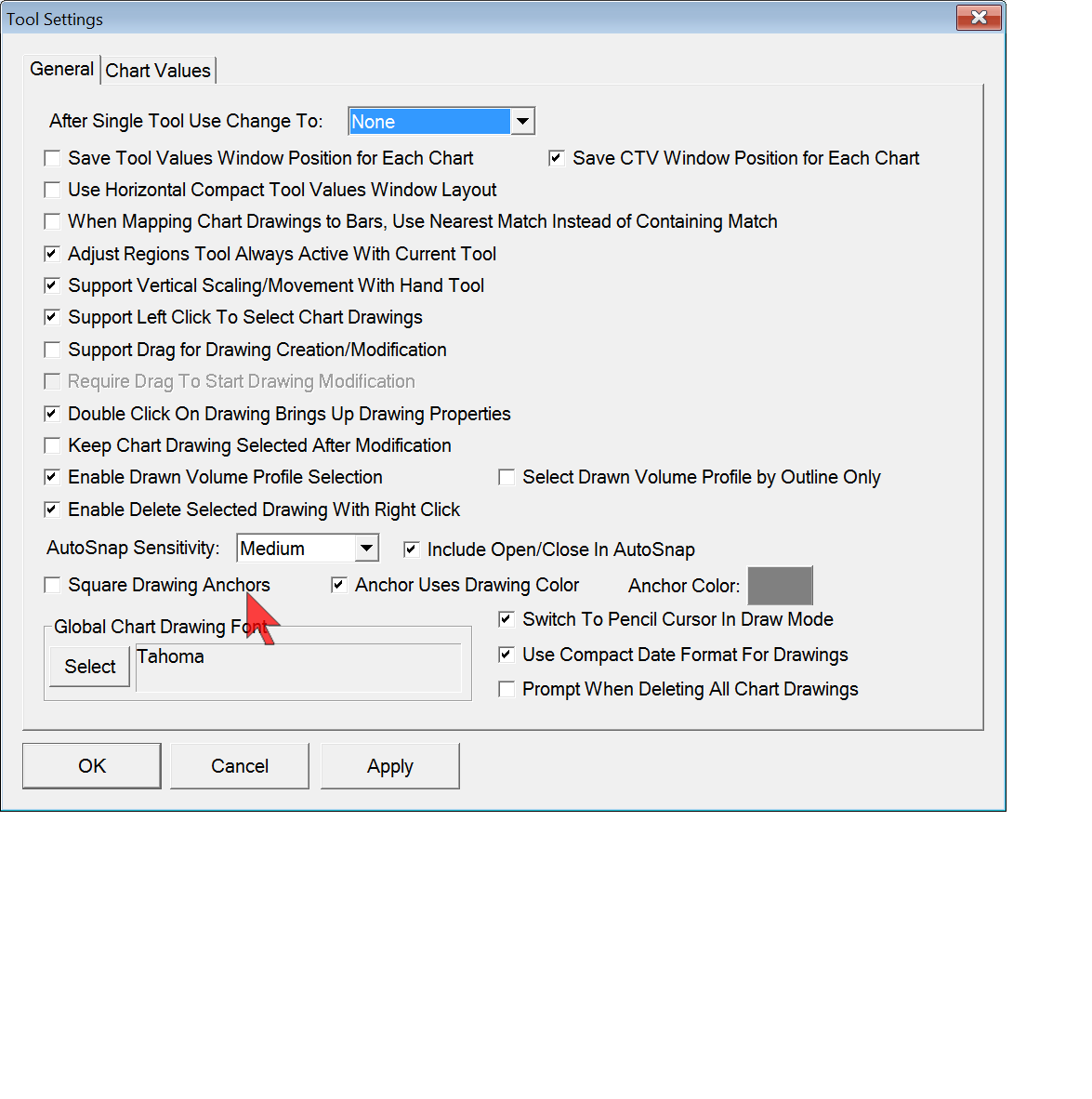

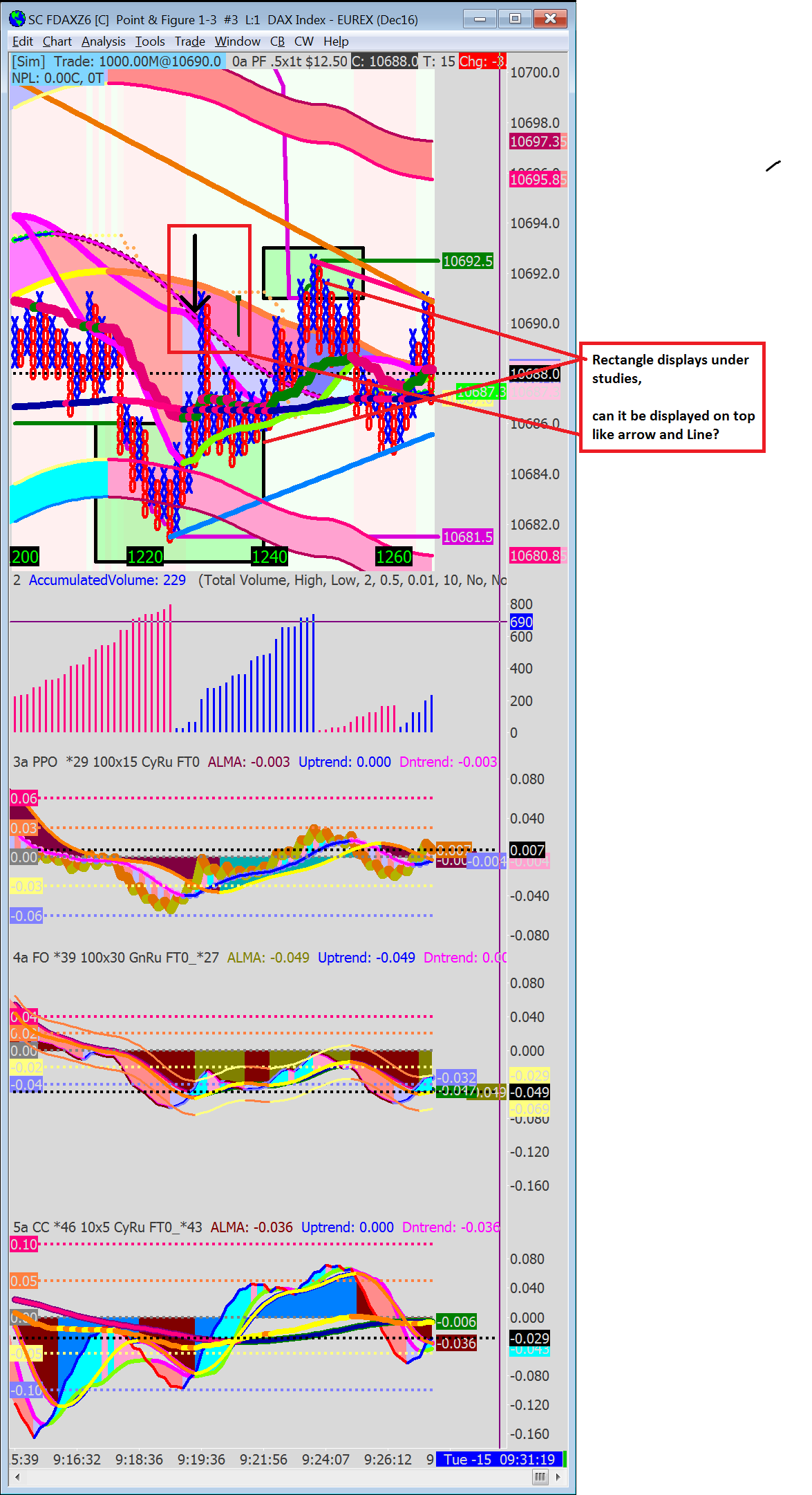

Attachment 1 shows arrow, line, and two rectangles. Arrow and line are visible on top of or away from other studies. However, no portion of a rectangle (triangle) is visible on top of another study, but is always "underneath" the other study. Can rectangles and triangles be displayed on top of studies like arrow and Line? Attachment 2 and 3 are the controlling dialogue boxes. I don't see a way to put drawings on top of studies.


Pat 161115.003 SC Rectangle under studies.png / V - Attached On 2016-11-15 10:04:44 UTC - Size: 163.86 KB - 212 views Pat 161115.004 SC Tool settings box.png / V - Attached On 2016-11-15 10:04:57 UTC - Size: 61.31 KB - 193 views Pat 161115.005 SC Rectangle Config Box.png / V - Attached On 2016-11-15 10:06:20 UTC - Size: 33.91 KB - 211 views

[2016-11-15 10:33:40] #2 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
How to control this is documented here: https://www.sierrachart.com/index.php?page=doc/Tools.html#DisplayOrder (Controlling Display Order of Chart Drawings Relative to Graphs) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2016-11-15 21:39:17] #3 [Go To First Post]
marty_nv - Posts: 85

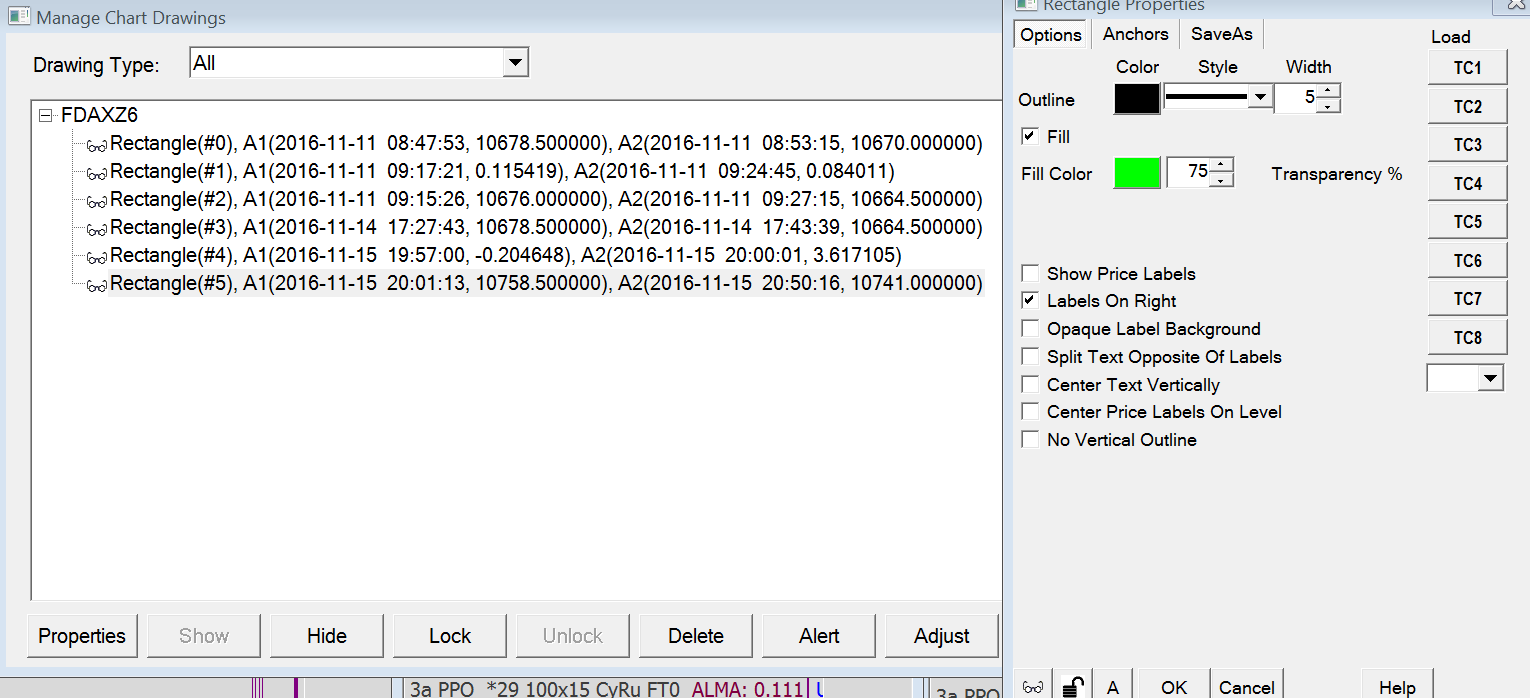

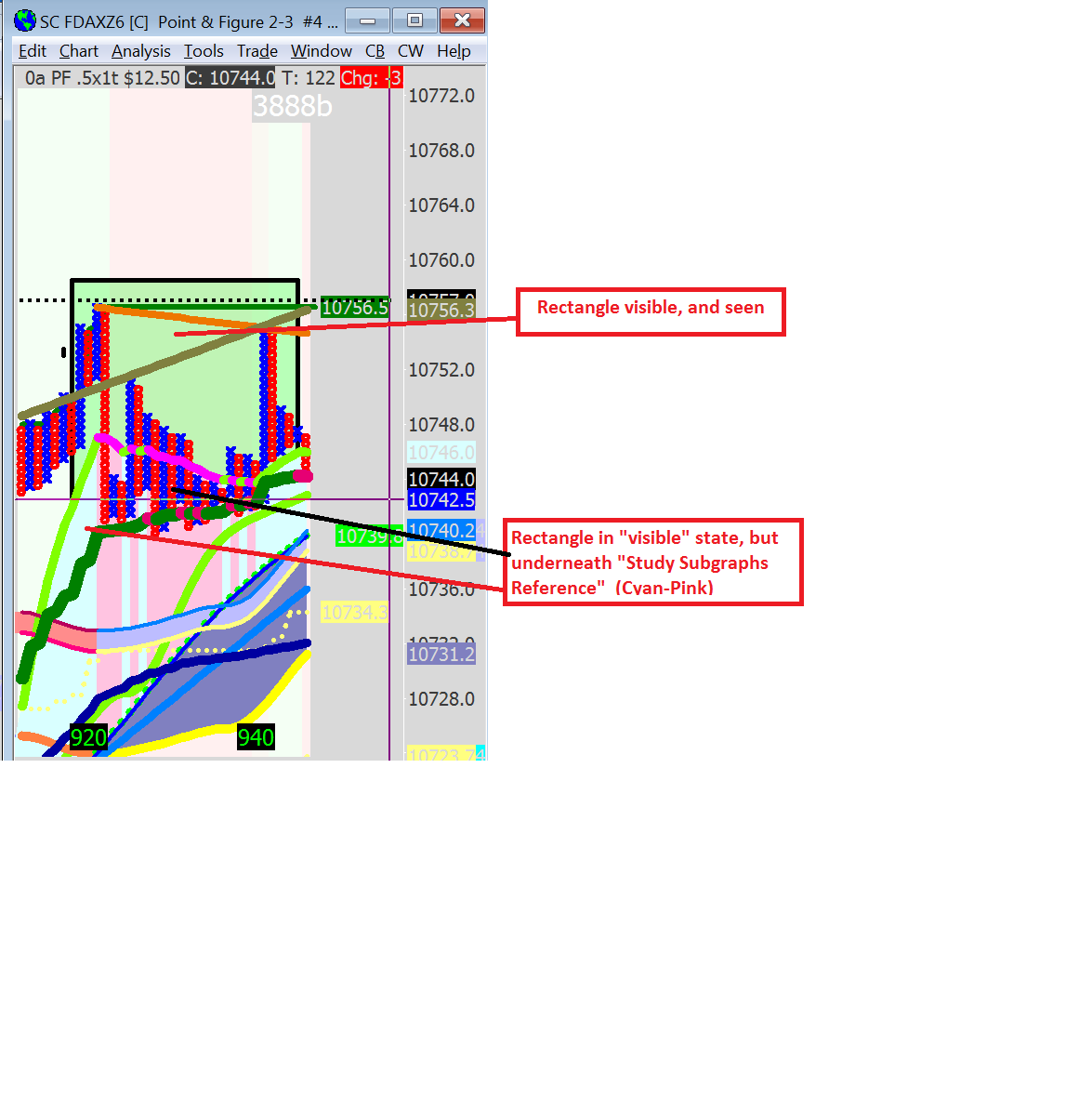

Thank you for the additional documentation reference, but it does NOT address the problem I am seeing. The problem is that Rectangles and triangles. filled or unfilled, all in "shown" state per your additional documentation, disappear if placed where a "fill" study is (Post #1, attachment 1), regardless of the region where a "fill" study is (e.g. "Fill to zero", "study subgraph reference"). If Triangle, rectangle were studies, I could arrange their order of appearance in the f6 dialogue box. I can't manipulate a drawing in that way except the order of drawing the tool itself, not the situation here. But all tools should overlay studies, it would seem. But in my Windows 7 environment, Rectangles and Triangle are hidden underneath filled or other studies, including price itself.


Pat 161115.006 SC tool documentation.PNG / V - Attached On 2016-11-15 21:36:05 UTC - Size: 130.54 KB - 207 views Pat 161115.007 SC tool documentation Illustration.PNG / V - Attached On 2016-11-15 21:36:32 UTC - Size: 62.74 KB - 211 views Pat 161115.008 SC tool documentation Illustration.PNG / V - Attached On 2016-11-15 21:37:00 UTC - Size: 64.19 KB - 199 views

[2016-11-15 22:06:35] #4 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
This section we linked to in post #2 is titled: Controlling Display Order of Chart Drawings Relative to Graphs Make sure this setting is disabled: Chart >> Chart Settings >> Advanced Settings >> Draw Highlight Drawings Under Main Graph and Studies. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2016-11-15 22:22:29] #5 [Go To First Post]
marty_nv - Posts: 85
Chart >> Chart Settings >> Advanced Settings >> Draw Highlight Drawings Under Main Graph and Studies. Magic, thank you!
