[User Discussion] - GAp Disply

View Count: 1064

[2015-11-05 02:06:31] #1 [Go To First Post]
User167108 - Posts: 49
Is there any way to display gap in text for mat on chart some where in corner ? Fot example /es some thing like this Todays Gap +6

[2015-11-05 06:04:35] #2 [Go To First Post]
Sawtooth - Posts: 3976
Yes. Here's the basic idea: 1) Add the Daily OHLC study and set the Reference Days Back to 1 2) Add another Daily OHLC study and set the Reference Days Back to 0 3) Add the Study Subgraphs Difference study and reference the Close of the first Daily OHLC study and the Open of the second Daily OHLC study 4) Use the Text Display for Study from Chart study to display the value Date Time Of Last Edit: 2015-11-05 18:47:50

[2015-11-06 15:10:08] #3 [Go To First Post]
User167108 - Posts: 49
It working Great .. Thanks a lot , Tomgilb. But its disappearing after market close . means i see zero there .. Is there any way i can see everyday gap amount on the chart ? Appreciate your time and help Date Time Of Last Edit: 2015-11-06 15:10:58

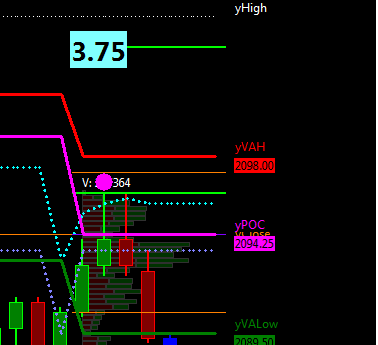

gap.png / V - Attached On 2015-11-06 15:07:29 UTC - Size: 7.86 KB - 332 views

[2015-11-06 16:03:17] #4 [Go To First Post]
Sawtooth - Posts: 3976
To display the current day's RTH gap after market close on a Globex chart, you'd need to put studies 1-3 on a RTH chart and study 4 on a globex chart, referencing the RTH chart.

[2015-11-06 17:46:48] #5 [Go To First Post]
User167108 - Posts: 49
Thanks Tomgilb. Please find attached chart . It is RTH chart and displaying todays GAP only . Would it be possible to see everday gap ? .. It is showing todays gap 3.5 only .. I would like see previous days GAP also like any other data ( value areas lines ) . is it possible ? Appreciate your time . Thanks a lot


GAPStudy.cht - Attached On 2015-11-06 17:42:13 UTC - Size: 104.55 KB - 306 views

[2015-11-06 19:06:08] #6 [Go To First Post]
Sawtooth - Posts: 3976
In your chartbook, the gap lines are already drawn. Yesterday's close is orange, today's open is white. Some things you could do: -You could fill the difference of these lines with a color. -You could use the Value On High/Value on Low draw styles and place the gap value on the high or low of every candle. -You could use the Spreadsheet Study study and with a formula place the value on the high or low of the last bar of each day. The displayed 3.5 is only today's opening gap; displaying the gap value like this within each day for all days is not possible without custom programming.

[2015-11-06 22:52:41] #7 [Go To First Post]
User167108 - Posts: 49
Tomgilb, Thank you very much .
