Can you graphically mark the high volume price level in a bar on a range bar chart?

View Count: 2097

[2015-07-30 03:32:19]
Shane - Posts: 31
The numbers bar study has an option to highlight the price level within the bar that has most volume traded (what I would call the bar's high volume node).

Is there a way to graphically mark a bar's high volume node on a 'regular' chart? For example, on a range bar chart, placing a left or right hash on the price level that has the highest volume?

regards,
shane
[2015-07-30 04:23:45]
ganz - Posts: 1048
Shane

https://www.sierrachart.com/supportboard/showthread.php?t=37616
[2015-07-30 05:10:58]
Shane - Posts: 31
Thank you Ganz.

Are you saying that what I'm asking for is not natively supported and must be handled in ACSIL?

That's fine. I can write the ACSIL. I just don't want to do it if it's already supported.

I appreciate your effort and sharing of the studies, but I cannot use a custom study if I don't have the source code.

kind regards,
shane
[2015-07-30 05:21:25]
ganz - Posts: 1048
Shane

just follow the link - the source code is available

:)
[2015-07-30 06:57:12]
Sierra Chart Engineering - Posts: 104368
We thought this could not be done with any of the standard studies but it can be with the Volume by Price study.

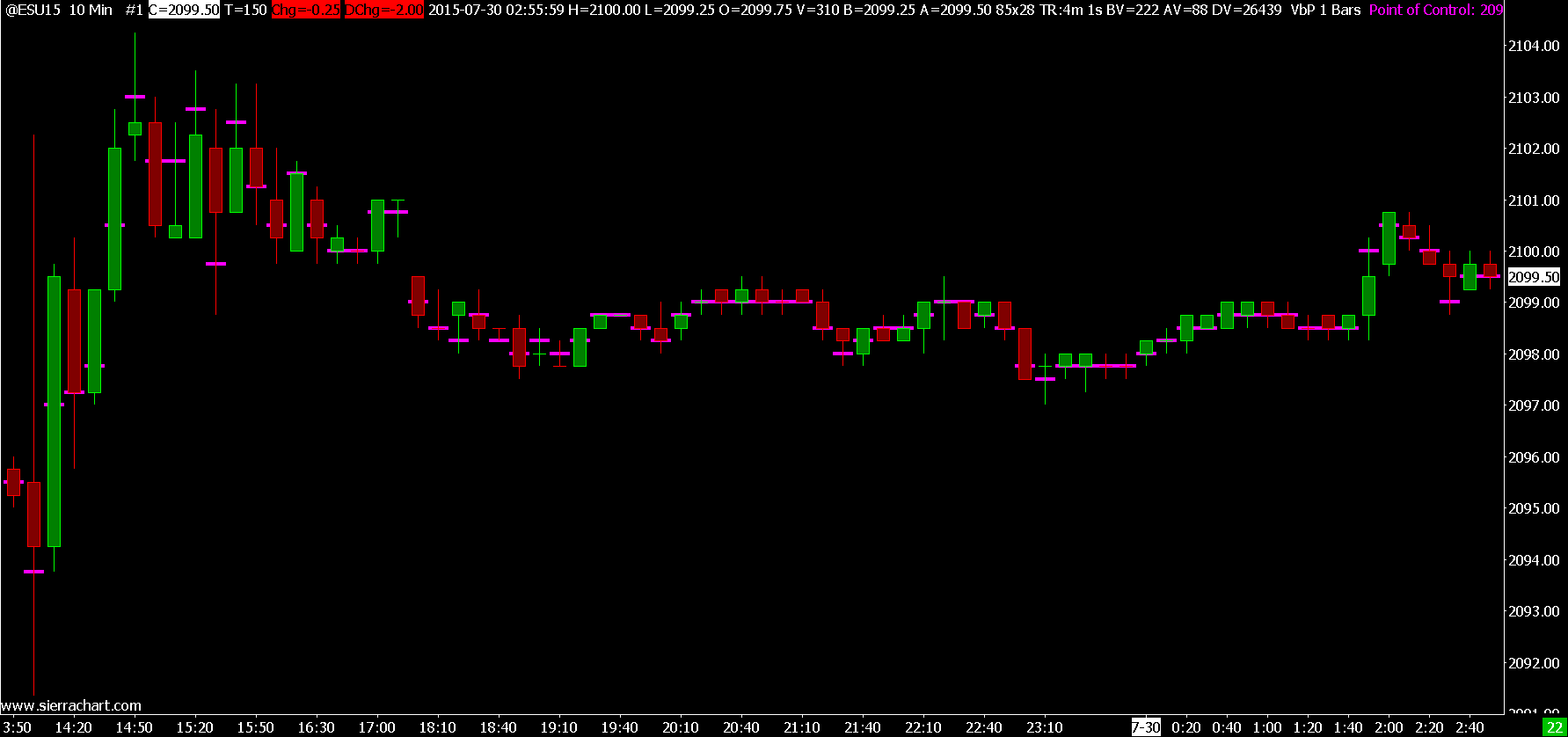

Here is an image of the chart:
http://www.sierrachart.com/image.php?l=1438239367869.png

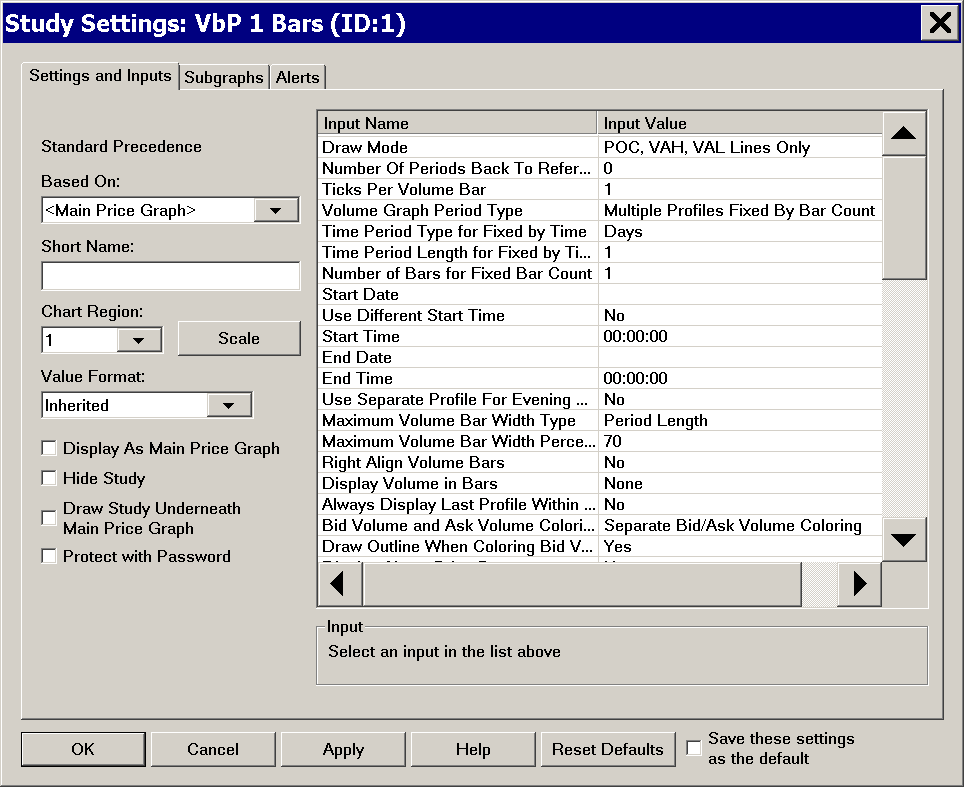

Refer to the attachment for the settings.

Only the Point of Control Subgraph is set to be visible and uses a Dash Draw Style.
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
Date Time Of Last Edit: 2015-07-30 06:58:23
image2015-07-30_185544.png / V - Attached On 2015-07-30 06:56:46 UTC - Size: 20.8 KB - 554 views
