Question

View Count: 245

[2026-06-03 14:18:57] #1 [Go To First Post]
User437588 - Posts: 90

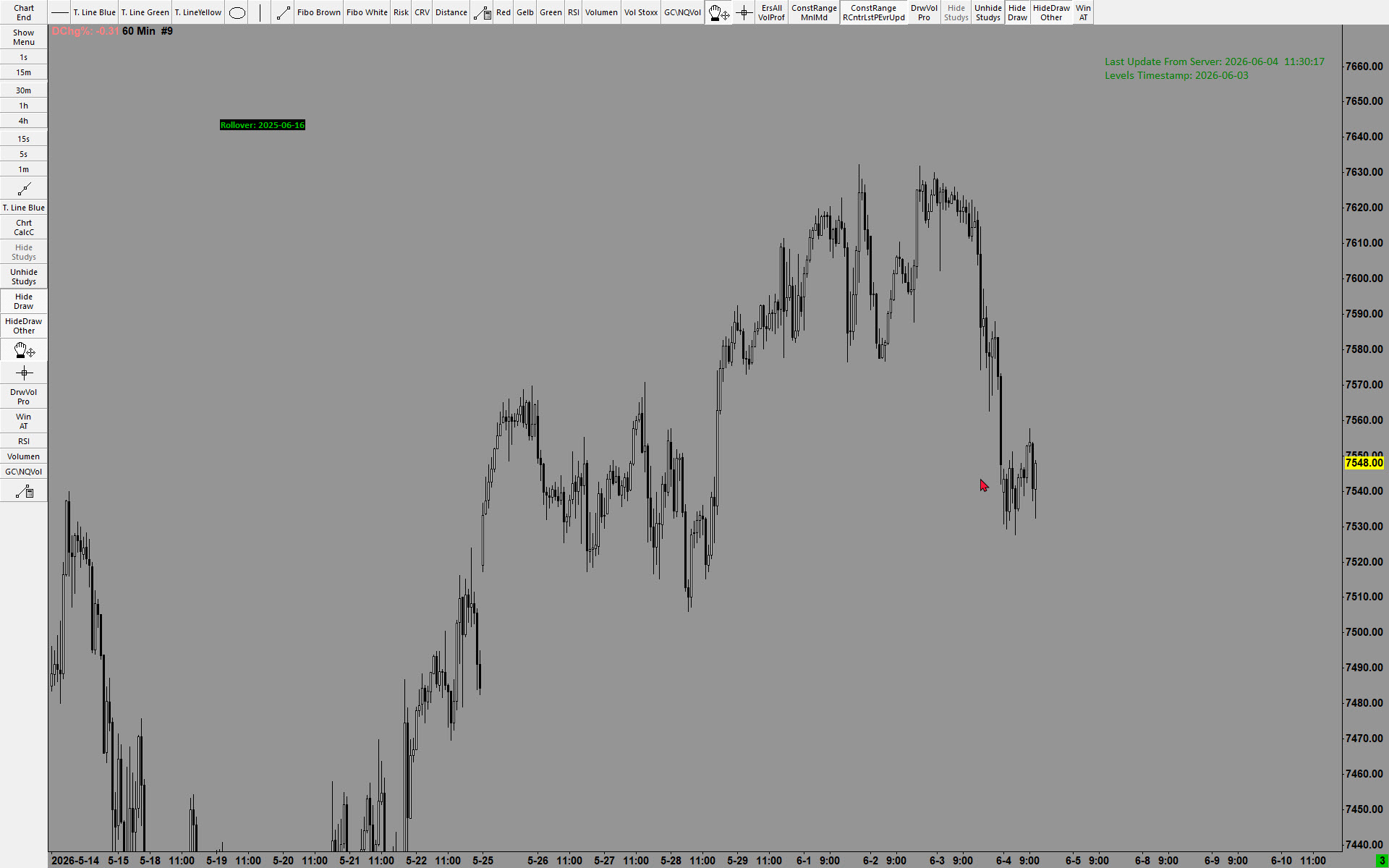

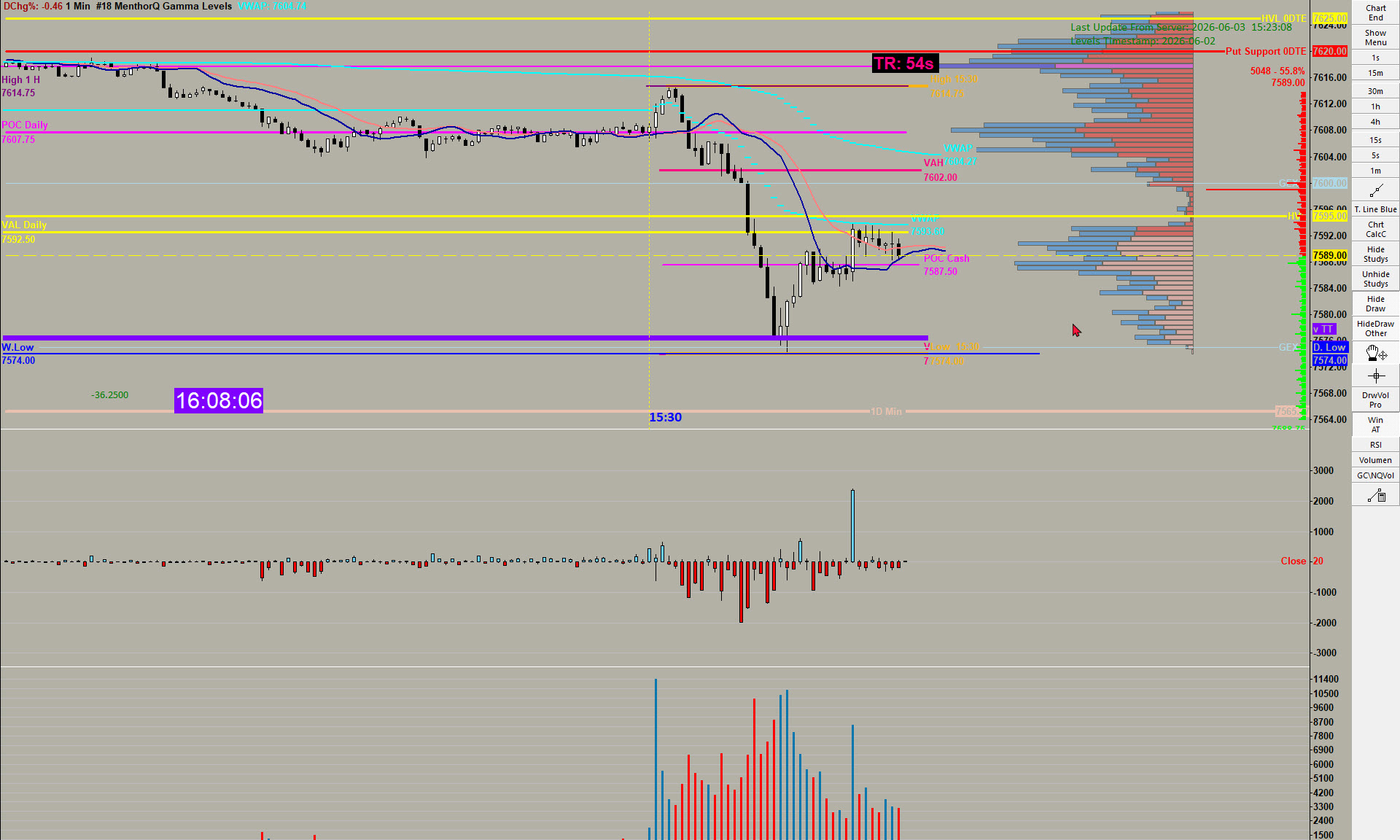

Hello, I need your help again. I would like the Until Future Intersection VA and POCs for the RTH to be displayed on the 1-minute chart—for the last few days, weeks, and months. I’ve been plotting these manually so far, but it takes a lot of time. Is there a way to automate this? Thank you very much for your help.


2026-06-03_16-08-09.jpg / V - Attached On 2026-06-03 14:18:44 UTC - Size: 443.65 KB - 49 views 2026-06-03_16-09-40.jpg / V - Attached On 2026-06-03 14:18:48 UTC - Size: 440.97 KB - 50 views

[2026-06-03 14:33:43] #2 [Go To First Post]
John - SC Support - Posts: 47247
To start with, the Volume by Price and TPO studies both have options for "Extend Until Future Intersection" for both the Value Area and Point of Control. Is there something about these that are not working as you want? If you are generating your Value Area and POC using different studies, then how are you doing this? Also, refer to the following, that may give you what you are wanting: Color Bar Based on Alert Condition: Creating Extension Lines for Another Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2026-06-03 15:01:51] #3 [Go To First Post]
User437588 - Posts: 90

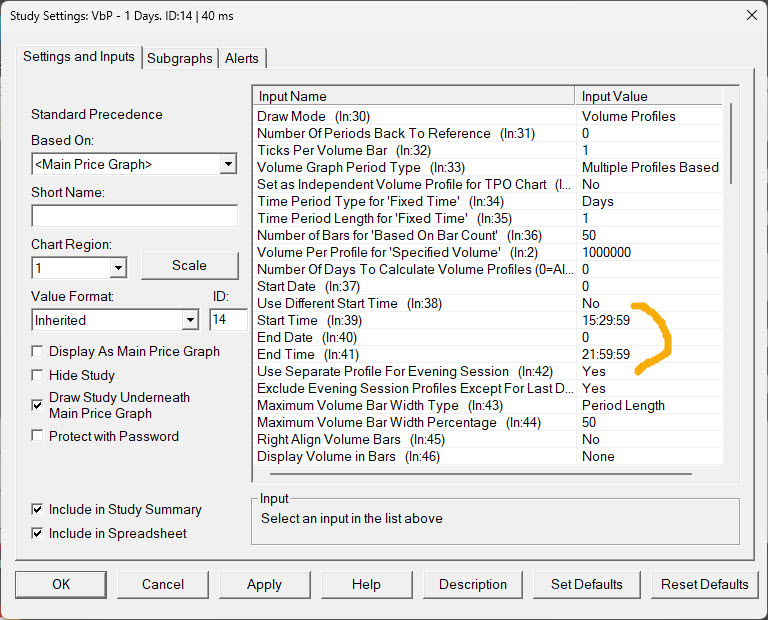

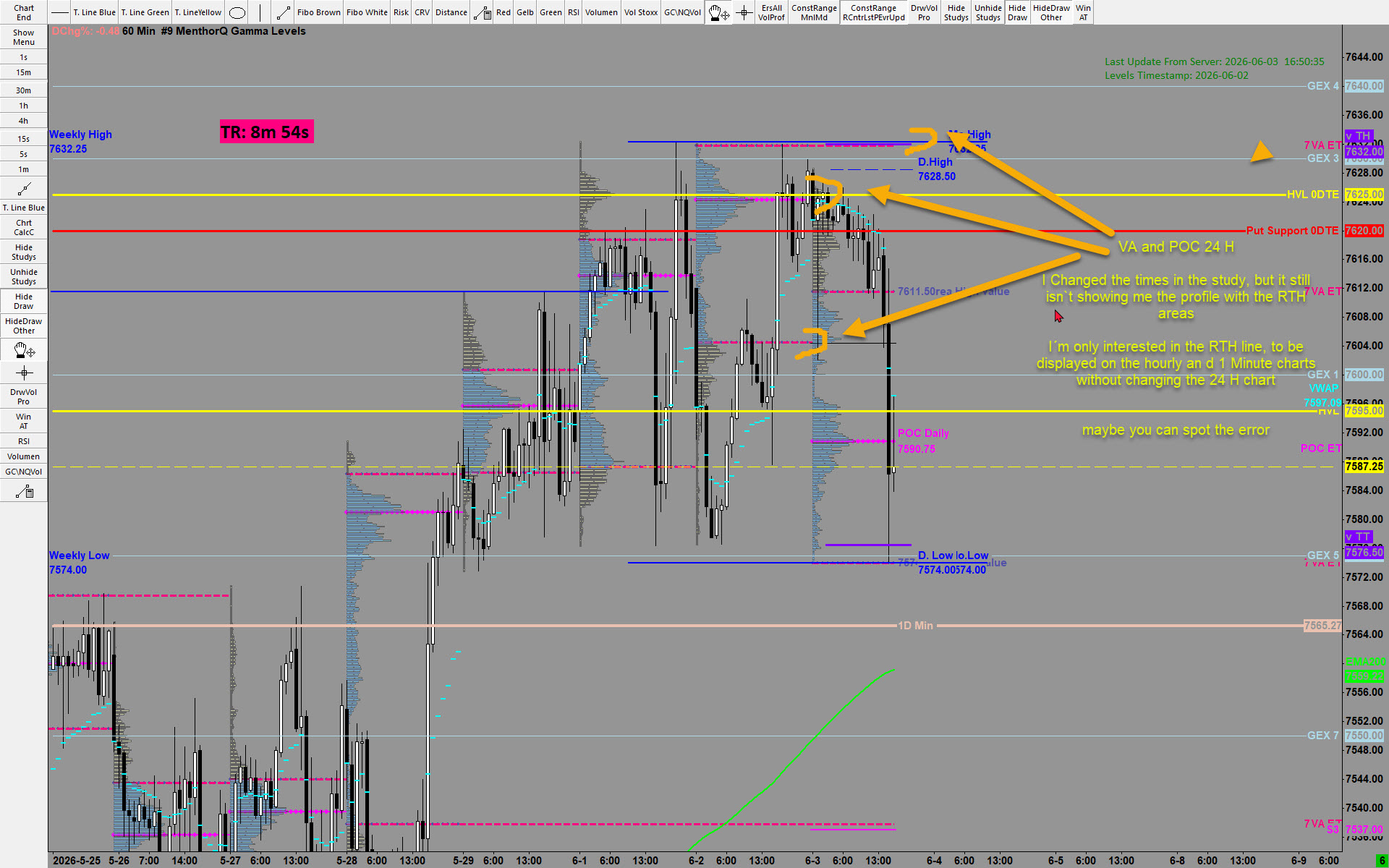

File attached


2026-06-03_16-50-52.jpg / V - Attached On 2026-06-03 15:01:17 UTC - Size: 215.32 KB - 41 views Attachment Deleted. 2026-06-03_16-51-08.jpg / V - Attached On 2026-06-03 15:01:40 UTC - Size: 531.25 KB - 50 views

[2026-06-03 19:48:16] #4 [Go To First Post]
John - SC Support - Posts: 47247
We are not understanding what you are wanting to do. Please just tell us what you want to accomplish. Set the actual studies aside, and just explain what you want to see. We will then tell you have to accomplish what you want, or if it can't be done. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2026-06-04 09:51:54] #5 [Go To First Post]
User437588 - Posts: 90

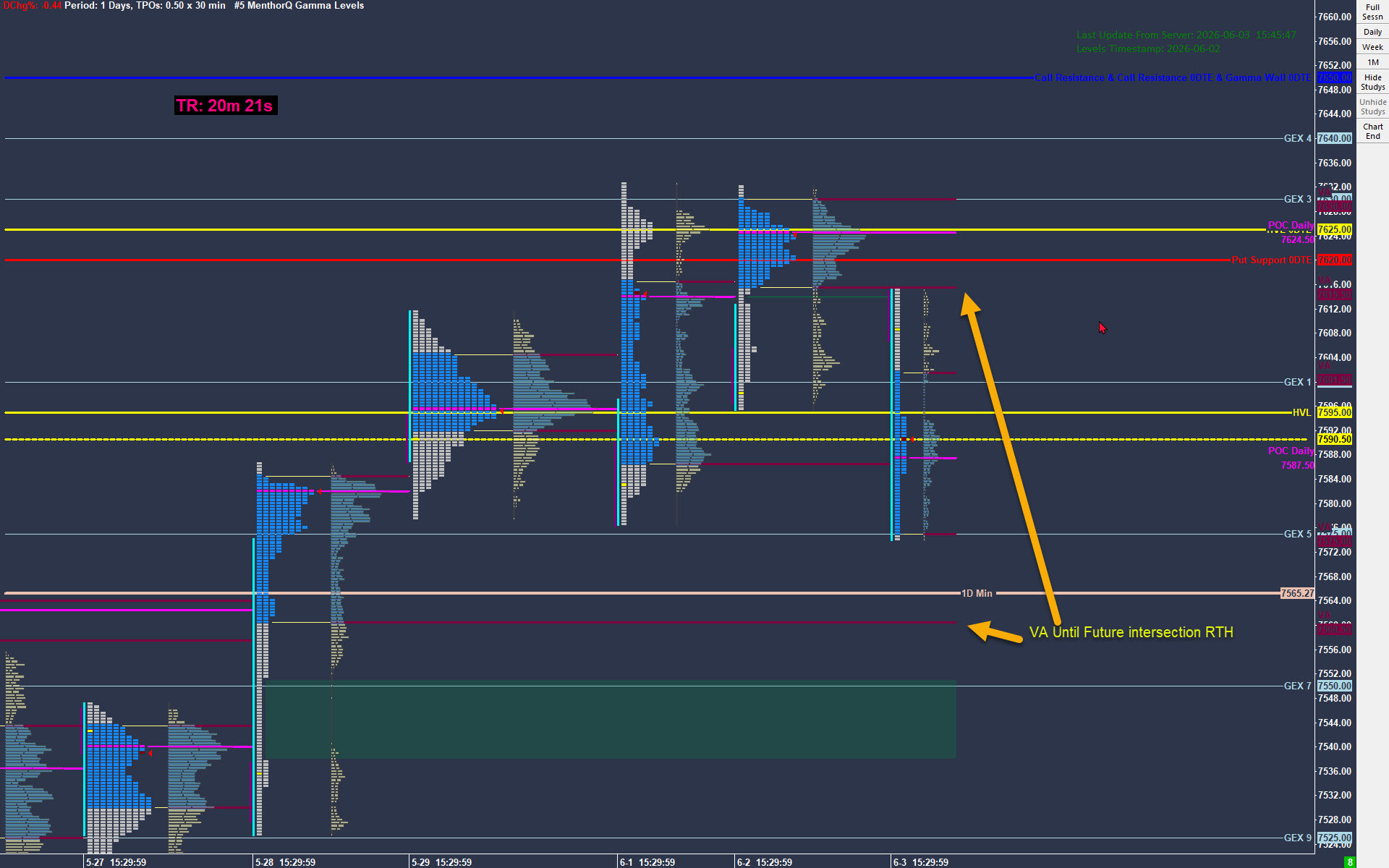

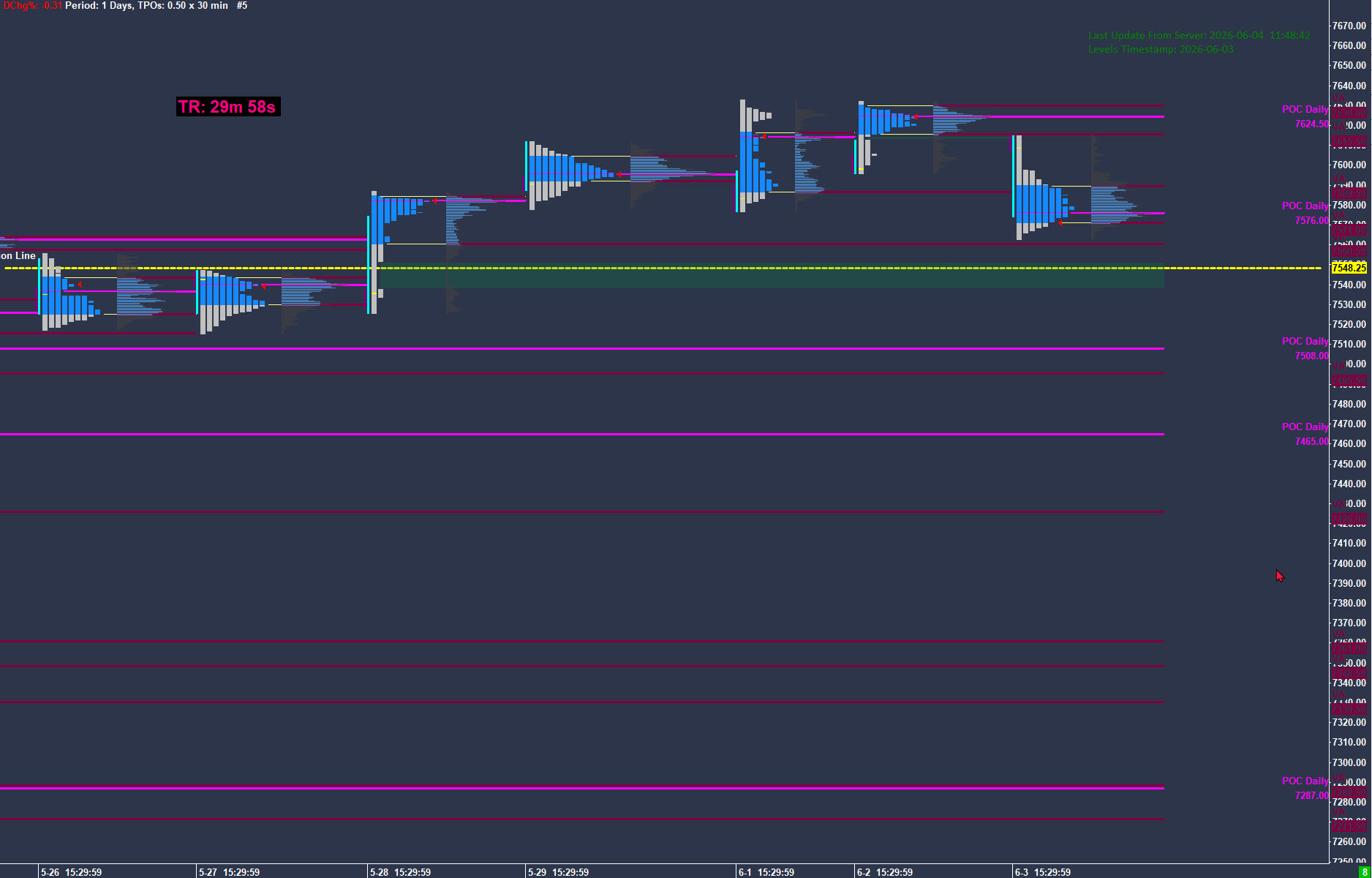

I would like RTH to display the “Lines Until Interception” for VA and POC from the last few days, weeks, and months. I am only interested in the lines, not the profile. See the TPO chart for an example. These lines should be visible on the 60-minute and 1-minute charts in RTH. Please note that the 24-hour chart should continue to be used.


2026-06-04_11-51-26.jpg / V - Attached On 2026-06-04 09:51:41 UTC - Size: 228.39 KB - 41 views 2026-06-04_11-49-09.jpg / V - Attached On 2026-06-04 09:51:46 UTC - Size: 295.27 KB - 44 views

[2026-06-04 14:29:11] #6 [Go To First Post]
John - SC Support - Posts: 47247
If you want to see the Value Area and POC lines without the profiles for just the RTH session but displayed on 24 hour chart, and you want to have those lines extend until future intersection, then you would need to do the following for this. - Open a new chart for the same symbol and set it to only use the RTH session. - Add the "Volume Value Area Lines" study to that chart. - Use the "Study/Price Overlay" study to overlay the "Volume Value Area Lines" study from the RTH only chart to your 24 hour chart. - Use the "Color Bar Based on Alert Condition" to generate the extension lines for the overlaid study (see specific information in link given below). Refer to the following: https://www.sierrachart.com/index.php?page=doc/StudiesReference.php&ID=209#top Study/Price Overlay Study Color Bar Based on Alert Condition: Creating Extension Lines for Another Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2026-06-07 16:24:07] #7 [Go To First Post]
User437588 - Posts: 90

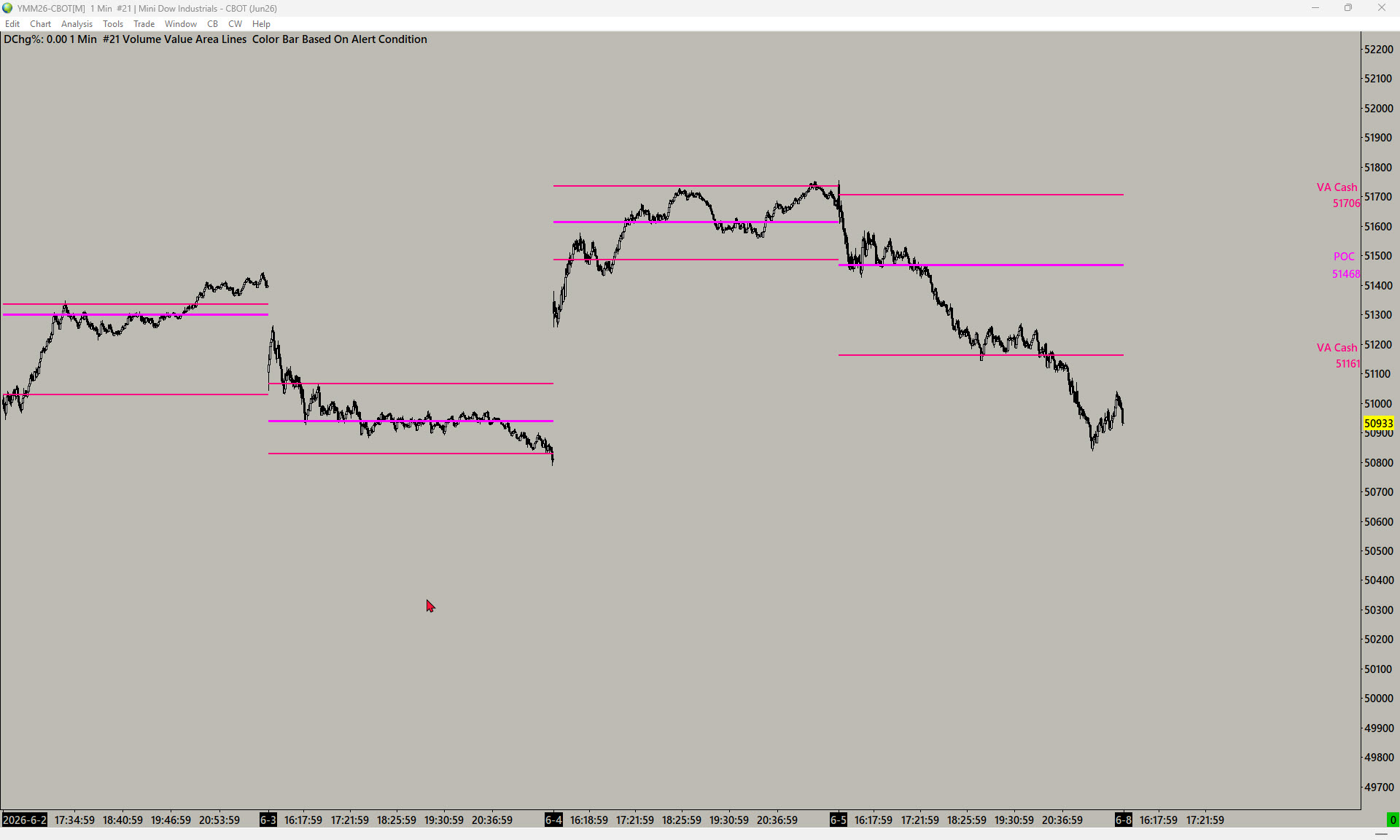

Danke für Ihre Antwort. Leider funktioniert die Linienerweiterung Intersection nicht. Welche Einstelung muss ich durchführen? Ich habe alle Möglichkeiten ausprobiert.


2026-06-07_18-19-21.jpg / V - Attached On 2026-06-07 16:23:05 UTC - Size: 207.69 KB - 47 views 2026-06-07_18-19-30.jpg / V - Attached On 2026-06-07 16:23:09 UTC - Size: 169.54 KB - 52 views 122.jpg / V - Attached On 2026-06-07 16:23:36 UTC - Size: 198.67 KB - 46 views

[2026-06-08 15:02:36] #8 [Go To First Post]
John - SC Support - Posts: 47247
In the "Color Bar Based on Alert Condition" did you enter an Alert Formula of "=1", per the last step at this link: Color Bar Based on Alert Condition: Creating Extension Lines for Another Study For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2026-06-10 10:16:18] #9 [Go To First Post]
User437588 - Posts: 90

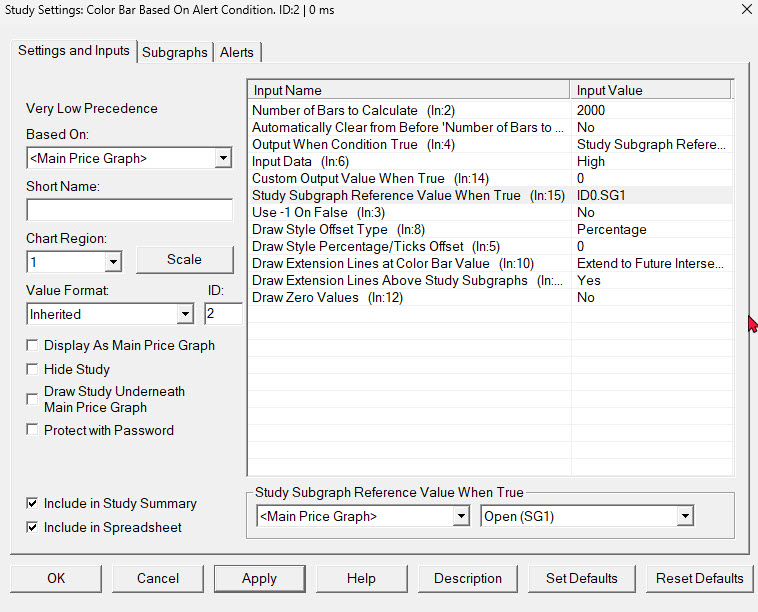

Hallo Also anbei die Einstellungen. Irgendwie funktioniert es nicht.


2026-06-10_12-14-48.jpg / V - Attached On 2026-06-10 10:16:12 UTC - Size: 360.66 KB - 27 views

[2026-06-10 14:46:53] #10 [Go To First Post]
John - SC Support - Posts: 47247
In the Alert tab of the Color Bar Based on Alert Condition, did you enter "=1" in the "Alert Condition" area? For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2026-06-10 15:56:56] #11 [Go To First Post]
User437588 - Posts: 90

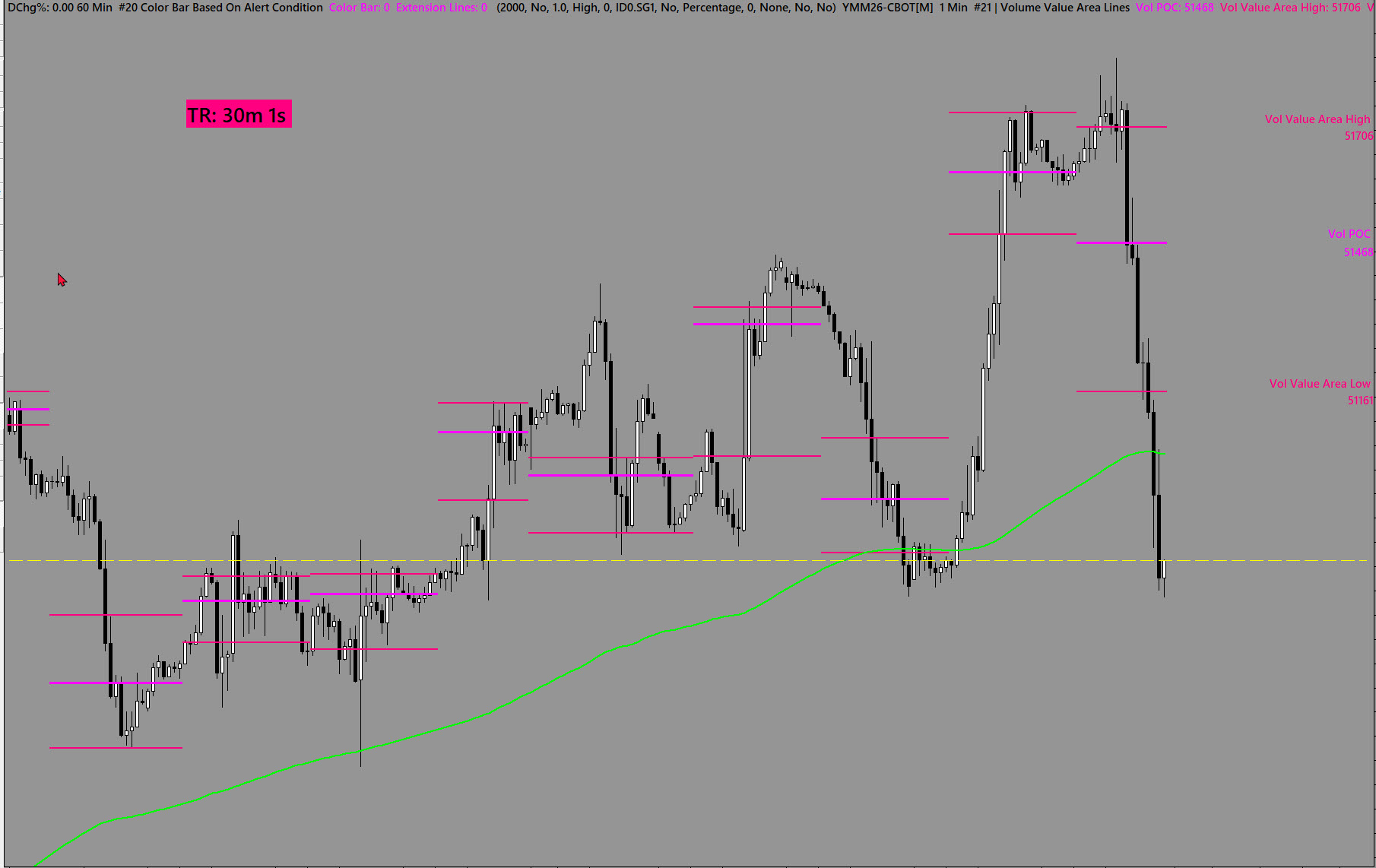

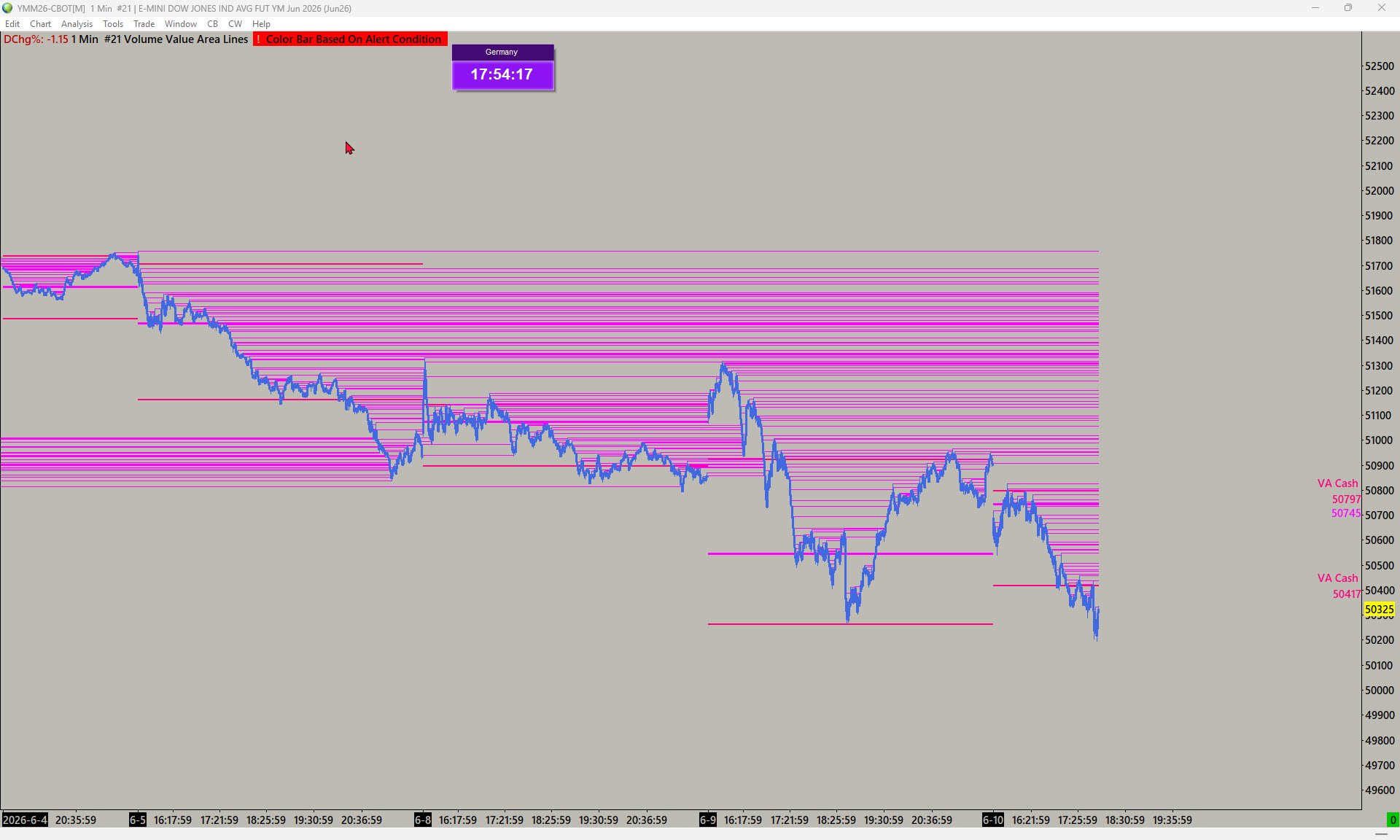

Hallo Ja das habe ich nun eingestellt. Jetzt sieht der Chart so aus, dennoch werden die VA nicht verlängert.


2026-06-10_17-54-19.jpg / V - Attached On 2026-06-10 15:56:47 UTC - Size: 429.66 KB - 28 views

[2026-06-10 18:16:43] #12 [Go To First Post]
John - SC Support - Posts: 47247
You would need a separate "Color Bar Based on Alert Condition" study for each specific subgraph you want to extend. This means you would need a total of 3 coppies of the study for the "Value Area High", "Value Area Low" and "Point of Control". For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing
