How to add compact Delta and CVD rows beneath footprint bars
View Count: 13
| [2026-05-26 14:56:33] |
| trader884 - Posts: 1 |
|

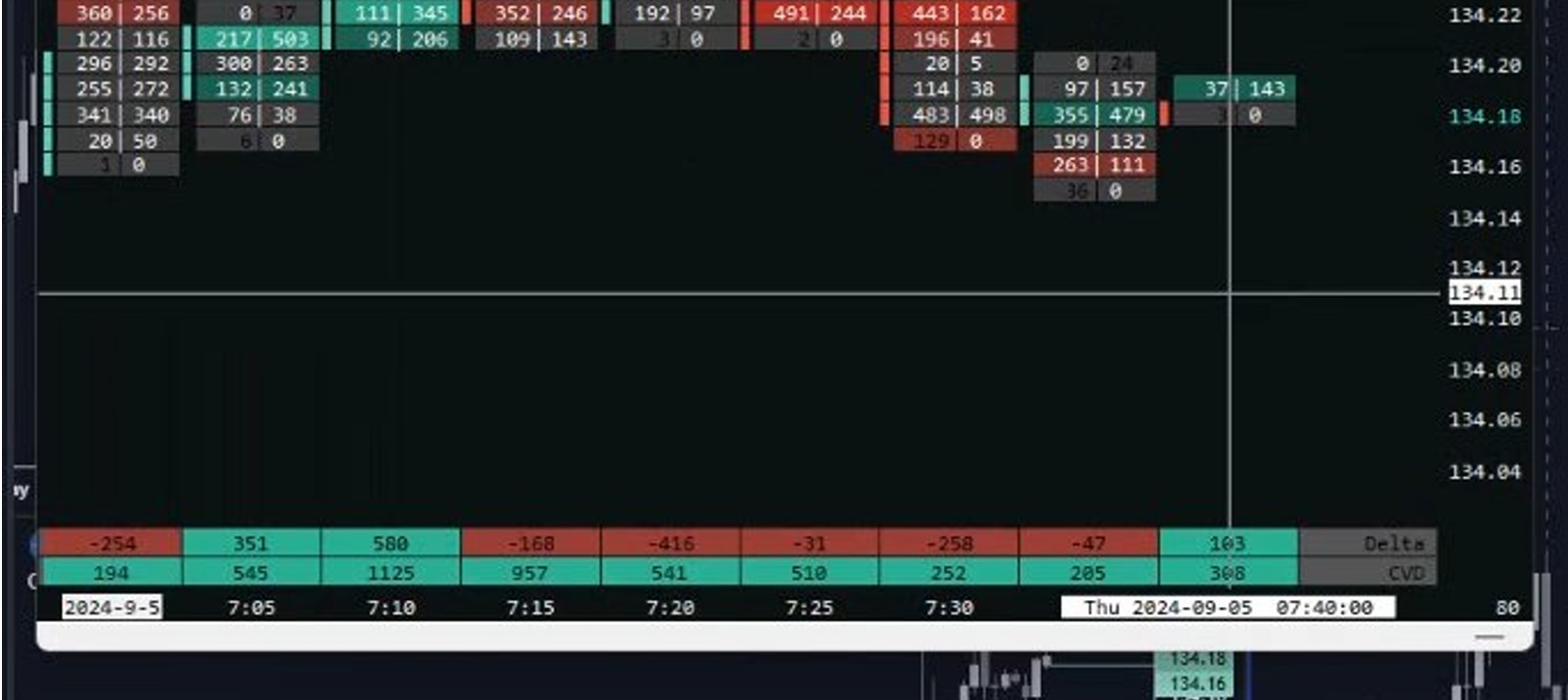

I am trying to replicate the Delta and CVD rows visible in the attached screenshot, which shows a 5-minute footprint chart with two compact rows sitting neatly beneath the footprint bars — one labelled Delta and one labelled CVD. The rows appear to be the same height as a single footprint cell, with coloured backgrounds (red for negative delta, teal/green for positive) and a single number per bar. I have tried using the Numbers Bars Calculated Values study in Chart Region 2 with Numeric Table as the Graph Draw Type, but the rows produced are much taller than what is shown in the screenshot and do not match this appearance. Can you advise what study or configuration produces the Delta and CVD rows shown in the attached image? Any help is very much appreciated. Thanks. |
Attachment Deleted.  Delta and CVD Rows.jpg / V - Attached On 2026-05-26 14:55:24 UTC - Size: 125.93 KB - 2 views |
| [2026-05-26 16:55:19] |
| John - SC Support - Posts: 46290 |
|
That is the "Numbers Bars Calculated Values" study those particular items. If the issue is strictly the height, then you need to adjust the size of the Region where that study is showing. Refer to the following: Working With Charts: Chart Window and Regions For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
