More Right SIde Margin and Study Label Name Background
View Count: 95
| [2025-11-03 19:04:07] |
| aygh - Posts: 19 |
|

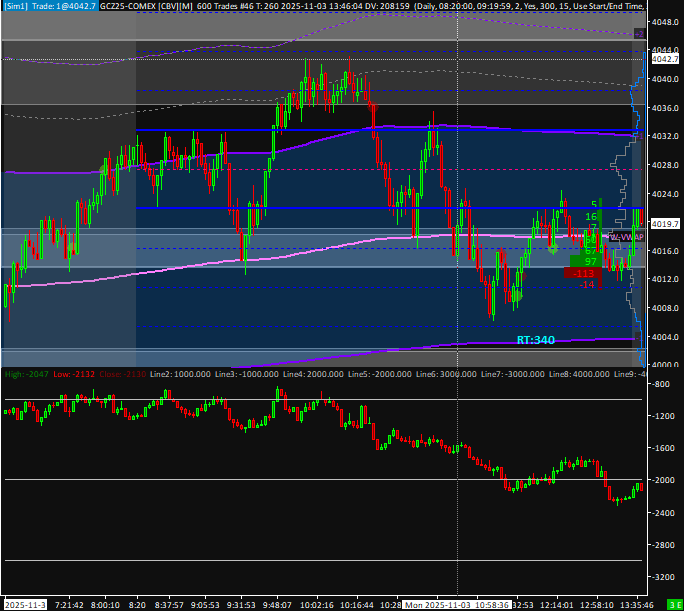

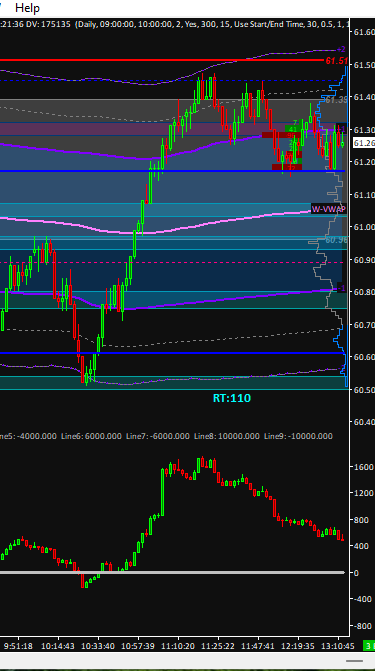

1. For this chart I have 30 min Delta by price and session Vbp. When I hit the End button on my keyboard my candlesticks cover both my profile studies (https://www.sierrachart.com/image.php?Image=1762196177695.png). I would like to set a permanent right side margin to where I can see both profiles like https://www.sierrachart.com/image.php?Image=1762196729859.png . I tried using Default Rights Side Fill Space in Global Settings but as expected it applied to all charts. 2. I would like to remove the background for my VWAP name labels in https://www.sierrachart.com/image.php?Image=1762196729859.png . Date Time Of Last Edit: 2025-11-03 19:06:23
|
| [2025-11-03 21:31:42] |
| John - SC Support - Posts: 42801 |
|
1. Refer to the following: Chart Settings: Lock Fill Space (Chart >> Chart Settings >> Display >> Chart Display Items menu) (there is also an option under "Chart >> Lock Fill Space"). 2. There is no way to remove the actual rectangle that outlines the labels. The way you have it in the image is the best option available. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-11-04 03:54:01] |
| aygh - Posts: 19 |
|
Lock Fill Space works but it doesn't allow right scroll. Number of Forward Columns does nothing to my charts. I even set it a 1000 and when I hit End on my keyboard it's still the same. See attached
Date Time Of Last Edit: 2025-11-04 03:54:50
|

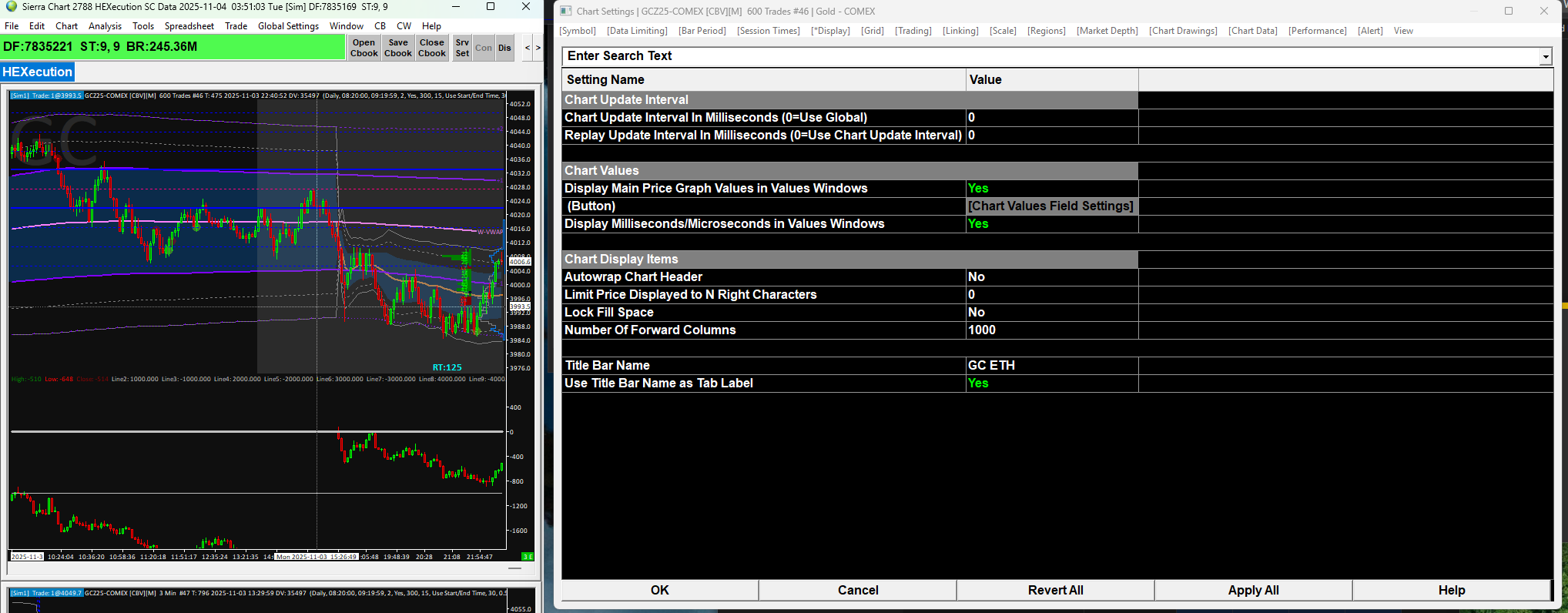

 Screenshot 2025-11-03 225111.png / V - Attached On 2025-11-04 03:53:05 UTC - Size: 146.65 KB - 11 views |
| [2025-11-04 14:15:39] |
| John - SC Support - Posts: 42801 |
|
We do not understand what you are trying to state. What do you mean by "Lock Fill Space works but it doesn't allow right scroll"? With Lock Fill Space, you are locking how far to the right the bars are displayed.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-11-04 18:26:36] |
| aygh - Posts: 19 |
|
Basically, I would like the effect of Lock Fill Space with the ability to scroll right. Just like with Default Right Side Fill Space in Global Settings but for individual charts. Would this be possible?
|
| [2025-11-04 18:51:37] |
| John - SC Support - Posts: 42801 |
|
So you want to be able to scroll your chart to the right, beyond where you have the "Lock Fill Space" set? If this is the case, then turn off the "Lock Fill Space" and be sure to set the following option to "No": General Settings Window: Allow New Data In Unlocked Fill Space (Global Settings >> General Settings >> Charts >> Charts) Then you need to set your chart bars to where you want them and as new bars are added they will not fill in to the right, rather the bars will continue to shift left. Just keep in mind that wherever the bars are located at any given time is where they will stay. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
