| User688525 - Posts: 339 |
|

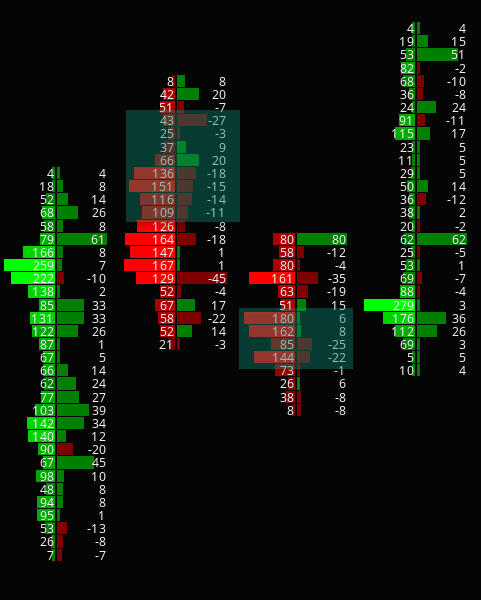

Hello Sierra Chart, How can a rectangle be drawn on a numbers chart at a specific price level? When using the DRAWING_RECTANGLEHIGHLIGHT tool, the rectangle doesn't span any of the columns. I've attached an example mock-up. Thank you |
 numbers-bars-rectangle.png / V - Attached On 2025-10-20 00:46:52 UTC - Size: 41.82 KB - 25 views |
| [2025-10-21 06:30:47] |
| User688525 - Posts: 339 |
|
Is there a transparency option for the "Color Background at Price" Draw Style?
|
| [2025-10-21 14:45:20] |
| Sierra_Chart Engineering - Posts: 21210 |
|
We apologize for the delay on this. We are still working on some documentation updates. We will have an answer in a few minutes.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-10-21 14:57:34] |
| Sierra_Chart Engineering - Posts: 21210 |
|
You cannot use a rectangle Tool type of drawing to do this. It will not work because it needs to span at least two bars. So you want a transparent rectangle equal to the Tick Size in height, centered over the chart bar? Right now there are these 6 related Subgraph Draw Styles: Chart Studies: Left Side Tick Size Rectangle (ACSIL: DRAWSTYLE_LEFT_SIDE_TICK_SIZE_RECTANGLE) (First one and the next five) Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2025-10-21 14:58:28
|
| [2025-10-21 14:58:57] |
| Sierra_Chart Engineering - Posts: 21210 |
|
We will check and if not we will add a Draw Style like this: Is there a transparency option for the "Color Background at Price" Draw Style?
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2025-10-21 15:19:04
|
| [2025-10-21 23:13:30] |
| Sierra_Chart Engineering - Posts: 21210 |
|
This new Draw Style will be in the next release: DRAWSTYLE_TRANSPARENT_TICK_SIZE_RECTANGLE Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-10-22 05:26:59] |
| User688525 - Posts: 339 |
|
Thank you very much Sierra Engineering!
|
