How to Show Cumulative $Tick-NYSE (Market Stats) as Candlesticks instead of Line/Bar
View Count: 304
| [2025-03-07 13:14:11] |
| User708340 - Posts: 12 |
|

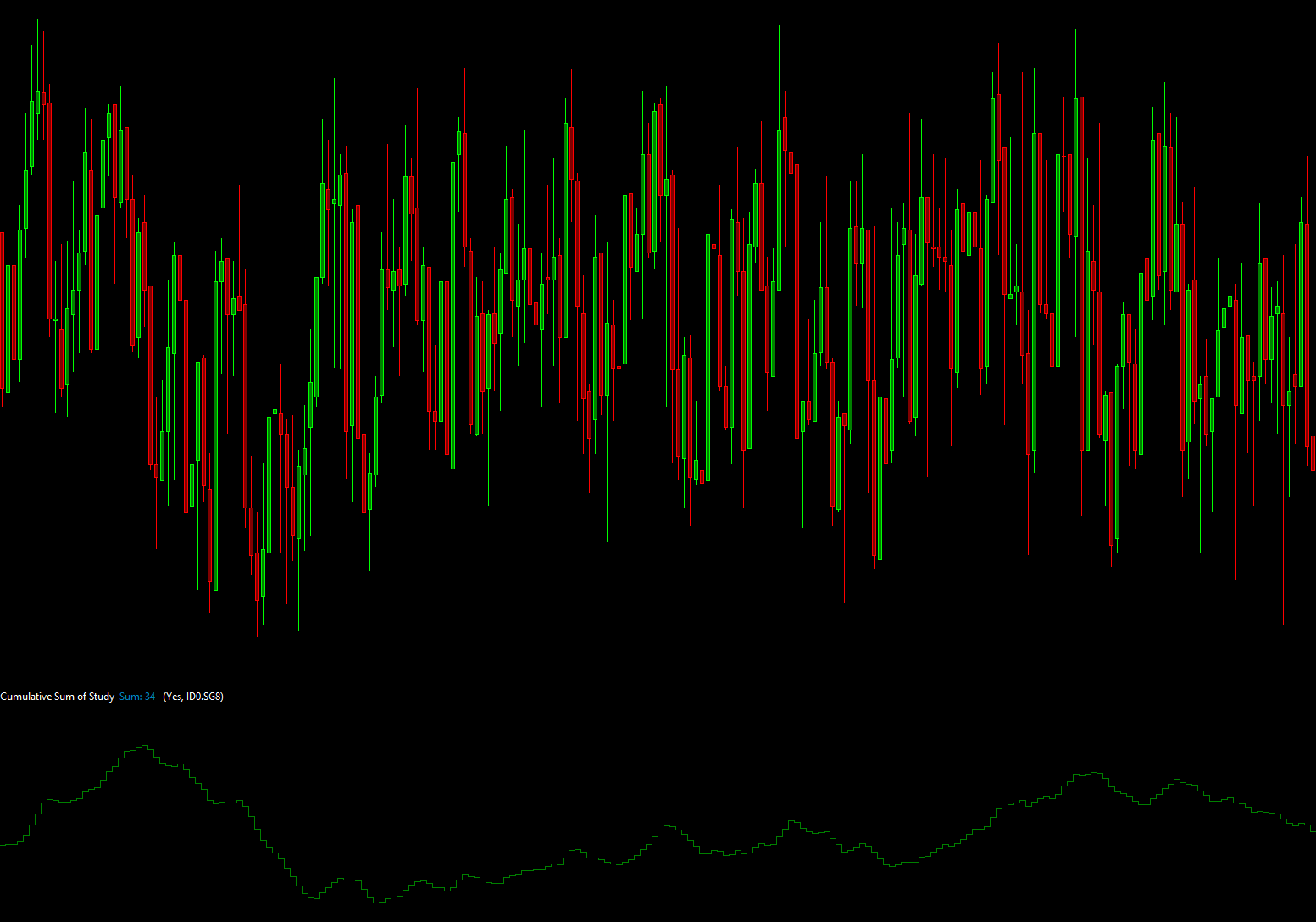

Using "Cumulative Sum of Study" , I plot cumulative $TICK-NYSE (Market Stats) data in Sierra Chart, but I'd like to display it as candlesticks instead of the default line/bar chart with "cumulative Sum of Study". I've noticed that the Cumulative Volume Delta (CVD) indicator use candlesticks. Please tell me how to Show Cumulative $Tick-NYSE (Market Stats) as Candlesticks instead of Line/Bar. Thanks Date Time Of Last Edit: 2025-03-07 16:04:43
|
 $TICK .png / V - Attached On 2025-03-07 16:04:36 UTC - Size: 18.96 KB - 32 views |
| [2025-03-07 15:52:58] |
| John - SC Support - Posts: 39580 |
|
We really do not understand what you are doing, or what you want to do. But if you have a way to define the Open, High, Low, and Close to create a bar, then the easiest way to do this is to use the "Spreadsheet Formula - Bar" study. Refer to the following: Spreadsheet Formula For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-03-07 16:08:05] |
| User708340 - Posts: 12 |
|
Sorry for the confusion. I want to show cumulative $TICK-NYSE (Market Stats) as Candlesticks instead of Line/Bar. |
| [2025-03-07 16:37:35] |
| cmet - Posts: 690 |
|
In your NYSE Tick Chart: Go to Chart Settings > Bar Period > Graph Draw Type > Candlestick Bars |
| [2025-03-07 16:42:42] |
| User708340 - Posts: 12 |
|
Thanks, CMET That's not what I meant. I have TICK-NYSE displayed as Candlestick. I have applied "Cumulative Sum of Study" on it and the result is the cumulative TICK-NYSE in Chart Region 1. But it's in line or bar format. I want to show the cumulative TICK-NYSE as Candlestick. Thanks |
| [2025-03-07 16:59:43] |
| John - SC Support - Posts: 39580 |
|
The "Cumulative Sum of Study" has to be set to be the cumulative of one of the 4 items that make up a bar - Open, High, Low, and Close. To get a "Bar" for the "Cumulative Sum of Study", you would need to sum each of the item, which would require a total of 4 "Cumulative Sum of Study" studies, one each for Open, High, Low, and Close. Then use the "Spreadsheet Formula - Bar" and set each item to reference the appropriate Cumulative Sum of Study. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-03-07 17:01:14] |
| cmet - Posts: 690 |
|
Gotcha. An alt to spreadsheet would be to take the code for the "Cumulative Sum of Study" and create a new version that includes the ability to plot candles. Like mentioned above, you just need the O,H,L,C to create them. Original code is in Studies5.cpp |
| [2025-03-07 18:12:53] |
| User708340 - Posts: 12 |
|

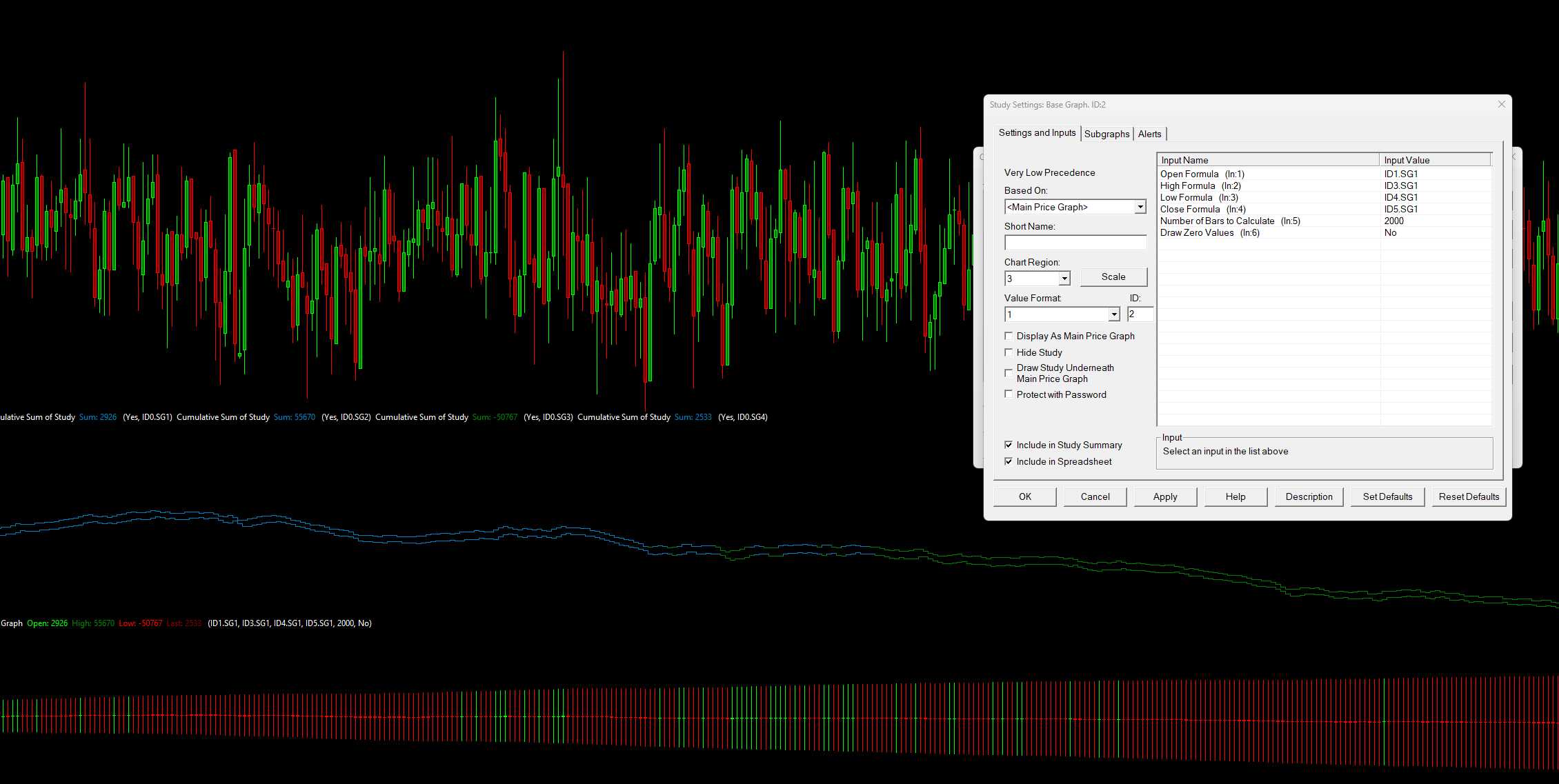

Hi John I followed your instruction. The result is not right. May you tell me where I did wrong. Image attached. |
| cumulative result.jpg / V - Attached On 2025-03-07 18:12:43 UTC - Size: 163.2 KB - 41 views |
| [2025-03-07 19:54:25] |
| John - SC Support - Posts: 39580 |
|
That makes sense to me for what it is.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2025-03-07 21:25:05] |
| cmet - Posts: 690 |
|

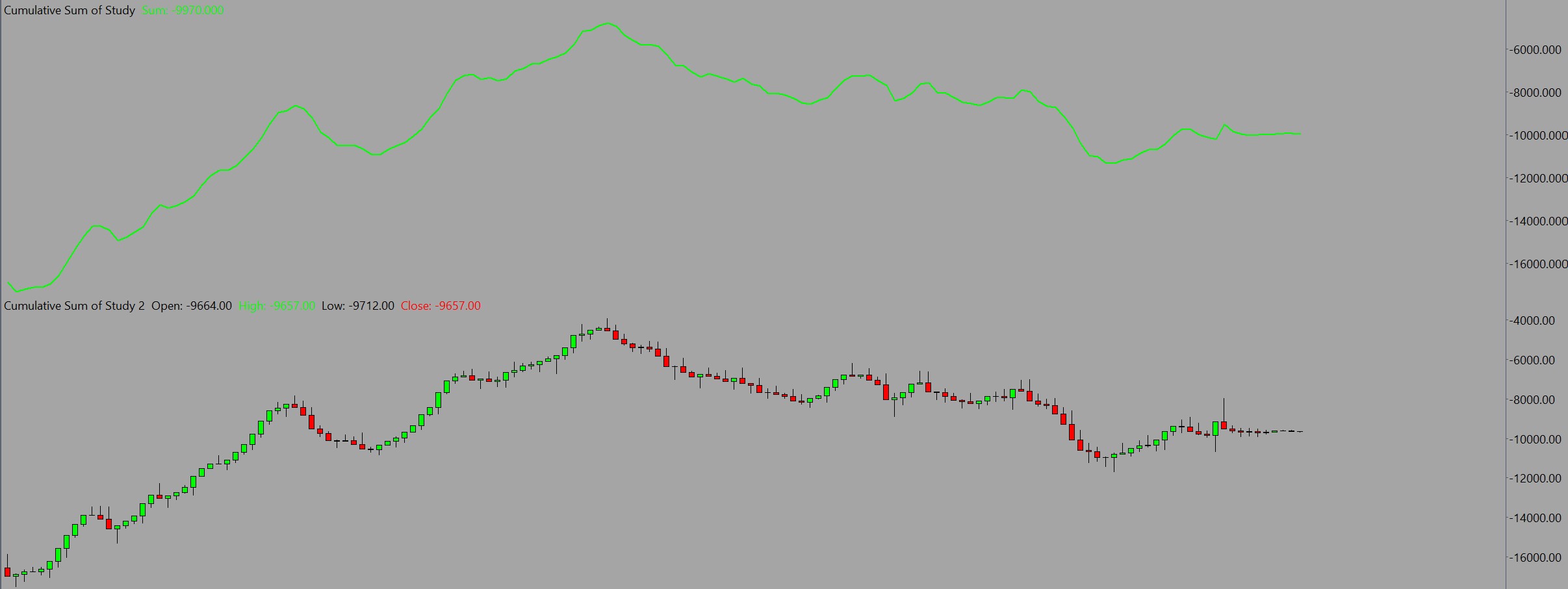

Here's a custom version of the Cumulative Sum of Study. You can add the dll to your Data directory or compile yourself with the cpp file. |
 CSoS_2_64.dll - Attached On 2025-03-07 21:24:36 UTC - Size: 105.5 KB - 62 views CSoS_2.cpp - Attached On 2025-03-07 21:24:44 UTC - Size: 2.12 KB - 74 views CsoS_2.jpg / V - Attached On 2025-03-07 21:24:49 UTC - Size: 108.86 KB - 49 views |
| [2025-03-07 21:30:36] |
| User708340 - Posts: 12 |
|
Thank you so much, cmet. That's exactly what I need. Appreciated!! |
| [2025-03-07 23:17:17] |
| ondafringe - Posts: 322 |
|
That's pretty slick, @cmet!
|
