[Programming Help] - Help with Conditional Candle Coloring Based on AV-BV Values Across Different Time Interval

View Count: 126

[2024-10-07 07:18:52]
User133078 - Posts: 3
Hello everyone,

I'm working on a script to color my 30-minute candles based on specific AV-BV criteria, but I'm encountering some issues.

Here's what I'm trying to achieve:

Between 3:30 PM and 4:00 PM: color the candle if AV-BV > 2600
Between 4:00 PM and 4:30 PM: color the candle if AV-BV > 2000
Between 4:30 PM and 5:00 PM: color the candle if AV-BV > 1500
And so on.


The problem is that when I apply my formula, it also colors candles outside the defined time ranges, which is not what I want.

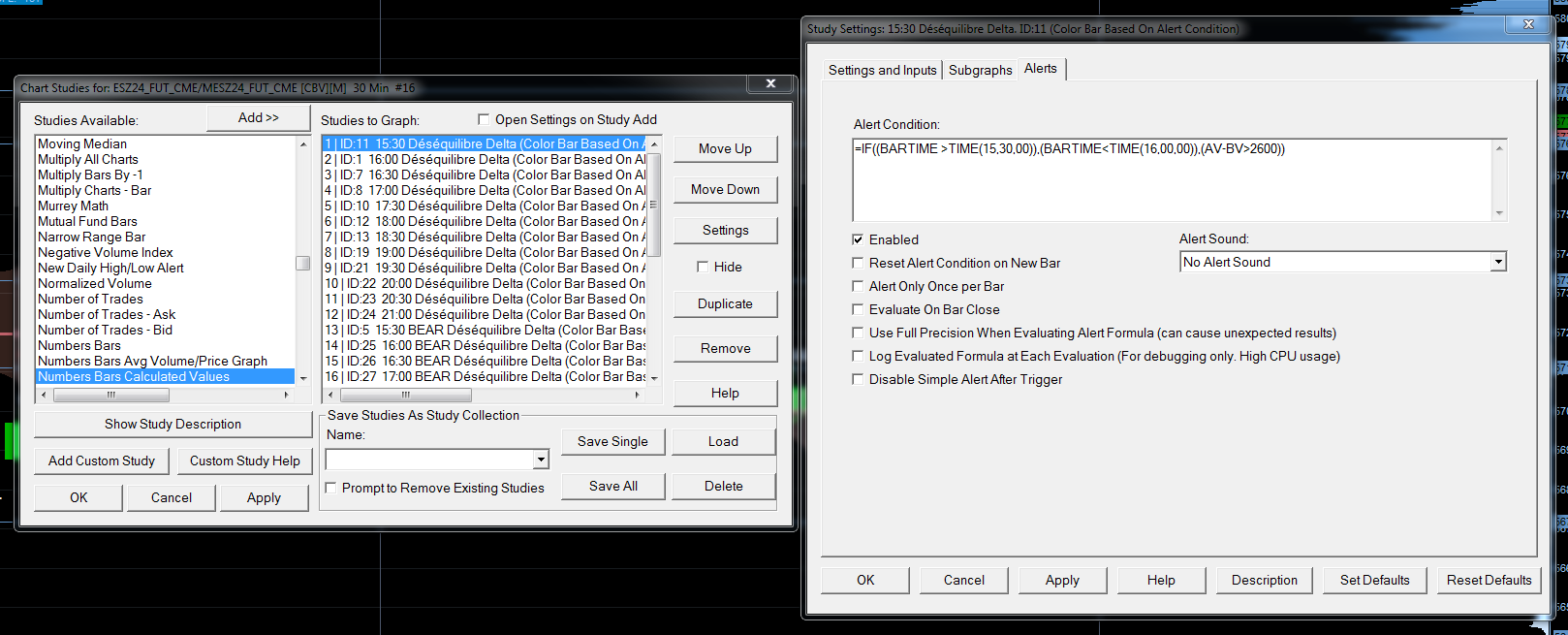

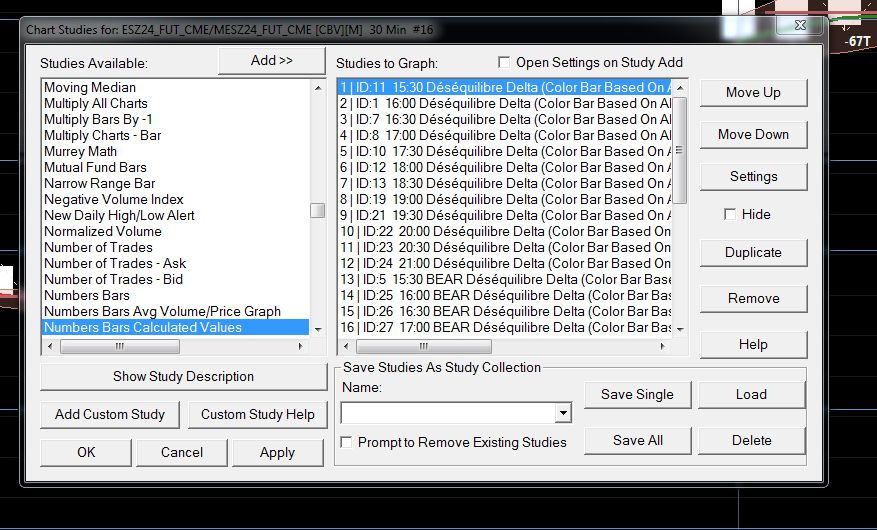

Additionally, I've created a separate study for each different time interval, but I'm not sure if that's the right approach (see screenshot).

Here’s the code I’m using: (LOOK SCREENSHOT)
=IF((BARTIME >TIME(15,30,00)),(BARTIME<TIME(16,00,00)),(AV-BV>2600))
=IF((BARTIME >TIME(16,00,00)),(BARTIME<TIME(16,30,00)),(AV-BV>2100))
…etc

Do you have any suggestions on how to ensure each time interval is correctly colored based on its specific AV-BV condition? And is using a separate study for each time interval the right way to go?

Thanks in advance for your help!

imageCapture.PNG / V - Attached On 2024-10-07 07:13:35 UTC - Size: 81.97 KB - 34 views
imageCaptssssure.PNG / V - Attached On 2024-10-07 07:13:46 UTC - Size: 151.93 KB - 35 views
Attachment Deleted.
[2024-10-07 15:14:22]
John - SC Support - Posts: 36652
The use of the IF() statement in not appropriate for what you want to do. You need to use the AND() function. So your formula would look like the following:
=AND(BARTIME > TIME(15,30,00), BARTIME < TIME(16,00,00), (AV - BV) > 2600)

And you do need to have a separate "Color Bar Based on Alert Condition" for each coloring that you would want.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2024-10-07 18:35:12]
User133078 - Posts: 3
Thank you for your response!

I tried using the AND() function as you suggested:

=AND(BARTIME > TIME(15,30,00), BARTIME < TIME(16,00,00), (AV - BV) > 2600)

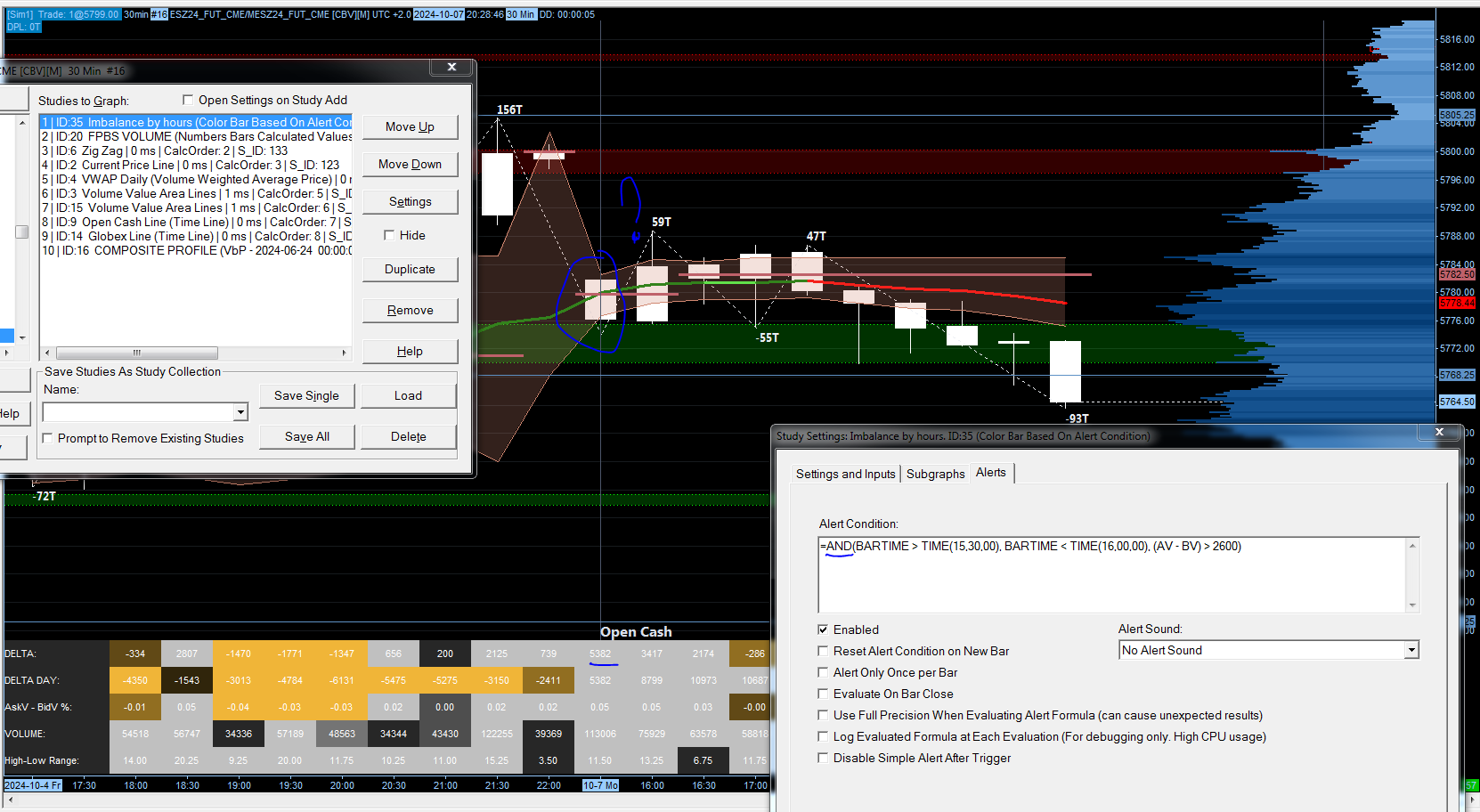

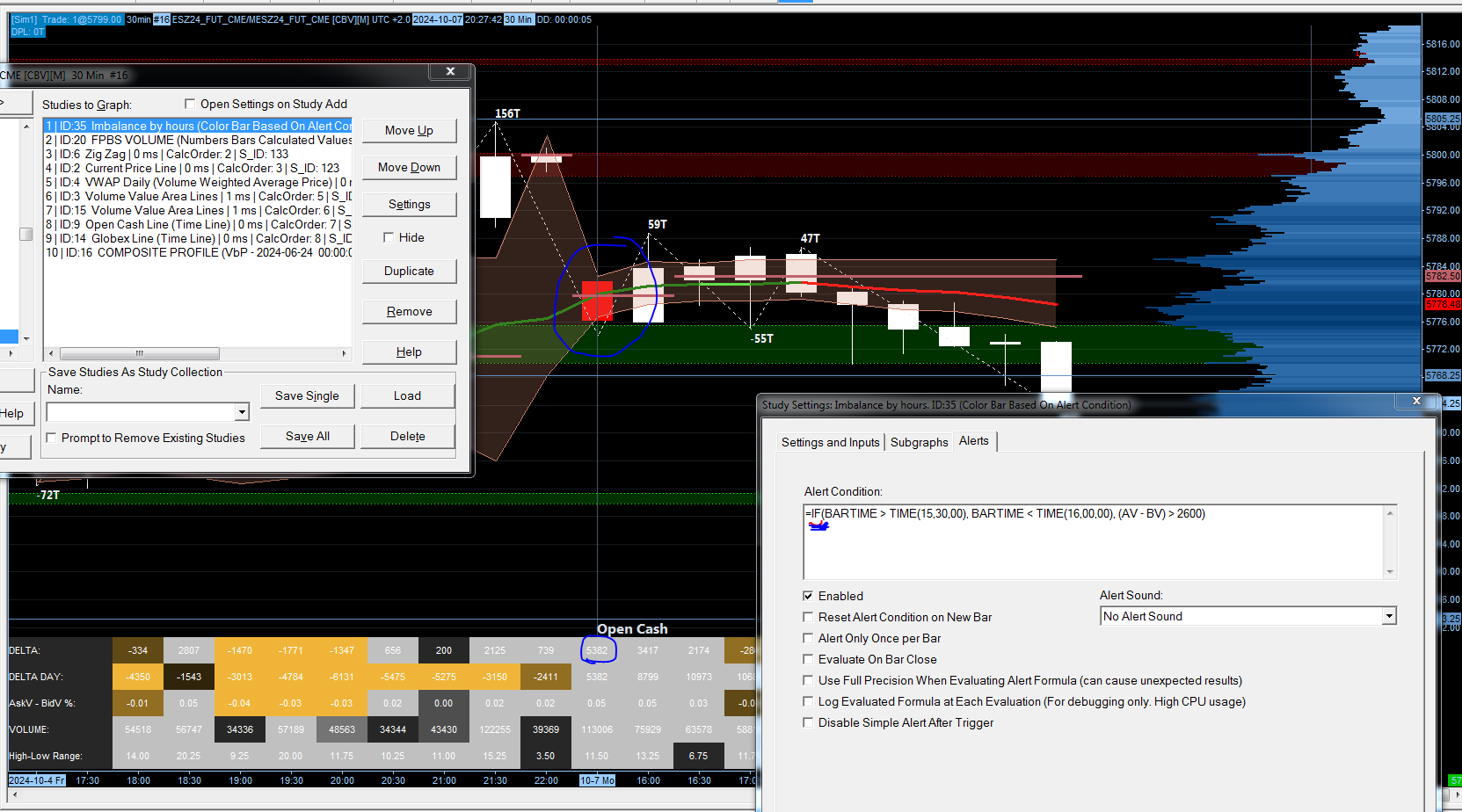

However, when I use "=AND()", it doesn't color the candle. On the other hand, when I use "=IF()", it does work, although it's not entirely correct because it's affecting other time ranges as well.

Do you know why using "=AND()" doesn't trigger the candle coloring, but "=IF()" does? Is there a difference in how these functions are interpreted by the tool?

Thanks in advance for your help!
imageAnddon'twork.PNG / V - Attached On 2024-10-07 18:34:37 UTC - Size: 151.23 KB - 26 views
imageIFwork.PNG / V - Attached On 2024-10-07 18:34:42 UTC - Size: 158.98 KB - 26 views
[2024-10-07 20:27:41]
John - SC Support - Posts: 36652
The particular bar you are referencing in your image probably has a start time of 15:30:00. and according to your condition, the bar time needs to be greater than 15:30:00. To have this test for greater than or equal, you would change your condition to be the following:
=AND(BARTIME >= TIME(15,30,00), BARTIME < TIME(16,00,00), (AV - BV) > 2600)
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2024-10-07 20:35:10]
User133078 - Posts: 3
Thank you so much for your response!

I made the change you suggested, and now it works perfectly. It was such a simple adjustment—I should have thought of that myself!

Thanks again for your help!
