Count Renko Bars in a certain period of time
View Count: 547
| [2024-05-14 08:33:50] |
| User644833 - Posts: 18 |
|
I would like to develop a study similar to ATR that shows me the number of renko bars in a specified period of time. (e.g. how many Renko candles were counted in the last hour) Is this possible? |
| [2024-05-14 12:26:27] |
| emmanuel - Posts: 63 |
|
Renko bars can be counted; Meaning, each one has an index number. And Renko bars also contain date-time data; ex. sc.BaseDateTimeIn[sc.Index].GetTime() Therefore, yes it's possible to count how many of them there are within a time period. |
| [2024-05-14 12:34:25] |
| User644833 - Posts: 18 |
|
Thank you very much which SC study would be best suited to simply map something like this
|
| [2024-05-14 18:16:21] |
| emmanuel - Posts: 63 |
|

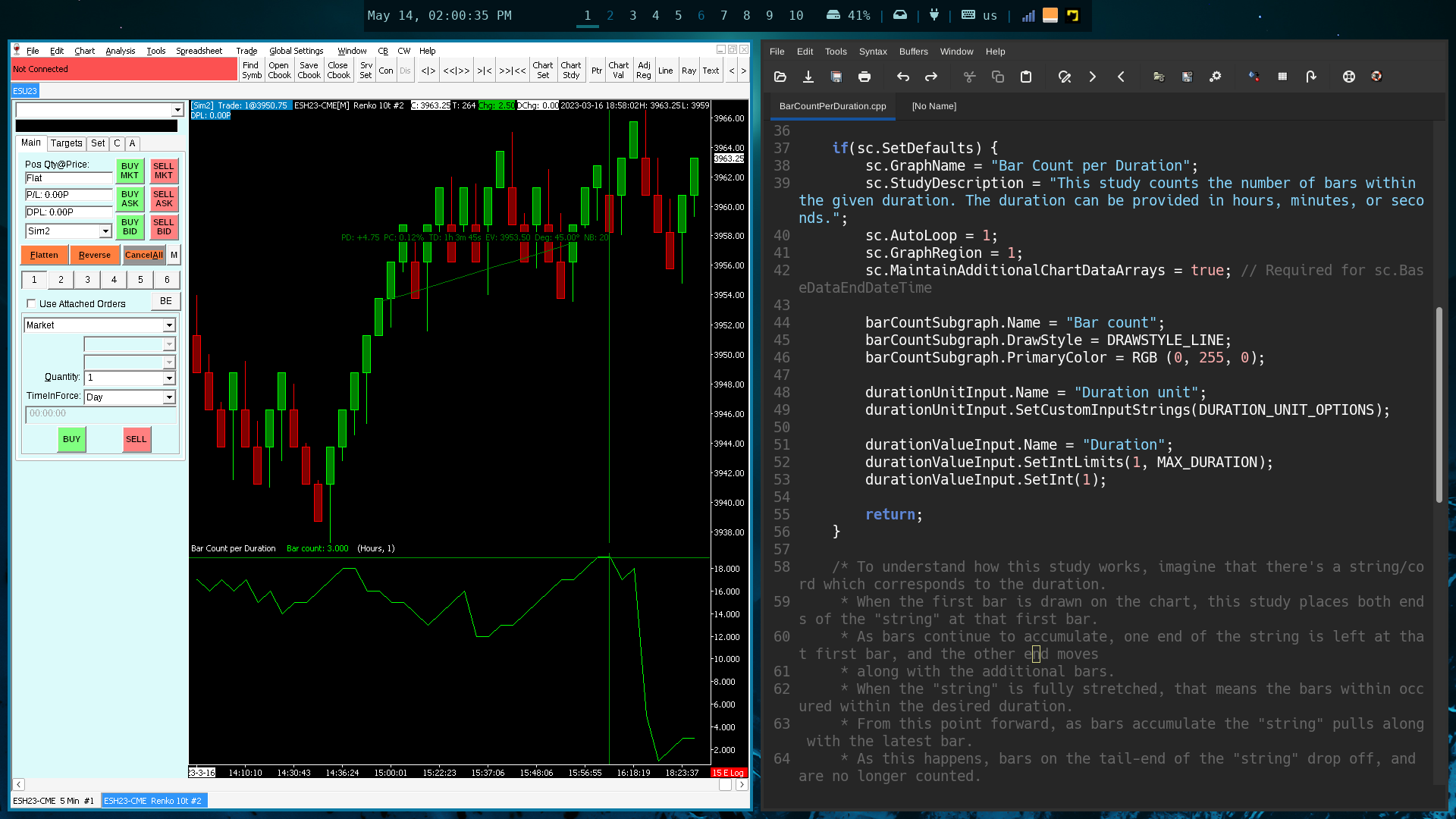

Try the study in the following link. You can see the bar counts in the bottom section of the chart; It's in a separate chart region. https://drive.proton.me/urls/1Y0T2TWHRW#5LqlVrBj32PJ I find it quite funny that the screenshot file size is larger than the study DLL itself. |
 BarCountPerDuration.png / V - Attached On 2024-05-14 18:07:52 UTC - Size: 287.52 KB - 123 views Private File Attachment Deleted. |
| [2024-05-14 18:33:18] |
| User644833 - Posts: 18 |
|
Thank you very much! This study would be extremely helpful to me. I have copied the dll into the SC Data directory. Unfortunately I can't find the study. Do you have a tip? I have found the Problem. I need for the Study a higher SC Version Date Time Of Last Edit: 2024-05-14 18:44:21
|
| [2024-05-14 18:43:46] |
| emmanuel - Posts: 63 |
|
To add the study, go to Analysis -> Study -> Add Custom Study
|
| [2024-05-14 18:49:53] |
| User644833 - Posts: 18 |
|
works perfectly This is exactly what I was looking for. 1000 thanks for your solution |
