I can't see letters in my TPO Chart

View Count: 74

[2022-09-26 17:28:14]
Ninja_POC - Posts: 2

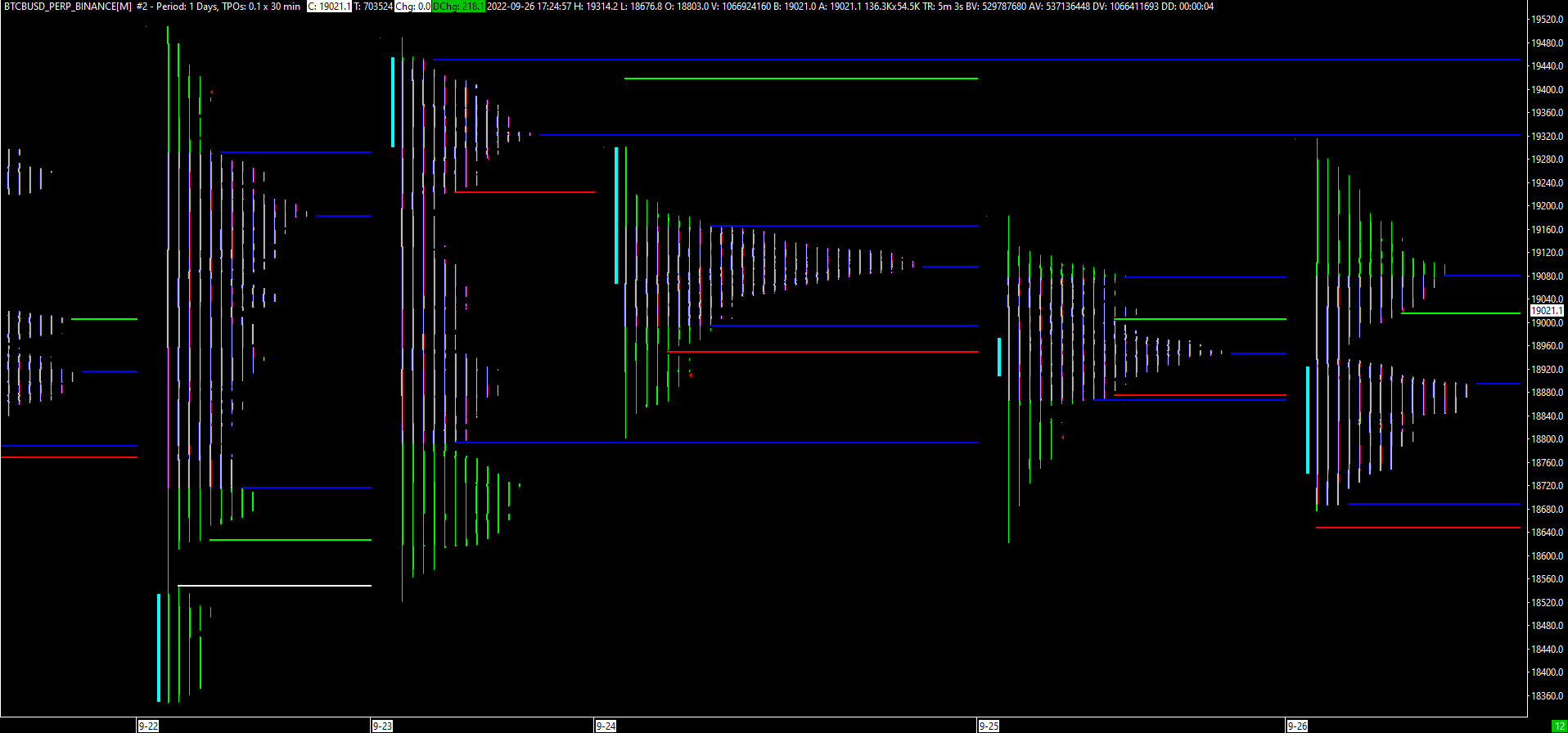

Hello, I am getting a bad drawing when changed my TPO Chart to use letters, the link on the image is
https://www.sierrachart.com/image.php?Image=1664213103976.png

best regards
[2022-09-26 21:11:44]
John - SC Support - Posts: 20201
Refer to the following:
https://www.sierrachart.com/index.php?page=doc/StudiesReference/TimePriceOpportunityCharts.html#SolvingOverlappingTPOLetters
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
[2022-09-26 21:42:00]
Ninja_POC - Posts: 2
Hello, I already did what is on that post... not working for me... thanks
[2022-09-26 22:04:09]
John - SC Support - Posts: 20201
Did you change the Letter/Price Increment in Ticks? If so then what is this value set to?

The two main things are the Letter/Price Increment in Ticks and scaling. If you changed it from 1 to 4 and that did not solve it, then change it to 40 and see how it looks. You will have to play with the number to find what works best for the particular instrument.

In terms of scaling, you will also want to increase the Bar Spacing so you are seeing fewer TPO profiles. This will help you to determine the best Letter/Price Increment in Ticks. Then you can change things back once you understand the interactions between the items.
For the most reliable, advanced, and zero cost futures order routing, use the Teton service:
Sierra Chart Teton Futures Order Routing
