[User Discussion] - Swing High Low - Accessing Subgraph values

View Count: 1124

[Page 1 of 1] First Page -- 1 -- Last Page

[2022-02-08 15:55:32] #1 [Go To First Post]
User337568 - Posts: 64
Goal - tracking pivot polarity changes using a pivot script. The Swing High/Low script does not allow me to access the subgraph values. Everything is 0 I want to be alerted about the relative Swing high/low to the previous high/low. Is this Swing High higher or lower than 1 ago? Is this Swing Low higher or lower than 1 ago? Search results: I did find this post regarding holding a value in an array: How to find all values of an sc.Subgraph[] array that are above a given value?
0x Thank you

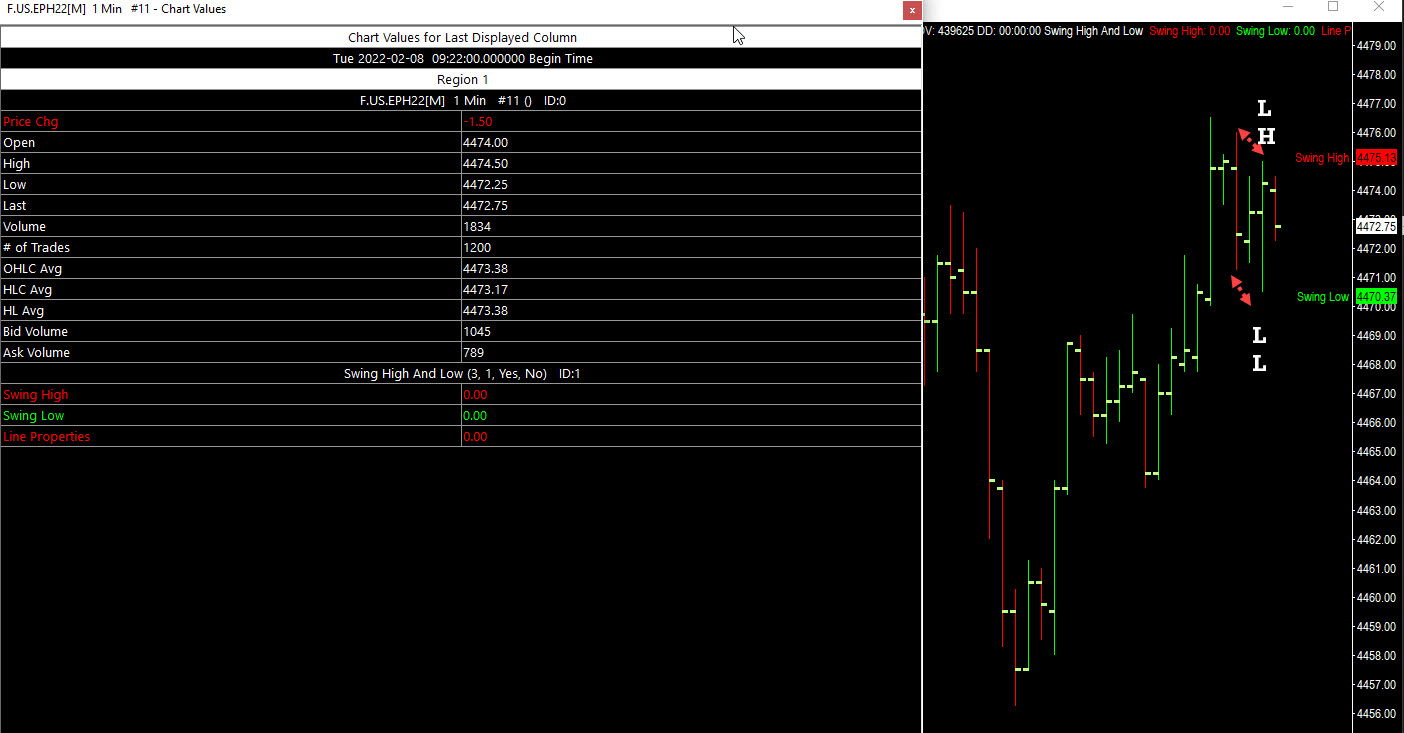

Swing High Low vs 1 ago SC.jpg / V - Attached On 2022-02-08 15:54:16 UTC - Size: 184.31 KB - 196 views Attachment Deleted.

[2022-02-08 16:11:45] #2 [Go To First Post]
Sawtooth - Posts: 4285
The Swing High and Low study outputs a price at every marker, but not at every bar. Add the Spreadsheet System/Alert study, and look in column AA or higher to see the study's output. Use this spreadsheet study to compare the volume at each Swing H. Use formulas like these: Cell O3: =IF(ID1.SG1@3 > 0, F3, O4) Cell P3: =IF(ID1.SG1@3 > 0, O4, P4) where ID1 is the Swing High And Low study. The volume at the most recent Swing H is in O3, and the volume at the previous Swing H is in P3. Use K3 to N3 for your comparison alert formulas. The above is a variation of the example here: Spreadsheet Example Formulas and Usage: Return Last Two Zig Zag Reversal Values Date Time Of Last Edit: 2022-02-08 16:12:12
1x Thank you

[2022-02-08 16:27:46] #3 [Go To First Post]
User337568 - Posts: 64
Tom: Thank you and, I want the subgraph value and not the volume. Hopefully, this makes sense.
0x Thank you

[2022-02-08 17:26:44] #4 [Go To First Post]
Sawtooth - Posts: 4285
I want the subgraph value and not the volume. Then use formulas like these: Cell O3: =IF(ID1.SG1@3 > 0, ID1.SG1@3, O4) Cell P3: =IF(ID1.SG1@3 > 0, O4, P4) where ID1 is the Swing High And Low study. You can use this example to return any value.
1x Thank you
