[User Discussion] - No Zig Zag Labels for CDV

View Count: 1372

[2014-04-09 14:14:43] #1 [Go To First Post]
MonteCarlo64 - Posts: 23

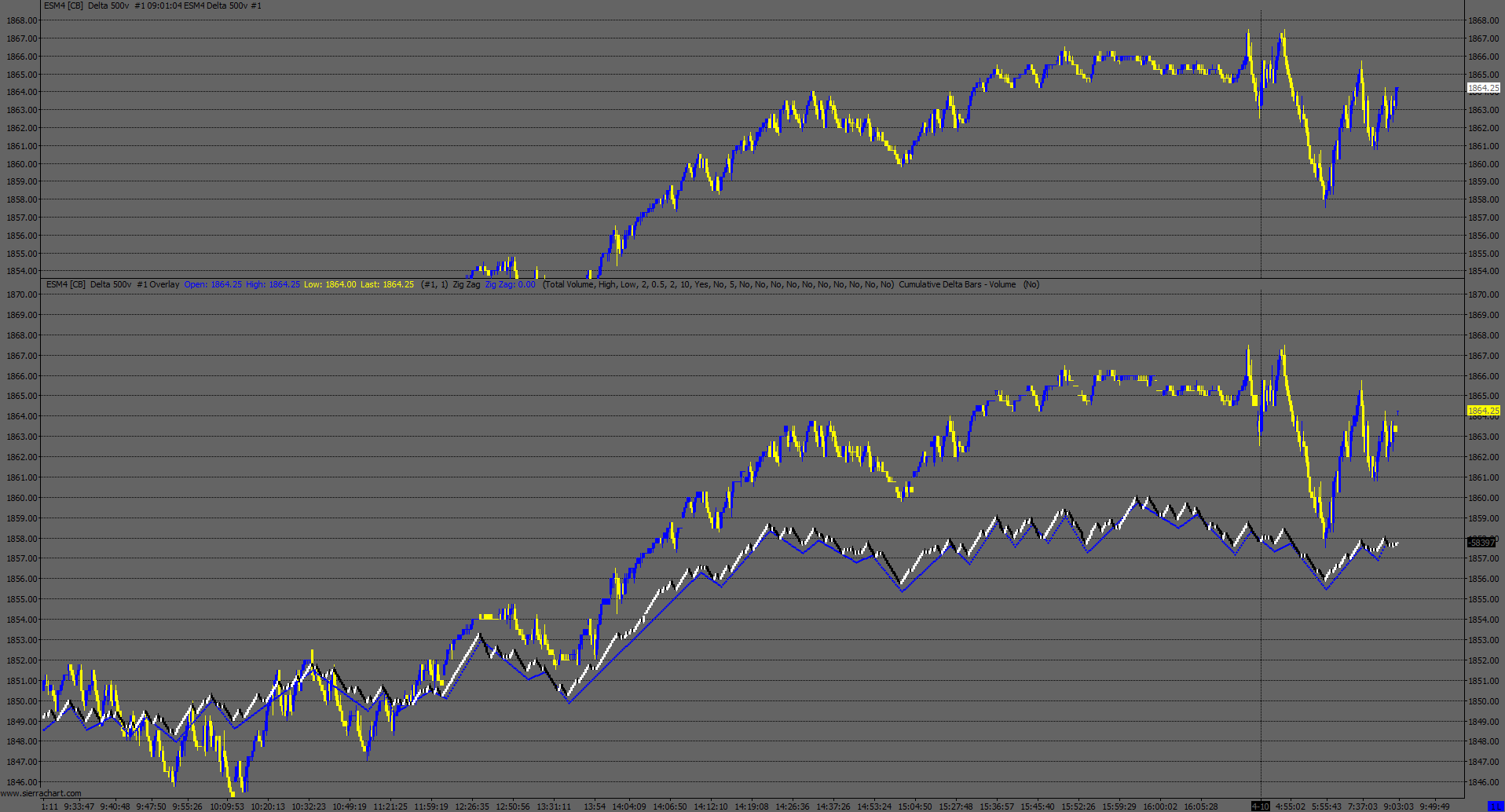

http://www.sierrachart.com/image.php?l=1397052481210.png I have this chart set up exactly the way I want with both the ESM4 and CDV in the same chart region (saves real estate) with different scales on the left & right axes, but there are no zigzag labels with zigzag applied to the CDV chart. I need to see the labels for CDV pivots to be able to set audible alerts.

[2014-04-09 17:19:39] #2 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
Yes, this does make sense. The labels are not going to work properly with this kind of configuration. And we can definitely not support that. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2014-04-09 19:04:58] #3 [Go To First Post]
MonteCarlo64 - Posts: 23

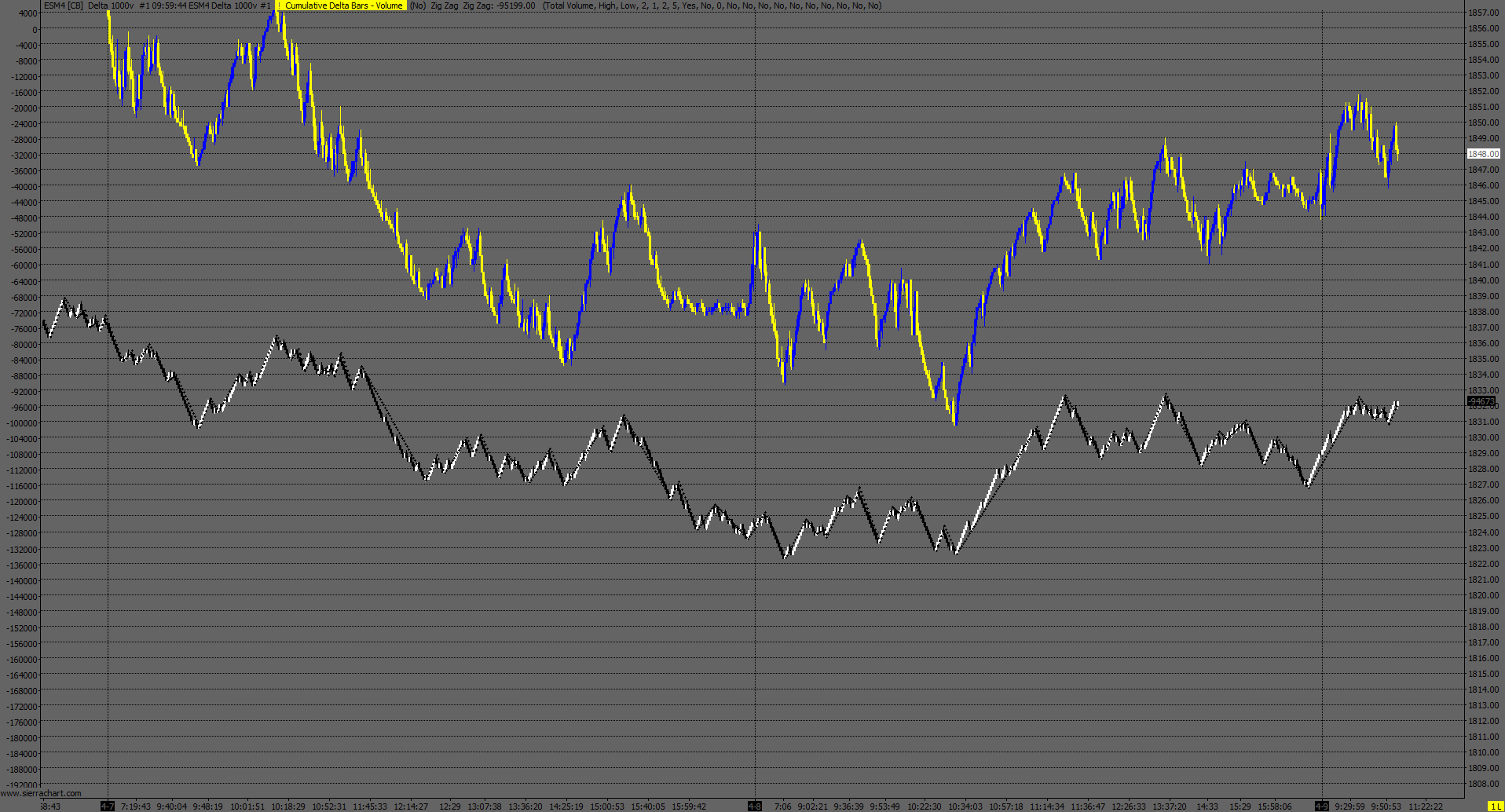

http://www.sierrachart.com/image.php?l=1397069899124.png I have an alternate approach to get what I want but now I would like the right side axis to be the ESM4 price instead of a repeat of the left axis for the CDV value. Can you provide a means where the user can choose to make optimal use of both left & right side axes NOT conveying the same redundant info but providing twice as much info. I am sure other users would find this very useful and allows saving real estate.

[2014-04-09 22:04:55] #4 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
You should be using the Overlay (Bar) study to do the overlay. And make sure that study is at the top of the list of studies. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2014-04-10 13:04:43] #5 [Go To First Post]
MonteCarlo64 - Posts: 23

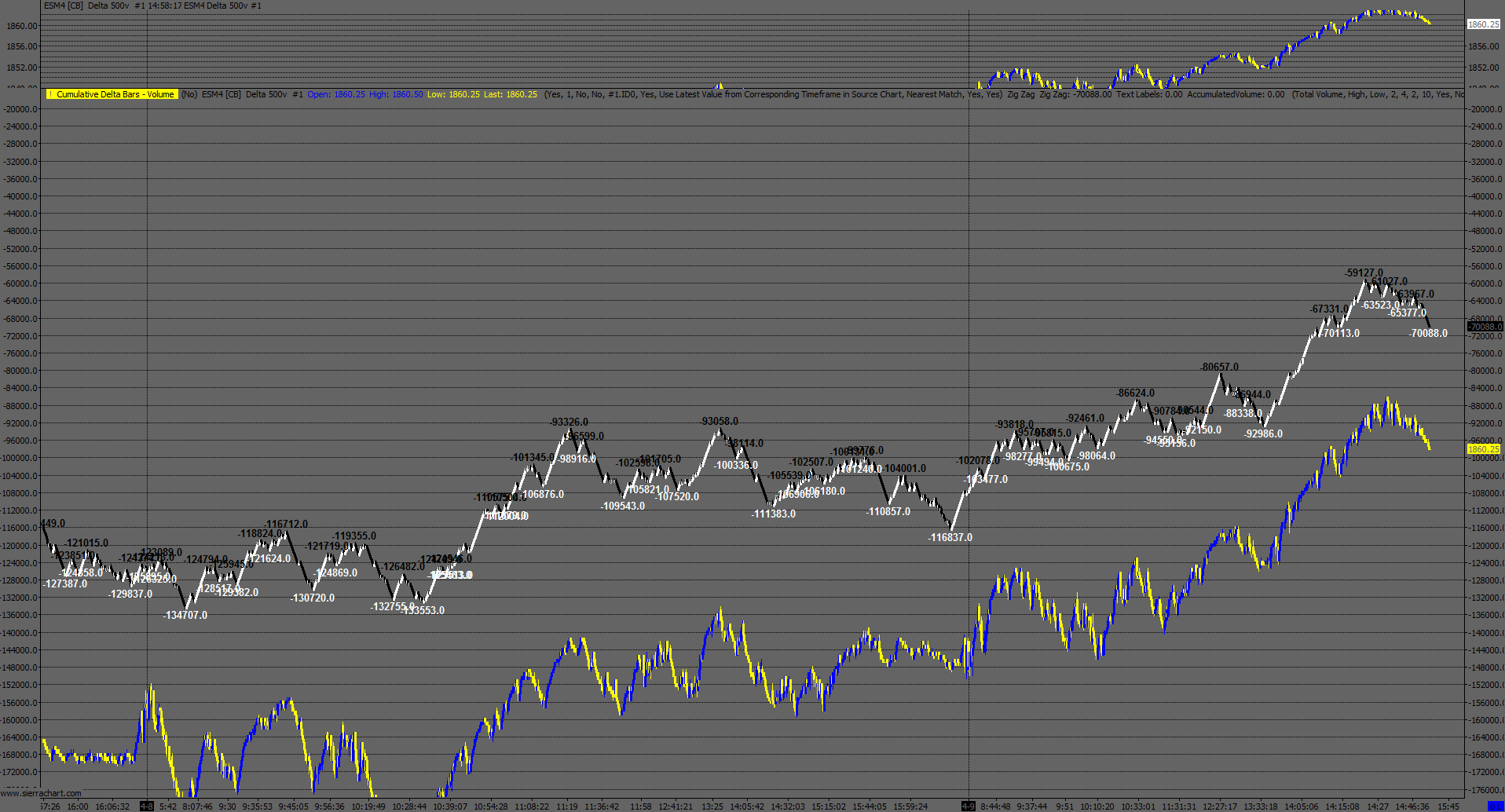

http://www.sierrachart.com/image.php?l=139713486629.png That is even worse because not only do I not get the left axis with the CDV values and the right axis with the ESM4 price, but I no longer have the zig zag labels for the CDV values at pivots that I had previously.

[2014-04-10 17:04:18] #6 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
The documentation for how this works is here: https://www.sierrachart.com/index.php?l=doc/doc_ChartSettings.html#UseLeftSideScale Do the following: Make the Cumulative Delta Bars the first study. Set the scale for this to "Automatic". Refer to documentation here: https://www.sierrachart.com/index.php?l=doc/doc_Scaling.html Make the Overlay study the second study. Set the scale for this to "Independent". Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing
