How to Highlight Stacked Imbalances with no volume at price

View Count: 1980

[2021-03-10 17:32:12] #1 [Go To First Post]
User275592 - Posts: 97

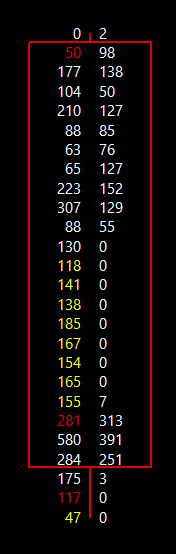

Hi, I am looking for a way to highlight stacked imbalances with no volume at price (Bid or Ask) ? see attached picture Is it possible to do it with a study ? with ACSIL ? Thank you for your help Renaud


Stacked Imbalances Zeros ES 10032021 17h58.gif / V - Attached On 2021-03-10 17:31:49 UTC - Size: 5.32 KB - 603 views

[2021-03-10 18:41:14] #2 [Go To First Post]
John - SC Support - Posts: 31534
One way to do this is to use the Volume at Price Threshold Alert V2 study. Refer to the following: Volume at Price Threshold Alert V2: Highlight Multiple Adjacent Bid or Ask Dominant Prices (Stacked Imbalance) You will then need to also set the Input for Enable Zero Bid Ask Compares to Yes And then make sure the option for Zero Value Compare Action is set how you want. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-06-01 18:31:21] #3 [Go To First Post]
UserOne - Posts: 37
John, how can I exclude to draw a line at high/low for a zero print? I just want to highlight a zero bid/ask within my numbers bar.

[2021-06-01 18:54:50] #4 [Go To First Post]
John - SC Support - Posts: 31534
How are you getting the line at high/low for a zero print? There is no option within the Numbers Bars that draws a line, so I do not know what to tell you as I am confused as to how you are getting this. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-06-01 19:00:35] #5 [Go To First Post]
UserOne - Posts: 37
I used the study you mentioned above: "Volume at Price Threshold Alert V2 study" Date Time Of Last Edit: 2021-06-01 19:05:27


01-06-_2021_21-03-47.jpg / V - Attached On 2021-06-01 19:05:24 UTC - Size: 1.03 MB - 694 views

[2021-06-01 19:20:26] #6 [Go To First Post]
John - SC Support - Posts: 31534
Just set the option for Draw Extension Lines to None. For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing

[2021-06-01 19:21:28] #7 [Go To First Post]
UserOne - Posts: 37
I want to keep the lines inside the NB, just exclude the ones at the high/low.

[2021-06-01 19:25:23] #8 [Go To First Post]
Ackin - Posts: 1865
Hi, It's possible download it for free from our CZ/SK forum. Study: Number Bars: Zero line (zero volume) contact link: https://www.sierrachart.com/UserControlPanel.php?page=StudyStore&SCDLLName=zyp_download_free
