Referencing other charts

View Count: 1677

[2014-01-31 02:08:32]
vegasfoster - Posts: 444

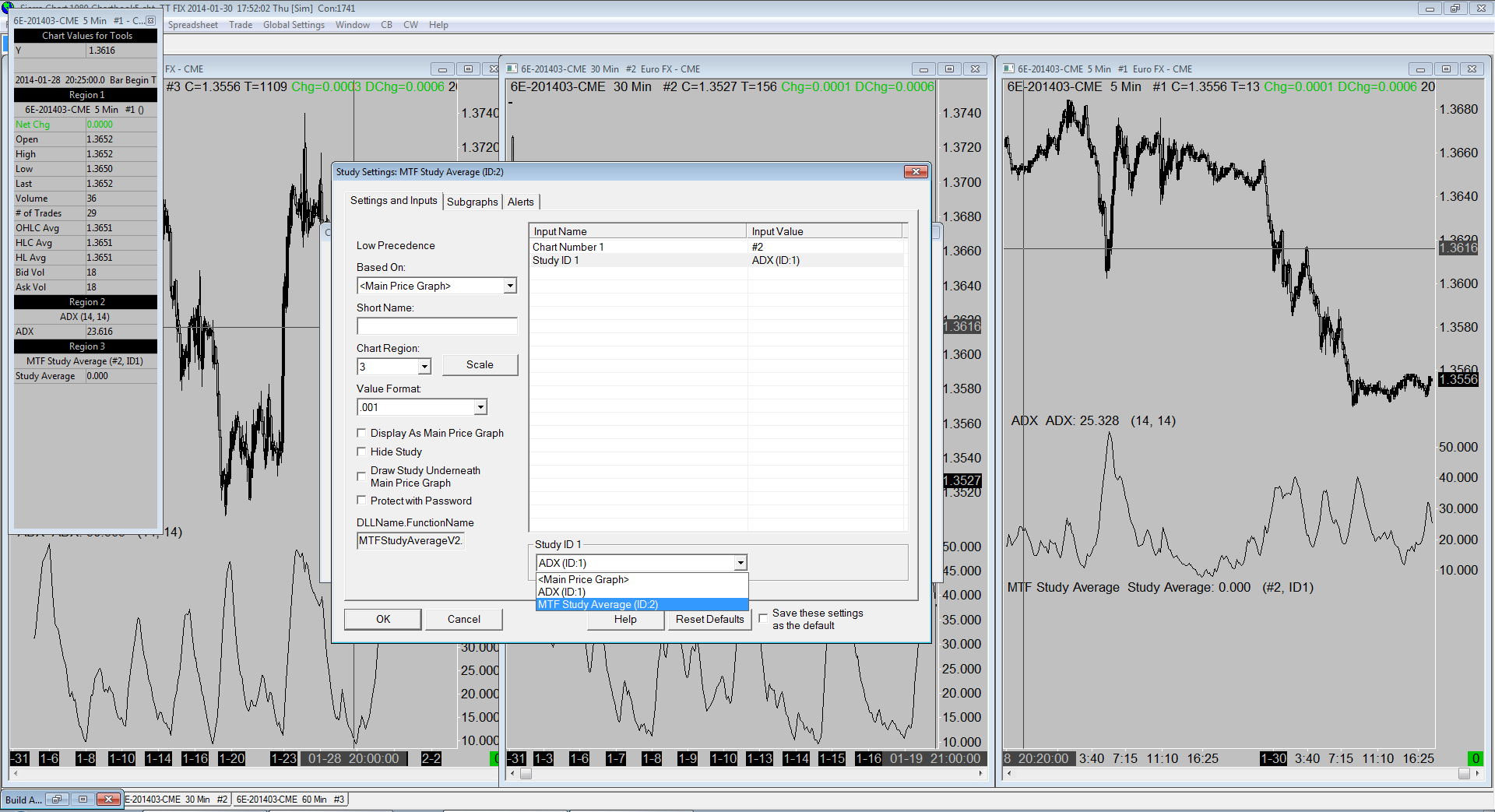

Hi, sorry but I can't make this work to save my life, I am just trying to reference other charts in ASCIL and I can pull from the chart the study is loaded on, but not other charts, and even though I have it set to another chart it shows the studies from the current chart in the drop down list. Please see pic if I am not being clear.

Should this code correctly pull from chart 2, study 1, subgraph 1 when loaded on chart 1?

SCSFExport scsf_MTFStudyAverageV2(SCStudyInterfaceRef sc)
{
  SCSubgraphRef Average  = sc.Subgraph[0];


  if (sc.SetDefaults)
  {
    sc.GraphName = "MTF Study Average";

    sc.FreeDLL = 1;
    sc.AutoLoop = 1;
    sc.CalculationPrecedence = LOW_PREC_LEVEL;

    Average.Name = "Study Average";
    Average.DrawStyle = DRAWSTYLE_LINE;
    Average.LineWidth = 2;
    Average.PrimaryColor = RGB(0,0,0);

    sc.Input[0].Name = "Chart Number 1";;
    sc.Input[0].SetChartNumber(2);

    sc.Input[1].Name = "Study ID 1";
    sc.Input[1].SetStudyID(1);

    return;
  }

  SCGraphData StudyData;
  sc.GetStudyArraysFromChartUsingID(sc.Input[0].GetChartNumber(), sc.Input[1].GetStudyID(), StudyData);
  if(StudyData.GetArraySize() == 0)
  return;
  SCFloatArrayRef SubgraphArray = StudyData[0];
  if(SubgraphArray.GetArraySize() == 0)
  return;

  Average[sc.Index] = SubgraphArray[sc.Index];

I have tried code that worked previously and I have tried the current documentation for sc.GetStudyArrayFromChart(), sc.GetStudyArrayFromChartUsingID(), sc.GetStudyArraysFromChart(), and I get the same results regardless of how I do it.

Thank you for any help.
imageMTF Problem.png / V - Attached On 2014-01-31 02:04:30 UTC - Size: 137.94 KB - 378 views
attachmentMTFStudyAverageV2.cpp - Attached On 2014-01-31 02:06:23 UTC - Size: 1.04 KB - 357 views
attachmentMTFStudyAverageV2.dll - Attached On 2014-01-31 02:07:05 UTC - Size: 13.5 KB - 328 views
[2014-01-31 04:19:17]
Sierra Chart Engineering - Posts: 104213
You are not using the correct input type. You need to use the Study input type which combines both a Chart and a Study as one input.

You need to use this:
https://www.sierrachart.com/index.php?l=doc/doc_ACSIL_Members_scInputs.html#scInputSetChartStudyValues
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2014-01-31 05:09:48]
vegasfoster - Posts: 444
Thank you! I will give it a go tomorrow.
[2014-02-04 22:45:50]
vegasfoster - Posts: 444
Hi, revised the code as indicated, but I am still having same exact problem. I know I am missing something obvious, I just can't figure it.

Sorry, thanks again for any help.



#include "sierrachart.h"

SCDLLName("MTFStudyAverageV2")
/*==========================================================================*/

SCSFExport scsf_MTFStudyAverageV2(SCStudyInterfaceRef sc)
{
  SCSubgraphRef Average  = sc.Subgraph[0];


  if (sc.SetDefaults)
  {
    sc.GraphName = "MTF Study Average";

    sc.FreeDLL = 1;
    sc.AutoLoop = 1;
    sc.CalculationPrecedence = LOW_PREC_LEVEL;

    Average.Name = "Study Average";
    Average.DrawStyle = DRAWSTYLE_LINE;
    Average.LineWidth = 2;
    Average.PrimaryColor = RGB(0,0,0);

    //sc.Input[0].Name = "Chart Number 1";;
    //sc.Input[0].SetInt(2);

    //sc.Input[1].Name = "Study ID 1";
    //sc.Input[1].SetInt(1);

    sc.Input[0].SetChartStudyValues(2, 1);
    return;
  }
    int ChartNumber = sc.Input[0].GetChartNumber();
    int StudyID = sc.Input[0].GetStudyID();

    SCGraphData StudyData;
    sc.GetStudyArraysFromChartUsingID(ChartNumber, StudyID, StudyData);
    if(StudyData.GetArraySize() == 0)
    return;
    SCFloatArrayRef SubgraphArray = StudyData[0];
    if(SubgraphArray.GetArraySize() == 0)
    return;

  Average[sc.Index] = SubgraphArray[sc.Index];

}



Date Time Of Last Edit: 2014-02-04 22:47:24
attachmentMTFADX.cht - Attached On 2014-02-04 22:42:59 UTC - Size: 95.67 KB - 350 views
attachmentMTFStudyAverageV2.cpp - Attached On 2014-02-04 22:47:20 UTC - Size: 1.14 KB - 339 views
[2014-02-04 22:53:13]
Sierra Chart Engineering - Posts: 104213
A quick look at the code shows that it does look correct.

For an example, refer to /ACS_Source/studies7.cpp/scsf_ReferenceDataFromAnotherChart
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2014-02-05 05:53:36]
vegasfoster - Posts: 444

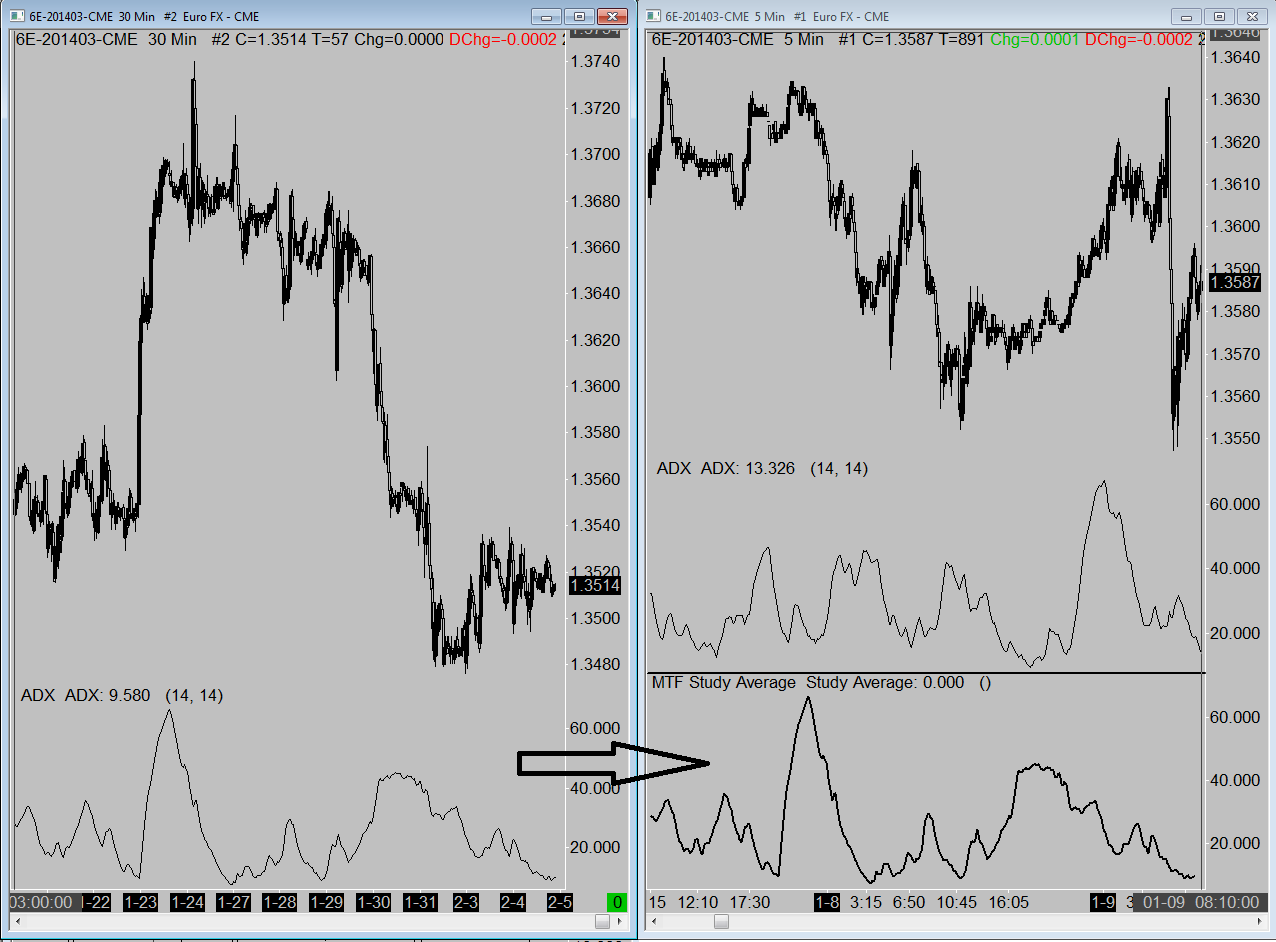

Ok, so I happened to scroll way back on Chart 1 and I can see what is happening now, it is plotting the ADX from Chart 2 bar for bar on Chart 1, it is not matching up the time index and stretching it out, see pic. Should I be doing something with the indexing, or something else, or is this hinky behavior? I looked at the example you referred to and it shows getting the other charts index values, but not using them for purposes of the subgraph plot.

Thanks again.
imageMTF Problem2.png / V - Attached On 2014-02-05 05:51:24 UTC - Size: 83.56 KB - 357 views
[2014-02-17 18:44:13]
vegasfoster - Posts: 444
Bump :-)

I know I am doing something stupid, but I looked at this again with fresh eyes and still don't see it. Any input would be greatly appreciated.

Thanks in advance for any help.
