| [2020-06-23 16:16:51] |
| markuz - Posts: 90 |
|
Want: Use Transparent fill between 2 subgraph values. (Rectangle an area) I can use Transparent fill top/bottom on the Initial Balance script, but it will not work on the Swing High/Low script. Why? See attached images. |

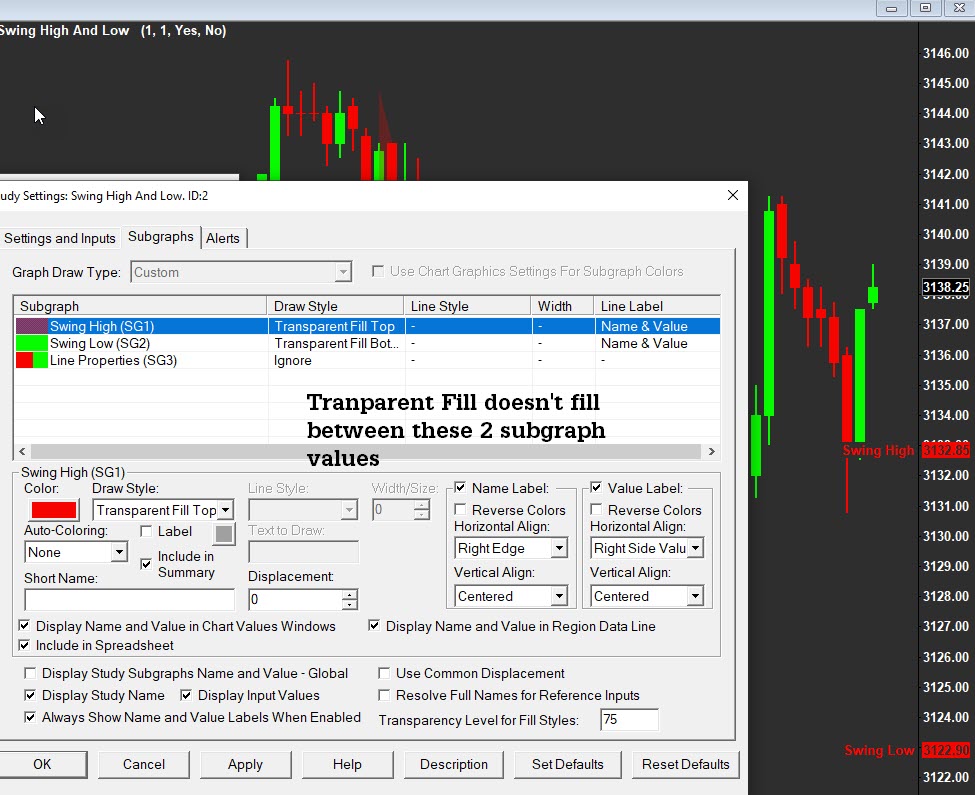

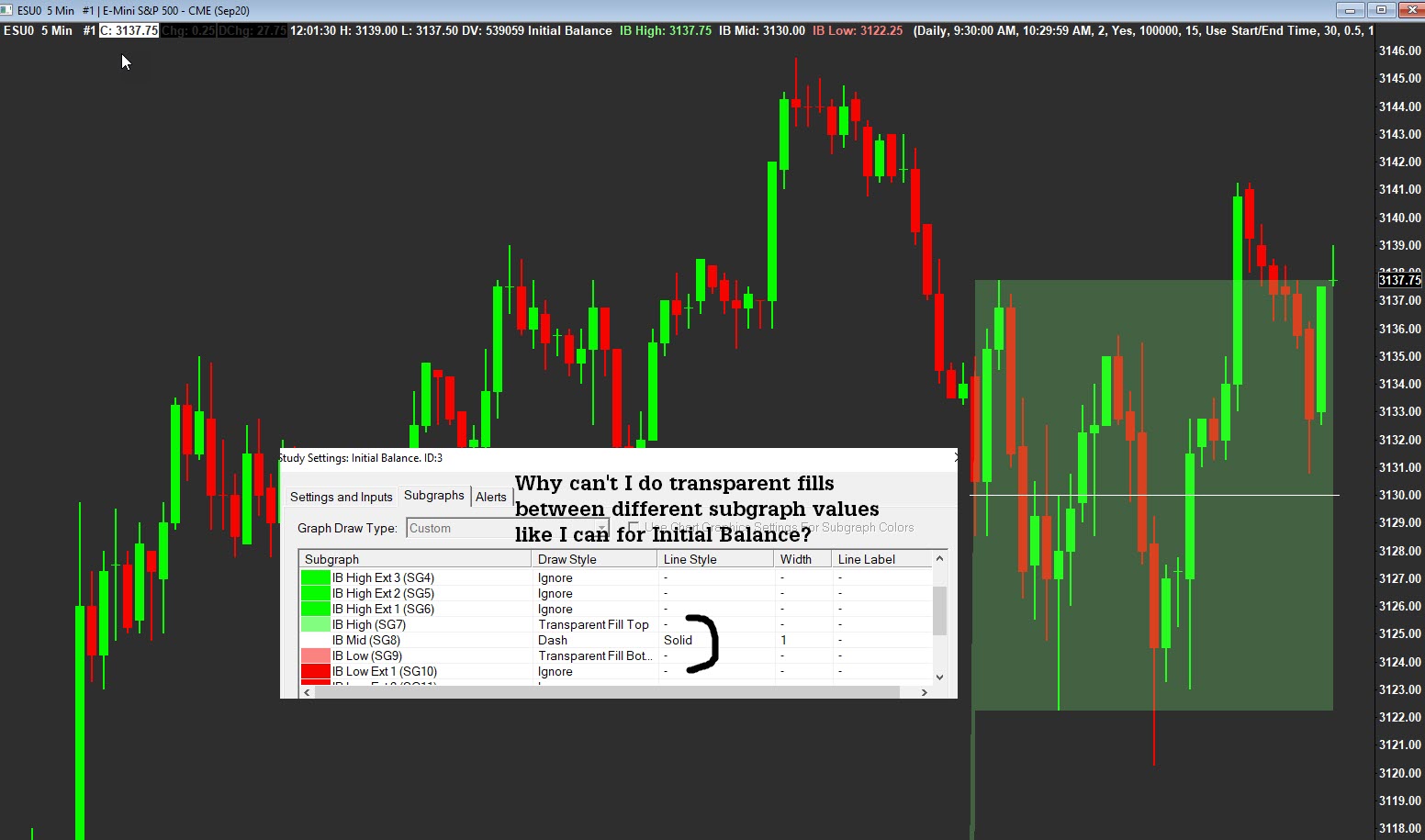

 Initial balance top.jpg / V - Attached On 2020-06-23 16:16:36 UTC - Size: 171.16 KB - 264 views Swing HL.jpg / V - Attached On 2020-06-23 16:16:43 UTC - Size: 167.36 KB - 285 views |
| [2020-06-23 17:30:40] |
| |
|
The reason why is because the Swing High and Low subgraphs are mostly zeros. The only time they are not zeros is when there is actually a swing at a bar, and most of the time there will not be both a High and Low on a single bar. The fill area Draw Styles require that there be a High and Low at the same time on a bar, and you really want to see it across multiple bars. The Swing High and Low study does not work that way. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2020-06-23 17:39:51] |
| Ackin - Posts: 1865 |
|
markuz) Original Swing High/Low + study Last Value reference contact link: https://www.sierrachart.com/UserControlPanel.php?page=StudyStore&SCDLLName=zyp_download_free |

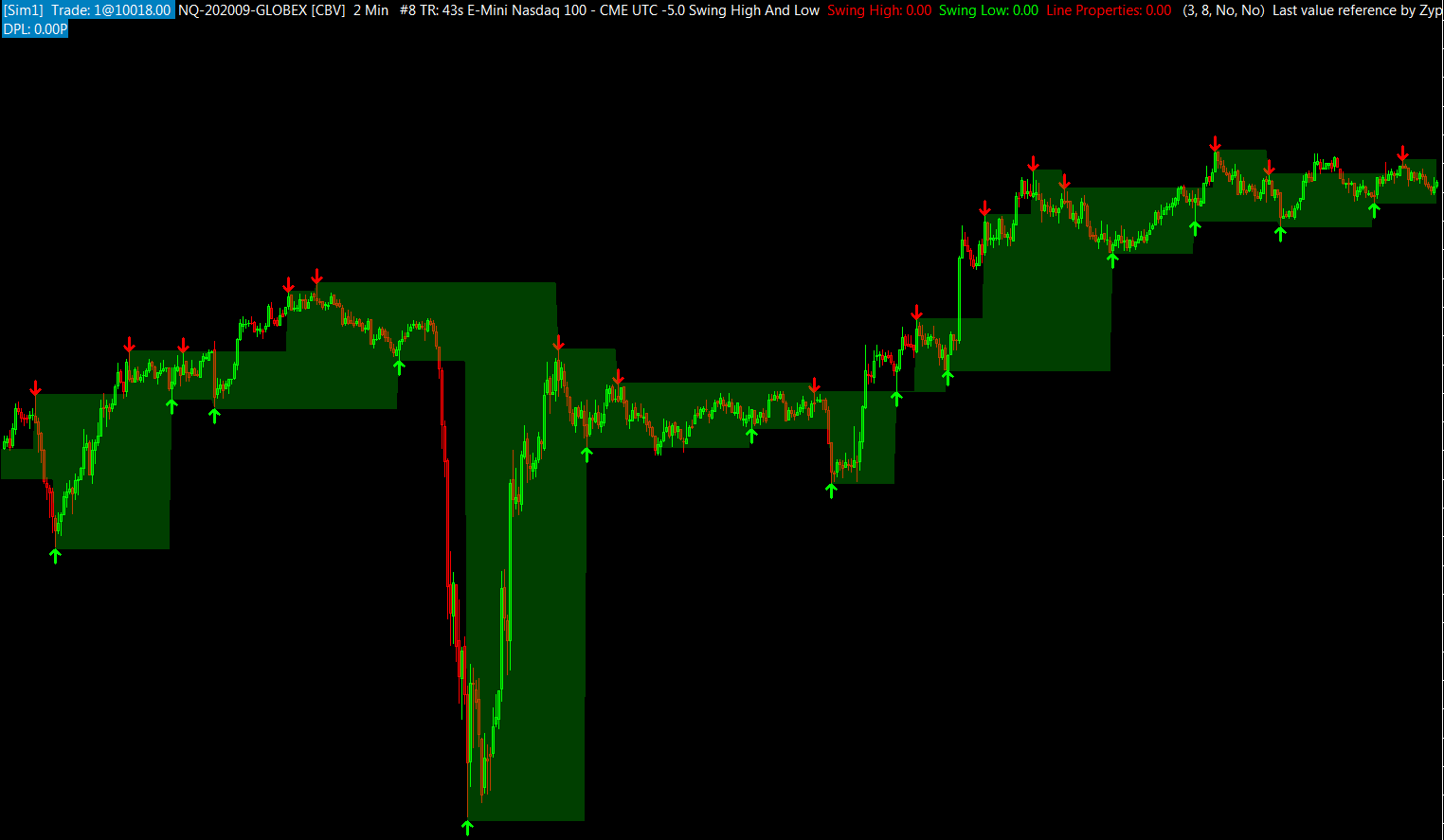

| Last value example2.png / V - Attached On 2020-06-23 17:38:37 UTC - Size: 26.83 KB - 290 views |
| [2020-06-24 21:02:39] |
| markuz - Posts: 90 |
|
"I would like to draw a transparent rectangle fill between 2 Subgraphs. I can get this to work with the Initial Balance script. - does this mean for the rectangle transparent fill top (bottom) to create the rectangle the SG needs to be in the same script? If this is possible please show how to do it? Ackin, thank you for the image, but I don't know how you created the chart and looking up last value reference in the search didn't give me any answers. Did you do it through the spreadsheet formula script? Thank you for explaining/showing how I can do this aside from the Initial Balance script." |
| [2020-06-24 21:29:27] |
| Ackin - Posts: 1865 |
|
My email: zyp.sierra@gmail.com
|
