[User Discussion] - ZigZag Oscillator

View Count: 2474

[2020-05-05 21:12:53] #1 [Go To First Post]
User929084 - Posts: 60

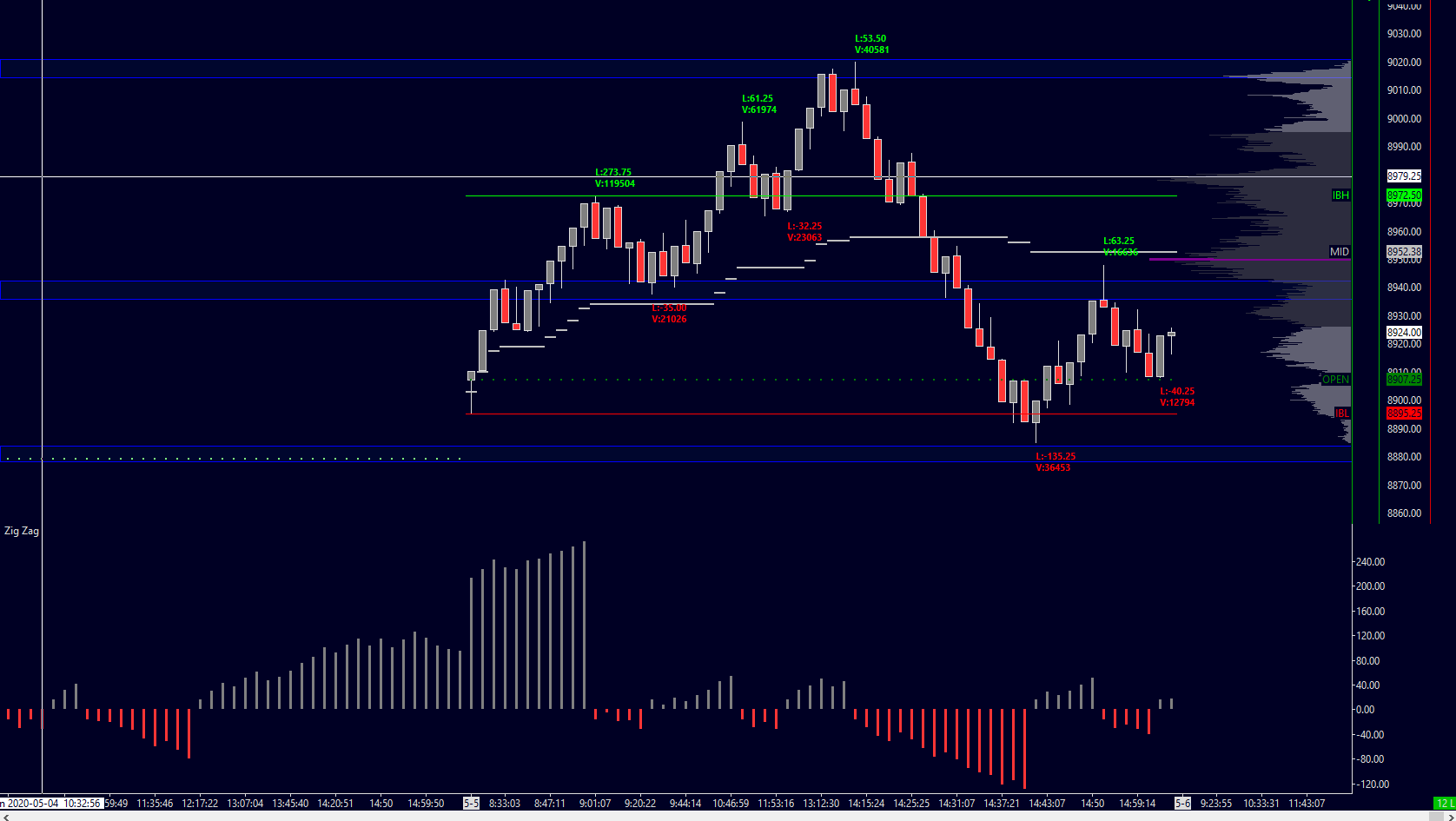

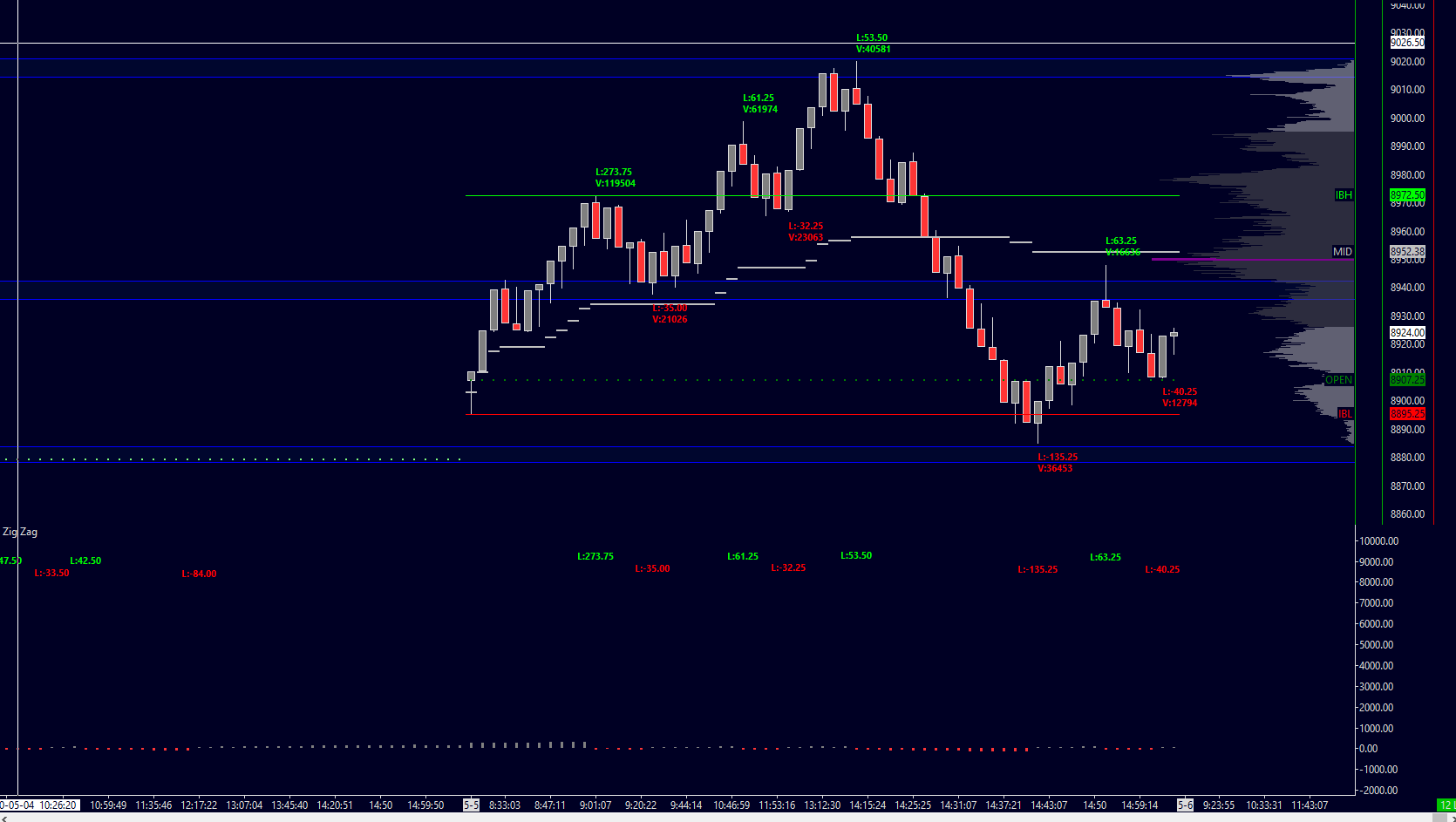

Need help on how to display the zigzag high and low values on the zigzag oscillator like they are displayed on the main chart. The values are there in region 2 where oscillator is, but they are way above the bars in the 8900s ( where the price of NQ is right now ). Whereas zigzag bars are just in the 0 to 120 range. I've tried many different things and the closest I got is a value above each bar, which is too messy. Thank you.


zigzag.png / V - Attached On 2020-05-05 21:11:19 UTC - Size: 45.09 KB - 619 views zigzag1.png / V - Attached On 2020-05-05 21:11:27 UTC - Size: 47.92 KB - 437 views zigzag2.png / V - Attached On 2020-05-05 21:11:35 UTC - Size: 61.95 KB - 613 views

[2020-05-05 23:08:58] #2 [Go To First Post]
Ackin - Posts: 1865

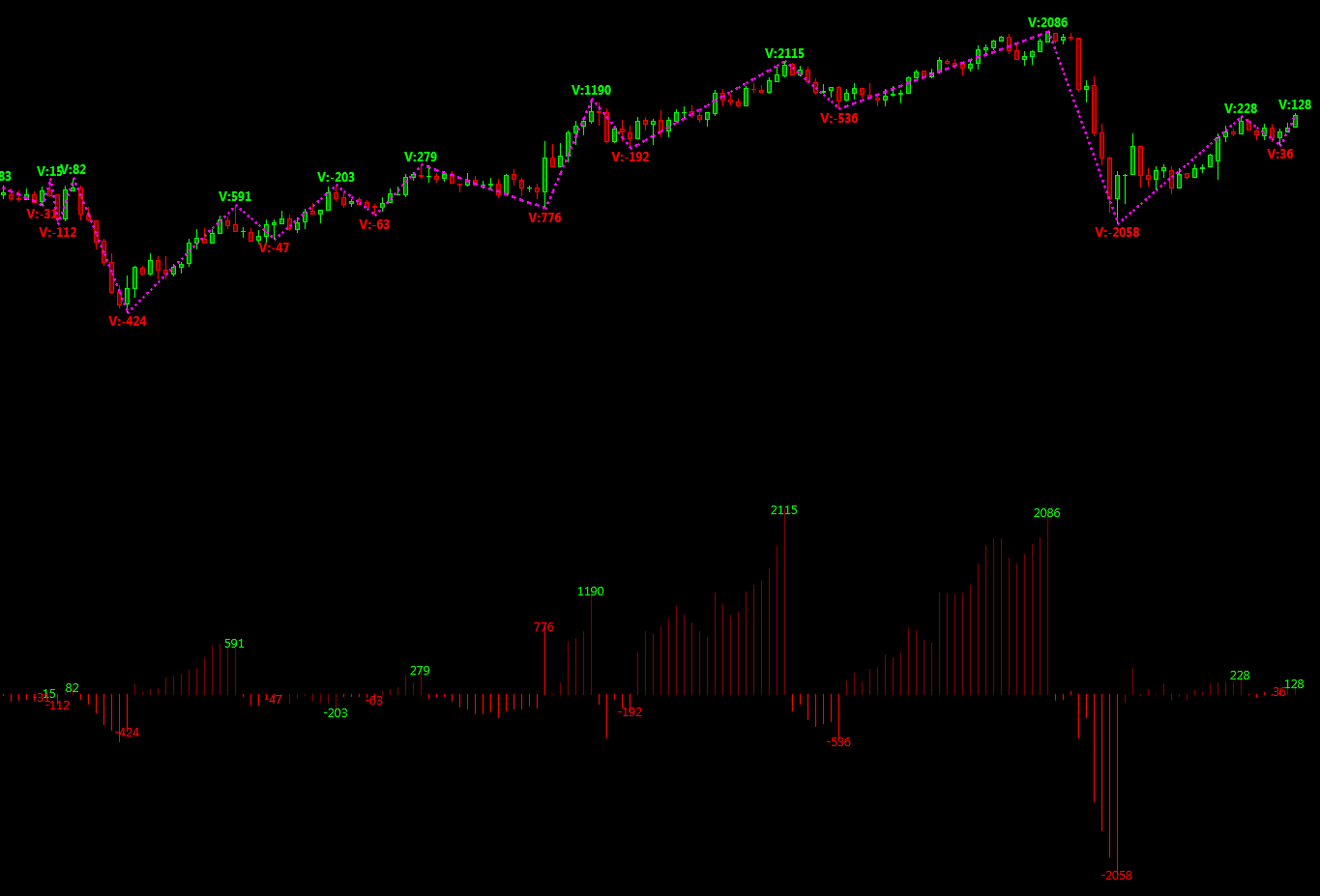

See the attachment. Is it how it should be displayed? ----------------------------- edit: If you want you can register on the czsk forum for download it as study. contact link: https://www.sierrachart.com/UserControlPanel.php?page=StudyStore&SCDLLName=zyp_download_free Date Time Of Last Edit: 2020-05-06 07:49:40


zigzag oscillator.png / V - Attached On 2020-05-05 23:08:57 UTC - Size: 27.72 KB - 558 views

[2020-05-19 18:44:54] #3 [Go To First Post]
User929084 - Posts: 60

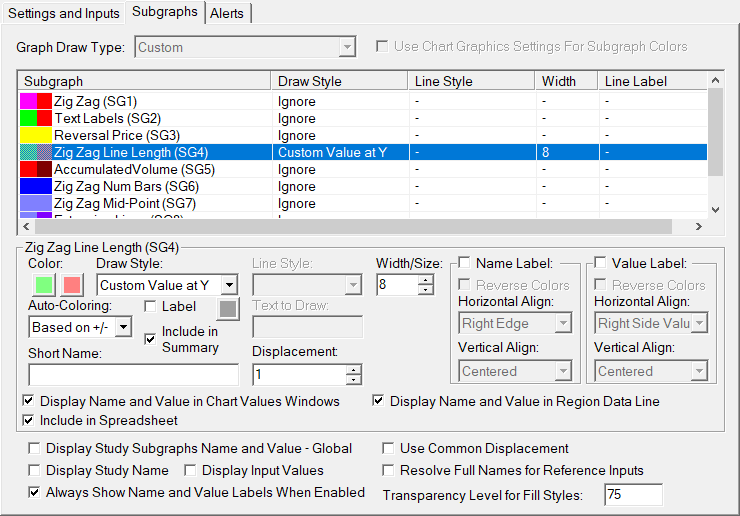

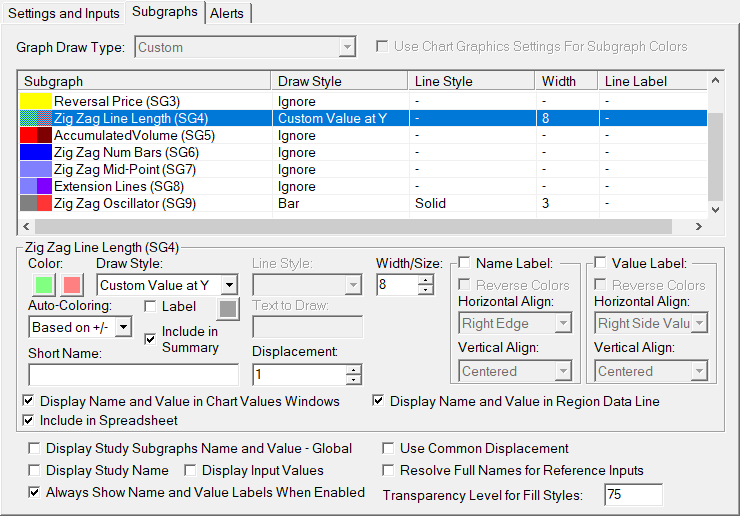

Thank you Ackin. And I'm sorry for no response. But I figured it out how to accomplish that with sierra zigzag study. For anyone that finds this thread later. 1. The most important thing you have to do in "Settings and Inputs" is to enable "Additional Output for Spreasheets" to "Yes". That will give you more subgraphs in "Subgraphs" section. 2. Now for "Zig Zag Line Length" select draw style to "Custom Value at Y". Additionally you can put 1 or 2 in "Displacement" so the numbers won't be right on top of the bars. 3. And of course for "Zig Zag Oscillator" select "Bar". 3. Make sure everything except "Zig Zag Line Length" and "Zig Zag Oscillator" is set to "Ignore". Thank you.


zigzag.png / V - Attached On 2020-05-19 18:44:21 UTC - Size: 67.7 KB - 567 views zigzag1.png / V - Attached On 2020-05-19 18:44:32 UTC - Size: 48.15 KB - 470 views zigzag2.png / V - Attached On 2020-05-19 18:44:39 UTC - Size: 48.46 KB - 466 views

[2020-05-19 18:45:39] #4 [Go To First Post]
User929084 - Posts: 60
That's how it should look like.


zigzag3.png / V - Attached On 2020-05-19 18:45:08 UTC - Size: 6.24 KB - 533 views

[2020-05-19 18:55:55] #5 [Go To First Post]
Ackin - Posts: 1865
Thank you Ackin. And I'm sorry for no response. Nice. Sierra is very flexible in this. The best platform seriously. to study) All right ..., I postponed this study for a long time due to time and now I forced myself to disassemble it more for forum members after your request here and I created from it the biggest colossus on the CZSK forum in the form of more than 100 types of settings without divergences that will be this week . So I thank you ;)

[2020-05-19 19:04:22] #6 [Go To First Post]
User929084 - Posts: 60
That's nice. Can you send link to the study once you release it please. Thank you.
