TPO chart and volume profile chart questions
View Count: 1723
| [2019-06-25 03:18:43] |
| MichaelG - Posts: 34 |
|
Is there a way to have daily TPO chart with a bigger time frame TPO on the same chart set to the right of the daily TPO's? Also is there a way to do the same thing but with the bigger time frame being a volume profile? |

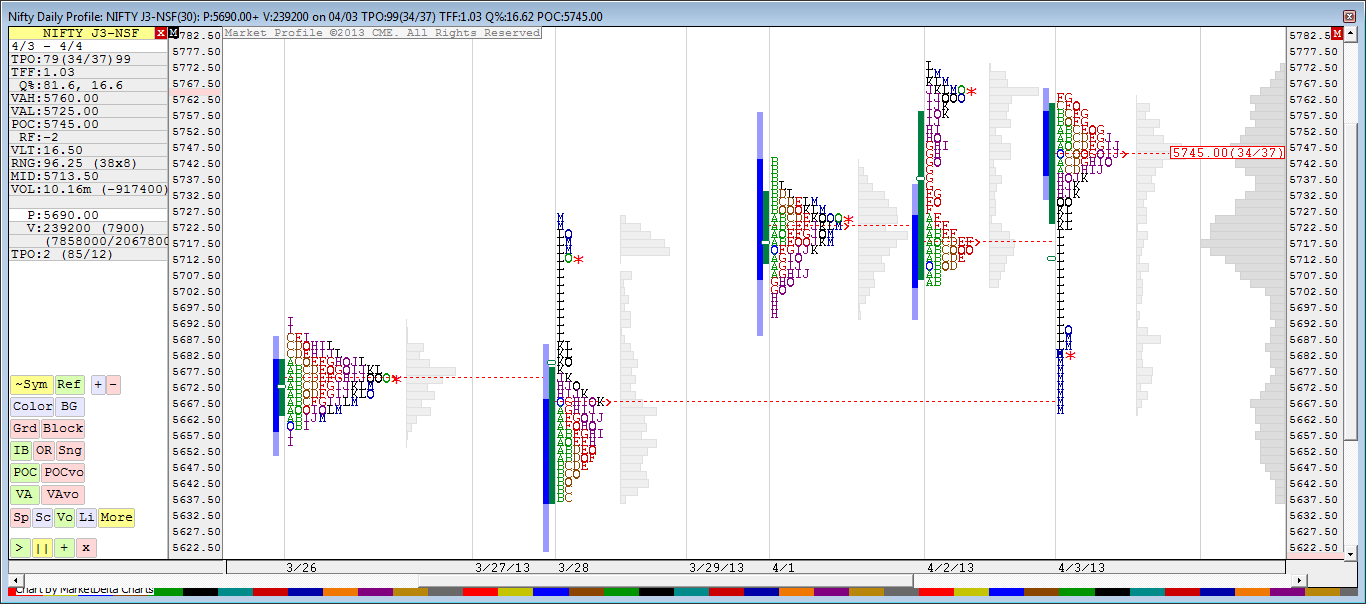

 Market-Delta chart example.png / V - Attached On 2019-06-25 03:17:11 UTC - Size: 27.28 KB - 626 views Attachment Deleted. |
| [2019-06-25 05:36:36] |
| Rassitude - Posts: 33 |
|
What do you mean? Daily TPO and TPO on the right of the screen?Do you mean a volume profile to the right as this is what your chart shows?
|
| [2019-06-25 15:30:07] |
| John - SC Support - Posts: 30873 |
|
It is not possible to have a TPO chart with one timeframe and then a single TPO on the side with a different timeframe. This is possible with the Volume by Price profiles. To do this, you would have 2 Volume by Price studies. Follow the instructions here for the second study that is aligned to the right and has a different timeframe from the others: Volume By Price Study: Single Volume Profiles At End of Chart Also, what you show in your image is a TPO chart with Volume by Price for each TPO, along with 1 Volume by Price aligned to the right. This is also possible to do. Refer to the documentation here for having Volume by Price studies associated with the TPO profiles: Time Price Opportunity (TPO) Profile Charts: Displaying Volume Profiles For the most reliable, advanced, and zero cost futures order routing, use the Teton service: Sierra Chart Teton Futures Order Routing |
| [2019-06-25 16:31:01] |
| MichaelG - Posts: 34 |
|
Rassitude, what i was referring to was having daily tpo chart with a weekly/monthly/ or other time frame tpo located on the rt side of the same chart, therefore you can see where the current tpo (daily) is in reference to a longer timeframe TP (monthly)...ie short term vs long term value areas, poc's etc
|
| [2019-06-26 03:36:17] |
| |
|
In addition to what is given in post #3 you also need to set this Input to Yes for the volume profile on the right side: Volume By Price Study: Set as Independent Volume Profile for TPO Chart Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
