[User Discussion] - dot on candle doing new high or low

View Count: 1733

[2013-11-26 22:40:03]
TradingMarketProfile - Posts: 120
Hello i would like to know if it's possible to get a dot or whatever on every candle making new high or low..

I use Daily OHLC single point in a chart, this is ok but it's only for high or low of the day so only once..

Thanks


[2013-11-26 23:52:51]
Sawtooth - Posts: 3952
The Daily OHLC Single Point study does give you a marker on every new high or low.

What you might want is the Daily OHLC study with 'Graph High and Low Historically' set to Yes.
[2013-11-27 10:10:32]
TradingMarketProfile - Posts: 120

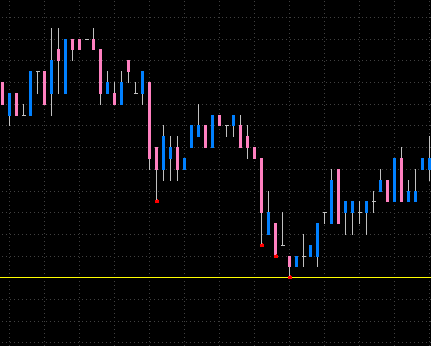

in fact what i would like is like on the chrt (see picture)
imagelow.PNG / V - Attached On 2013-11-27 10:10:22 UTC - Size: 6.73 KB - 497 views
[2013-11-27 14:45:12]
Sawtooth - Posts: 3952
This can be done with two instances of the Color Bar Based On Alert Condition study, and a hidden Daily OHLC study.

1) Add the Daily OHLC study.
-Check Hide Study
-Set the Reference Days Back to 0
-Set the Graph High and Low Historically to Yes

2) Add two instances of the Color Bar Based On Alert Condition study.
-Set the Output When Condition True to Use Input Data
-Set the Input Data to High in one instance and Low in the other
-Choose the Draw Style and Colors
-Put these formulas in the Alerts tab:
-High formula:
=OR(ID1.SG2>ID1.SG2[-1],BARDATE>BARDATE[-1])
-Low formula:
=OR(ID1.SG3<ID1.SG3[-1],BARDATE>BARDATE[-1])

This assumes the hidden Daily OHLC is ID1. Edit the formulas as needed to the correct ID# of the hidden Daily OHLC study
Date Time Of Last Edit: 2013-11-28 19:37:41
[2013-11-28 06:52:05]
TradingMarketProfile - Posts: 120
Yes cool it's working !!

Thank you so much tomgilb
Date Time Of Last Edit: 2013-11-28 08:17:17
[2013-11-28 08:16:28]
TradingMarketProfile - Posts: 120

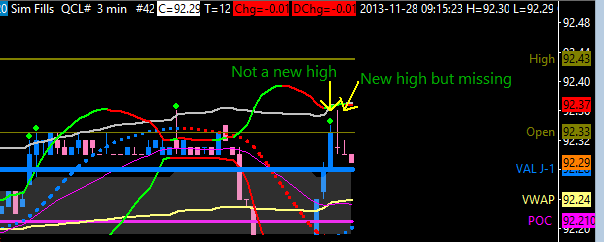

Oups something wrong (see picture)
Date Time Of Last Edit: 2013-11-28 08:21:59
imagewrong.PNG / V - Attached On 2013-11-28 08:17:36 UTC - Size: 14.83 KB - 410 views
imagesettings OHLC.PNG / V - Attached On 2013-11-28 08:21:32 UTC - Size: 33.46 KB - 430 views
imagesettings color bar.PNG / V - Attached On 2013-11-28 08:21:43 UTC - Size: 26.43 KB - 425 views
imagesettings color bar2.PNG / V - Attached On 2013-11-28 08:21:53 UTC - Size: 26.95 KB - 386 views
[2013-11-28 18:15:06]
Sawtooth - Posts: 3952
You have some setting incorrect.

I edited post #4 for clarity. Please review.

I also changed the formulas so that you get marks on the first bar of the day.
[2013-11-28 18:36:21]
TradingMarketProfile - Posts: 120
i done your change but still the same, not working

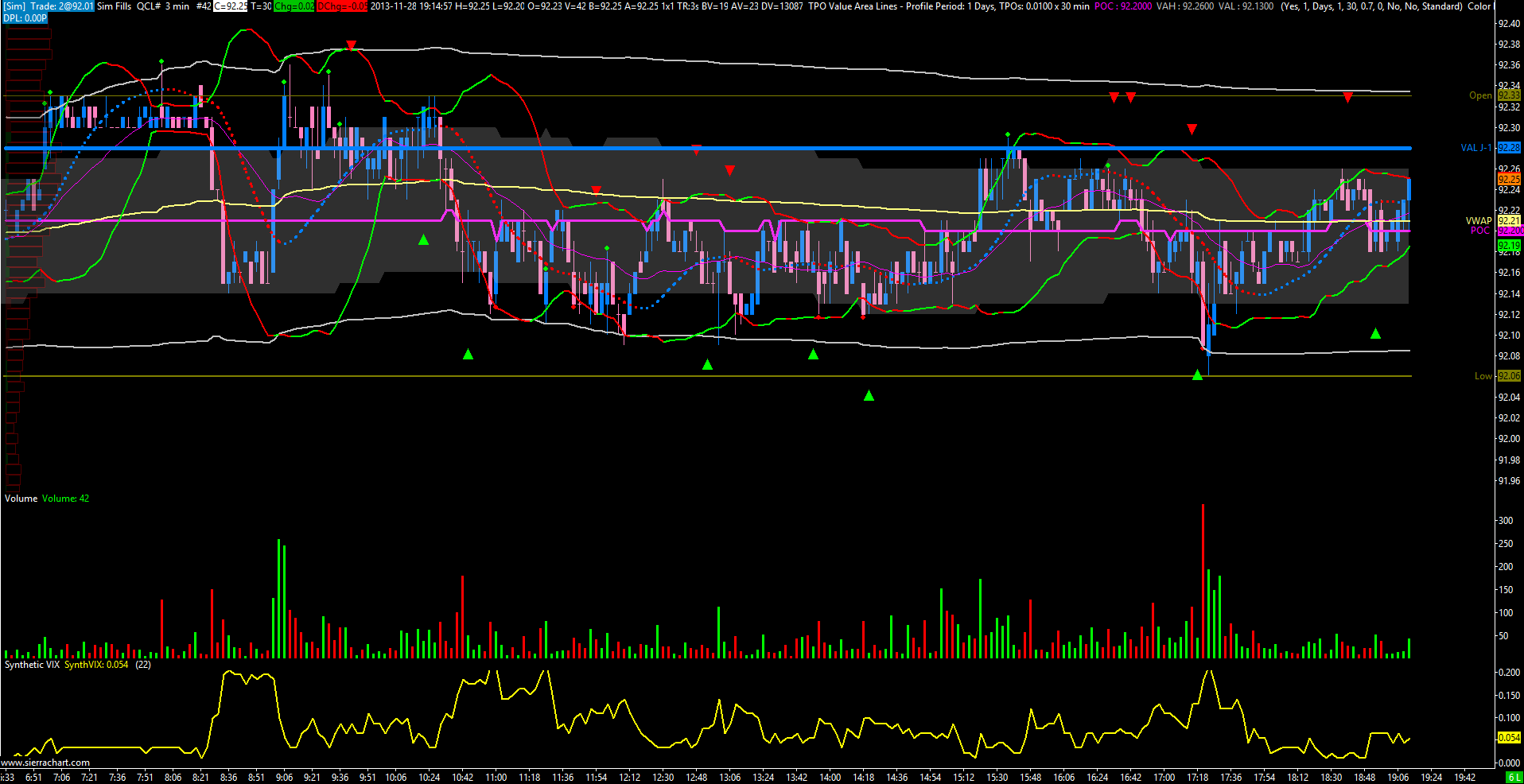

http://www.sierrachart.com/image.php?l=1385663768250.png

[2013-11-28 19:36:45]
Sawtooth - Posts: 3952
Use the attached Study Collection on a blank chart to see how it works.

If you add it to a chart with existing studies, you'll need to edit the formulas to use the correct ID# of the hidden Daily OHLC study.

Put the attached in your Sierra Chart \Data folder, and click on 'Point at all new daily HLs-'
attachmentPoint at all new daily HLs-.StdyCollct - Attached On 2013-11-28 19:33:40 UTC - Size: 27.98 KB - 439 views
[2013-11-29 06:15:24]
TradingMarketProfile - Posts: 120
ok thanks...great :))
