[User Discussion] - Incorrect placement of the Line study in region #2. Setting up ZigZag-based Rotational chart
View Count: 4349
| [2019-02-01 17:19:29] |
| User972768 - Posts: 166 |
|

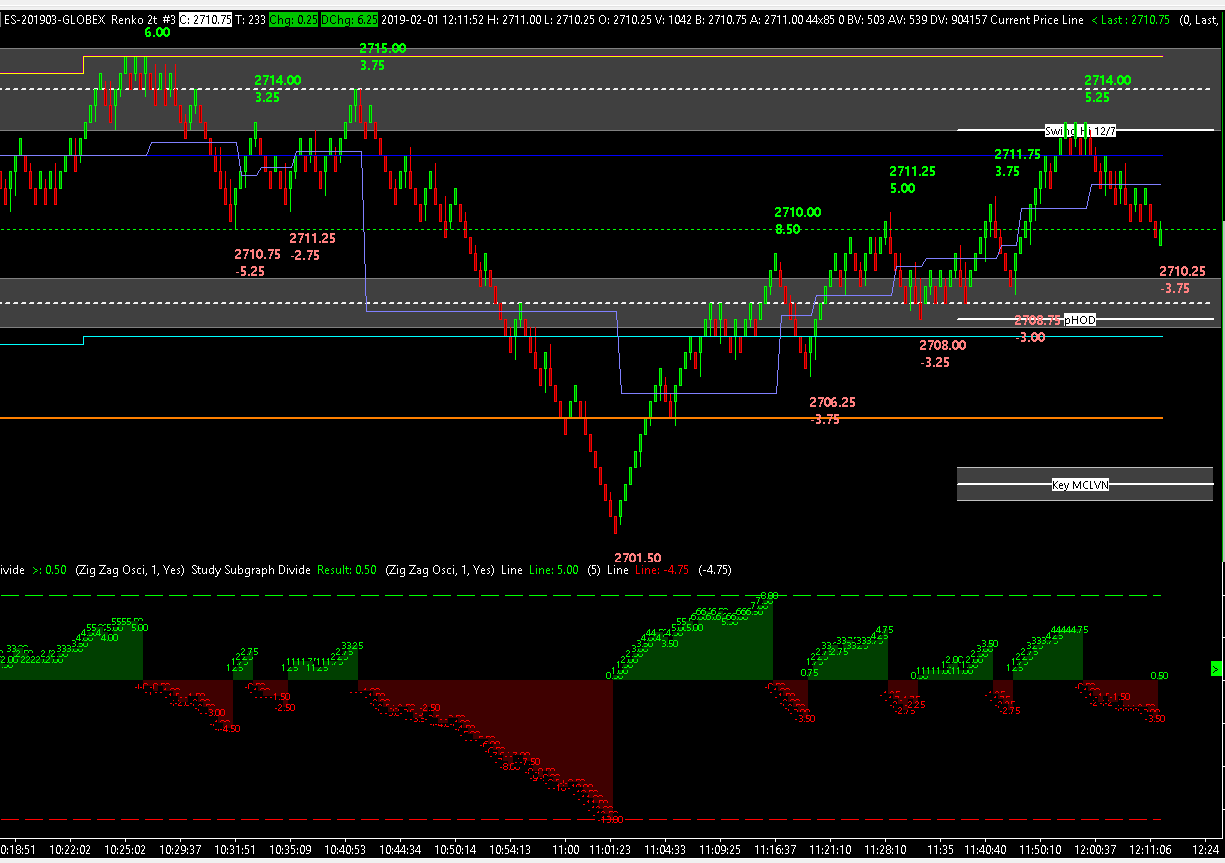

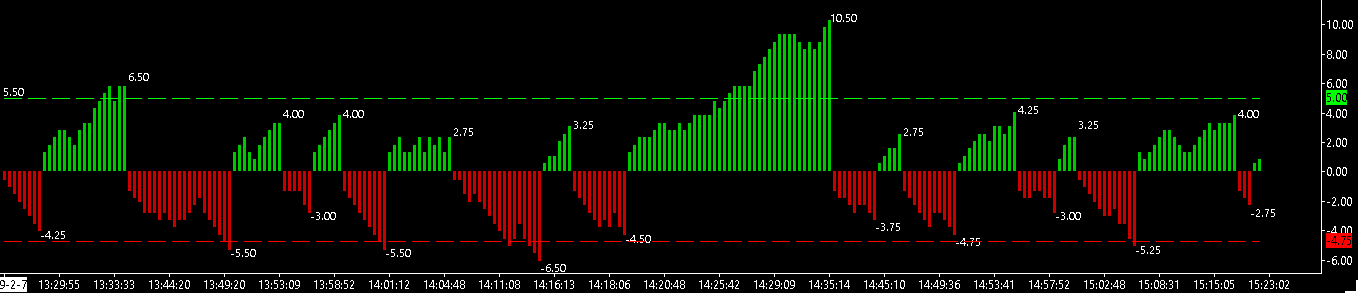

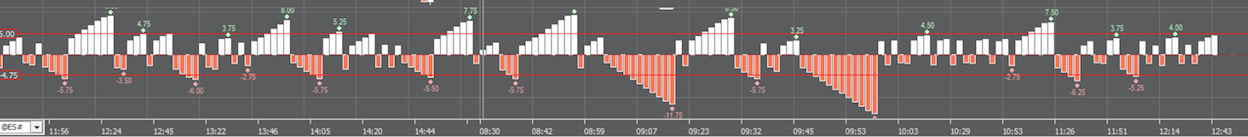

Hello, It seems that the Line study is not placed properly in second region for me. My main region (#1) is Renko chart with ZigZag showing size of rotations. My second region is dedicated for ZigZag oscillator where I want to see if oscillator crosses predetermined levels. What I see is that values of ZigZag oscillator and Line study do not align on the chart (you can see line values in the top left corner). Please find screenshot attached. And since we are on a topic of ZigZag oscillator, is it possible to see actual value of maximum rotation instead of each value and maximum one missing zigzag's value for swings by few ticks? Please find attached screenshot showing ZigZag and its Oscillators being out of sync for swings' values. Same screenshot shows that ZigZag values in region #1 often go beyond automatic range calculated by Renko chart. Is it possible to configure this chart to keep zigzag values inside the viewable range? I also attached presentation of ZigZag oscillator that I would like to configure (just rotations and their max values on tops/bottoms). Thanks and best regards Date Time Of Last Edit: 2019-02-01 19:16:37
|
 Lines_in_region2.png / V - Attached On 2019-02-01 17:10:50 UTC - Size: 46.47 KB - 1197 views Zigzag_oscillator_vs_Zigzag.png / V - Attached On 2019-02-01 17:12:36 UTC - Size: 61.53 KB - 1276 views Expected_Zigzag_oscillator.png / V - Attached On 2019-02-01 17:14:06 UTC - Size: 105.71 KB - 1082 views |
| [2019-02-06 18:20:59] |
| User972768 - Posts: 166 |
|
Any feedback from Sierra team would be greatly appreciated.
|
| [2019-02-07 04:35:31] |
| |
|
Refer to this particular section: Chart Scale and Scale Adjusting: Maintaining Same Scale for Multiple Graphs in Chart Region The other questions are not considered within the scope of our support. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2019-02-07 14:04:36] |
| User972768 - Posts: 166 |
|
Thanks. I didn't think of that scaling could be an issue. Problem is solved now
|
| [2019-02-07 20:28:22] |
| User972768 - Posts: 166 |
|

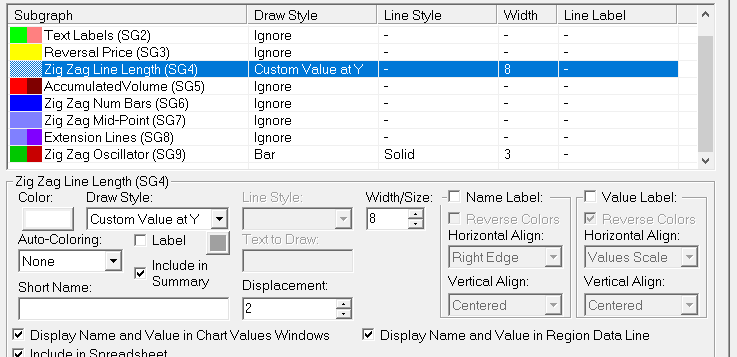

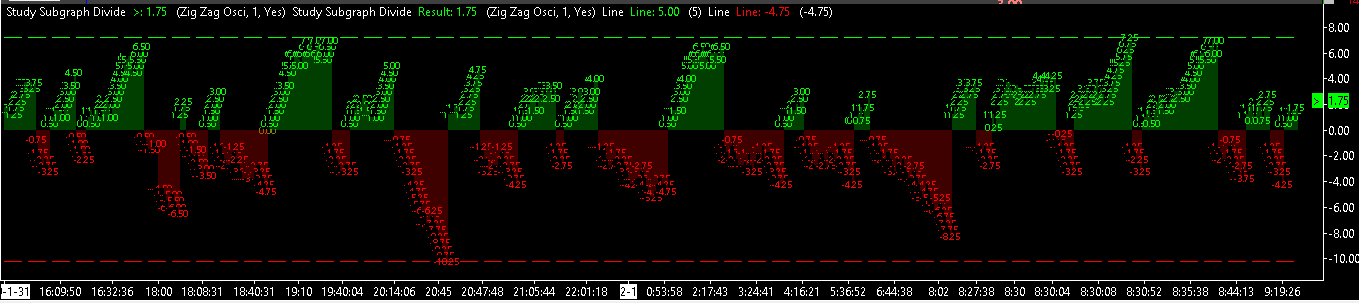

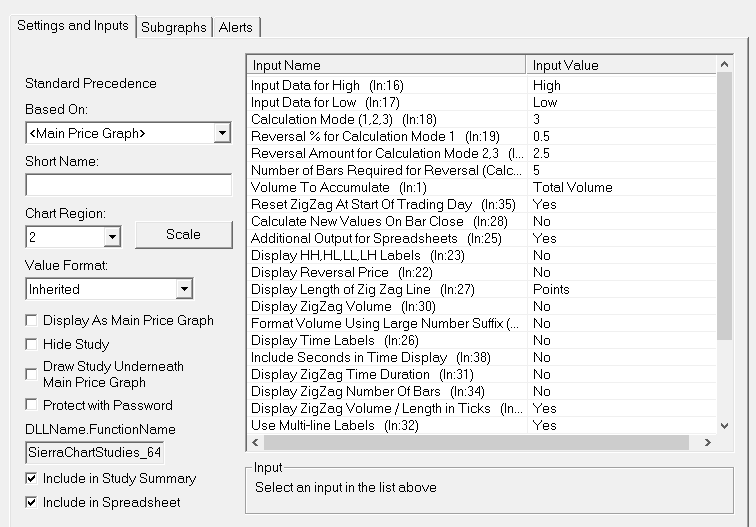

Hello, If you came across this thread in search for way to produce nice rotational chart, here are steps to do it. I set my main ES chart (in region #1) to show 2t Renko. Region 2 shows rotational chart: direction and size of rotations. All you need is 2 instances of the ZigZag study: one for region #1 and another one for region #2. I show parameters for second instance of the study (presented in the region #2). Outside of screenshot was left ZigZag(SG1) on subgraph tab. Set it to Ignore. Hope that helps. Cheers! Date Time Of Last Edit: 2019-02-07 20:28:45
|
| Overall_view.png / V - Attached On 2019-02-07 20:27:33 UTC - Size: 55.07 KB - 2819 views Rotations.png / V - Attached On 2019-02-07 20:27:42 UTC - Size: 23.13 KB - 1586 views |
| [2019-02-07 20:29:52] |
| User972768 - Posts: 166 |
|
And extra post for more screenshots to pass through limit on attachments...
|

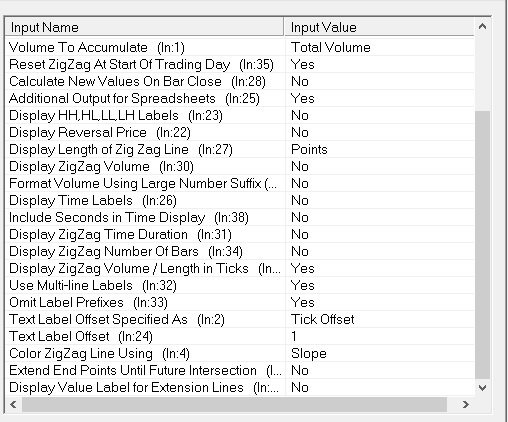

| ZigZag_parameters1.png / V - Attached On 2019-02-07 20:29:12 UTC - Size: 42.4 KB - 1750 views ZigZag_parameters2.png / V - Attached On 2019-02-07 20:29:18 UTC - Size: 29.42 KB - 1452 views ZigZag_parameters3.png / V - Attached On 2019-02-07 20:29:26 UTC - Size: 30.69 KB - 1280 views |
| [2019-02-13 13:51:13] |
| User164231 - Posts: 278 |
|
Hi, Is it possible to add a bell curve at the end to capture the sigma moves? If so how to do it. Thanks. |
| [2019-02-13 17:32:13] |
| User972768 - Posts: 166 |
|
Yep. That would be a neat feature, similar to IRT
|

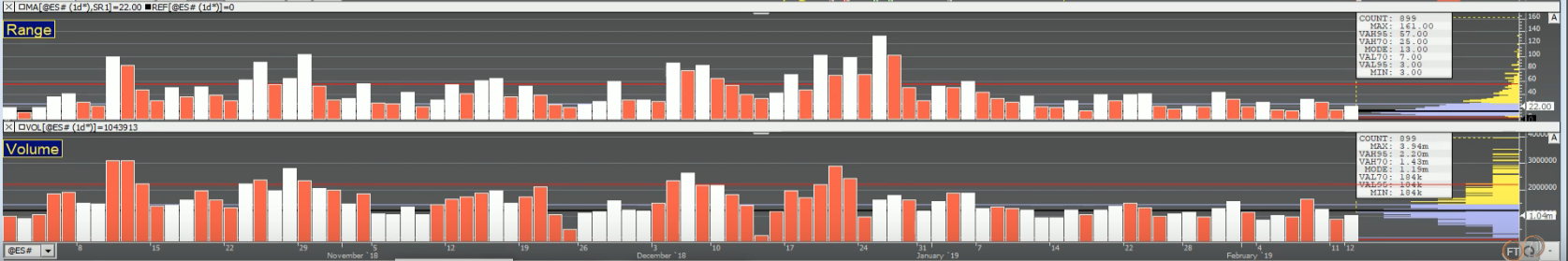

| Bars_and_histogram.png / V - Attached On 2019-02-13 17:31:51 UTC - Size: 261.58 KB - 1255 views |
| [2019-02-14 14:18:15] |
| User164231 - Posts: 278 |
|
Great minds ......
|
