DrawingType 'DRAWING_CYCLE' how to?
View Count: 1632
| [2018-05-05 14:35:30] |
| b3cker - Posts: 34 |
|
Hello, I was not able to find any example on how to use DrawingType 'DRAWING_CYCLE' in custom study. For example following will display text in the study window, but when I tried to use DRAWING_CYCLE instead of DRAWING_TEXT I am not getting cycle displayed. Can you help? s_UseTool CycleTool; CycleTool.Clear(); CycleTool.ChartNumber = sc.ChartNumber; CycleTool.DrawingType = DRAWING_CYCLE; int CycleNumber = sc.GetPersistentInt(1); if (CycleNumber != 0) CycleTool.LineNumber = CycleNumber; CycleTool.Region = sc.GraphRegion; CycleTool.ExtendRight; CycleTool.UseToolConfigNum; CycleTool.BeginDateTime = sc.BaseDateTimeIn[sc.ArraySize - 100]; CycleTool.Color = RGB(255, 255, 0); CycleTool.AddMethod = UTAM_ADD_OR_ADJUST; CycleTool.ReverseTextColor = 0; sc.UseTool(CycleTool); |
| [2018-05-07 19:49:09] |
| |
|
Cycle drawings from advanced custom studies are not currently supported. We will have to add this but we do not know how soon.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2018-05-20 22:32:12] |
| |
|
Cycle drawings are now supported in ACSIL. You need the latest prerelease for this: Software Download: Fast Update Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2018-05-20 22:33:27
|
| [2018-05-27 18:12:25] |
| b3cker - Posts: 34 |
|
Hello, Installed pre-released version, added following code. Cycle tool is not displayed. What am I doing wrong? Can you provide one example? s_UseTool CycleTool; CycleTool.Clear(); CycleTool.ChartNumber = sc.ChartNumber; CycleTool.DrawingType = DRAWING_CYCLE; int CycleNumber = sc.GetPersistentInt(1); if (CycleNumber != 0) CycleTool.LineNumber = CycleNumber; CycleTool.Region = sc.GraphRegion; CycleTool.ExtendRight; CycleTool.UseToolConfigNum; CycleTool.BeginDateTime = sc.BaseDateTimeIn[sc.ArraySize - 100]; CycleTool.Color = RGB(255, 255, 0); CycleTool.AddMethod = UTAM_ADD_OR_ADJUST; CycleTool.ReverseTextColor = 0; sc.UseTool(CycleTool); |
| [2018-05-28 21:41:17] |
| |
|
Refer to the scsf_UseToolExampleDrawingCycle function in the /ACS_Source/studies.cpp file.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2018-05-28 21:41:29
|
| [2018-06-09 13:19:17] |
| b3cker - Posts: 34 |
|

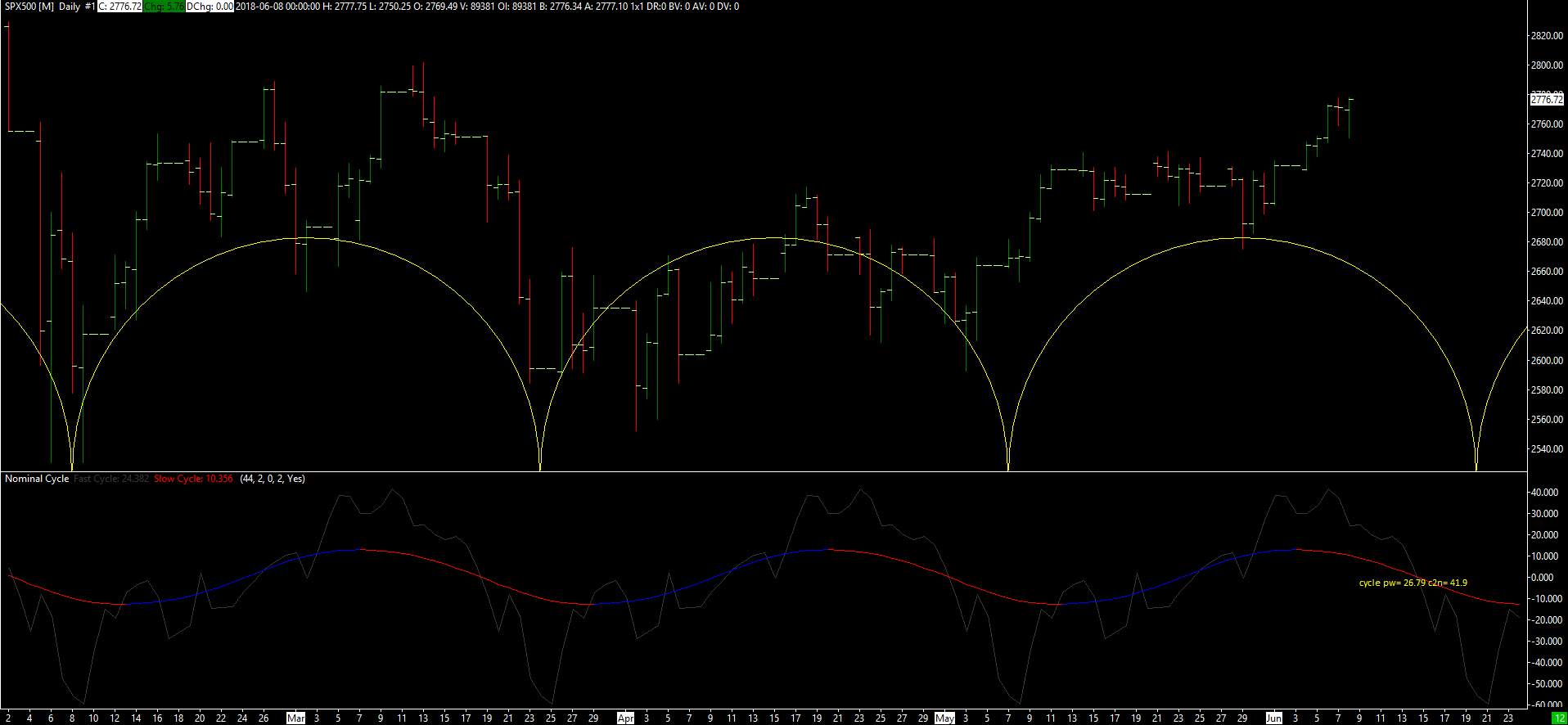

Hello, Cycle object region is set to Cycle.Region = sc.GraphRegion; but the cycle is always displayed to Cycle.Region= 0 ; Bug? Regards int& r_LineNumber = sc.GetPersistentInt(1); if (sc.IsFullRecalculation) { r_LineNumber = 0; } //Add or update cycle drawing. s_UseTool Cycle; Cycle.Region = sc.GraphRegion; Cycle.Clear(); Cycle.ChartNumber = sc.ChartNumber; if (r_LineNumber != 0) Cycle.LineNumber = r_LineNumber; Cycle.DrawingType = DRAWING_CYCLE; Cycle.BeginDateTime = sc.BaseDateTimeIn[sc.ArraySize - 33]; Cycle.EndDateTime = sc.BaseDateTimeIn[sc.ArraySize - 77]; //Cycle.Region = 0; Cycle.Color = RGB(255, 255, 0); Cycle.LineWidth = 1; Cycle.NumCycles = 5; Cycle.AddMethod = UTAM_ADD_OR_ADJUST; if (sc.UseTool(Cycle) > 0) r_LineNumber = Cycle.LineNumber; http://www.sierrachart.com/image.php?Image=1528550253977.png |
| [2018-06-10 01:28:19] |
| |
|
It works properly for us when using Chart Region 1. Use this code as a test: SCSFExport scsf_UseToolExampleDrawingCycle(SCStudyInterfaceRef sc)
{ // Set configuration variables if (sc.SetDefaults) { sc.GraphName = "UseTool Example: Cycle"; sc.GraphRegion = 1; sc.FreeDLL = 0; sc.AutoLoop = 0; //No automatic looping return; } int& r_LineNumber = sc.GetPersistentInt(1); if (sc.IsFullRecalculation) { r_LineNumber = 0; } //Add or update cycle drawing. s_UseTool Tool; Tool.Clear(); Tool.ChartNumber = sc.ChartNumber; Tool.Region = 1; if (r_LineNumber != 0) Tool.LineNumber = r_LineNumber; Tool.DrawingType = DRAWING_CYCLE; Tool.BeginDateTime = sc.BaseDateTimeIn[sc.ArraySize - 100]; Tool.EndDateTime = sc.BaseDateTimeIn[sc.ArraySize - 90]; Tool.Color = RGB(255, 255, 0); Tool.LineWidth = 5; Tool.NumCycles = 5; Tool.AddMethod = UTAM_ADD_OR_ADJUST; if (sc.UseTool(Tool) > 0) r_LineNumber = Tool.LineNumber; } Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
