Gridding the trading chart dom

View Count: 2901

[2017-11-23 10:36:33]
User574854 - Posts: 4
Hello, I want to see my trading chart dom with cells. I have tried but I have not been able to do it. Surely it is something silly ..... Can you help me?
[2017-11-24 02:21:45]
Sierra Chart Engineering - Posts: 104368
The Horizontal and Vertical Grid documentation here explains this all completely:
Chart Menu: Horizontal Grid (Chart menu)
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2017-11-24 19:03:09]
User574854 - Posts: 4
I still do not solve the problem. I would like to know if there is any way to put horizontal lineslike this:

Chart DOM Vertical Lines
[Link] - [Top]
It is also supported on the Chart DOM to add vertical lines between the columns. To do this select Trade >> Customize Chart/Trade DOM Columns . Enable the Show Market Data Column Vertical Lines (Global Setting, Chart DOM) option.

But intead vertical, horizontal
[2017-11-24 19:21:42]
Sierra Chart Engineering - Posts: 104368
OK we see. We will see if we can quickly get this supported as an option.
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2018-07-05 15:13:13]
User45989 - Posts: 54
this would be helpful to me as well

thank you
[2018-07-05 16:42:56]
Sierra Chart Engineering - Posts: 104368
This is supported. Refer to:
Global Trade Settings Windows: Show Market Data Column Vertical Lines (Trade >> Customize Chart/Trade DOM Columns)

For horizontal lines, refer to:
Chart Menu: Horizontal Grid (Chart menu)
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
Date Time Of Last Edit: 2018-07-05 16:43:54
[2018-07-05 16:50:23]
User45989 - Posts: 54
I think what we were both looking for was 'Market Data Horizontal Lines'. So horizontal lines only on the Chart DOM, not on the chart.
[2018-07-05 17:25:19]
Sierra Chart Engineering - Posts: 104368
You can extend the horizontal lines onto the Chart DOM:
Global Trade Settings Windows: Extend Chart Horizontal Grid onto Chart DOM (Global Settings >> Chart DOM Settings >> Other >> Other Settings)
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service:
Sierra Chart Teton Futures Order Routing
[2018-07-05 17:54:26]
User45989 - Posts: 54
yes - thank you, but it was having horizontal lines on the Chart Dom only, and not on the rest of the chart.
[2019-06-14 17:51:40]
User979207 - Posts: 20
Hello, I am looking for this as well.
[2019-07-19 18:29:24]
User806682 - Posts: 10
I am looking for the same thing other users are asking for.

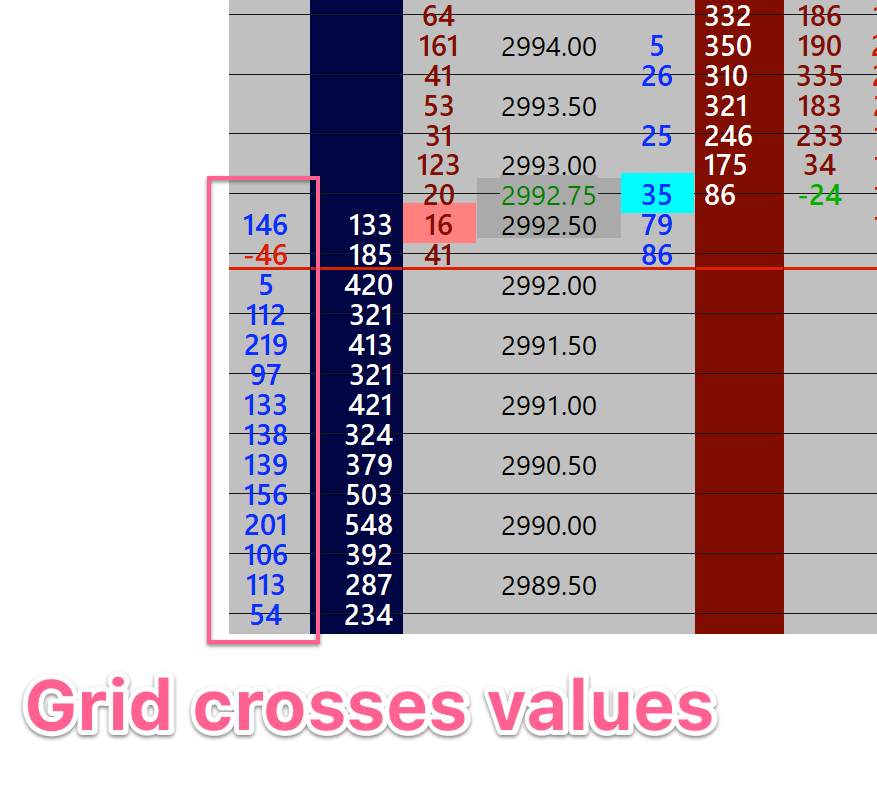

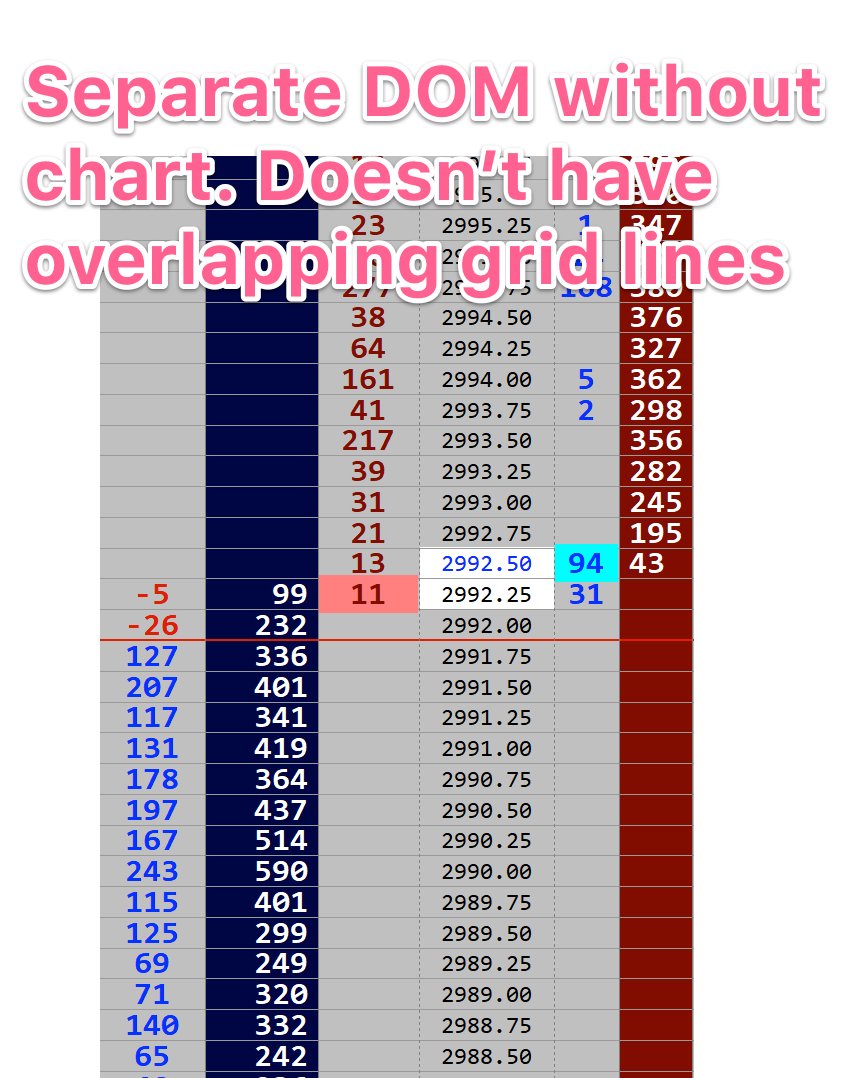

I've gone through and added the grid to the chart and extended the grid as suggested, the problem then becomes that the grid overlaps values on the DOM. Please see attached files.

Thanks.
image[543c3e143ed6087f85b2140d36e61250]_Image+2019-07-19+at+11.24.png / V - Attached On 2019-07-19 18:28:10 UTC - Size: 121.2 KB - 487 views
image[8b9fc7b510be9d1b3534a80339e11f70]_Image+2019-07-19+at+11.26.png / V - Attached On 2019-07-19 18:28:17 UTC - Size: 213.21 KB - 398 views
[2019-07-22 18:39:09]
John - SC Support - Posts: 30444
In response to post #11: What you are seeing is simply due to the grid automatically adjusting to the size of the prices that are displayed. Note that when the grid overlaps the depth numbers, it is when the prices are not showing every tick, therefore there is a line at the location of an actual price for that symbol.

If you want to always have a grid line at every tick, in order to avoid what you are seeing, then go to Chart >> Chart Settings >> Scale and set the Horizontal Gride Line Increment to the same as the tick size for that chart.

Refer to the following documentation for this setting:
Chart Scale and Scale Adjusting: Horizontal Grid Line Increment (Scale Settings)
