Which overlay study is right

View Count: 798

[2017-06-20 12:47:15] #1 [Go To First Post]
User472677 - Posts: 316
I have traced the source of charts going blank to an overlay study. In stead of seeking your help in figuring this situation out, I think it is better to seek your opinion on which overlay study is best for the following scenario. I have a group of five charts. Four charts are 3 minute candlestick charts. Each of these four charts has a different symbol. In the fifth chart I want line charts comparing the four symbols but with a time frame of 5 seconds. Which one of your overlay studies is the right one to use? Do I also need 5 second individual symbol charts open? I prefer not to do this simply to avoid extra charts. I do want all four lines on the 5 second chart to be updated continuously in real time.

[2017-06-21 00:41:30] #2 [Go To First Post]
User472677 - Posts: 316
Please reply

[2017-06-21 03:57:03] #3 [Go To First Post]
2garin - Posts: 184

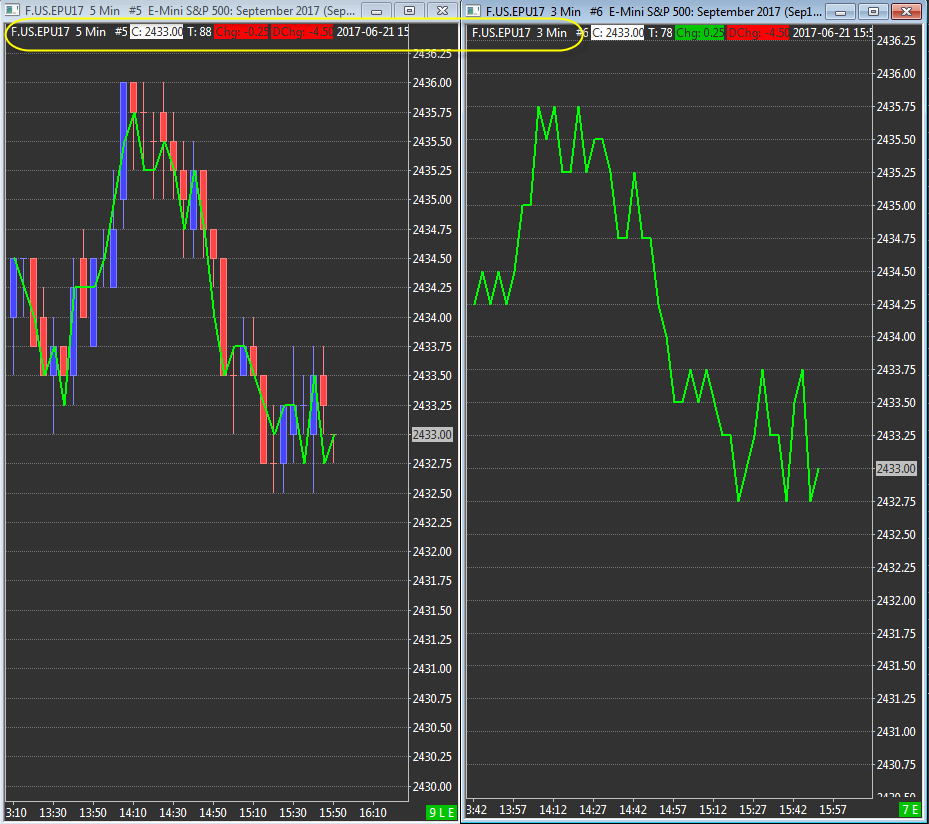

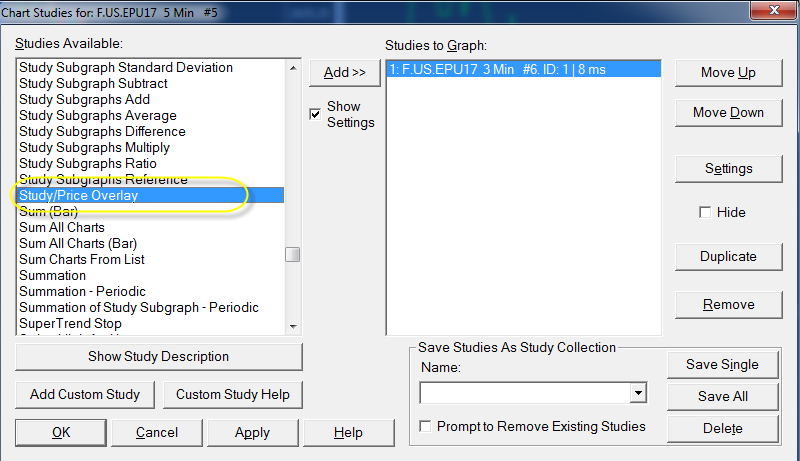

File attached


11.png / V - Attached On 2017-06-21 03:56:44 UTC - Size: 49.29 KB - 278 views 12.png / V - Attached On 2017-06-21 03:56:53 UTC - Size: 53.47 KB - 256 views

[2017-06-21 18:51:03] #4 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
In the fifth chart I want line charts comparing the four symbols but with a time frame of 5 seconds. Which one of your overlay studies is the right one to use? Do I also need 5 second individual symbol charts open? You will want to use the Study/Price Overlay study: http://www.sierrachart.com/index.php?page=doc/StudyPriceOverlayStudy.php If you want the overlaid graphs to also be 5 seconds per bar, you do need to have separate charts for them open with them set to 5 seconds per bar. In a future release, this will not be necessary, but for now you can always hide those charts with Window >> Hide Window. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2017-06-21 18:51:40
