Support/Resistance indicator

[2013-08-14 16:20:38]
User59821 - Posts: 6
is there a study that will show where prior sup/res/pivots are.i believe Ninja has something called 'Swing' which will print dots or lines - and the longer the line==the stronger the S/R
thank you in advance
[2013-08-14 16:30:10]
Sierra Chart - Max - Posts: 4972

Please refer to the documentation here on how to add a study to your chart:
http://www.sierrachart.com/index.php?l=doc/doc_ChartStudies.html#AddingStudiestoaChart


Sierra Chart does have the following studies:

Swing High and Low - http://www.sierrachart.com/index.php?l=doc/doc_TechnicalStudiesReference.html#s242
Pivot Points - http://www.sierrachart.com/index.php?file=doc/doc_PivotPoints.html#s87

And many others.
Sierra Chart Support
[2018-01-26 18:39:52]
User202045 - Posts: 11
Is there a way to extend the line drawn by the swing indicator to the right until it hits either a price bar or the right side of the screen? That would make it more valuable for showing support/resistance when the high/low is to the left of the visible portion of the chart.
[2018-01-26 19:13:36]
Sierra Chart Engineering - Posts: 97762
This is supported with the Swing High/Low study. Refer to the Input descriptions here:
https://www.sierrachart.com/index.php?page=doc/StudiesReference.php&ID=242&Name=Swing_High_and_Low

Input: Extend Swings Until Future Intersection
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. If possible please keep your questions brief and to the point. Please be aware of support policy:
https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation

If your question/request has been answered and you do not have anything further, then it is easiest for us if you do not reply again to say thank you.
Date Time Of Last Edit: 2018-01-26 19:16:00
[2021-07-26 22:21:24]
GravisHTG - Posts: 186
I try to Study overlay Swing High Low with extend line until further intersection from a 1d chart to a 1 Min chart and It won't show up on the chart.

I manage to show the extension lines with the copy extension line enable, the only problem is that they do not mimic the cancel when hit.
Date Time Of Last Edit: 2021-07-26 22:52:53
[2021-07-27 13:27:03]
John - SC Support - Posts: 10622
Can you please give us an image of what you are seeing. You can get an image by following these instructions:
https://www.sierrachart.com/index.php?page=PostingInformation.php#PostingAnImage
[2021-07-27 16:57:22]
GravisHTG - Posts: 186

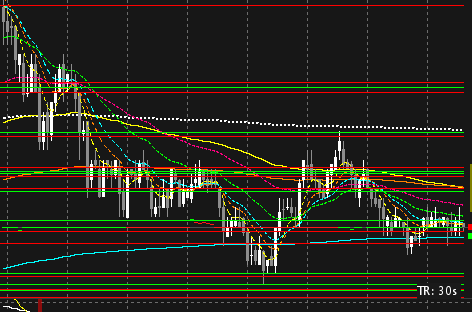

Like this, It copies every single line no matter if it was removed by a price hit on the main chart.
imagecopy line extended.PNG / V - Attached On 2021-07-27 16:57:04 UTC - Size: 14.21 KB - 33 views
[2021-07-27 17:04:02]
John - SC Support - Posts: 10622
Please get us your Chartbook with the required charts in it for us to take a look. Follow these instructions, but be sure you include the two charts (or more) that are needed:
https://www.sierrachart.com/index.php?page=doc/PostingInformation.php#ProvidingChartbookSingleChart
[2021-07-27 17:29:40]
GravisHTG - Posts: 186
ok I made a chartbook explaining the point.

Chart Day and Hour are the main charts

1 min and 15min plot the studies in themself.

Was wondering why it does not stop the line when it's cut from the main chart.

But now, I kinda find a way to be helpful and, like it like that.

But it can be nice if we can have both options available, to keep or not to keep all the extended lines from the main charts.
Attachment Deleted.
attachmentChartbook for showing.Cht - Attached On 2021-07-27 17:27:38 UTC - Size: 15.56 KB - 23 views
[2021-07-27 18:17:00]
John - SC Support - Posts: 10622
The reason why the Extended Lines are not stopping is because most of them start (and end) well before the dates that are being displayed in the 1 minute chart. The 1 minute chart is only showing 11 days of data, whereas the Daily chart has 731 days. Therefore, the end date for those extension lines does not exist in the 1 minute chart so they are not stopped. If you set the two charts to have the same number of days, then they would show properly.

On an aside, the lines for the Swing High/Low are not showing in the Overlay Chart since the Subgraphs are set to Ignore. To display them in the 1 minute chart you would need to change the Input for Use Styles and Widths from Source Study to No, then change the Subgraph style to a Line.
