CCI Indicator as candle (2)
View Count: 1282
| [2016-09-09 18:23:15] |
| User468533 - Posts: 5 |
|
With respect to a previous suuport message with the title; "CCI Indicator as candle" An example .cht file was attached to reslove the query. This .cht file will not load/is just a blank screen when loaded? Thanks Date Time Of Last Edit: 2016-09-09 18:53:31
|
| [2016-09-09 18:40:01] |
| |
|
You may need to change the symbol of the chart to match the symbols used by the particular Data/Trading service you are using. Refer to: http://www.sierrachart.com/index.php?page=doc/SwitchingSymbols.html For what you want to do you need to use this study: https://www.sierrachart.com/index.php?page=doc/TechnicalStudiesReference.html#s149 Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2016-09-09 18:40:28
|
| [2016-09-10 07:21:08] |
| User468533 - Posts: 5 |
|
Actually it seems that there is an error with the file that was uploaded with the previous query: "encountered invalid field code (91) whilst reading chartbook file" I have used the study as described; ie an overlay OHLC on my current chart to place the cci indicator from another chart on this chart. However, the graphical output is not showing up as candles, or as OHLC (depending on which I select to display from the settings) Any ideas? Thanks |
| [2016-09-10 07:41:12] |
| |
|
We need to see what you are actually seeing when using the Study Overlay-OHLC study. Provide an image of the chart, by following these instructions: http://www.sierrachart.com/index.php?l=PostingInformation.php#Image Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2016-09-10 08:01:55] |
| User468533 - Posts: 5 |
|

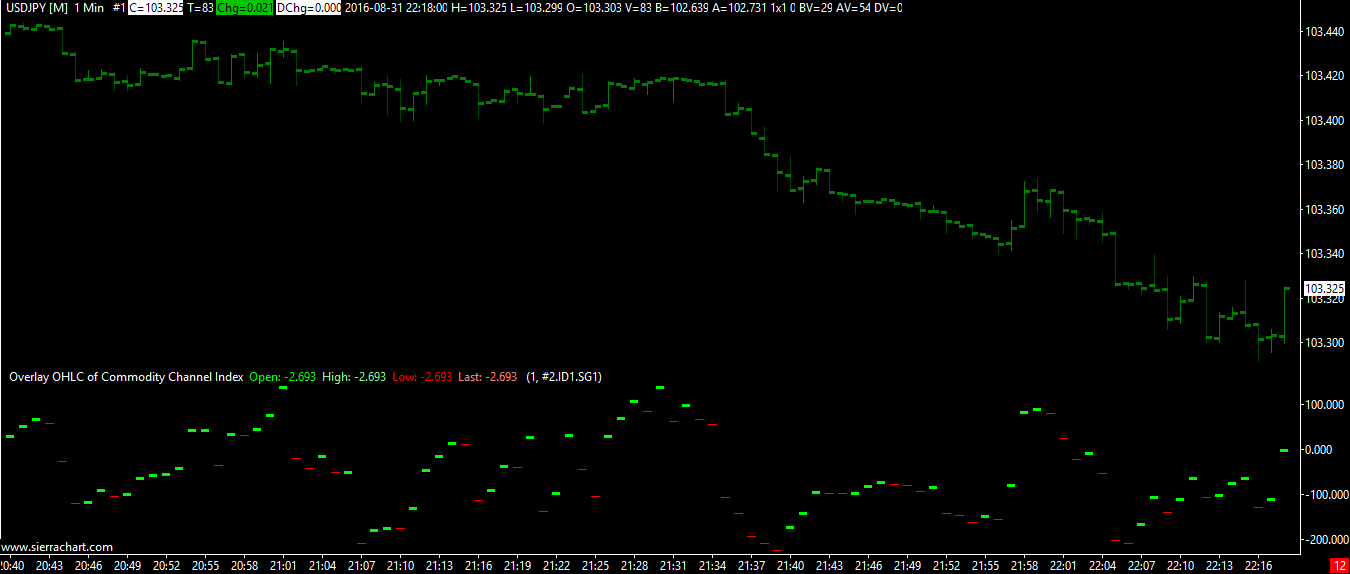

Here it is; http://www.sierrachart.com/image.php?Image=1473494398465.png Thanks |
| [2016-09-10 10:21:22] |
| |
|
The #2 chart that contains the source study needs to be set to a shorter time frame per bar like 10 seconds.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2016-09-10 11:04:14] |
| User468533 - Posts: 5 |
|
OK this is better. Although not quite there yet; a) I dont see any tails on the candles? b) How do I display a CCI candle output that corresponds with the price bar period on #1, rather than the price bar period on chart #2? Thanks Date Time Of Last Edit: 2016-09-10 12:10:52
|
| [2016-09-11 22:38:22] |
| |
|
We see proper candlesticks in our test using the Commodity Channel Index. What is the Graph Draw Type for the overlay study set to? Provide an image of the chart, by following these instructions: http://www.sierrachart.com/index.php?l=PostingInformation.php#Image We also added this to the documentation for the Study Overlay-OHLC study: To be able to view the High and Low values for a study based upon a higher timeframe per bar but the study is calculated on a shorter timeframe per bar chart, it is necessary to adjust the Length Inputs of the study on the shorter timeframe per bar chart. The study will need to have its Length Inputs increased by the amount which is equal to the higher timeframe divided by the shorter timeframe. For example, if the study is applied to and being calculated on a 1 second chart and it is overlaid on a 1 minute chart, then you will need to increase the Length Inputs by 60 times. This is imperfect, but it does give some approximation.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
