Problem with Study Price overlay - time shift
View Count: 1066
| [2016-06-25 10:59:49] |
| nicktrader - Posts: 748 |
|

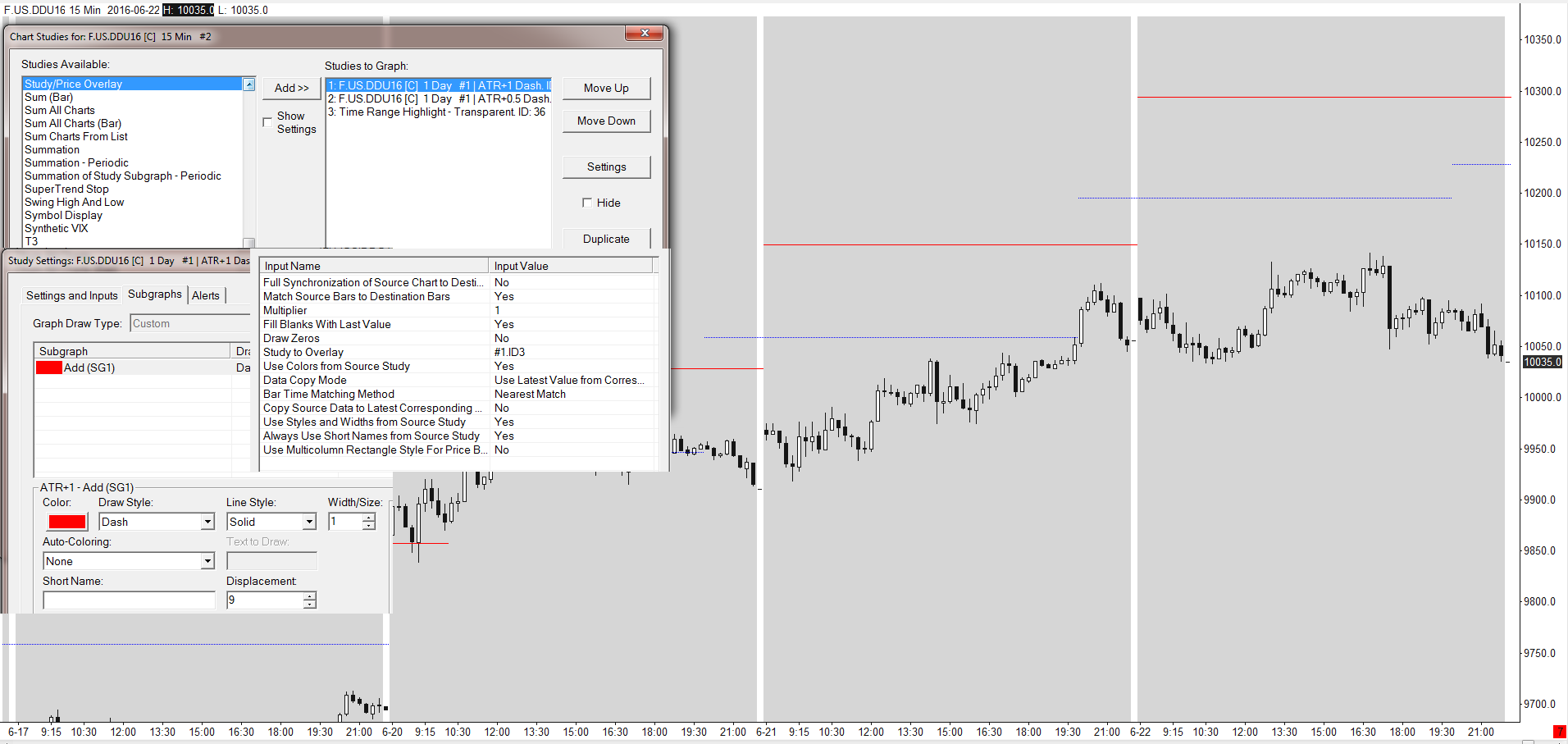

In the attached chart - M15 - I am using two times the Study "Study/ Price Overlay". In both cases the source is a 1 Day Chart (Intraday). Opening Time of the EUREX 08:00 - 22:15 and for all charts I am using Brussel's time. To get a correct line representation I have to take a displacement of more than 2 hours. Here in that case I made a displacement of 9 for the red line. The blue line do not have any displacement. I have the feeling that this error is in connection with the time zone UTC because the time shift is exactly two hours |
 Study Price Overlay.png / V - Attached On 2016-06-25 10:41:06 UTC - Size: 89.92 KB - 290 views |
| [2016-06-25 11:19:45] |
| nicktrader - Posts: 748 |
|
Additional remark As you can see in the attached file it is much more complex. If you take a look on the red line only in some cases the line is correct (with a time displacement of 9) but in other cases the line is too long or it starts 9 times later. The blue line to not have any displacements |
| Study Price Overlay II.png / V - Attached On 2016-06-25 11:15:57 UTC - Size: 34.82 KB - 294 views |
| [2016-06-25 12:18:16] |
| |
|
Disregard the prior response, it was not correct. Based upon what we understand you want to do, you need to set the Bar Time Matching Method Input to Containing Match. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2016-06-25 12:19:15
|
| [2016-06-26 02:17:46] |
| nicktrader - Posts: 748 |
|
Please take a look here
|
Private File |
| [2016-06-26 05:54:20] |
| |
|

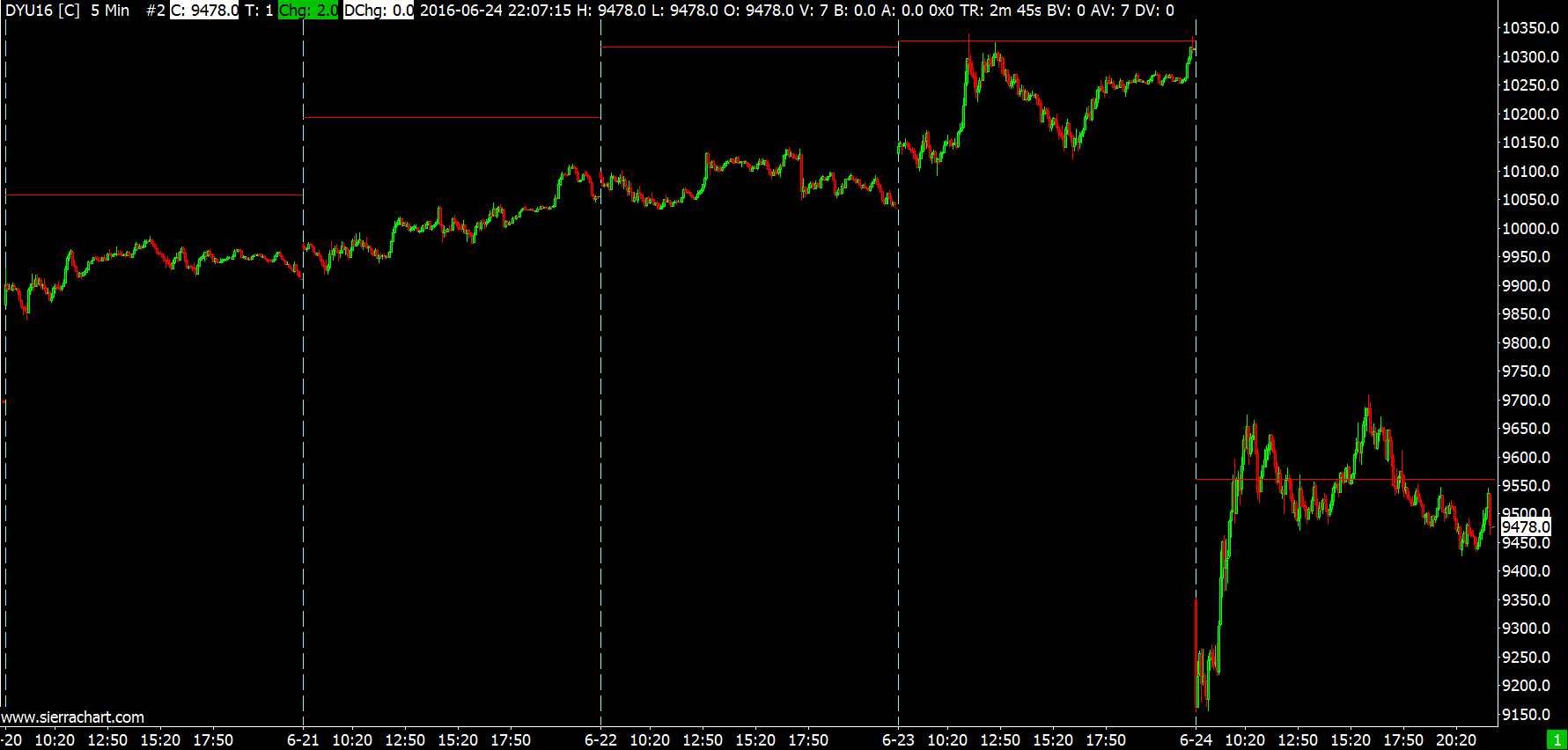

Do not use a Displacement setting for the Subgraph. We will not support that. That inherently makes this very complicated and confusing even for us. We have removed the displacement. We have set the Study/Price Overlay study to use a Containing Match and there appears to be a good result now: http://www.sierrachart.com/image.php?Image=1466920391480.png The chart only shows one instance of the study for simplicity. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2016-06-26 07:06:00] |
| nicktrader - Posts: 748 |
|
It works brilliant. Thanks In what cases I have to use the Containing Match? |
| [2016-06-27 19:42:24] |
| |
|
In this case you would need to use Containing Match. It depends upon what exactly you are trying to accomplish. Refer to the documentation for the Bar Time Matching Method Input for the study.
Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
