How to Post a Message for Support

6E Market Profile

View Count: 1177

[2015-07-29 00:01:57] #1 [Go To First Post]
User32070 - Posts: 4
I am trading the 6E Euro and my trading hour starts at 5:20 Pacific Time. I was wondering if it is possible to set up TPO Market Profile from 5:20 to 5:30 and then 5:30 to 6:00, and from there continue every 30 minutes chart. I set up the 5:20 but then it is giving me chart from 5:20 to 5:50, 5:50 to 6:20 and so on, I do not like this way because . I am missing some information. Thank you very much

[2015-07-29 01:22:40] #2 [Go To First Post]
Acro - Posts: 436

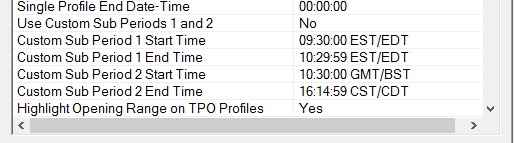

Hi, You just need to go into the study settings for your TPO study and enable Custom Sub Periods and set the start time and end time for custom sub period 1 to be 5.20 and 5.30 Pacific Time and custom sub period 2 to be 5.30 to 6.00 - see the inputs that you need to change in the attached screenshot. Date Time Of Last Edit: 2015-07-29 01:23:32


Screenshot 2015-07-29 09.19.41.jpg / V - Attached On 2015-07-29 01:20:57 UTC - Size: 37.9 KB - 356 views

[2015-07-29 10:57:24] #3 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
There is a much better way. Use the 30 Minute Letter/Block Subperiod Handling input. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing

[2015-07-29 15:16:22] #4 [Go To First Post]
User32070 - Posts: 4
I got the time change on the Profile , the periods changed the way I need them (5:20 to 5:30 and 5:30 to 6:00) but the data has some discrepancies, so far some ticks are missing in the periods and some periods have extra ticks when I compare with my Bar Chart (both are from the same broker's data). For example : today 07/29/15 my profile on the Euro (6E) My PROFILE ON THE EURO (6E) PACIFIC TIME My BAR CHART pacific time 5:20 to 5:30 H: 1.1044 - L:1.1037 5:20 to 5:30 H: 1.1044 L:1.1037 5:30 to 6:00 H: 1.1065 - L:1.1041 5:30 to 6:00 H: 1.1065 L:1.1041 6:00 to 6:30 H: 1.1065 - L:1.1047 6:00 to 6:30 H: 1.1065 L:1.1040 6:30 to 7:00 H: 1.1049 - L:1.1039 6:30 to 7:00 H: 1.1049 L:1.1036 7:00 to 7:30 H: 1.1049 - L:1.1036 7:00 to 7:30 H: 1.1047 L:1.1038

[2015-07-29 17:34:24] #5 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
Are both of the charts you are comparing on the same instance of Sierra Chart? If not, then that most likely is the reason for the problem. How are you making this comparison? Post a chart image of each showing these differences you are describing. Here are instructions: https://www.sierrachart.com/index.php?page=PostingInformation.php#Image Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2015-07-29 17:35:22

[2015-08-18 16:08:14] #6 [Go To First Post]
User32070 - Posts: 4
the PTO profile on the 6E works perfect every 30 minutes until 6am pacific time i set up from 5:20 to 5:30 , 5:30 to 6:00 works perfect with the 5:20 open after 6:00 the 30 minutes change is 6:20 to 6:50 , 6:50 to 7:20 so on ....if you guys can help me get the profile from 5:20 to 5:30 -5:30 to 6:00 - 6:00 to 6:30 - 6:30 to 7:00 all the way to the close which is noon pacific will be nice , thanks

[2015-08-18 18:22:55] #7 [Go To First Post]
Sierra Chart Engineering - Posts: 104368
What does "PTO" stand for? It sounds like you will want to use the "30 Minute Letter/Block SubPeriod Handling" TPO Profile Chart study Input to handle this: https://www.sierrachart.com/index.php?page=doc/doc_TPOVolProfileCharts.html#30MinLetterBlockSubPeriod Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, change to the Teton service: Sierra Chart Teton Futures Order Routing
