[User Discussion] - Strength Meter

[2015-07-13 21:44:19]
toews&kane - Posts: 184 | Ending Date: 2021-04-18
Hi there,

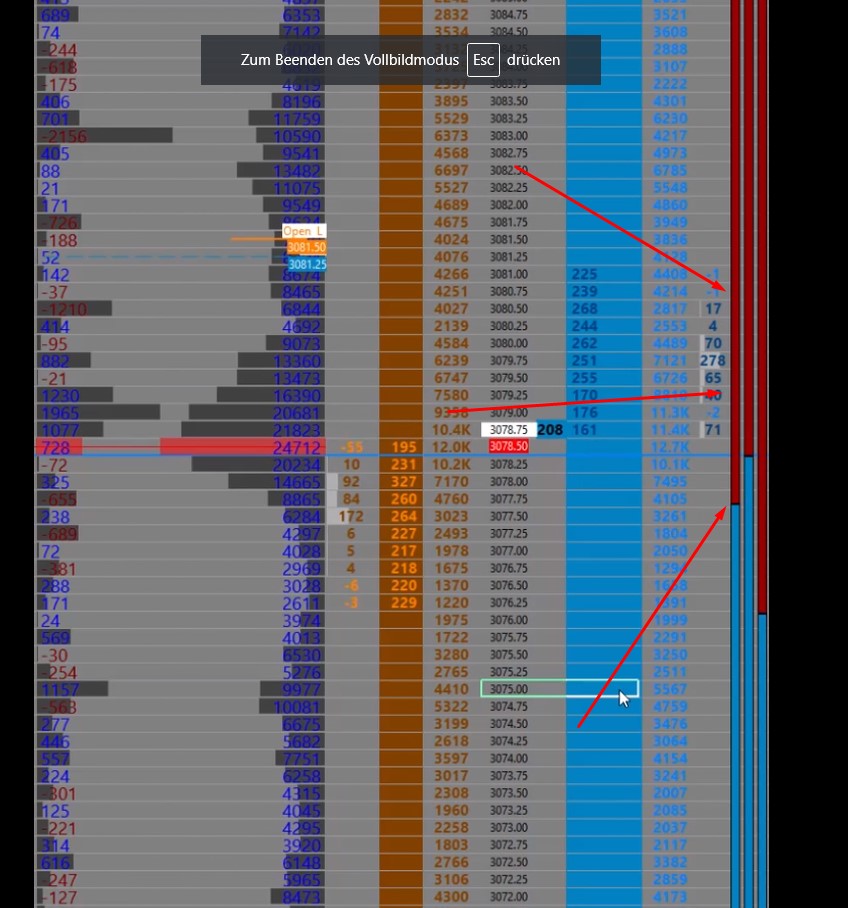

This might be a tough one but, I've looked are there any functions that can give me this functionality? On the top right hand side of the screen I want to have a setup that shows a "Strength Meter" telling me what market orders are hitting for ex. 4667 vs 4493 (top right of the screen).

I think it would really help.

Date Time Of Last Edit: 2015-07-14 18:58:59
imageCapture.PNG / V - Attached On 2015-07-13 21:43:34 UTC - Size: 765.53 KB - 837 views
[2015-07-14 18:59:20]
toews&kane - Posts: 184 | Ending Date: 2021-04-18
Anybody know anything about this?
Any input would be greatly appreciated
[2015-07-15 18:12:51]
toews&kane - Posts: 184 | Ending Date: 2021-04-18
Thanks for your help guys! I will try to figure this out, please don't hesitate to let me know if you have any findings
[2015-07-15 22:30:21]
Sierra Chart Engineering - Posts: 87398 | Ending Date: 2021-04-05
What are the numbers 4667, 4493?
Sierra Chart Support - Engineering Level

Your definitive source for support. Other responses are from users. If possible please keep your questions brief and to the point. Please be aware of support policy:

If your question/request has been answered and you do not have anything further, then it is easiest for us if you do not reply again to say thank you.
[2015-07-15 23:50:55]
User52989 - Posts: 42 | Ending Date: 2012-12-30 [Expired]
I think what he's saying is having the total bids/offers show as two raw numbers, say 10 levels deep on the DOM, but instead of having to see the entire DOM, have the 2 numbers showing aggregate bids/offers. This could indicate to the trader either lack of liquidity or strong imbalance of bids to offers. I think it'd be a great tool.
[2015-07-15 23:52:05]
User52989 - Posts: 42 | Ending Date: 2012-12-30 [Expired]
To answer your question, the examples he gave of 4667 x 4493 I think were the hypothetical number of resting orders on the bid/offer 5-10 levels deep.
[2015-07-16 12:49:40]
User11942 - Posts: 298 | Ending Date: 2019-02-11 [Expired]
All those meters are described in detail here:
[2019-02-05 12:10:09]
kremat0r - Posts: 23 | Ending Date: 2021-06-26
Does this request still lives?

"What are the numbers 4667, 4493?" This is bid/ask from last 60 second. Other colums have longer time period. Each can be reset to zero when we want. Very useful.
[2019-03-15 01:39:37]
User525733 - Posts: 108 | Ending Date: 2019-08-20 [Expired]
[2019-03-15 03:08:57]
whats1thingnow - Posts: 273 | Ending Date: 2020-10-02
[2019-03-15 05:08:21]
toews&kane - Posts: 184 | Ending Date: 2021-04-18
Thanks reviving this old thread, forgot all about it.
I was trying to not refer to the jigsaw dom. It will be great if I can see out of the corner of my eye a quick high level which way the market is leaning.
[2019-03-15 06:24:33]
Ackin - Posts: 1065 | Ending Date: 2020-09-04

It isnĀ“t difficult.I'll try to do it...
[2019-05-10 22:53:10]
User525733 - Posts: 108 | Ending Date: 2019-08-20 [Expired]
when are we gonna see this? it's been requested over and over and over
[2019-06-22 22:17:26]
Woodzy - Posts: 17 | Ending Date: 2020-07-28
I was searching for the same, we can get the data easy enough but I'm not sure how best to display.

Open a 1 second chart (Reduce days to load) then use the Summation Periodic Study.

Input data = Bid Volume, length = whatever you want to calculate in seconds for example 300 seconds (5 minutes), change value format to 1. Add the study again this time for Ask Volume.

The reason to use it this way using the data from a 1 second chart rather than 5 minute chart (or any other time frame) is this study continually calculates the values each second. If a 5 min chart was used the values would reset to zero at the start of each new bar.

Simply display using Text Display Study, or there must be a better way to visually display using the Study Subgraph Reference options.

For now I'm going keep the 1 second chart out the way minimized and use Text Display For Study from Chart to display on charts I'm using.

Let us know if there is way to display this data graphically in strength meter form as originally requested.
imagestrength_meter.png / V - Attached On 2019-06-22 22:16:52 UTC - Size: 106.98 KB - 441 views
[2019-08-09 07:39:54]
seandunaway - Posts: 138 | Ending Date: 2021-07-10

If Engineering added a Draw Style that would color the background separately above and below the plot value, then we could make our own Jigsaw style power meters!

Additionally, if we could get "Study Subgraph Min" and "Study Subgraph Max" then we could plot min delta and max delta.

I think... I'm new to SierraChart study hackery.. but fun! Such powerful software. :)

Unfortunately, none of this will really make us any money and only waste time messing with it and would have a user base of about 4, haha.

Concept attached (left is the existing method from #14)
Date Time Of Last Edit: 2019-08-09 07:58:07
imagedom power meter.png / V - Attached On 2019-08-09 07:38:42 UTC - Size: 63.4 KB - 438 views
[2019-08-10 12:07:20]
Ackin - Posts: 1065 | Ending Date: 2020-09-04
Interesting idea. If you want, I recoded your collection to graphics solutions - rectangle. (update will be at night on our forum)
imagestr met.png / V - Attached On 2019-08-10 12:07:17 UTC - Size: 36.12 KB - 377 views
[2019-08-10 18:26:50]
Woodzy - Posts: 17 | Ending Date: 2020-07-28
Ackin thanks for making this, I have just tested on replay it works.

I also added the text of the volume using the original idea I had and the simple Text display for study, or Text display for study from chart (see image attached)
imagestrength_meter_test.png / V - Attached On 2019-08-10 18:26:22 UTC - Size: 77.45 KB - 507 views
Attachment Deleted.
[2019-08-10 19:45:52]
Ackin - Posts: 1065 | Ending Date: 2020-09-04
Ackin thanks for making this
Not me, thanks belong to you for your idea. I only created it.

There will be other improvements and contraindications with depth of market. I want to connect it. More info about it in the discussion below the study description on the forum.
[2019-08-10 20:45:59]
seandunaway - Posts: 138 | Ending Date: 2021-07-10
Impressive, Ackin! I'd like to join your forum..

edit: thank you! :)
Date Time Of Last Edit: 2019-08-10 20:56:07
[2019-08-13 08:15:01]
Ackin - Posts: 1065 | Ending Date: 2020-09-04
to Woodzy)

update: see attached picture
- 1,2,3 period for calculation
- color of box (select your)
- axis-Y (0-100) you can hide (chart settings)

I made also "Reset button" yestarday and I'm testing it now....

next STEP:
after it remain only coloring by conditions (median, max interval, delta in time etc... )

I am already working on a version for Limits and maybe for comparison between Limits vs Markets at the same time. I know it is visible in the DOM .... but in trading it's possible to overlook it. I prefer automatic alerts.

Check CZ/SK forum for news about this and download free update file
imagestr-8.png / V - Attached On 2019-08-13 08:10:16 UTC - Size: 11.87 KB - 361 views
[2019-08-14 10:35:40]
Ackin - Posts: 1065 | Ending Date: 2020-09-04

Reset button - manually by user

Reset function1 - automatically when start new trade
Reset function2 - automatically when change direction/slope summation
Reset function3 - automatically when delta break user definied value
Reset function4 - automatically when delta break max or min from period

Coloring - median, percent delta

working on:
Reset function5 - automatically large trade

Button (+ reset function - user selection in the study settings) will be in the weekend update

next suggestions?
[2020-06-21 12:24:20]
Ackin - Posts: 1065 | Ending Date: 2020-09-04
I'm going back to a few unfinished items in this profile.

The main requirement was to restart manually or using your trade, any other requirements?
[2020-06-21 12:39:13]
Ackin - Posts: 1065 | Ending Date: 2020-09-04
First update:

-change of the calculation core from whole bars to the calculation "atprice", the reason is the requirement for an S-meter only, for example, from 20 ticks above and below the current price
- preparation for reset function

- Addition of several user-selectable calculation types to sharpen changes

- improved loading and calculation up to max 5ms

- creation of a reference study which plots the ratio in another graph in the form of a user-defined zone. It is thus possible to see historically where the ratio of both sides was. Finally, speculations about the usefulness of this tool will be resolved

update tonight or tomorrow night
Date Time Of Last Edit: 2020-06-21 13:05:40
[2020-06-23 00:40:07]
Ackin - Posts: 1065 | Ending Date: 2020-09-04

- change calculation from whole bars to the calculation "atprice"
- auto reset by user trade Entry, auto reset by user trade Exit
- type calculation Ask/Bid, filtered Ask/Bid at price,filtered Ask/Bid delta at price,filtered Ask/Bid delta diagonal, MA's, Ask/Bid Median ... etc other 12 types

So far only one Meter for the test, in the end there will be three again with a shadow of the last few movements ....

Next update in two days
[2020-06-23 17:32:08]
Ackin - Posts: 1065 | Ending Date: 2020-09-04
Your requests:

Reset by ColorBar based on alert condition - Done
Reset a meter with a button manually - Done
Reset meter on opening of a position - Done
add item Uptick/Downtick - Done
add Ask/Bid Trades - Done
Filtering by bars vol - Done
At_price: Counting diagonal imbalances for user period - Done
At_price: Filtering by vol - Done

Update tonight

Other req. in progress:
Reset all open meters simultaneously with a single button manually.
show accumulated bid vs accumulated ask volume over a number of ticks (user defined)
Date Time Of Last Edit: 2020-06-23 17:33:42
