Levels on DOM
View Count: 1523
| [2015-04-05 09:58:03] |
| User17477 - Posts: 65 |
|

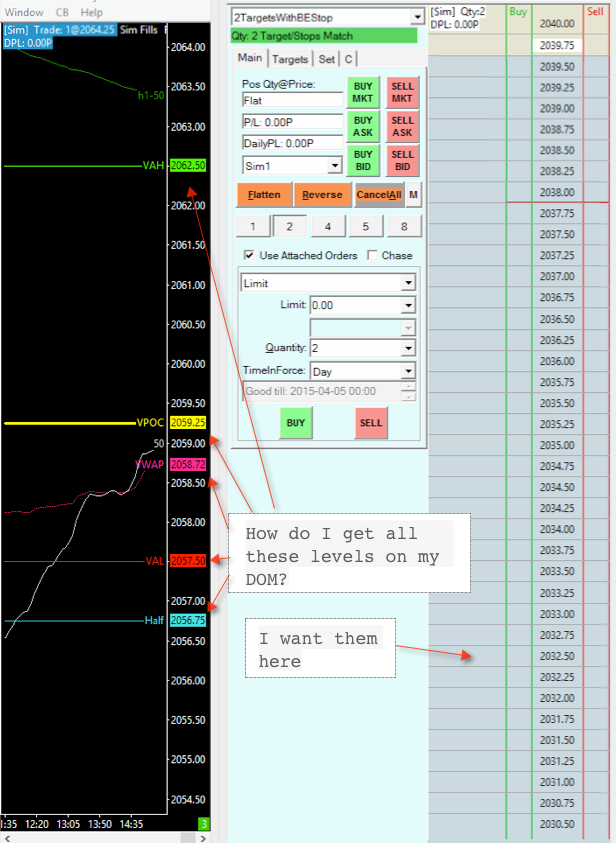

Hi Sierra Chart support, I want to have the levels from the chart on the left of the image on my DOM. Please see the screenshot. Can you please help me with the steps required to do this? thanks |
 dom levels.jpg / V - Attached On 2015-04-05 09:57:35 UTC - Size: 394.22 KB - 543 views Attachment Deleted. |
| [2015-04-05 17:09:31] |
| i960 - Posts: 360 |
|
If you're talking the price axis itself, then you don't - and quite honestly it probably wouldn't make a lot of sense because the scale is entirely different and independent from the DOM scale. But if you're taking the value and name labels - then yeah, that would make a lot of sense for the trading DOM to reflect from the main price axis.
|
| [2015-04-05 18:19:36] |
| User17477 - Posts: 65 |
|
It is the value and name labels. It can be done as I have seen this on other traders Sierra DOM. Im just looking for some help implementing this. All the value and name labels I am looking to add to the DOM are on one chart.
|
| [2015-04-06 18:43:04] |
| User52239 - Posts: 13 |
|
Did you try selecting studies from the analysis menu ? There are 3 studies available to add to the dom. volume profile study/price overlay last close line what you want can probably be done with the volume by price study. I have the previous OHLC added to the dom with the study/price overlay. I do have the volume profile added, but I dont use the labels. If that is a different study than volume by price , then select that study under the study/price overlay. 1. Highlight the dom title bar 2. Select Studies from analysis menu. 3 Select study/price overlay. 4 Under settings, select the study you wish to overlay on the dom. Date Time Of Last Edit: 2015-04-06 18:46:00
|
| [2015-04-07 03:18:57] |
| |
|
In response to post #1, here are the instructions: https://www.sierrachart.com/index.php?page=doc/doc_ChartTrading.html#AddingStudiesTradeDOM We recommend using the Study/Price Overlay study. The documentation links to that study. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing |
| [2015-04-10 06:56:30] |
| User17477 - Posts: 65 |
|

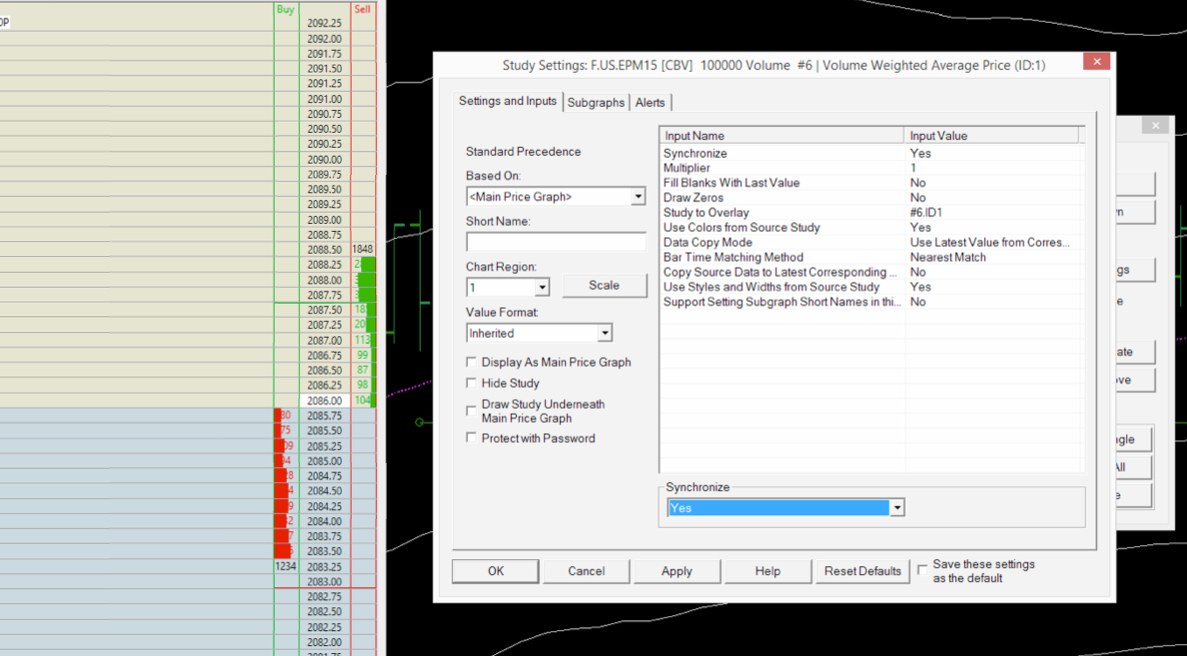

I had already tried this with no success. Pleas see my DOM and the setting used.
|
| for support.jpg / V - Attached On 2015-04-10 06:56:15 UTC - Size: 438.24 KB - 381 views |
| [2015-04-10 07:43:03] |
| |
|
Did you enable the Name and Value Labels for the Subgraphs on the source study? And set Fill Blanks with Last Value to Yes. And make sure the Chart Region for the Study/Price Overlay study is set to 1. We will update the documentation. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2015-04-10 07:46:17
|
