Auto-Coloring with Value on Low Draw Style
View Count: 1403
| [2015-03-07 02:28:56] |
| Bedhog - Posts: 168 |
|
Hello Support, I am currently placing the text value of volume on the bottom of each price candle using the Volume Study, and using the Color Bar based on Alert Study to draw a hashmark on the candles if the volume is > 1000. I would like to print the text value of volume ONLY if it is greater than 1000. One of the functions of Auto-Coloring is currently "Based on +/-" Could you add a feature in Auto-Coloring like "Based on >" and "Based on <" and a value input field ? Then the value would only appear when the criteria was met (i.e. hot pink when above 1000). That way, only the outliers would be printed on the chart. Thank you, |

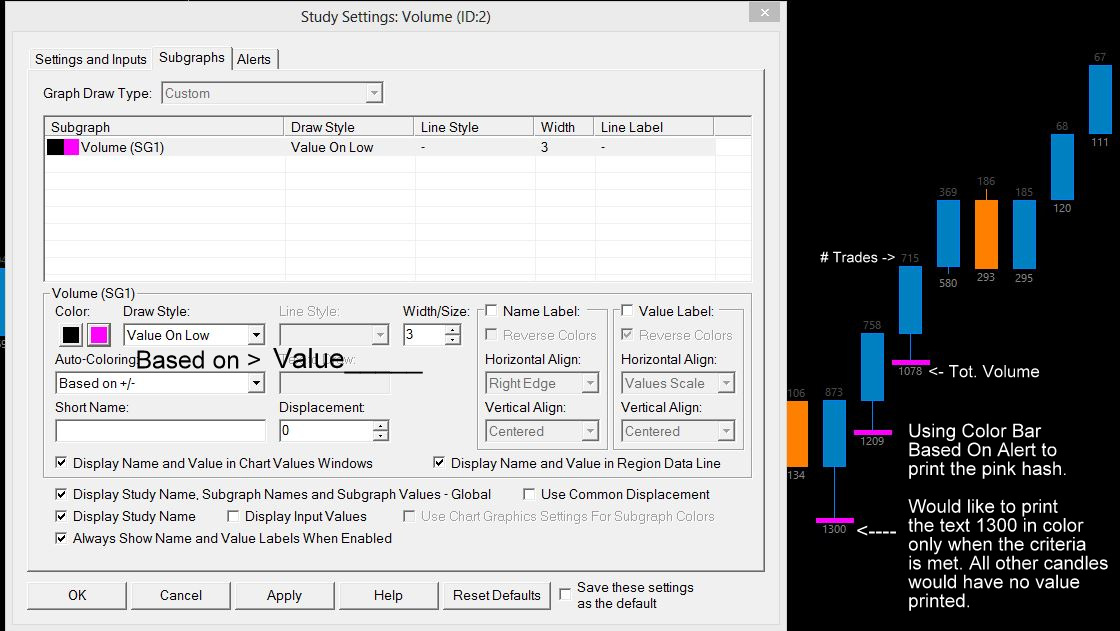

 volume-text2.jpg / V - Attached On 2015-03-07 02:27:38 UTC - Size: 167.09 KB - 389 views |
| [2015-03-07 13:03:23] |
| Sawtooth - Posts: 3993 |
|
Try this: 1) Check Hide on the Volume study 2) On the Color Bar Based On Alert Condition study: -set the Based On to the Volume study. -set Output When Condition True to Use Input Data -set Input Data to Volume -set the Draw Style to Value On Low -use a formula like this on the Alerts tab: =ID1.SG1>1000 where the Volume study is ID1 |
| [2015-03-08 06:07:42] |
| |
|
The suggestion given in post #2 is good. Also, a request like this is best done using ACSIL or what has already been given in post #2. It is not a feature that we think really needs to be added when there are other programmatic ways of doing something custom like this. Sierra Chart Support - Engineering Level Your definitive source for support. Other responses are from users. Try to keep your questions brief and to the point. Be aware of support policy: https://www.sierrachart.com/index.php?l=PostingInformation.php#GeneralInformation For the most reliable, advanced, and zero cost futures order routing, *change* to the Teton service: Sierra Chart Teton Futures Order Routing Date Time Of Last Edit: 2015-03-08 06:08:10
|
